I stopped building timberframes for other people a few years ago, but have felt that I still had at least one left in me... So, I designed a small five bent frame.

When time and money permitted, I dug a hole in a side hill.
[Thumbnail for P6070141.JPG]
[Thumbnail for P6070142.JPG]

tomas viajero
Posts: 38
2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
That was a couple years ago...
Then last year I put in a foundation...
[Thumbnail for P8140376.JPG]

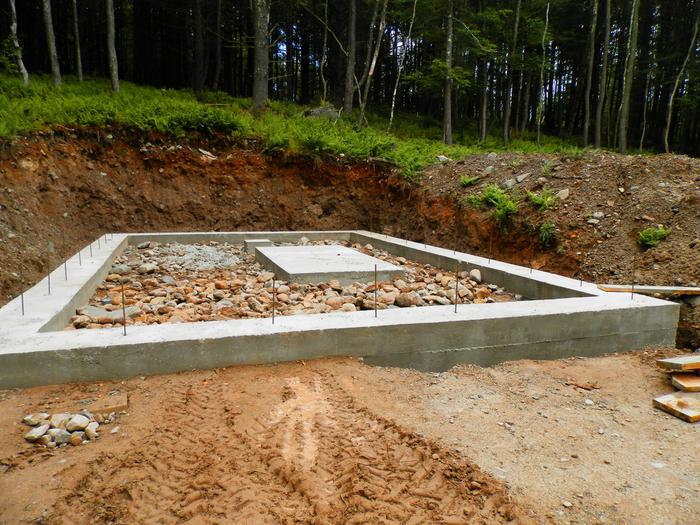

footings
[Thumbnail for P8210413.JPG]
started ICF blocks
[Thumbnail for P9060449.JPG]

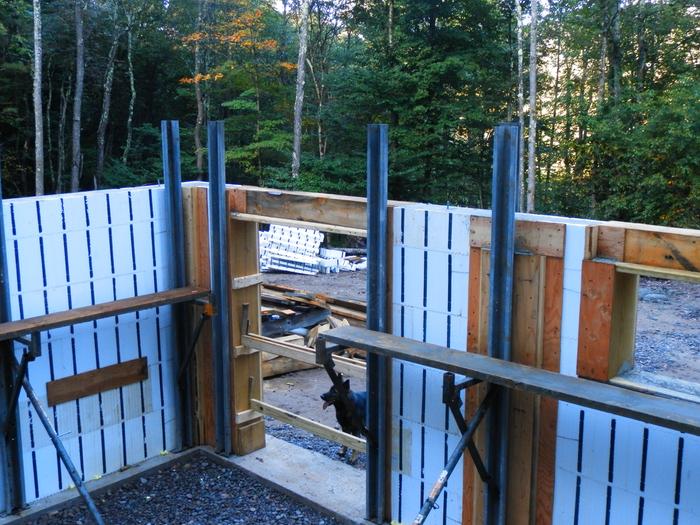

forms up and poured

tomas viajero
Posts: 38
2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
The poured concrete basement area made a perfect shop, once the first floor wood framing was installed and waterproofed.
[Thumbnail for P7210543.JPG]
walk-in basement
[Thumbnail for P7210552.JPG]
hemlock timbers inside waiting to be worked on, note the overhead hoist for moving heavy timbers

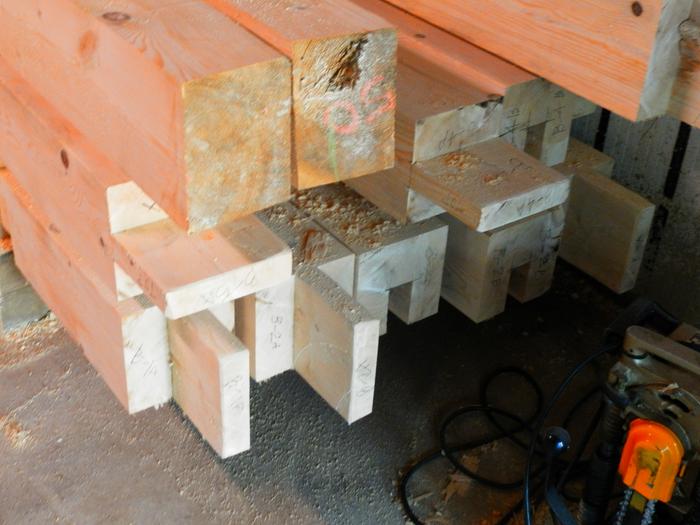

[Thumbnail for P7210554.JPG]
timber joinery underway

tomas viajero
Posts: 38
2
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

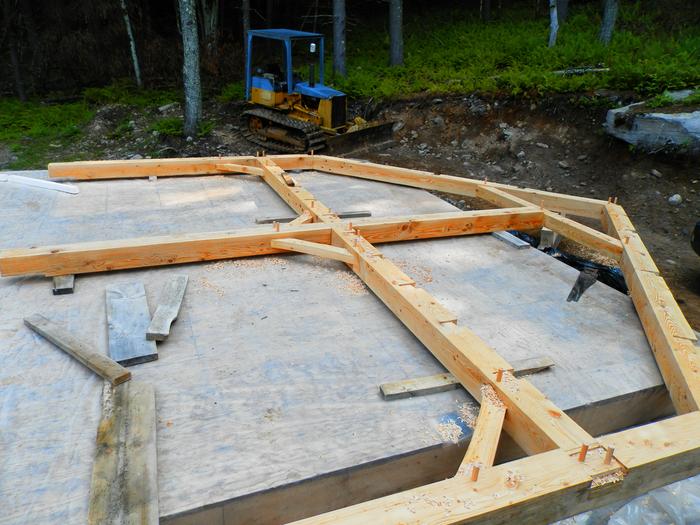

Last July we started assembling the bents on the deck.

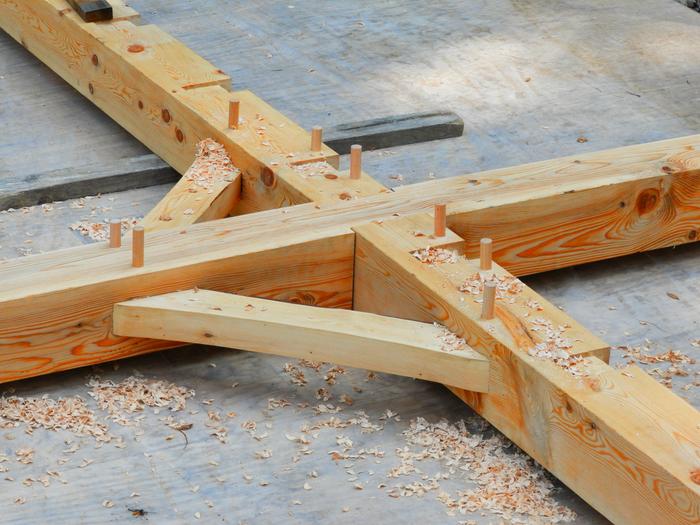

[Thumbnail for P8170610.JPG]
[Thumbnail for P8170612.JPG]

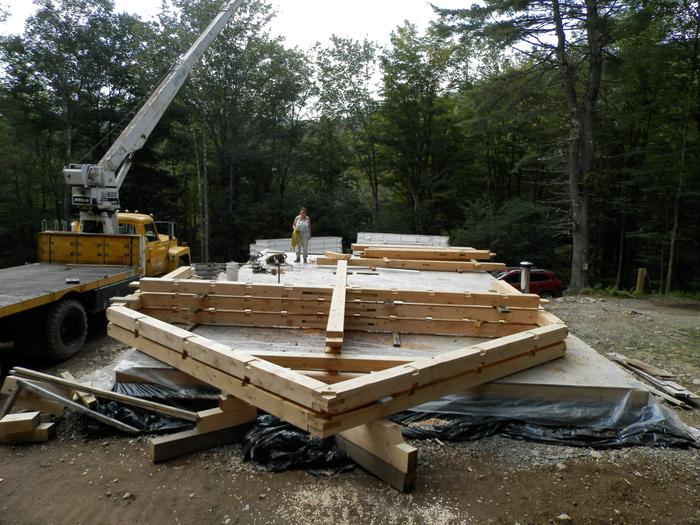

[Thumbnail for P8190638.JPG]

tomas viajero
Posts: 38
2
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Then, one morning in August we put up the frame.

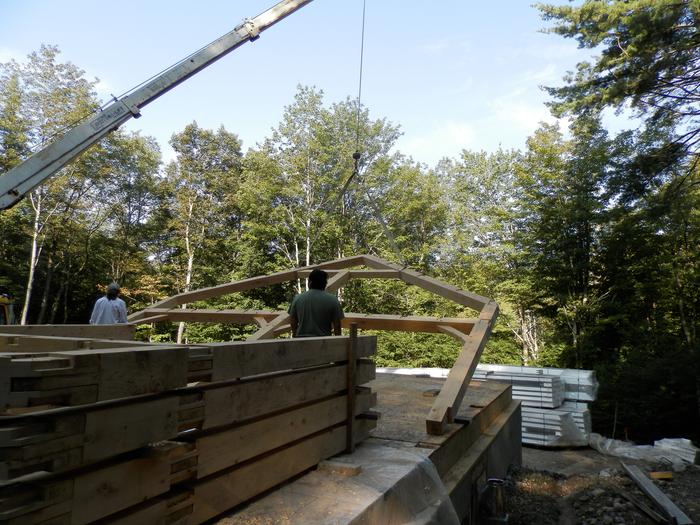

[Thumbnail for P8230649.JPG]
note the minimal crew
[Thumbnail for P8230697.JPG]
up they go... one by one
[Thumbnail for P8230728.JPG]
the boss looks happy

tomas viajero
Posts: 38
2
  • Likes 6
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
A few days later we finished all the girts and purlins. This is the prettiest phase of the job... before panels go on.
[Thumbnail for P8270751.JPG]
I wish I could just leave it like this.

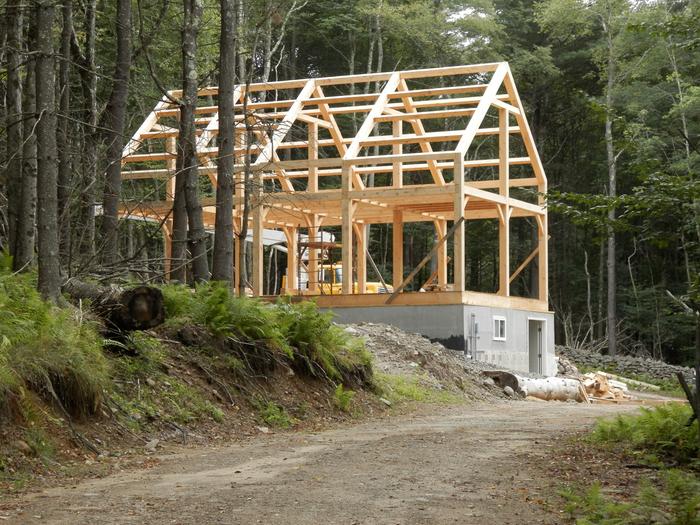

[Thumbnail for P8270755.JPG]
in the woods

Rob Bouchard
Posts: 41
Location: BC, Canada
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Very nice!

tomas viajero
Posts: 38
2
  • Likes 6
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
We put up EPS panels... 5.5"core walls and 12.25"roof... that's R-24+ walls and R-49+ roof... they look a bit haunting (and boring) from the outside, at first... but inside they're great. I have concerns about sufficient ventilation to deal with any off-gassing of the materials (the hemlock timbers, EPS core, OSB, pine decking, etc.) We'll have to see how the first winter goes with the place closed-in.
[Thumbnail for P9260771.JPG]
kinda dull looking
[Thumbnail for P9260765.JPG]
I like the interior at this point, before the 2nd floor decking is installed

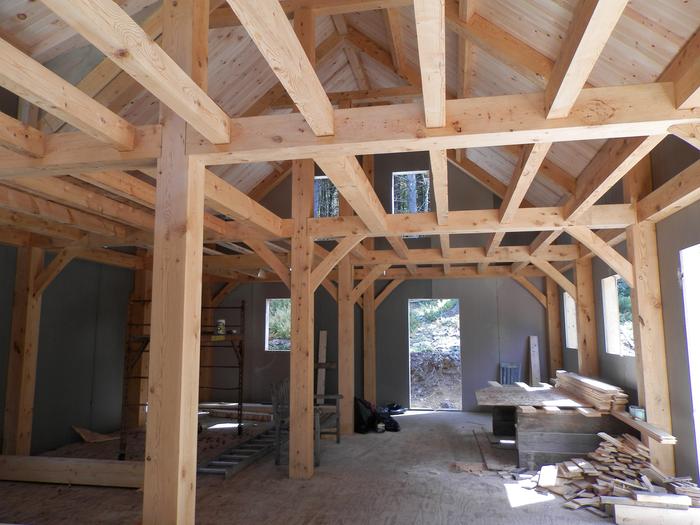

[Thumbnail for P9260768.JPG]
before 2nd floor 2x8 T&G decking is installed

tomas viajero
Posts: 38
2
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Just an update... this is basically how the house is now. You don't see the woodstove I installed a couple of days after I took these fotos, or the air exchanger to keep things 'fresh' inside. But the 2x8 t&g decking is
installed and will serve as both ceiling for the 1st floor and floor for the 2nd floor. Windows and doors have been installed and sealed. I intend to build a Masonry Heater in the center part of the house next year, but I'll have to wait for better weather to begin that. For now, it's just easy work to be done, like interior framing, electrical and plumbing. O&O. Chau.
[Thumbnail for PC190778.JPG]
outside view
[Thumbnail for PC190788.JPG]

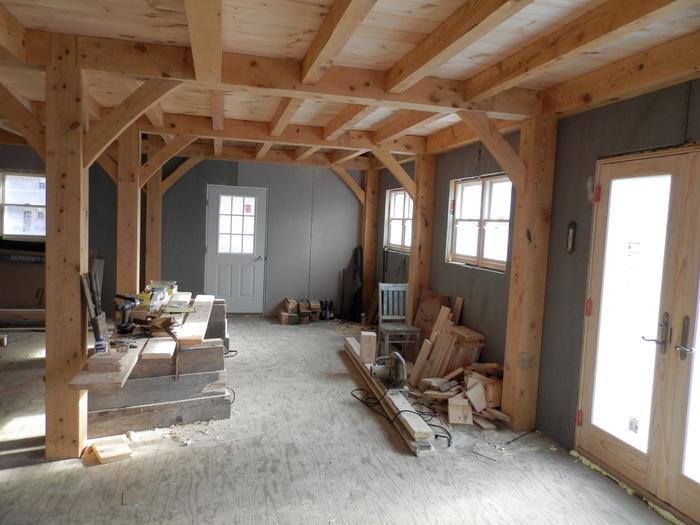

first floor without wood stove
[Thumbnail for PC190791.JPG]

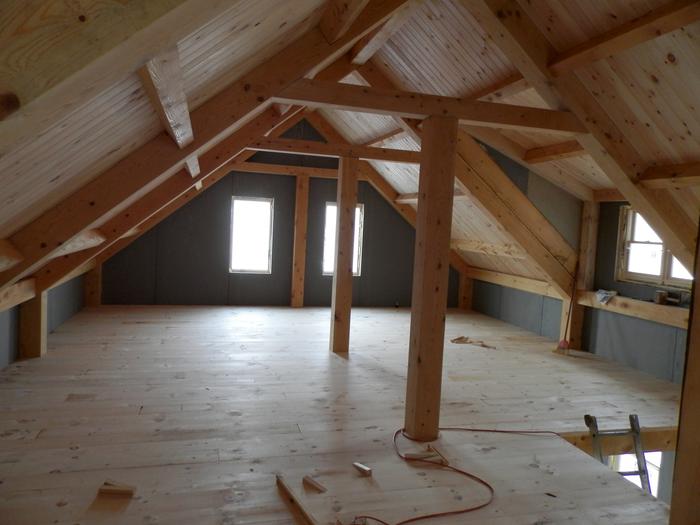

second floor as it is now

Susan Highfield
Posts: 2
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
That is beautiful.

Brett Hammond
Posts: 71
Location: Maryland, USA
4
solar tiny house woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I love it! Very nice job. Thanks for sharing photos.

What are the deminisions of the building? Size of timbers and spans between girts? How man man hours to build? What is used for shiething on the interior of the EPS panels? How do they attach to the house? How do you get plumbing/electrical through the EPS panels?


tomas viajero
Posts: 38
2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hi... thank you for the kind comments.
Lotta questions... I'll try to answer as coherently as I can.
The house is 23'x35' inside dimensions. or approx. 24'x36' outside dimensions, accounting for panel thickness. It's a small house.
The EPS panels on the walls are a sandwich of (from the outside) 7/16"OSB,5.5"EPS, 7/16"OSB, 0.5"sheetrock... which makes them about 6" thick. The roof panels are (from the outside) 7/16"OSB, 12.25"EPS, foil facing...making them almost 12.75". The wall panels are put up first and can be put up by a couple of strong people but I have an old crane onsite so I did them by myself. They're simply screwed to the frame 8"oc. with 8"screws, and splined together inside and out. The roof purlins are then covered by 1x6 t&g pine boards, (giving the interior a nice glow) and the panels are gently placed on that surface and with locations of purlins prepared screwed down with 14"screws. I had the panels pre-cut according to my plans with window and door openings carefully located so as to reduce on-site waste. The manufacturer also assured me years ago that they were able to recycle the waste EPS. Since I can't do that, it's a real plus. Planning for plumbing isn't a big problem, I just try to design in a location for a chase to go to the roof and put most of the plumbing below the first floor. Electrical is another story. I've run outlets in a kind of built-out baseboard... 1x9 on 3/8"spacers... hard to describe.. but the electrical is run behind the baseboard and on the surface of the sheetrock, with outlet boxes cut into the baseboard. Works well. For wall switches , I have to cut out sheetrock in a line, fasten romex to the OSB and cut out a switchbox. Messy but works well once it's taped. I don't like ceiling lights, but in the past I've fished them through channels cut into purlins or beams if a customer wanted track lighting of something. You just have to protect that wiring with metal plates so it isn't punctured by nailing at any point in the future. You never know.
Timbers: 8x8 for columns and beams; some 6x8 for perimeter purlins or at openings (like stairway of chimney); but mostly 4x6 for purlins spaced 2'oc for floor and 4'oc for roof. Collar ties are 6x6. Pegs are 1" oak.
I hope that helps...
Regarding man-hours? Who knows? I've designed and built many frames and speed is not my main concern. I think I started cutting joints in early July and had the frame up by the end of August. That's working by myself. I had some help (two inexperienced people) with the raising. I do have the advantage of some equipment onsite, tractor, crane, bulldozer, dumptruck. That helps a lot. But that hasn't always been the case.
I put up several of my first frames with a gin-pole, or raising off the back of a truck. We later advanced to leasing cranes before buying our own crane. The one I'm using now is not road-worthy so its owner had to get a new one , but the crane works very well. I was able to pick it up for the price of scrap. (And I can still sell it for scrap when I'm done.)
Just some thoughts.

Brett Hammond
Posts: 71
Location: Maryland, USA
4
solar tiny house woodworking
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Thank yo so much for the info, Tomas. That is a beautiful building. The perfect size for a basement workshop, and the house should be very easy to heat. I understand what you mean about the electric cables in the baseboard. I have seen that done in photos.

Where is the best place to get lumber for framing? A local saw mill? Or is there something special about preparing the wood for a timber frame?

Will you put any finish on your frame and ceiling wood to protect it from dirt and dust?

Thanks again for the info. Very cool! It is a manly home.


Steven Kovacs
Posts: 156
Location: Western Massachusetts (USDA zone 5a, heating zone 5, 40"+)
7
urban
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Tomas, this is beautiful! Where is it located? The roof angle suggests it could handle a decent snow load.

Will the masonry heater reach into the 2nd floor to heat it directly?

tomas viajero
Posts: 38
2
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hi Brett- yes I hope it's easy to heat....
As far as sourcing timbers, I always liked to go local if I could. Trucking is minimal, you establish personal relationships with real people doing real things close to where you live, and your money stays more local. That being said... I've shipped Doug Fir from the west coast and Southern Yellow Pine from the south. Depends on the demands of the job.
Things to look for in a well-cut timber: you want it straight, you want it square. I'm less concerned about things like wane (that little bit of curvature of the tree rounding off corners of a timber) on big timbers, or checking. I don't concern myself with knots (since a long timber usually has less knots anyway. Long timbers are frequently clear.) Even twisted timbers can be worked with to an extent. No need to prepare a timber in any way before getting to work. You can work them green, and in many ways that is preferable, since any twisting in the drying-out phase will only result in tighter joints in mortise and tenon. At one point I owned a four-sided planer that I think could handle up to 12x8. It was a 5 ton flat belt machine that we ran off a Jeep motor. It did a wonderful job of sizing and squaring everything we put into it. Now, I just use a 12" Makita Planer... the hand-held kind, not the table-top variety. With this you rely on your sawyer to deliver square timbers.
After the joinery is done, I always put on a sealer of some sort... now I just use linseed oil. I once found a product with beeswax that was wonderful, but I can't find it anymore. I found that one coat of Linseed Oil let me scrape out any scuff marks or muddy foot prints with minimal effort. Just use a scraper of the tip of your framing chisel (at 90degrees to the surface).
Hi Steven- Yes, it should take a helluva snow load.
The plan is to have the Masonry Heater on the first floor and let the heat rise to the second floor. That should work. If not, New York State requires me to put in a heating system run off something more 'reliable' than wood, ie elec. gas or oil.

James victor
Posts: 30
3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Lovely work.

Beautiful building.

cal learner
Posts: 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Your home looks awesome.  I will be following your project.

tomas viajero
Posts: 38
2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I haven't posted any changes for a while even though I've been working every day...   to me it all blends together and I don't notice the changes.

But I thought I'd put up a few more fotos.

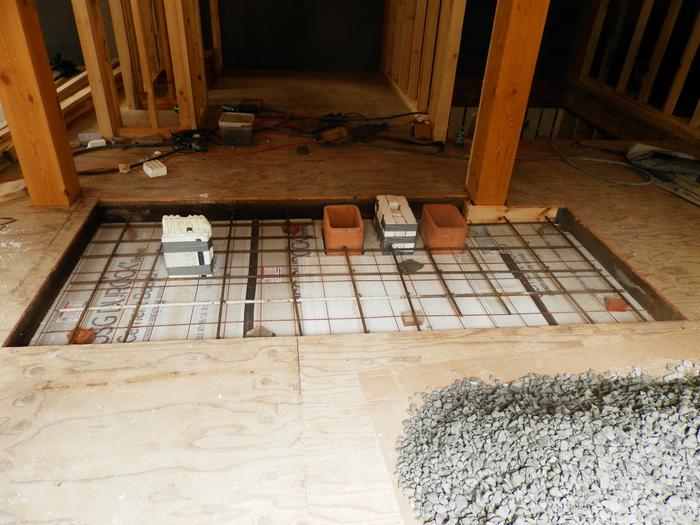

Windows and doors are installed, some interior framing, stairways begun.   For the last month I've been constructing the masonry heater.   First the foundation, out of concrete block, capped with a 6" concrete slab, then the heater.

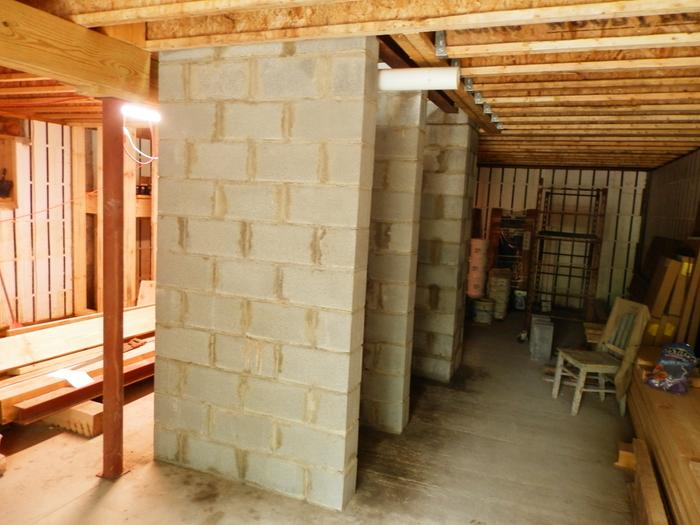

[Thumbnail for P7300934.JPG]
[Thumbnail for P8010944.JPG]
[Thumbnail for P8020953.JPG]

tomas viajero
Posts: 38
2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

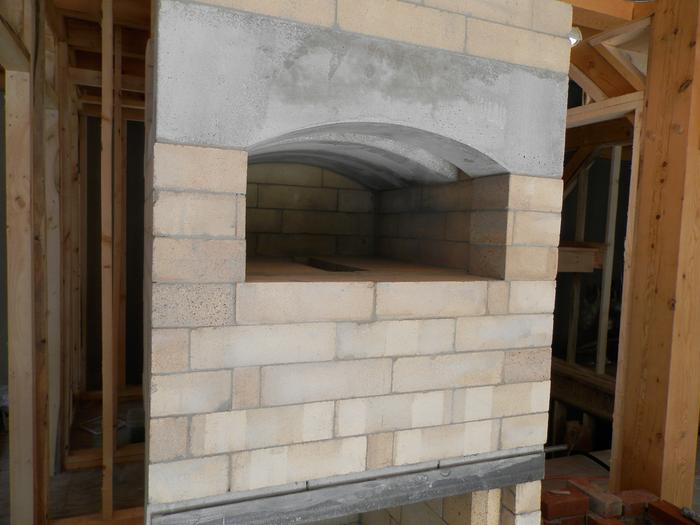

After a long haul, I finally got out of the basement and up to the first floor.

Here is the heater core as of today.   Still a lot of work to do.
[Thumbnail for P8120963.JPG]
[Thumbnail for P8120965.JPG]
[Thumbnail for P8120966.JPG]

Ryan Le
Posts: 4
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
This looks amazing, thanks for sharing. Are you able to say anything about material costs so far?

tomas viajero
Posts: 38
2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Ryan-

It's hard to say too much about material costs at this point...  those are my only costs actually since my labor is free...  Many things were already present when I started this project.  Electric was in, driveway was in, except for the crane I already had all of the tools.

I had to buy ICF forms for the foundation, concrete for the foundation, steel for the foundation.
I didn't spend a penny on the TimberFrame since the timber was on my property.  I logged it, cut it, and joined it.
The panels were a big expense.  I got a somewhat reduced rate since I had bought so many panels from these guys in the past.
The windows and doors were the next big expense.  No way around that.
Now I'm immersed in the masonry heater and I really don't know how much that will turn out to be.

I'm guessing I'm at 45k to 48k at this point.  I'm crossing my fingers that I can get it done under 55k.  We'll see.

Mostly, I wanted to show that a high quality living space can be built with patience and dedication by just about anyone if they have their wits about them.

Phase One-
     Build the foundation, close it in, and use it as a workshop for cutting your timber frame.
Phase Two-
     Erect your timber frame, close it in with your choice of EPS panels or straw bales, your choice.
     Install doors, windows.
     Get the roof on.
     Close it in for winter, or move in and continue working.
Phase Three-
     Finishing details.  Plaster, sheetrock, electric, plumbing, finish carpentry, kitchen and bathroom.

It can be done.


Ryan Le
Posts: 4
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Thanks for the info. That's pretty inspiring, even to keep it under $100k.

tomas viajero
Posts: 38
2
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hello, again...

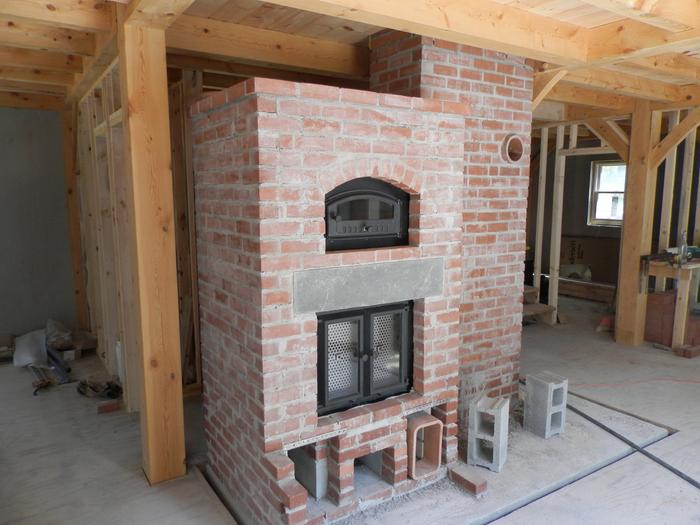

I'm making some progress...  here are some more fotos of the masonry heater.
[Thumbnail for P9020992.JPG]
[Thumbnail for P9020993.JPG]
[Thumbnail for P9020991.JPG]

Maxime bisson
Posts: 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
this is going to be a beautifull house! I hope ours will look as good when we build it.

Michal Byrne
Posts: 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
It truly is beautiful! Materials, workmanship... Appreciate you sharing the journey! I have a question about the size masonry stove; to my untrained eye, looks like an overkill for such modestly sized house - or is it required for capturing the heat, and radiating it slowly for long hours afterwards?

All the best,
Michal

tomas viajero
Posts: 38
2
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Michal-

Yes, you know, it my be overkill...  I really don't know.  I guess I'm still learning about this thing.

The first few firings I got very little heat out of it.   Mostly they were very small fires to just help dry out the materials, since there's really a lot of moisture that accumulates in something like this during the construction process...  with all the bricks and mortar and stuff.   After finishing the chimney through the roof, and constructing the heated benches, I was finally able to put the fire into counterflow mode last weekend.   It performed very well.   I felt good heat through the doors , though the bricks were cool to the touch for the first few hours.   And well after the first fire died down.   The benches got warm.   About six hours after the fire died down the bricks began to feel warm.   It gave off a nice comfortable, radiant heat.

The second fire is when I was sold on it.   The bricks were already pre-heated, so it got pretty darn hot pretty fast.   I can't be more precise than that since I wasn't taking temperature readings or counting the minutes.   It stayed very comfortably warm for an entire day.   At no point was it too hot.   I imagine if at any point it got too hot during the winter I could just open a few windows.   I really don't like that feeling of being driven out of the house by a too hot stove.

But, as I say, I'm just learning how to live with this thing.   So far, so good.

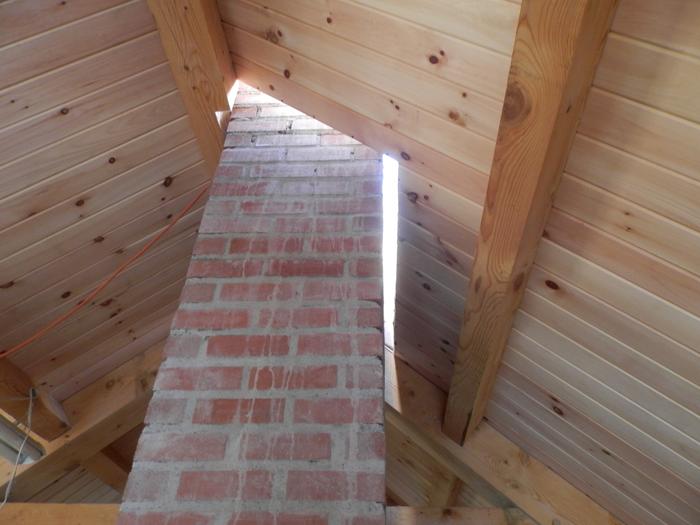

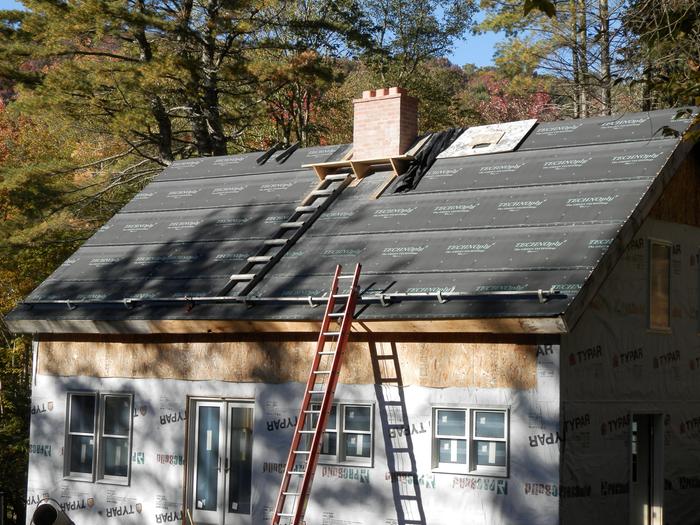

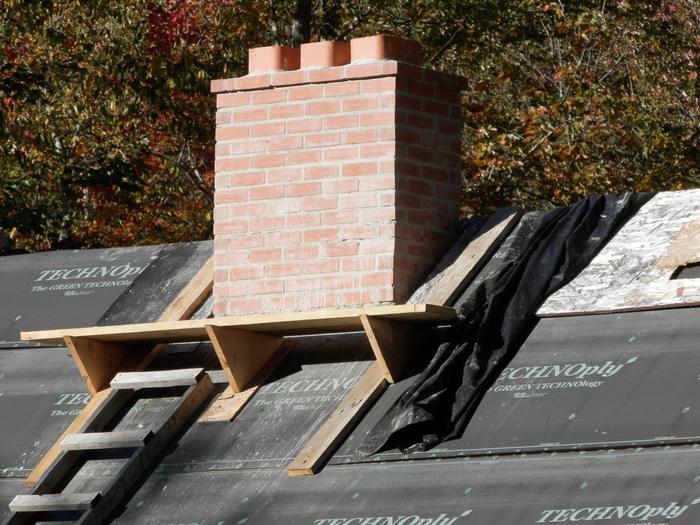

I've added a few more pictures of the chimney through the second floor and through the roof.   It has three flues though only one is used by the masonry heater.   One is maybe for a wood stove, and one is extra.   I love the idea of having an extra flue available for some future idea.
[Thumbnail for PA061002.JPG]
[Thumbnail for PA061003.JPG]
[Thumbnail for PA060998.JPG]

I agree. Here's the link: http://richsoil.com/cards
