Building a Battery Bank - Help!


Posts: 2
Location: Nausori, Fiji
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hi, am from the remote Baelelea region of Malaita island in Solomon Islands.  Am acquiring a pico hydro 3kW system (correcting for overall efficiency useful power at 2.4kW) to run a community primary school, rural clinic and about 60 households in 4 small rural villages, estimates at 600-700kWh/day consumption.

I need your help regarding building a battery bank especially to maintain clinic and frozen goods, assumption, two days of autonomy during maintenance of power stations and or necessary shutdowns during thunderstorms. Need to build a battery bank. What capacity should the battery bank be? How many 12V batteries would I need?

Many thanks,
Jamie

gardener
Posts: 3041
Location: Southern Illinois
554
transportation cat dog fungi trees building writing rocket stoves woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Jamie,

Good that you are planning on building one of these systems.  Given your description, I am pretty certain that a 3kw system will be sufficient.  Did you get this figure by adding up the power consumption of all the devices that you plan to run?  If so, great, even better if you plan to build in a little reserve.

On to more technical details.  In order to get to the watts output, you first need to know the voltage and amperage.  You know the voltage (12v) so the amperage will need to be 250 amps (volts x amps = Watts, or in your case, 12v x 250 amps = 3000 watts).

You can find battery inverters that can easily bump your 12v dc output to 120v ac,  ignoring losses, by pumping your voltage up to 120v, your amperage will drop to 25 amps.  Again, this is perfectly possible and the components are certainly easy to acquire.

But now the elephant in the room

What you have not told me is how long you want the battery bank to last.  Is this for 1 hour, 10 hours, 10 days?  I don’t know what exactly you need but I will run a couple of specs past you.

I am looking at building a “solar generator”, which is essentially a battery bank and hardware mounted in a case and charged by solar panels.  The build I am looking at is similar in basic respects to your needs.  It is based on a 3kw inverter, so it has 3Kw output.  The build I saw was powered by a 50 amp-hour 12v battery.  The amp-hour (ah) is a measure of how long your battery will run on 1 amp of current output.  The basic equation is similar to what we had above.

Volts x amp-hours=watt-hours output    OR

V x AH = WH output

In my case, the equations looks like:

12V x 50AH = 600 WH output.

After converting to 120v a/c and ignoring losses, it looks like:

120V x 5AH = 600 WH output.

We get the same output because our increase in voltage is checked by a proportional loss in amperage.

So practically speaking, let’s make up some numbers.  The above build would theoretically run 1 watt for 600 hours, 10 watts for 60 hours, 600 watts for 1 hour, or 1200 watts for 1/2 hour or 2.4 Kw for 15 minutes.

Now I personally think that any battery build of this sort should be based on a 100AH battery at least, so one 100AH battery should double the run times listed above, 2 batteries should quadruple, and so on.  I don’t know what your power load looks like or how long you need to run so I cannot give you exact numbers, but I will start with a build based on 2 100AH batteries.

Another factor that needs consideration is the exact battery chemistry.  Don’t use car batteries as those are designed for huge amp output for s very short period of time—exactly what you don’t want.
The next (and cheapest) option would be a Sealed Lead Acid (SLA) battery.  These are not too expensive as batteries go, but come with the hitch that they should avoid discharging over about 50% or the battery itself can be damaged and not charge properly again.  This means that whatever the AH rating of the battery, cut it in half.  The next cheapest (and in my opinion a good option) is the Advanced Glass Mat (AGM) deep cycle batteries.  These can be discharged all the way to zero without harming the battery.  Another option is Lithium Iron Phosphate which can be recharged a great many times.  Avoid Lithium Ion batteries as they can only be recharged a limited number of times and confer no real advantage unless the battery pack needs to be portable.  If it were me, I would go with the AGM battery because it is a reliable, mature technology.

Unfortunately I can’t go much further than this because I don’t know the run-time you need.  If you can give a more specific run-time, we can talk more.

Food for though,

Eric


pollinator
Posts: 3113
Location: Massachusetts, Zone:6/7, AHS:4, Rainfall:48in even Soil:SandyLoam pH6 Flat
317
forest garden solar
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Daily Production = 2.5KW x 24Hr = 60KWH per day
2 Day Battery Buffer = 2* 60KWH =  120KWH or 120,000WH
2 Day Battery Buffer = Voltage x Amp-Hour = 12V x 10,000AH = 120,000WH = 120KWH
Amount of 12V Battery Needed = 10,000AH = 100 x 100AH, so you would need one hundred 100AH battery(12V) or two hundred 50AH batteries.

Batteries don't like to be completely emptied out. In fact they prefer a discharge of just 50%. But seeing as how this batter buffer would presumable only be used twice a year, its okay to ignore this fact otherwise you would need 2 times the amount of batteries listed above

All of the number given above is for a 60KWH per day system. Maybe it was a typo but I notice that you mention a 600KWH system vs just a 60KWH system. With 600 being 10 times more than 60. You would need 10 times more battery for such a setup so 1,000 batteries vs just 100 batteries.


And yes the battery will need a charger once it is depleted. And also an inverter to extract the current in times of need.
The next question is how much power will you draw from this setup, may just a 3000W inverter/charger or maybe you need a 10,000W system

Posts: 49
8
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

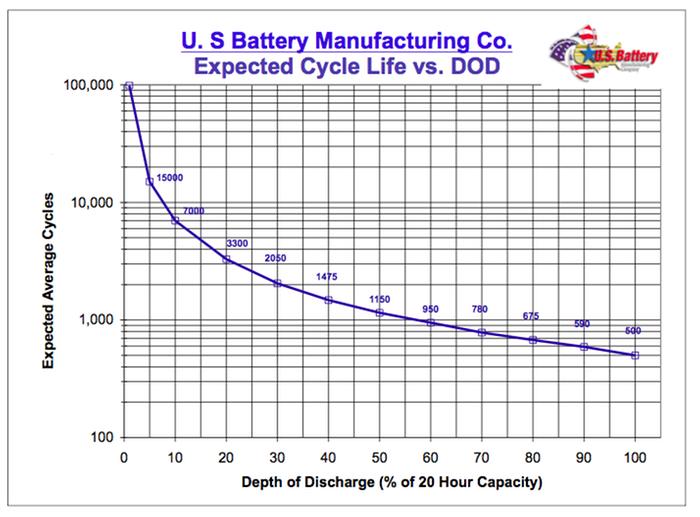

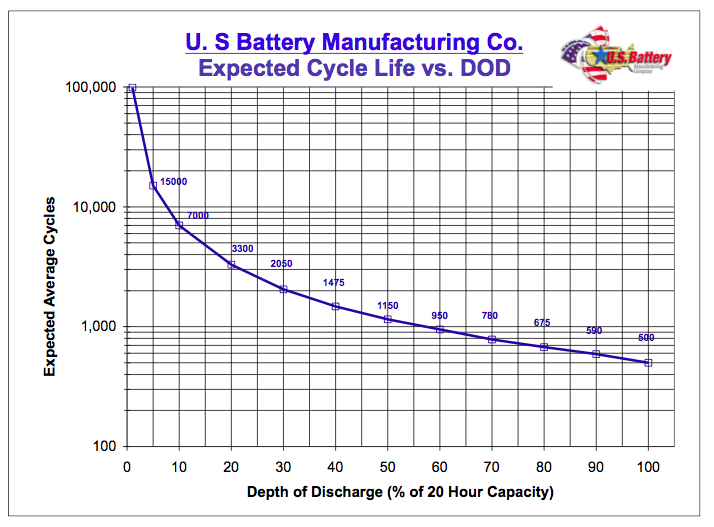

I'm navigating this area myself and learning all I can. One chart that surprised me was the cycle life vs. depth of discharge. With battery technology progressing so fast, I'm really left scratching my head on what type to use for my house. Lead-acid can last a really long time(a lifetime) if you have enough of them to keep the depth of discharge very low. With the amount of researching happening though, I'm guessing some miracle battery technology will present itself in 10 years or so that will blow the rest out of the water.

Goodenough Glass Battery for Hydro-Power

[Thumbnail for DOD.png]

gardener
Posts: 3752
Location: latitude 47 N.W. montana zone 6A
1032
cat pig rocket stoves
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hi Jamie;
Welcome to Permies!
I'll let the others help you size your battery bank.
I just have 2 suggestions.
2 volt battery's wired as 12 volt will give you the reserve during power shut downs.
Using solar to help maintain those large battery's is a good idea.

pollinator
Posts: 379
Location: Nomadic
32
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
When you figure out how to run a school, clinic, 60 households and 4 villages on a 3 KW system I’ll be the first to write a letter recommending you for the Nobel peace prize. Perhaps you could run LED lights and that’s all in my guesstimating.
What batteries are available where you are is the first question that comes to my mind. Do you get supplies for Australia primarily?

jamie auto
Posts: 2
Location: Nausori, Fiji
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hi all, Many thanks for your replies am learning a lot from them. Eric I was thinking to allow two days of autonomy but from Bengi's calculations quite impractical really. The households will have low wattage lighting and the refrigeration for clinic vaccines is at 3kWh/day and the fishing village operates at 400kWh/day, total usage estimates 700kWh/day noting Jeremy's judgment that this is just an impossibility with a 3kW pico hydro! The Australian scene is just too expensive for islanders so we source from China!

Eric Hanson
gardener
Posts: 3041
Location: Southern Illinois
554
transportation cat dog fungi trees building writing rocket stoves woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Jamie,

One possibility that might work for you and still use batteries is to load shift.  For instance, I doubt that the refrigerators/freezers really need to run full time.  I know from experience that fridge/freezers can have power shut off for hours and have no appreciable change in temperatures, assuming the door stays shut.  Also, there are other ways of getting lighting and computers don't necessarily run full time.  Taking these steps can drastically lower your actual power needs--as in an order of magnitude or more, so I would not give up on batteries just yet, but you will likely need to re-examine exactly what your  priorities are and how to overall lower your electrical needs.

The second thought is that for the time you are talking about, a simple inverter generator might work perfectly well for you needs, and they really sip the fuel.

Just some more food for thought,

Eric
