Making a (better) Froe


Posts: 4
4
  • Likes 9
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Well, my old froe carked it. I made it from a piece of mild steel that I cut out of a sheet, so I didn't really expect it to last forever. But that meant I needed a new one. I picked up a lawnmower blade from the dump a little while ago, and I decided to bend it into shape and sharpen a blade on it and see how it went. I wasn't really in a rush, so I decided to do it with hand tools (and fire).

When you forge a bevel for a blade, you're supposed to bend the end down toward the blade edge. Unfortunately, I didn't quite re-curve it enough, and I ended up with a slightly high centered cutting edge, which I then had to grind and file flat again. After I did that, I had a go at a log. It was even a knotty log, but the froe was successful!

I was thinking about posting this in the metalworking badge bit for making a froe, but I don't actually have the image of the starting piece of metal, unfortunately.

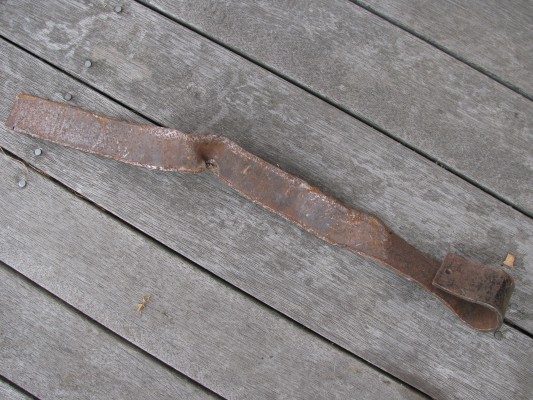

It's dead, Jim!
It's dead, Jim!

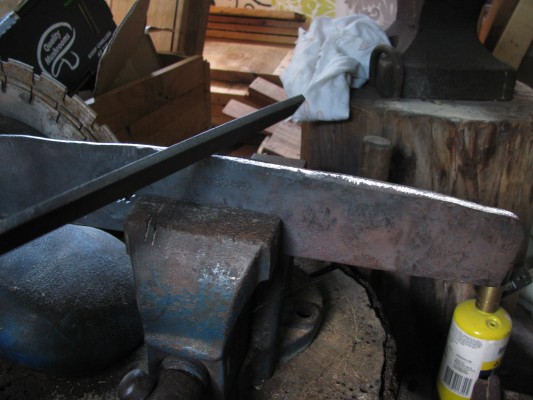

filing flat
filing flat

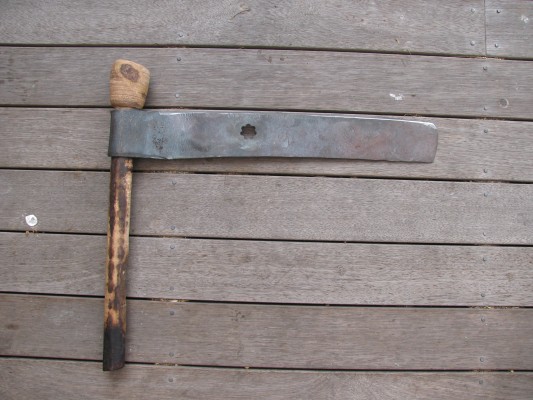

mostly done
mostly done
bang, bang, bang!
bang, bang, bang!

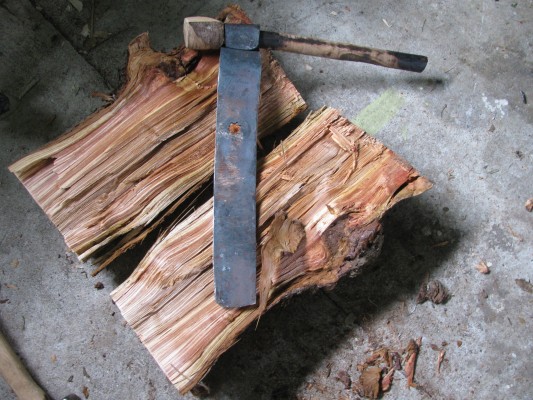

Hurray!
Hurray!
