Parge Bermed Earthbag Root Cellar



Posts: 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hi,

I'm hoping to build an earthbag root cellar and I am trying to figure out what the best way to parge the outside would be.  I am planning on having about 6' of it underground (with butresses).  I also am thinking a french drain at the bottom would be helpful.

I was wondering if anyone has any suggestions.

Thanks!

Posts: 77
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
In general, I'd be tempted to either wrap the sub-grade part in an epdm liner, or extend the gravel bed for french drain right up the side of the buried portion of the wall to grade.  A lot depends on the particulars, though.  How's your soil?  Do you have enough slope that you can take a french drain from 6' below grade to daylight with relative ease?  Can you site the thing out of runoff flow?

Doug


Posts: 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Not too sure on the soil yet.  I'm planning on going about 3' down below grade and then using fill to berm 3' above grade.  I don't have enough slope to drain to daylight.  I was thinking about draining to a gravel pit.

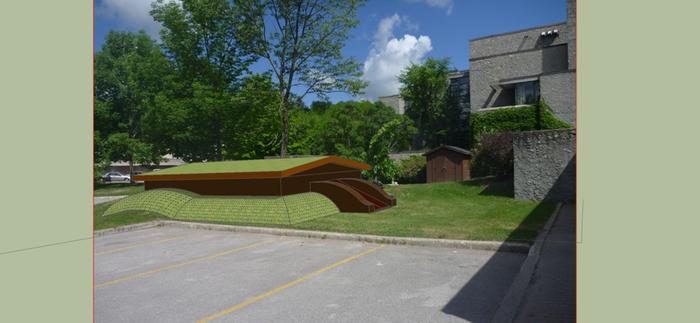

I've tried to attach a pic to give an idea.
[Thumbnail for Cellar-in-pic-to-scale-feb7.jpg]
