Hello Everyone!

A) I am new here, but I promise I love research and will be reading the forums . . .

B) I am *REALLY* excited about my project and just want to ask my question right off the top . . . please forgive me my excitement . . . I promise the reading/research will be happening . . .

So, that being said:

I just purchased a property with a sizable "Tuff Shed" in the mountains near Salt Lake City.  I want to install a rocket mass heater in the shed.  Here are my concerns:

1) the shed is founded on a several cement blocks
2) it has snap-together laminate flooring on the interior

My Questions:

How should I shore up the foundation?

What alternate flooring is recommended before I install the RMH?  I am thinking that installing it on a laminate floor is a bad idea.

Any ideas/help/advice is heartily welcomed!

Thank you!!!

Rocket Scientist
Posts: 4539
Location: latitude 47 N.W. montana zone 6A
1596
cat pig rocket stoves
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi Jess;  Welcome to permies!

Congrats on your new land!  And on wanting a Rocket Mass Heater!
First thing, if you want to build a rmh . I highly recommend getting a copy of the Rocket Mass Heaters Builders Guide.  Written by Ernie & Erica Wisner, it is the go to book for all new builders. Easily available from Amazon or from them directly. It will be the most important thing you can buy for your project. It will teach you the correct terminology, keep you from making rookie mistakes  and answer quite a few of your questions.

OK , your tuff shed has a laminate floor.  First off you must make sure the floor is supported adequately. Blocking / support under the entire rmh is critical. If your floor sags your rmh breaks in half ...
Now that your floor is supported you must protect your laminate.  Start by laying clay bricks flat on the floor, separated but close , they are there to fully support 1/2" hardy backer board (cement board) that you lay on top.Your rmh is built on the cement board. the bricks support the weight and provide the needed air space to keep from overheating your floor.

Now you must decide what size RMH you want 6" or 8" (in Utah I recommend an 8"). Then you must decide if you want a conventional J tube rmh or a batchbox rmh.  Next you must decide if you want pipes thru a bench or if you want a stratification chamber rmh  (brick bell).

As you can see there is a lot to figure out ahead of time.  Start by supporting your floor and ordering the builder guide.
[Thumbnail for DSCN0736.JPG]

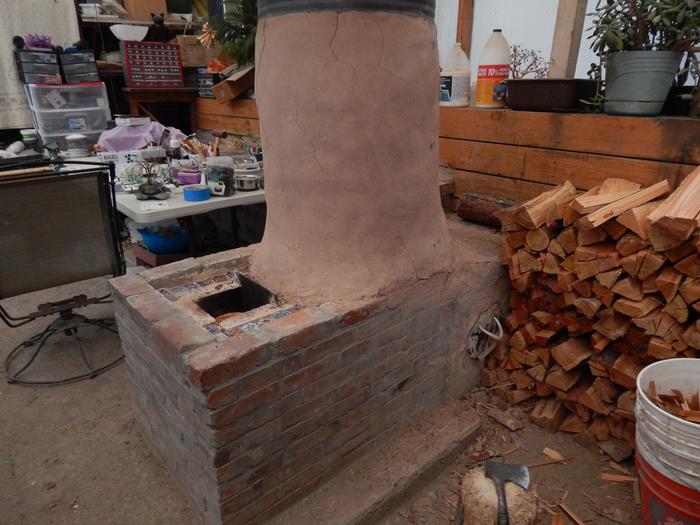

8" J tube with bench
[Thumbnail for DSCN0117.JPG]

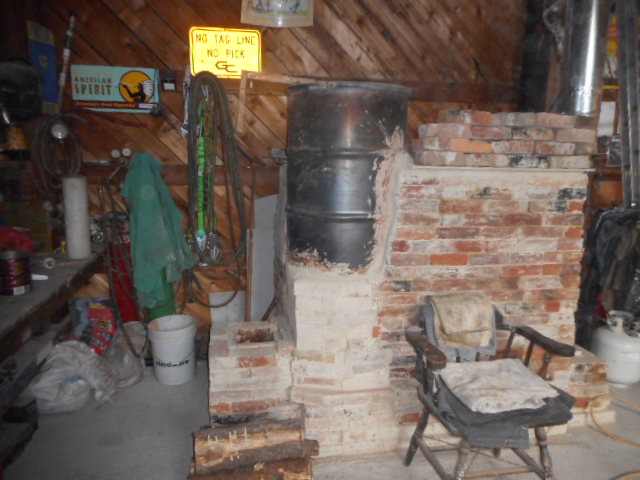

8" J tube with brick bell

Jessamyn Land
Posts: 2
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi Thomas!

Thanks so much for all the good advice!  This is great!
