Tiny straw/"weeds"bale structure


Posts: 84
Location: Pahrump NV
3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

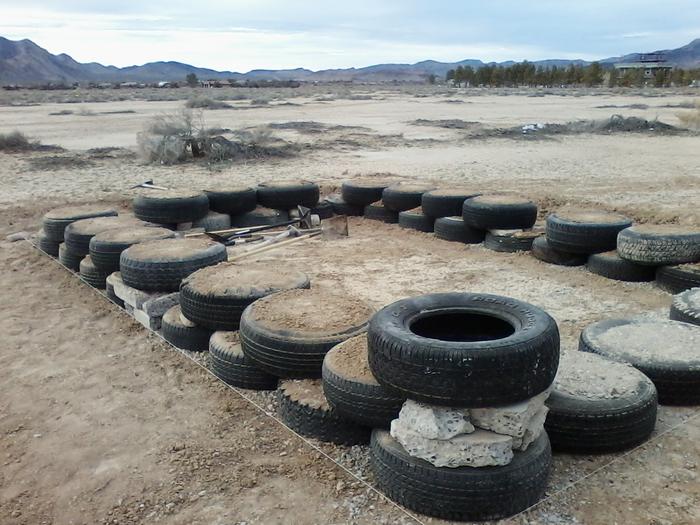

I started building this a little over a year ago the lower portion is made of three layers of rammed tires with the first course rammed with gravel and the next two rammed with onsite earth. There are six courses of 3 string bales in total enjoy the pics! ALL COMMENTS AND CRITIQUES WELCOME!

FYI: this is the first project of the like that I have done.
[Thumbnail for 1218151331-00.jpg]

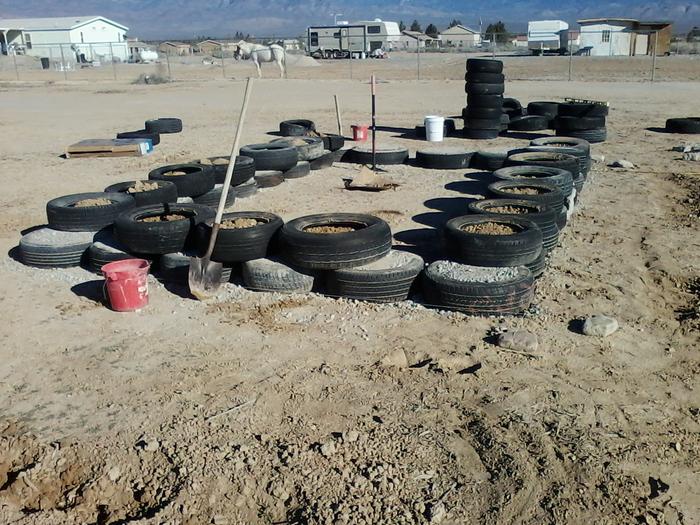

First courses of tires
[Thumbnail for 1227151526-00.jpg]
[Thumbnail for 0128161356-00.jpg]

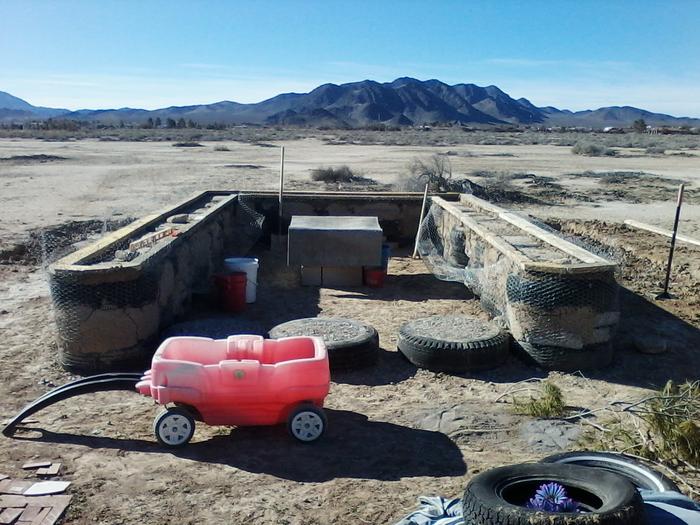

Tire courses finished with wood bond beam

Kris Johnson
Posts: 84
Location: Pahrump NV
3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
More pics
[Thumbnail for 0223161635-00.jpg]

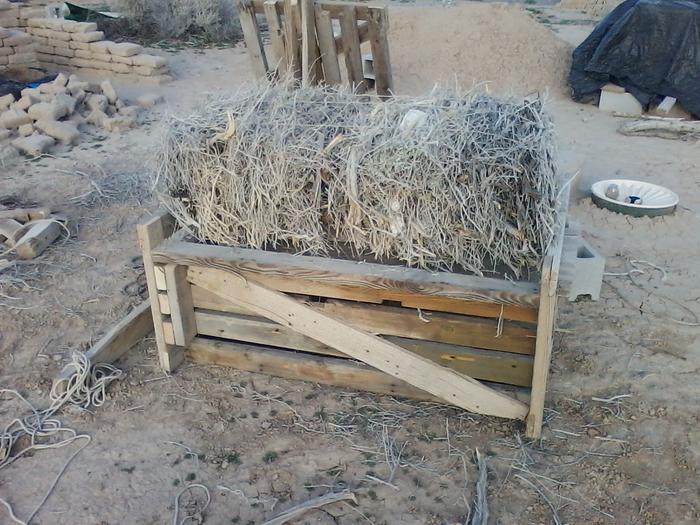

First "weed bale I made...
[Thumbnail for 0223161639-00.jpg]

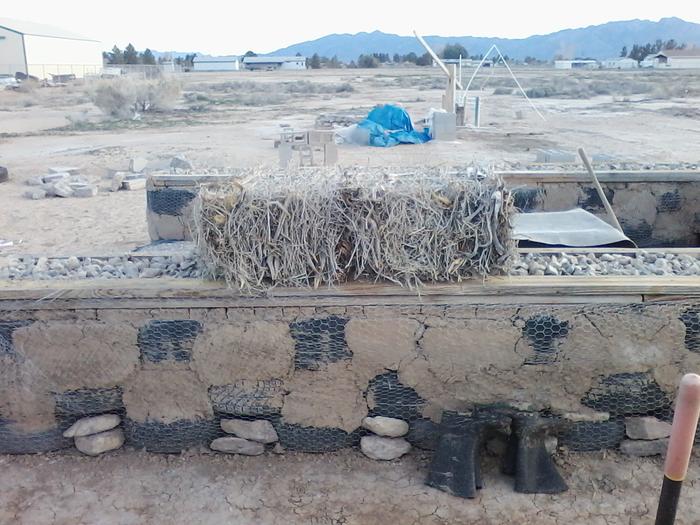

... and placed
[Thumbnail for 0304161521-02.jpg]

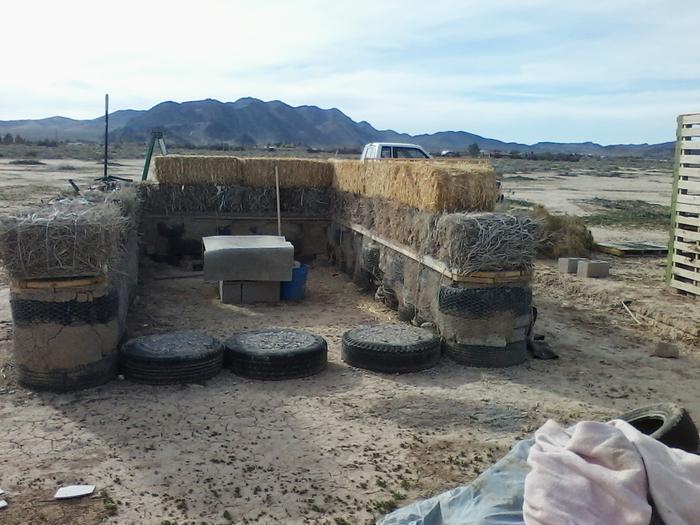

first course of weed bales on 2nd course straw bale

Kris Johnson
Posts: 84
Location: Pahrump NV
3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
More pics
[Thumbnail for 0913161357-00.jpg]

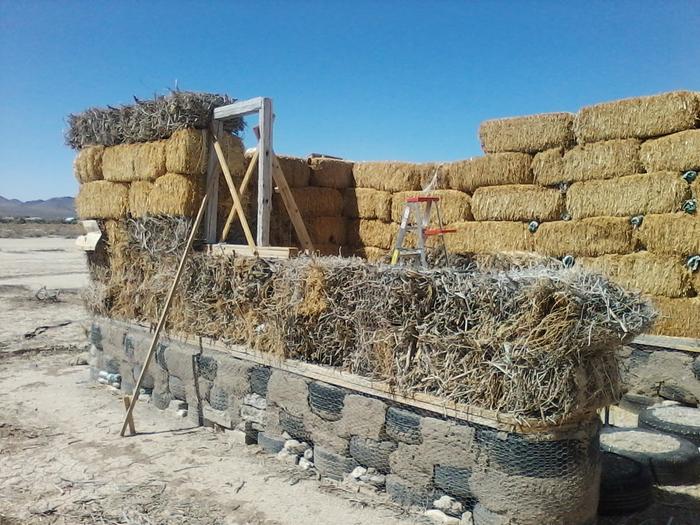

One side to window buck almost copleted
[Thumbnail for 0913161357-00.jpg]
[Thumbnail for 1021161556-00.jpg]

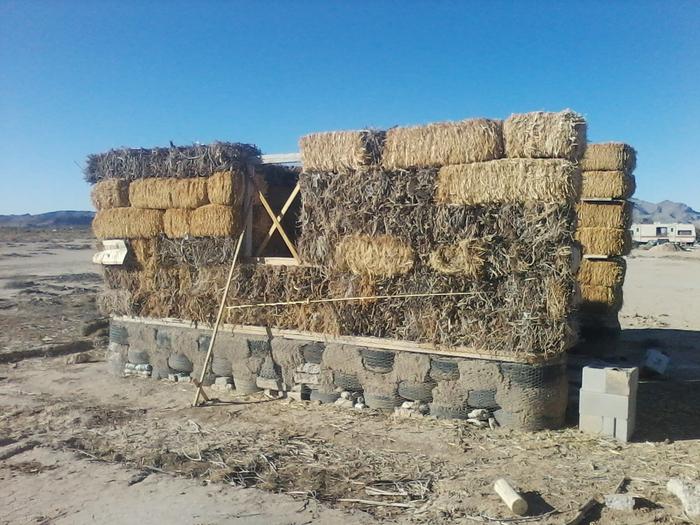

Final course of bales completed

Kris Johnson
Posts: 84
Location: Pahrump NV
3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

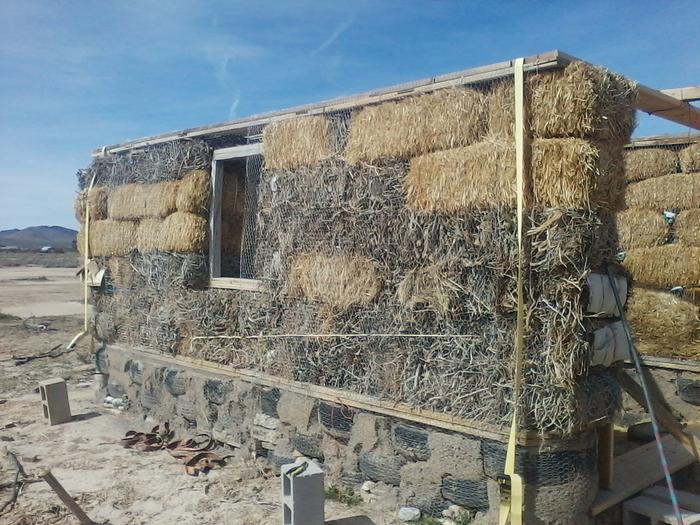

A ladder bond beam was placed around the last course of bales and pinned to them with wooden stakes. The top was then compacted down with ratchet straps and held down with metal wire from top bond beam to bottom bond beam. More progress pics to come!
[Thumbnail for 0308171257-00.jpg]

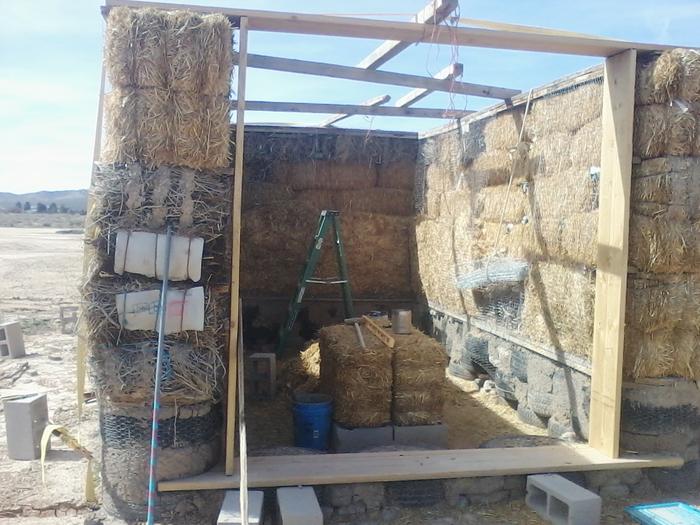

Walls being wrapped in chicken wire and filled with straw
[Thumbnail for 0308171257-01.jpg]
