New MOBILE Rubbermaid stock tank system getting put together.  RSS feed


pollinator
Posts: 348
Location: Virginia Beach, VA
26
bee dog fish forest garden fungi solar
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Good Morning everyone.

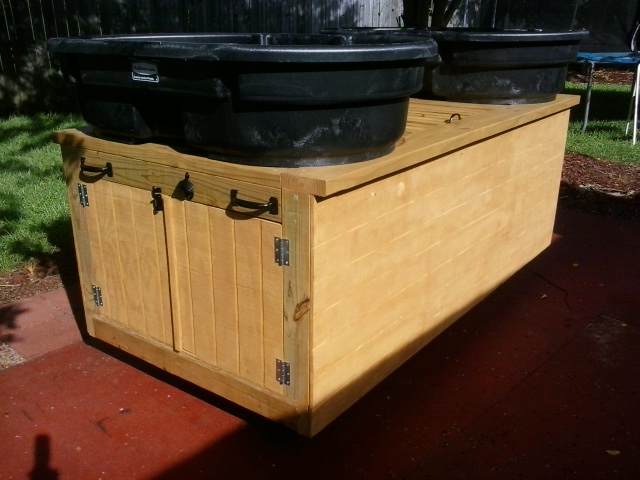

Almost done with the wood work. I should be able to grow out 45 fish and lots of herbs/veggies in a 4' x 7' space!

The structure is on wheels so I can take it with me when I move. It will double as a greenhouse as well.

I can move it to where the sun is best depending on the time of year!


This water pump cost me $22 a year to operate at Virginia prices. Not sure what it will cost down here in Alabama.

Aquaponics vast water volumes go great with greenhouses.

Main thread...
http://www.backyardaquaponics.com/forum/viewtopic.php?f=18&t=28843
[Thumbnail for IMG_0123.JPG]
[Thumbnail for IMG_0124.JPG]
[Thumbnail for IMG_0125.JPG]

Marty Mitchell
pollinator
Posts: 348
Location: Virginia Beach, VA
26
bee dog fish forest garden fungi solar
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Will run on 25W pump/$22 a year in power for the pump.
[Thumbnail for IMG_0126.JPG]

Marty Mitchell
pollinator
Posts: 348
Location: Virginia Beach, VA
26
bee dog fish forest garden fungi solar
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

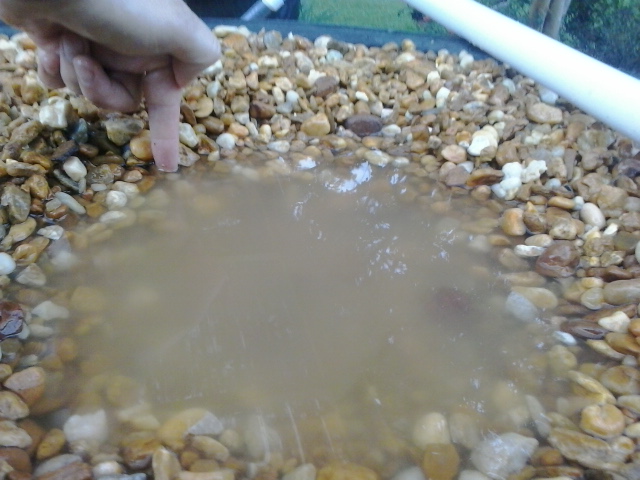

Got the gravel in yesterday. The system will need to settle for a few days before adding a couple fish for cycling.

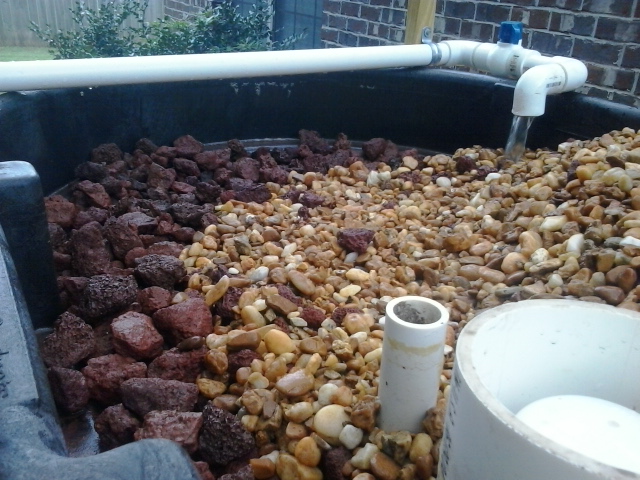

One bed has about 1/3 scoria/lava rock(depending where you are from) and the rest is hydroton that I saved from my old systems so it is already fertilized and inoculated.

The other bed is 2/3 lava rock and 1/3 river rock up top to reflect light/keep the system cooler down here and to bed easier on the hands when digging. Heavy gravel is also better for those taller plants that won't stand up in hydroton. Like corn, peppers, fruit trees, and tomatoes.

The hydroton bed is about 1" above the water line and the pebble bed is about 2". This serves to keep algae away, conserve water(uses about 10% compared to normal gardens), and keep the water temps more stable.

Lava rock has a surface area that makes bio char look weak.
[Thumbnail for IMG_0131.JPG]
[Thumbnail for IMG_0128.JPG]
[Thumbnail for IMG_0130.JPG]

Marty Mitchell
pollinator
Posts: 348
Location: Virginia Beach, VA
26
bee dog fish forest garden fungi solar
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

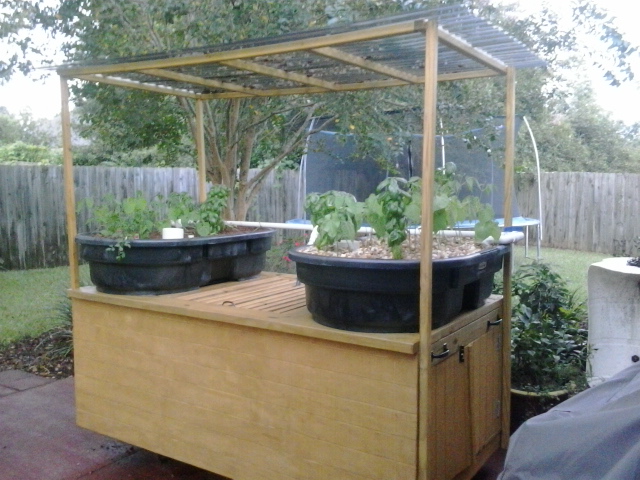

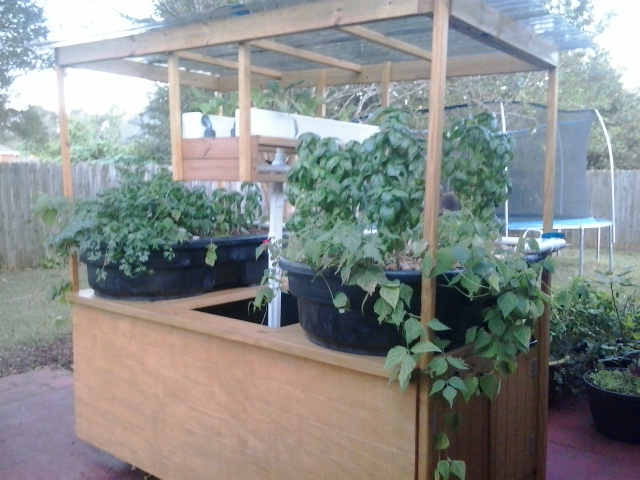

Pic update. 1st pic taken on the 5th of Aug... the other one taken on the 14th of Sept....

[Thumbnail for 170805_012.jpg]
05 August
[Thumbnail for 170914_003.jpg]
14 September

Marty Mitchell
pollinator
Posts: 348
Location: Virginia Beach, VA
26
bee dog fish forest garden fungi solar
  • Likes 4
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I am starting a YouTube video series on the design, build, and maintenance of this system here... Feel free to subscribe for notifications of new vids.



Marty Mitchell
pollinator
Posts: 348
Location: Virginia Beach, VA
26
bee dog fish forest garden fungi solar
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Update:

I am almost done making the 4th video in my series now.

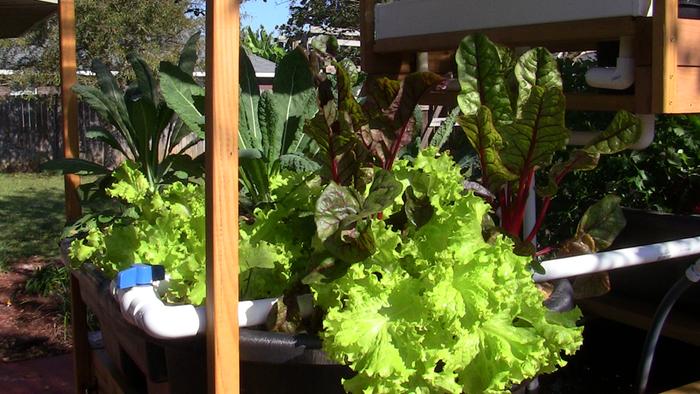

The system is doing GREAT! Fall Crop is starting to come in now.

Marty
[Thumbnail for IMG_0168.JPG]
[Thumbnail for IMG_0169.JPG]

Marty Mitchell
pollinator
Posts: 348
Location: Virginia Beach, VA
26
bee dog fish forest garden fungi solar
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Time For and Update:


Turns out that Aquaponics is definitely super good for making clones!!!


So far I have had a 100% Success rate for Cloning Summer Cuttings. Where you basically just cut off this year's new growth after it has had a chance to get stiff/tough... but the skin is still thin or even green still. Just leave about 2 leaf's on there and make the twig long enough to get a node or two below the water level in case it is a type of plant that can only root from a node.


Anyways, so far I have tried Fig, Mulberry, Goji Berry, and Meyer Lemon. 100% Success on every twig ever stuck into the gravel!!!


If I were to save JUST ONE bed for making clones... and I spaced the clones 2" apart in rows 4" apart... I could clone around 144 trees and shrubs in there every few months! How much money does that save per year in a tiny system like mine?


I ended up moving back to Virginia this Summer. So my system will soon be turned into a greenhouse. Sold the old fish for $100 which paid for the fish, fish food, and power for the year easily.

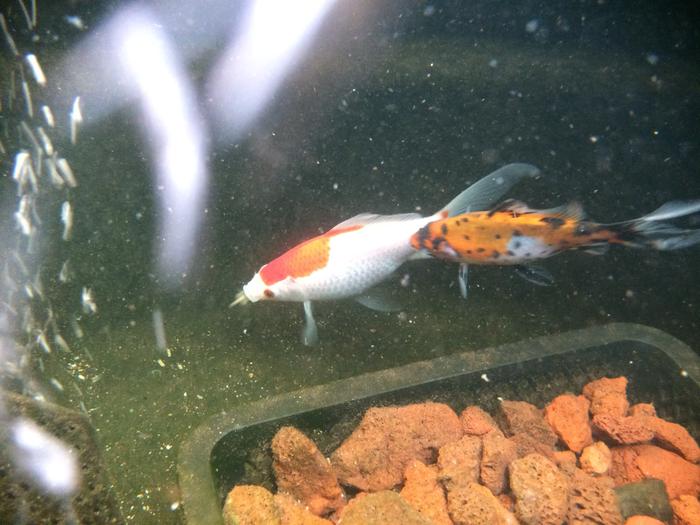

This time I got more expensive gold fish. Paid $3 for each of the fish from craigslist. The kids seem to be loving their new pets. These Comet Goldfish can on occasion get up to 18"... which I bet is more likely in an aquaponics system since they are being fed a ton more than usual... about 4 times a day! The red and white ones are Sarassa Comets. The Calico ones are Shibunkin Comets.



[Thumbnail for IMG_0591.JPG]
[Thumbnail for IMG_0592.JPG]
[Thumbnail for IMG_0594.JPG]
[Thumbnail for IMG_0587.JPG]

Marty Mitchell
pollinator
Posts: 348
Location: Virginia Beach, VA
26
bee dog fish forest garden fungi solar
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

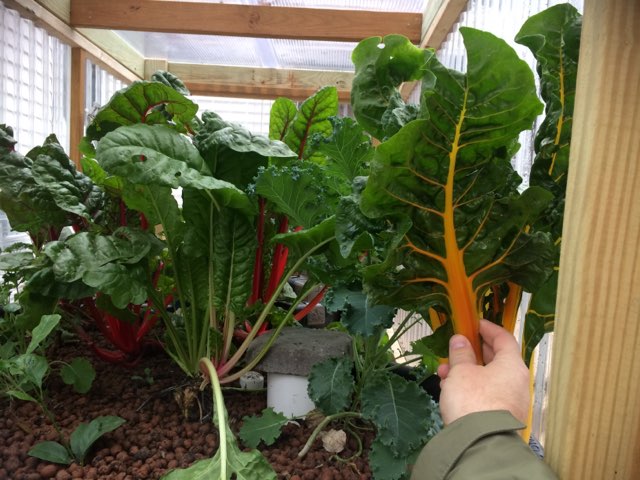

Here are some pics of the growth I currently have going on in the system right now. Mostly Swiss Chard and Kale.

Lots of other little things like Meyer Lemon tree cuttings, Parsley, and Strawberries here and there as well.

I just finished converting my open system over to a greenhouse. I still have to seal her up but she is chugging along well as she is... this time of year anyways.

I put in 4 Lemon Cuttings... and 4 survived. I will likely just pick the best positioned one and leave it in there permanently... and pot up/sell the other 3 for $5 - $10 each by the end of next Summer.

My yearly power usage is around $21 to $27 dollars. I figure that will pay for most/all of it. lol
[Thumbnail for 01Dec18-01.jpg]
[Thumbnail for 01Dec18-02.jpg]

pollinator
Posts: 314
Location: northeastern New Mexico
61
homestead wood heat woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Lookin' great8
I am glad you have shared this here as well as BYAP. This is a very nice system setup And it is portable!
Brian

Marty Mitchell
pollinator
Posts: 348
Location: Virginia Beach, VA
26
bee dog fish forest garden fungi solar
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Brian Rodgers wrote:Lookin' great8
I am glad you have shared this here as well as BYAP. This is a very nice system setup And it is portable!
Brian




Thanks Brian! I am enjoying it a lot.

In the end... I am SOOOOOOO glad I made it portable! Since I had to move across country about 11mos after building it and all. lol

I learned that lesson on my first system. It was a major pain to tear down and move... mostly falling apart during the move. This one is tough.

There are literally only two things I would change

1. Is making it about 4" wider so I could keep the beds strait when turning it into a greenhouse. However, if I had done that... it would not have fit through the fence gate to get it into the back yard where it currently sits. No big gates for this yard.

2. Is using solid cast metal wheels. I am keeping it on bricks(with wood wedges to level it). However, the solid concrete deck I had it on originally was pretty darn level. The rubber membrane on the wheels settled out into flat spots after some time. Making it hard to move around. On another side note... the wheels I used work just fine. I just only use them during transport now.



Brian Rodgers
pollinator
Posts: 314
Location: northeastern New Mexico
61
homestead wood heat woodworking
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
DId you move from Alabama then? What was it like moving the cart? I'm getting my head around the idea of rolling it up on a truck. Well, then you have really tested the portability of your system. Good work, thanks for posting the updates.
Our system is the exact opposite then, being build of masonry, I hope it'll be here for generations.
Now all I have to do is get my adult children interested in keeping on with some of my "projects." Smiles
Brian

Marty Mitchell
pollinator
Posts: 348
Location: Virginia Beach, VA
26
bee dog fish forest garden fungi solar
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Brian Rodgers wrote:DId you move from Alabama then? What was it like moving the cart? I'm getting my head around the idea of rolling it up on a truck. Well, then you have really tested the portability of your system. Good work, thanks for posting the updates.
Our system is the exact opposite then, being build of masonry, I hope it'll be here for generations.
Now all I have to do is get my adult children interested in keeping on with some of my "projects." Smiles
Brian



Yes. I am now living in Virginia Beach, VA. My system held up well.

The only trouble I had was getting it through the muddy yard after several days of hard rain. I ended up having to remove the gravel beds and set them to the side. When I first rolled off of the concrete slab I thought the wheels fell off. Nope, the system just sank into the ground that fast. All the way up to the frame(water removed). Just took the gravel beds off and she rolled just fine though.

I transported it in my 6x12 cargo trailer though. So there was a nice long ramp to roller her up onto.

I plan to go big/permanent one day as well! That is a dream of mine. I will hopefully be getting a home in a few years to where I can build a large greenhouse.

I plan to build something that will last long term also. Just build it once while I am young..ish and then be able to pass it on.






Marty Mitchell
pollinator
Posts: 348
Location: Virginia Beach, VA
26
bee dog fish forest garden fungi solar
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I figured I should put my face up and took a selfie before taking the next harvest off of the plants.

Just topped her off with rainwater and fish feed to the automatic feeders.

Since the water has gotten so much cooler the fish have slowed way down on their feed rates. I now only have to add water and fish feed about once a month. Harvesting a little every two weeks or so.

I keep wondering how many plants you could clone in a system like this each year. If you were to give say 6" plant spacing... it would be a LOT of fig, lemon, mulberry, and goji berry plants (things that I have easily cloned so far).

Talk about a system that would easily pay for it'self!
