Advise on adding a small wind generator


  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hello permies

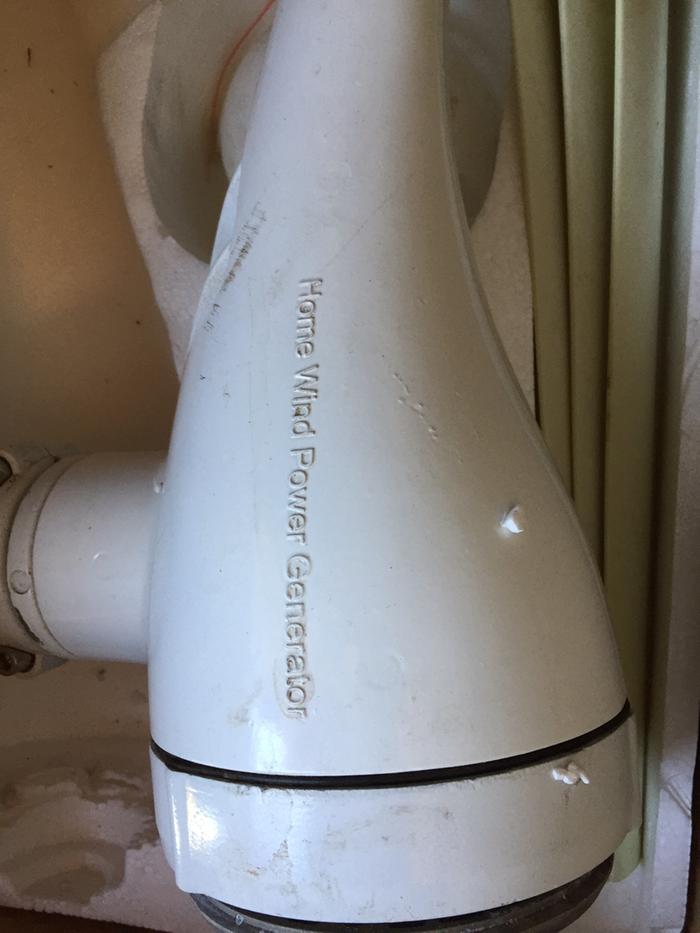

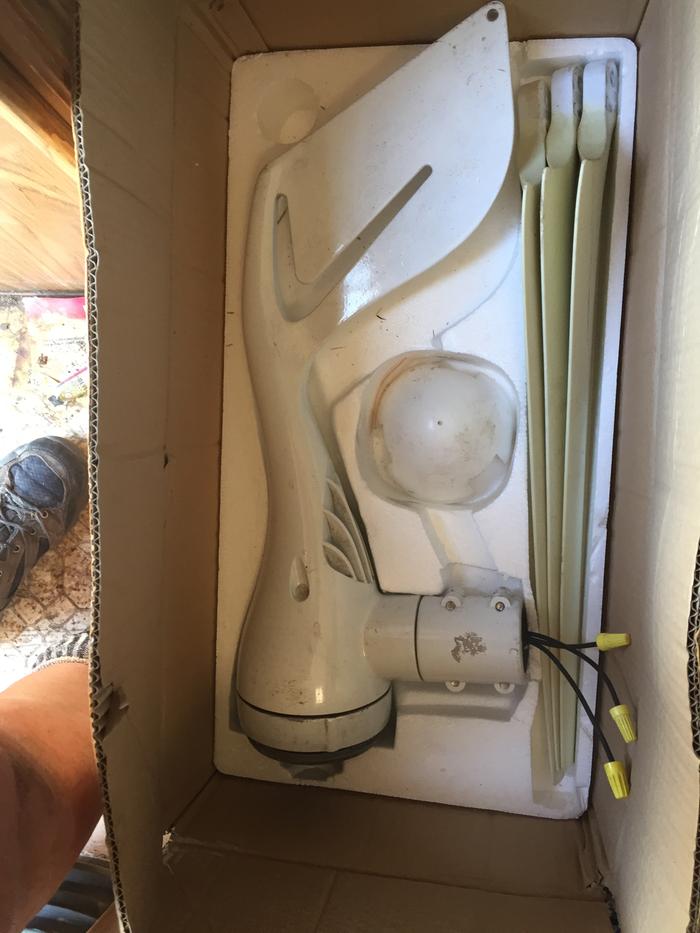

I have lived off grid with a simple solar setup for 10 years now and have been given a small wind generator which I would like to add into the setup.  I have never set up wind before and when my cousin gave me this he said it had everything to hook it to the battery bank.  My question is do I need to have a "dump" or does this controller have some kind of breaking system so I wont have to ?

[Thumbnail for IMG_0677.JPG]
[Thumbnail for IMG-0676.JPG]
[Thumbnail for IMG-0679.JPG]
[Thumbnail for IMG-0680.JPG]

pollinator
Posts: 975
Location: Central Ontario
193
kids dog books chicken earthworks cooking solar wood heat woodworking homestead
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

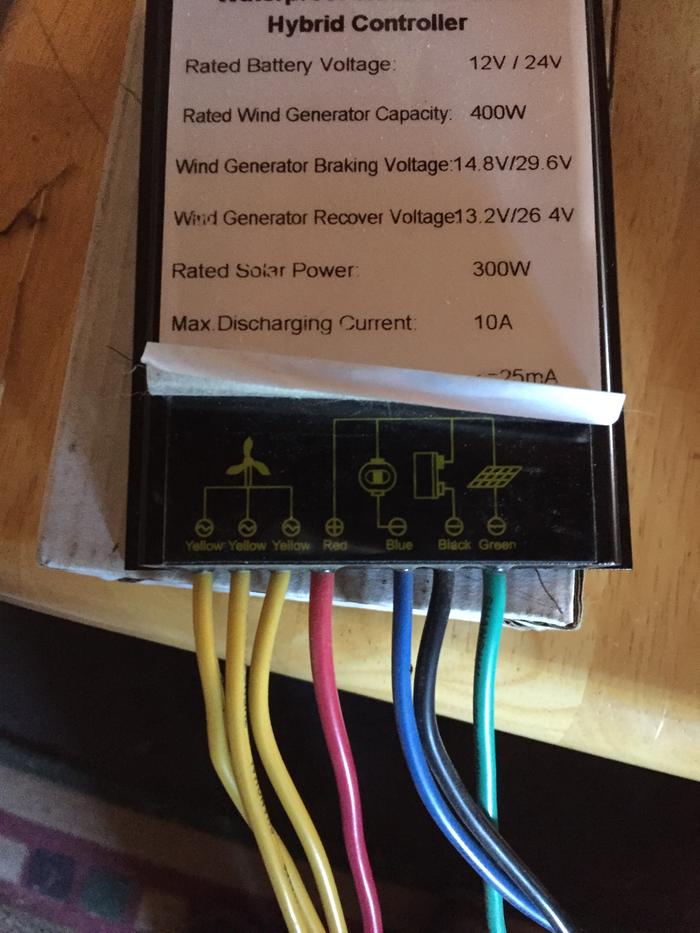

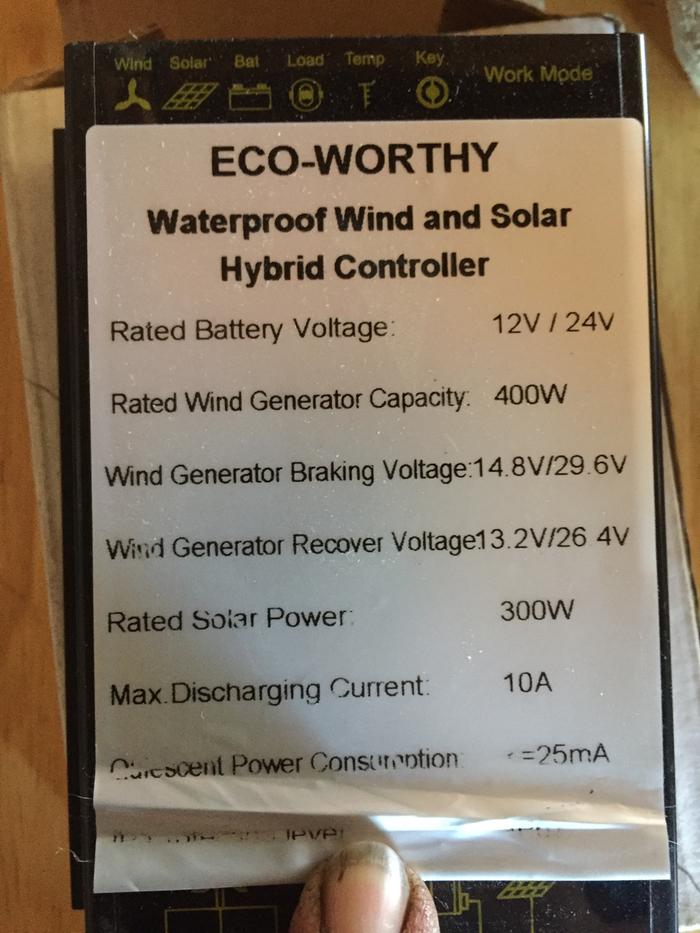

Looks like that controller will brake the turbine above the listed voltage So no dump load.  That is pretty common for those little turbines. The good thing is it is separate from the turbine. Often they are built into it making it un fixable. Unless you have 300 watts of the older 12 volt solar panels kicking around I'd skip the solar end as its probably one of the older PWM controllers.
Best of luck, David

Laverne Hendrix
Posts: 30
6
forest garden solar homestead
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Thank you David,

I have a decent solar set up already so will not be using the solar part of the controller.  Just needed a little trickle charge to cover long winter nights :D
