Bought K2S for my NiFe batteries (experimental)


Posts: 31
7
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi,

- Have some NiFe batteries. Apart from water top-ups nothing to mention. (2,5 years old now)

Was investigating the elektrolyte additives.
Like this research paper here:

https://www.researchgate.net/publication/281270076_The_Effect_of_Electrolyte_Additives_on_the_Performance_of_Iron_Based_Anodes_for_NiFe_Cells/link/55dd9ebb08ae83e420ee9bf3/download

I actually wanted to try the Pottasiumsulfide!
Seems nobody have tried this on (any?) forum, so I want to take the risk/experiment with it!
So I bought some K2S for my batteries. (it's not that expensive)

Will try the 0,4 value, which seems to give the best results. (See figure 8 in the paper)

The hydrogen generation is really the only downside I can find about the Nickel-Iron chemistry (at least, the only downside,
that actually matters in day to day usage: watering) (forget about size, self discharge doesn't really matter at all)

I will try ONE battery at first, just as a precaution.


Greetings,
Steven.


gardener
Posts: 3604
Location: Southern Illinois
678
transportation cat dog fungi trees building writing rocket stoves woodworking
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Steven,

I for one am extremely curious as to how well this battery material works out.

Today, all the hype is based on Lithium-Ion batteries which are great for lightweight and mobile applications.  But for stationary purposes, who cares about weight?  You might be on to something and I eagerly await your findings.

Eric

Steven Di Maira
Posts: 31
7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Here is the check sheet I made.

Their 0,4 value comes out as 26,11 gr in one liter of elektrolyte.
(If I have calculated that right)
My manual specifies 20g lioh, that's about right.


[Thumbnail for K2S.JPG]

Steven Di Maira
Posts: 31
7
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

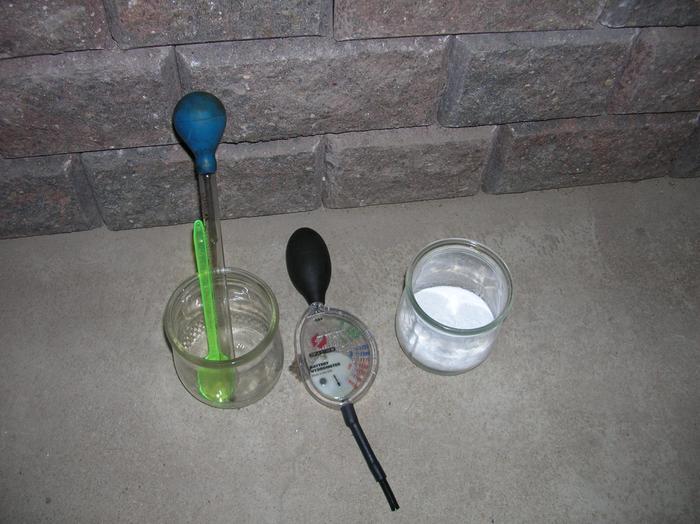

Package with the K²S arrived!

I measured the desired quantity (in the check sheet above)

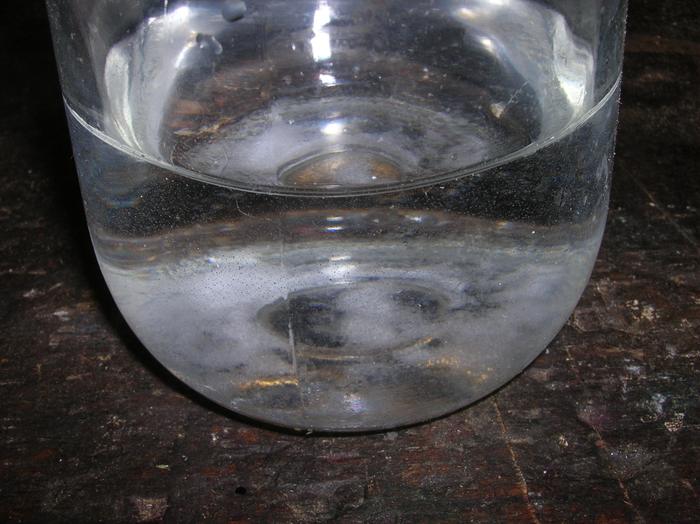

Then I pulled back some elektrolyte and dissolved the K²S in it. I does dissolve a bit like the LiOh powder.
(needs a bit of work). Then I poured in into the first battery.

The good news is: battery still works fine.
I have just ran one charge/discharge cycle.

I am not totally sure how we compare the modified elektrolyte to the other 19 batteries.
We can measure discharge voltage and charge voltage. Measuring hydrogen generation is another matter. (finger on vent hole?
balloon across cap?) Water consumption would also be an indicator.

I think I'l first let it run for a few charge/discharge cycles.

That's it for now.

Greetings,
Steven





[Thumbnail for DSCN7085.JPG]
[Thumbnail for DSCN7084.JPG]
[Thumbnail for DSCN7081.JPG]

Steven Di Maira
Posts: 31
7
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
5 batteries done.

I might have added too little?
Quote from the paper:

it is usually encounter with most NiFe electrolyte systems at a concentration close to 0.1 M


0.1M = 20mg ? (what most manufacturers recommend, including mine: Henan Hengming)

Will do half of the battery bank.
Then wait & see. and then double the concentration if too little effect.

The first battery (done saterday 29/5)  continues to work fine.
I would say it's voltage is slightly higher then the rest. But it's too soon to draw a conclusion I think.
There are always some small variations.

Conclusion so far: no damage, no problems.







Eric Hanson
gardener
Posts: 3604
Location: Southern Illinois
678
transportation cat dog fungi trees building writing rocket stoves woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Steven,

Very impressive!  Have you tried any sort of battery stress test to see what practical run times/amp hours/watt hours/etc. you can get out?

Eric

Steven Di Maira
Posts: 31
7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Eric Hanson wrote:Steven,

Very impressive!  Have you tried any sort of battery stress test to see what practical run times/amp hours/watt hours/etc. you can get out?

Eric



10 of 20 batteries done.
Will think about measuring/battery stress test.
No sun @ moment, so will have to wait.

I would like to measure the hydrogen generation too.
I can put a ballon over the vent cap top for a few minutes.  Then compare with another battery that had no k2s added.

Not sure what sort of screw thread the Chinese used for these batteries.
