How to build a long burning rocket water heater with a used gas water heater?


Posts: 4
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Want to make a hydronic heater. The hot water will be circulated through radiators to warm the house.

A used gas-fired water heater, I have removed the gas valve and burner, now I have access to the fire tube, a straight tube with a swirling flue baffle inside.

A 55 gallon steel drum with a tight sealing steel lid.

Is the following design correct for a long burning rocket water heater?

I want to add a drum of wood in the morning, and have it fire for 24 hours.

How to control the burning rate of this rocket stove?

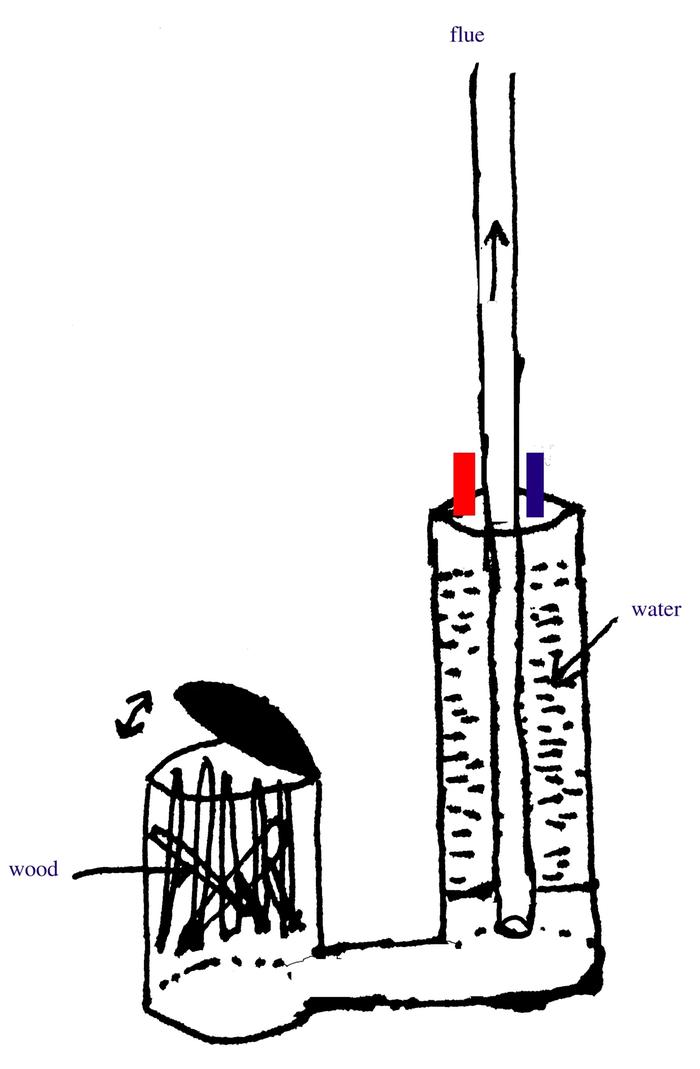

design illustration
design illustration

Posts: 164
11
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
A few things.....

Metal in the riser.  Won't last long with a hot fire.

Water in the tank will suck the life out of your fire, making it impossible to get good clean combustion.

You would need safety valves to insure you don't blow yourself up.

I am using an old nat gas water heater tank as a means to pre-heat water for my main water heater by means of a solar thermal collector, and by means of a copper coil buried in a bell bench.  So I'm only running heated water through the central fire tube and I plumbed it with threaded fittings for that purpose.

Douglas Woods
Posts: 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Thomas Tipton wrote:A few things.....

Metal in the riser.  Won't last long with a hot fire.

Water in the tank will suck the life out of your fire, making it impossible to get good clean combustion.

You would need safety valves to insure you don't blow yourself up.

I am using an old nat gas water heater tank as a means to pre-heat water for my main water heater by means of a solar thermal collector, and by means of a copper coil buried in a bell bench.  So I'm only running heated water through the central fire tube and I plumbed it with threaded fittings for that purpose.



The riser is the original gas fire tube and maybe some stove pipe extension, so it is already fire rated, right?
Yes, the water heater has T&P valve that can release extra pressure.

How to get a clean combustion before the fire reach heat exchanging surface?  Is it possible by making a longer fire tunnel between 55 gallon drum and water heater, and add preheated secondary air tube along the fire tunnel?

Thomas Tipton
Posts: 164
11
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I once saw a fellow simply burn wood under his old nat gas tank, he managed to heat water.  I can't say it was very clean, or efficient.  I probably shouldn't assume that's a primary goal of yours.  For many stove builders here on Permies, it is a big concern.

But no, a longer burn tunnel probably will not improve the situation.  If anything, raise the base of your hot water tank up above the level of the horizontal burn tube, maybe you'll get enough draft to get good combustion but I still feel this configuration is going to produce a lot of creosote.

Good luck.

Douglas Woods
Posts: 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Thomas Tipton wrote:I once saw a fellow simply burn wood under his old nat gas tank, he managed to heat water.  I can't say it was very clean, or efficient.  I probably shouldn't assume that's a primary goal of yours.  For many stove builders here on Permies, it is a big concern.

But no, a longer burn tunnel probably will not improve the situation.  If anything, raise the base of your hot water tank up above the level of the horizontal burn tube, maybe you'll get enough draft to get good combustion but I still feel this configuration is going to produce a lot of creosote.

Good luck.



simply burn wood under his old nat gas tank : will it burn continuously for 24 hours?

Hate doing that, because the hot water tank is a bit heavy, and I don't have a winch/crane to lift it up, have to break back, and then step on a ladder to work on the plumbings and flue pipe.

Will a flue draft fan or intake air blower help with anything?
