Solar charge controller calculator


Josh Diehl
Posts: 2
1
posted 4 months ago
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator

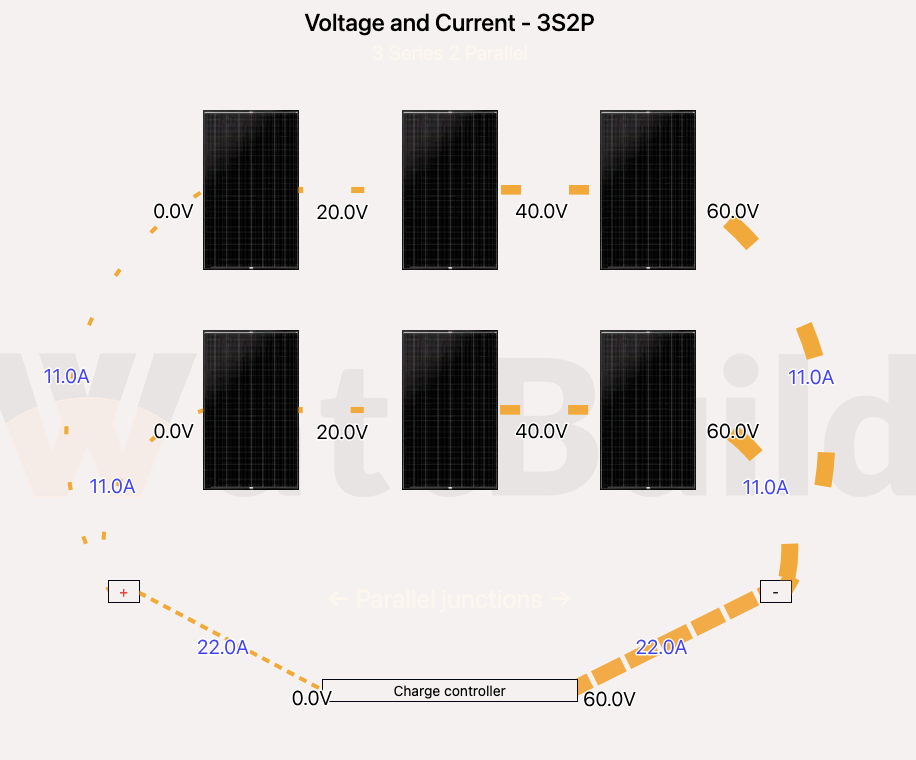

Hi all! I know figuring out the optimal series / parallel wiring for a charge controller can be a chore, so I created an interactive series parallel calculator.

I added animations and visual cues to help the viewer better understand what's going on instead of just spitting out numbers
  • Size of the "packets" correlates to voltage - bigger packet higher voltage
  • Distance between packets correlates to current - the closer together the higher the current

    • I also added details like accounting for ambient temperature effect on voltage.

    Happy to hear any impressions or suggestions.





    [Thumbnail for Screenshot-2025-07-25-at-10.36.59-PM.png]

    Solar enthusiast & creator rooftop solar calculator & other home energy calculators


    Jeremy VanGelder
    gardener
    Posts: 1687
    Location: Proebstel, Washington, USDA Zone 6B
    1063
    3
    I like...
    wheelbarrows and trailers kids trees earthworks woodworking
    posted 4 months ago
    • Likes 2
    • Mark post as helpful
    • send pies
      Number of slices to send:
      Optional 'thank-you' note:
      Send
    • Quote
    • Report post to moderator
    Hey Josh, that looks really handy. Welcome to Permies!
