How are frames typically integrated with stem walls? The top, middle, or bottom one?

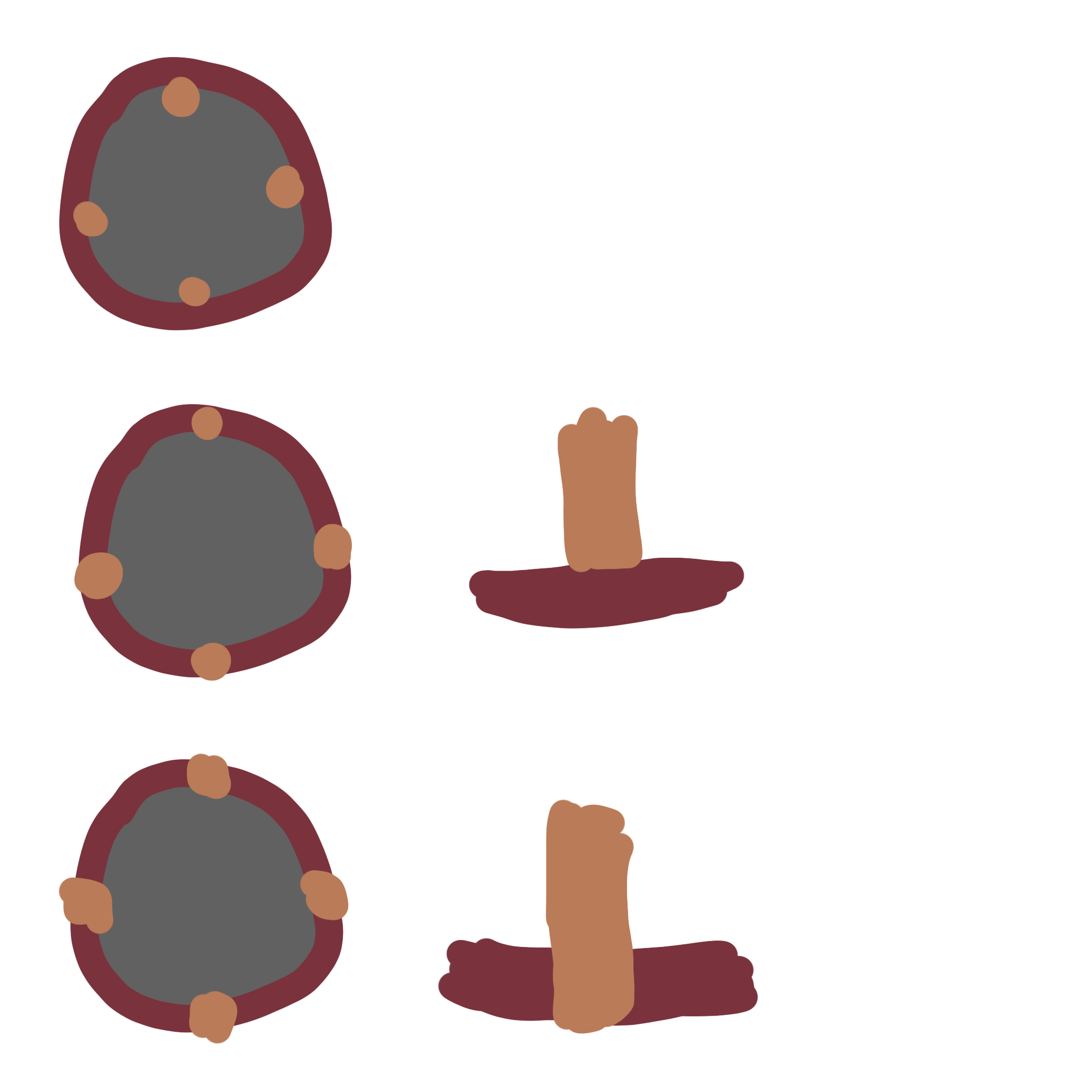

(The red being the stem wall, the brown main frame posts, and gray the foundation).


William Bronson

gardener

Posts: 5806

Location: Cincinnati, Ohio,Price Hill 45205

1425

I like...

posted 11 months ago

2
Number of slices to send:

Optional 'thank-you' note:

Send

I'm not sure what is typical but a wooden post that is exposed to both the interior and exterior of of a building will be an avenue for thermal bridging.

The first sketch would allow you to set your strawbales on top of the stem wall, with the posts completely inside the building envelope.
They would take up some interior space, but they would not contribute to thermal bridging at all.

The other two examples would contribute to thermal bridging , the third example quite a bit.

Any plans on how to insulate the stemwall?

Eating Bindweed
Eating Buckwheat Greens
Paul explains why I spend time here,better than I could myself.

Anne Miller

master steward

Posts: 19817

Location: USDA Zone 8a

4974

I like...

posted 11 months ago

2
Number of slices to send:

Optional 'thank-you' note:

Send

Is your structure round?

We built on a concrete foundation though I feel the techinique is the same.

And there might be several techniques.

First would be a frame is constructed then raised and anchored.

If your structure is round this might help:
