closed loop water turbine

I have in my thought cage and idea that I'm not sure is possible, but figured this was the group to chat about it. Would it be possible to recycle water that has run through a turbine back up and around again using a ram pump, essentially creating a closed loop water engine? Has anyone heard of such a thing? I've done some searching on the tubes, but haven't found anything yet.

Another half-baked idea is to somehow introduce grey water and filtration into the equation. It would cease to be a closed loop, but maybe better for different applications.

Ram pumps work, by utilizing the mass of the moving water, to temperarily raise the pressure to the point where water can be pumped uphill.  But, the efficiency is only a few percent, meaning only a few percent of water flowing downhill is actually pumped back uphill.  Basically, a very LARGE volume of water falling downhill can push a very small amount of water back uphill.  A closed loop system would run for a little while until the water in the upper tank is drained, and then it will simply grind to a halt.

Your implication is that it would be an engine that could somehow be applied to producing useful work.  You simply can't get something for nothing. The laws of physics is not on your side.

Sean Bahr wrote:I have in my thought cage and idea that I'm not sure is possible, but figured this was the group to chat about it. Would it be possible to recycle water that has run through a turbine back up and around again using a ram pump, essentially creating a closed loop water engine? Has anyone heard of such a thing? I've done some searching on the tubes, but haven't found anything yet.

Another half-baked idea is to somehow introduce grey water and filtration into the equation. It would cease to be a closed loop, but maybe better for different applications.

Micheal Quick is indeed correct, and this in no way negates what he says.

But in the hydroturbine world you can get a little bit extra out of the flowing water via the venturi effect. When I worked at a fairly modern dam, a 16 megawatt dam built in 1989, it used this principal. No different then how a carburetor necks down, then goes big again to get a little bit of siphoning effect, a dam with horizontal turbines can gain a little in output.

That dam further got more efficiency by having variable turbine pitch. That was, the turbine  blade could by spun on its axis so that it was flatter, allowing more contact with the water to get the generator turning from a dead stopt, then would adjust itself to a more angled pitch at higher speeds as the need for torque reduced and it just needed rpm to keep the generators locked in with the grid. There was a bell curve that showed the ideal turbine pitch to generator megawatt output, and that was so the most power was produced from the least amount of water flow.

I think it would be hard to build that variable pitch turbine blade into a home-built microhydro project, but it had amazing attributes. At full headpond I could pull 16,000 kilowatts, or go down as low as 175 kilowatts. Whatever the river was flowing, we could match.

Well explained by Michael. A closed loop system designed like that would only run for a very short amount of time. Even if you were trying to pump water from a flowing creek up a hill with a ram pump to run a turbine, you would have much better efficiency to use all of the water flowing in the creek to turn the turbine and transmit the power uphill. Ram pumps lift around 20% of the water that flows in to them (best case scenario).

Thank you all for the replies!

Sean Bahr wrote:I have in my thought cage and idea that I'm not sure is possible, but figured this was the group to chat about it. Would it be possible to recycle water that has run through a turbine back up and around again using a ram pump, essentially creating a closed loop water engine? Has anyone heard of such a thing? I've done some searching on the tubes, but haven't found anything yet.

Another half-baked idea is to somehow introduce grey water and filtration into the equation. It would cease to be a closed loop, but maybe better for different applications.

 Dear Sean I have done this , its not half baked ,  I Got 20miilliwatts for 3 days , but it can scale, please don't  doubt your ideas , its called a passive fluidic relaxation oscilator , its very similar to a resistor , capacitor inductor oscilator with a diode :

I have designed a macro-scale fluidic relaxation oscillator for micro-hydro power, and the full blueprint is open-source on GitHub. It converts a steady streamflow (DC) into a sharp, periodic kinetic pulse (AC) without any solid mechanical trip-switches or electronics.By eliminating moving parts at the oscillator level, we eliminate mechanical wear, bearing failures, and maintenance headaches in remote setups.The full documentation and open-source file repository can be found here:👉 GitHub: Passive Fluidic Micro-Hydro Repository

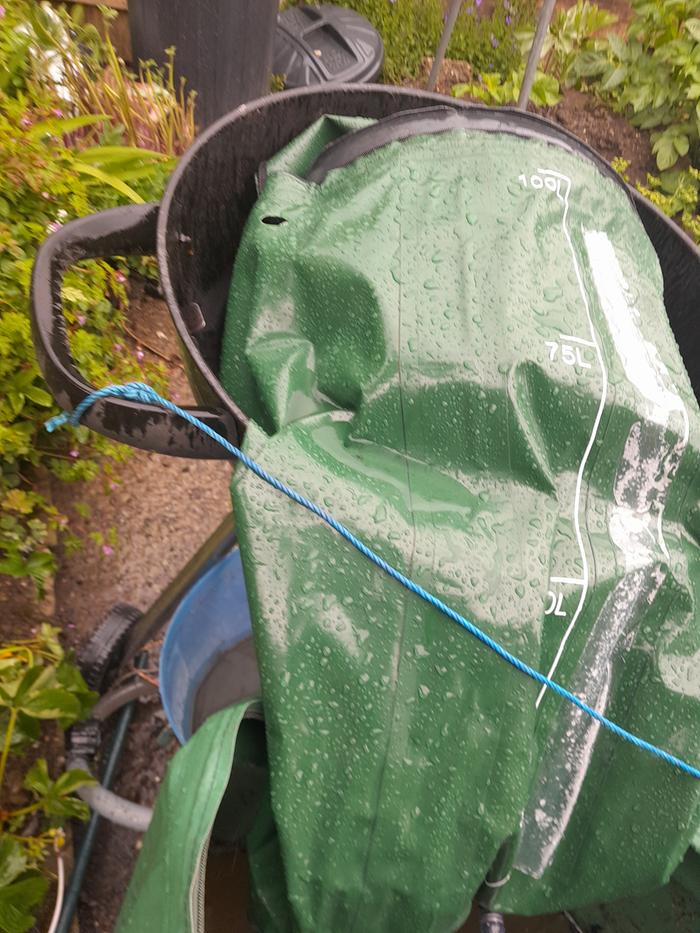

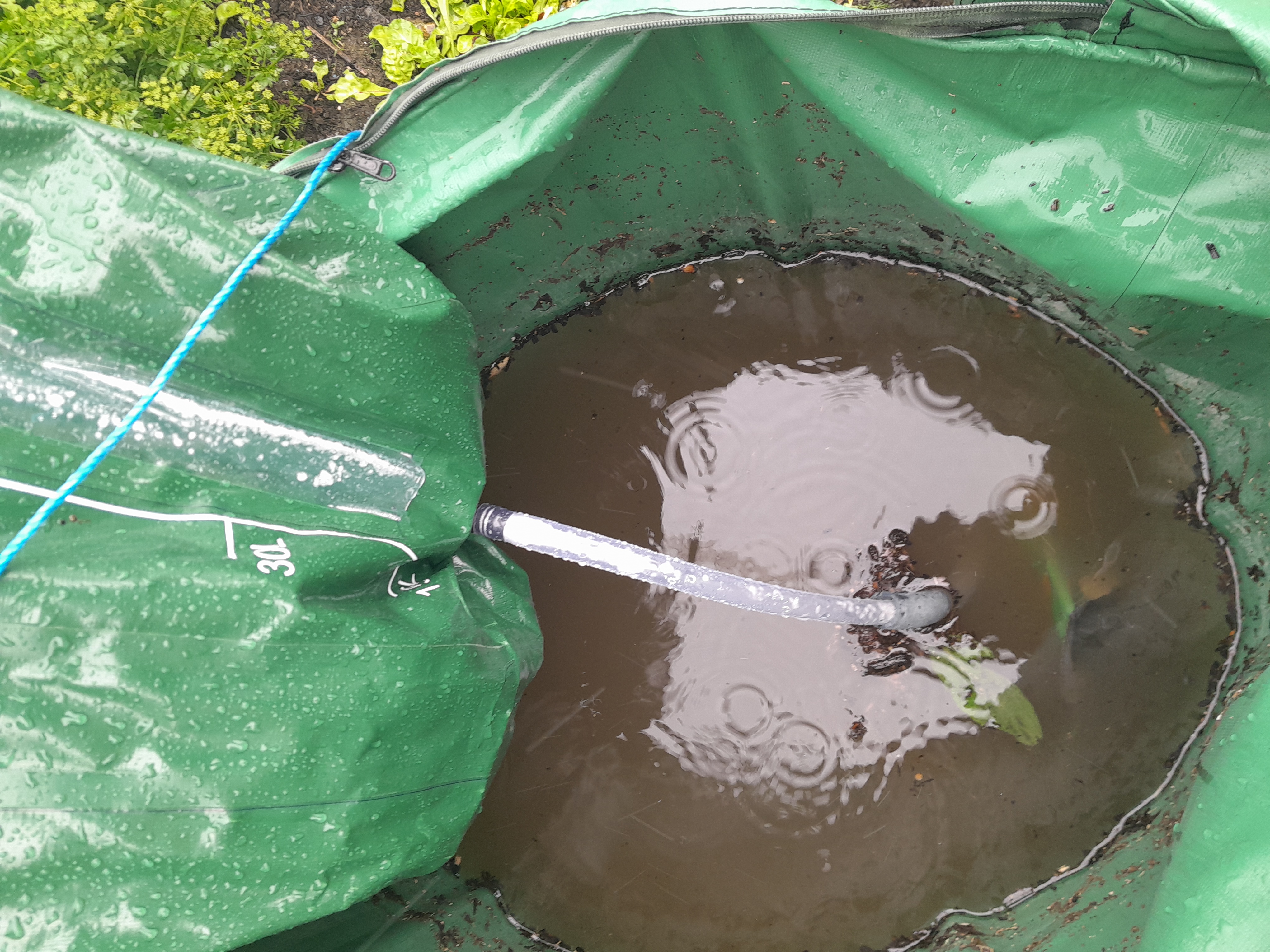

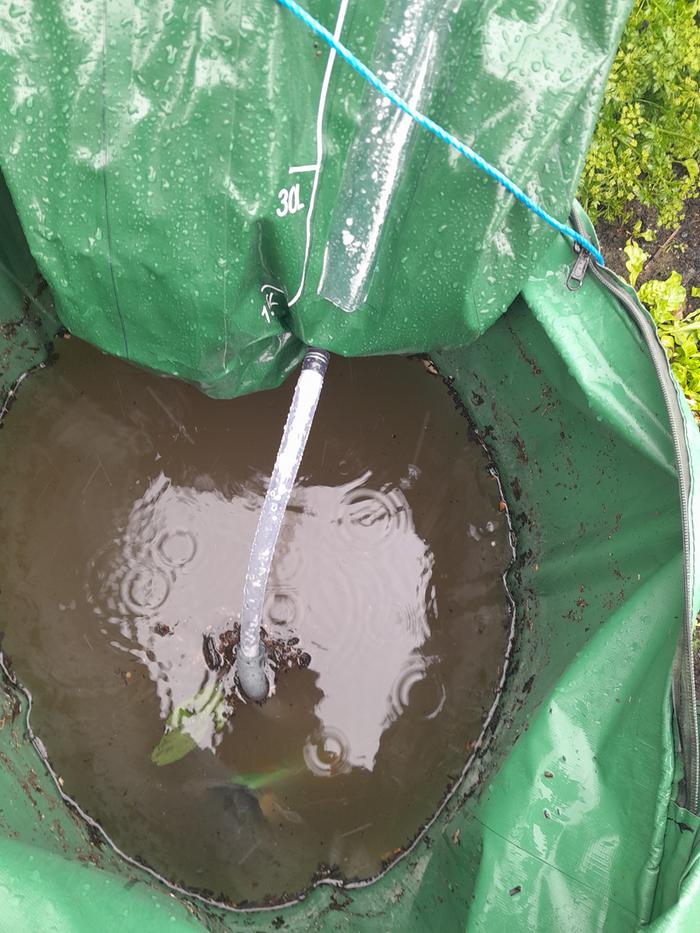

The Prototype Specs (Designed for Low-Head)The system is optimized for ultra-low head constraints (like strict UK temporary structural planning laws) to output a target 20 Watts of electricity.Important note on tank setup to avoid disappointment: Prototype 1 was successfully tested using a 300L flexible, collapsible water butt. For full scaling, you can use a single 1,000L collapsible water butt or link two 500L collapsible butts together. If you choose to use a standard rigid IBC tote, the top cap and bungs must be sealed 100% airtight so the Mariotte array can pull a proper vacuum lock!Header Tank: 1,000L collapsible water butt (or 2x 500L linked), OR a 100% airtight sealed rigid IBC tote. Provides fluid buffer storage and a 100-second cycle window at maximum flow.Mariotte Air Intake: 5 cm (2-inch) Sealed PVC Pipe. Maintains a steady vacuum seal and constant pressure head without internal sloshing.Downpipe: 15 cm to 20 cm pipe acting as the primary fluid inductor.Wicking Capacitor: 2 m² porous compost/biochar matrix tray.Turbine Drop: 50 cm vertical head driving an overshot wheel to a geared 12V DC motor.Note: In off-grid humanitarian environments (like West Africa), this scales vertically to a 3-metre head, multiplying kinetic energy sixfold to drive high-efficiency Pelton or Turgo turbines.

Thank you for your detailed reply Jake! I have to admit I don’t understand a lot of what you’re saying but I will do my best to use the information you provided. It’s great to know the idea can work!

Jake's setup may work, but it will not be a closed system as you originally envisioned. No matter what, it will require input from outside, in the form of new water or other energy source.

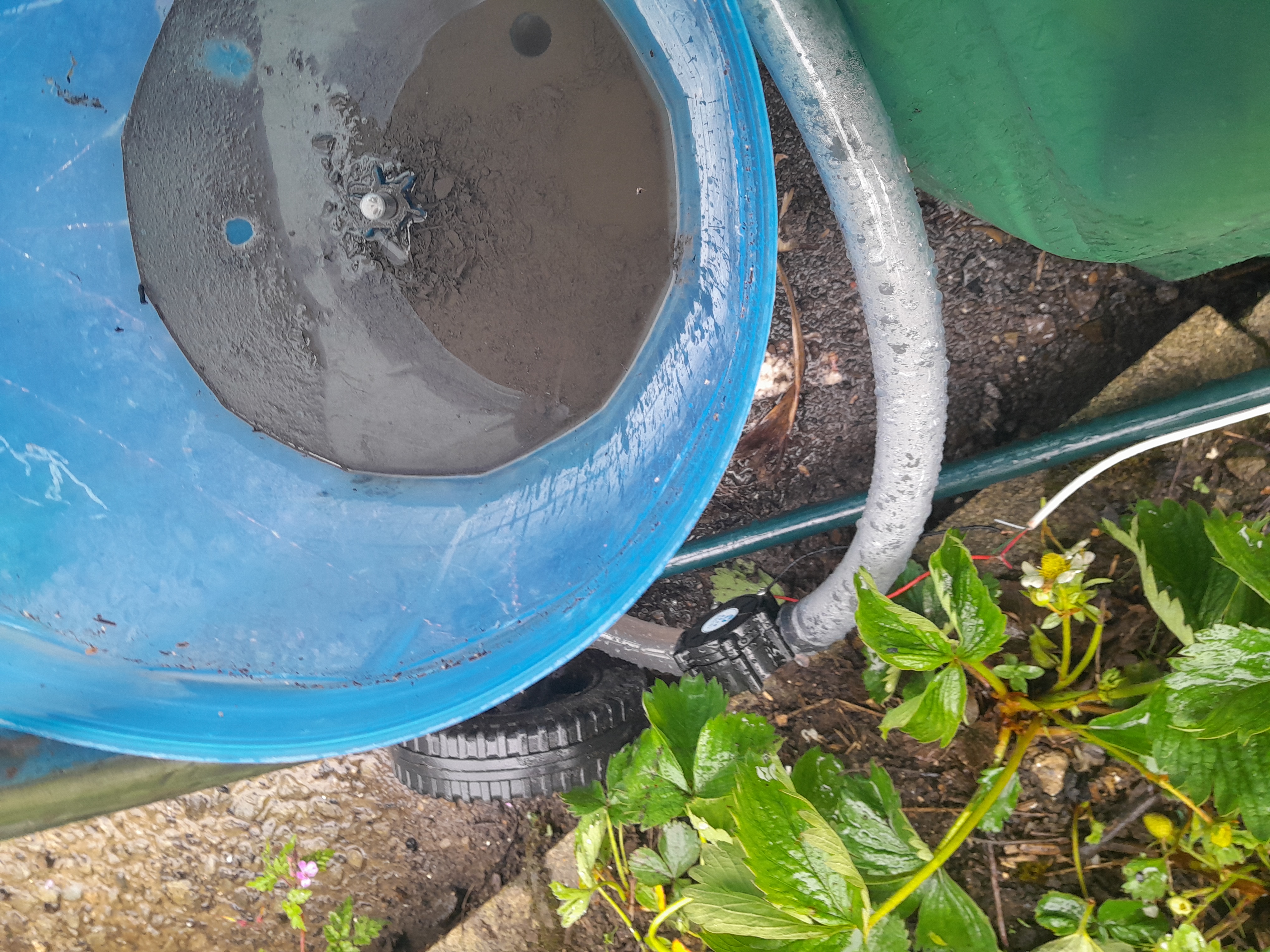

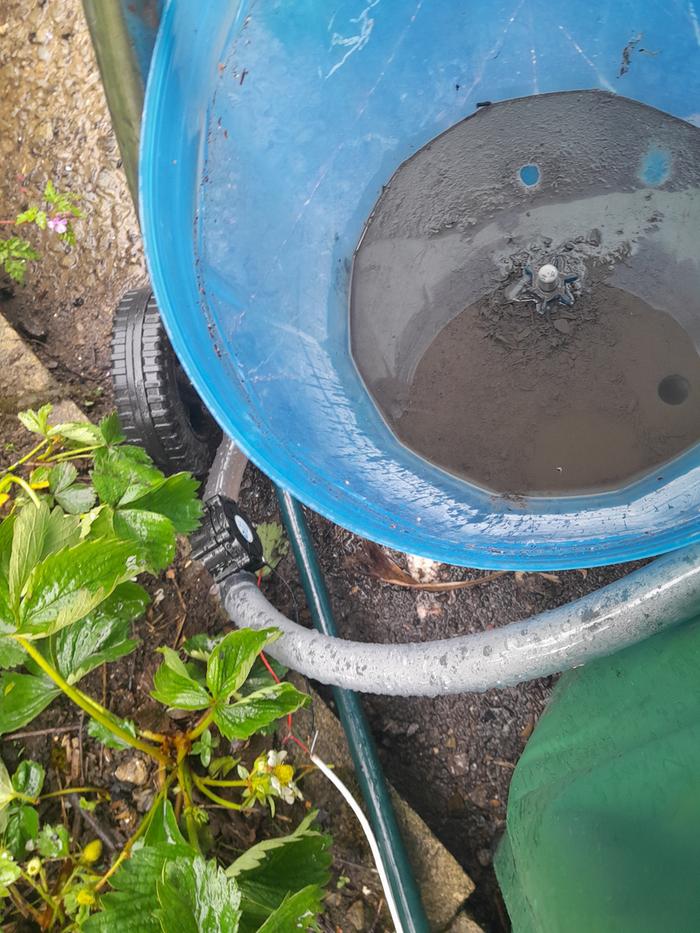

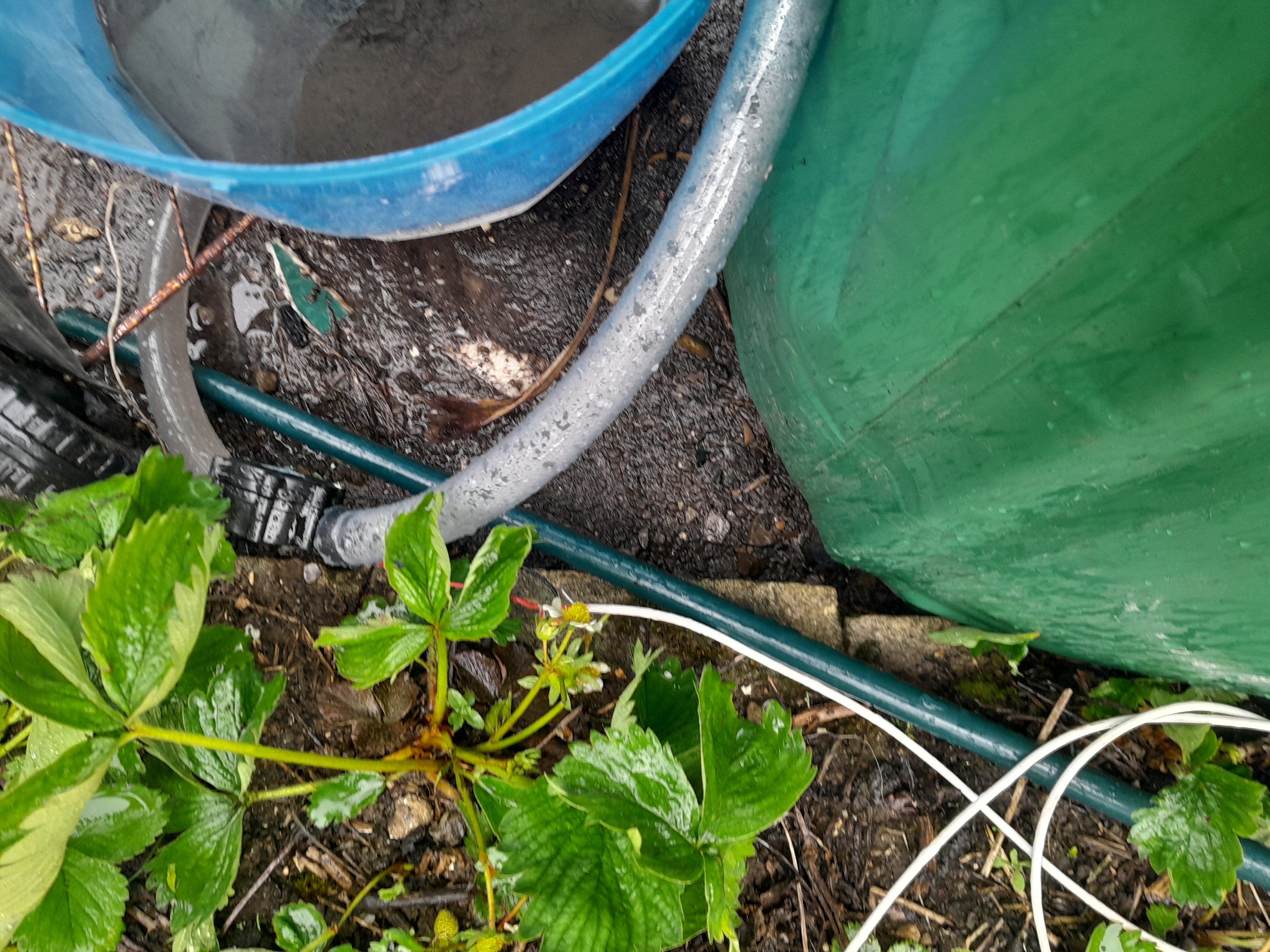

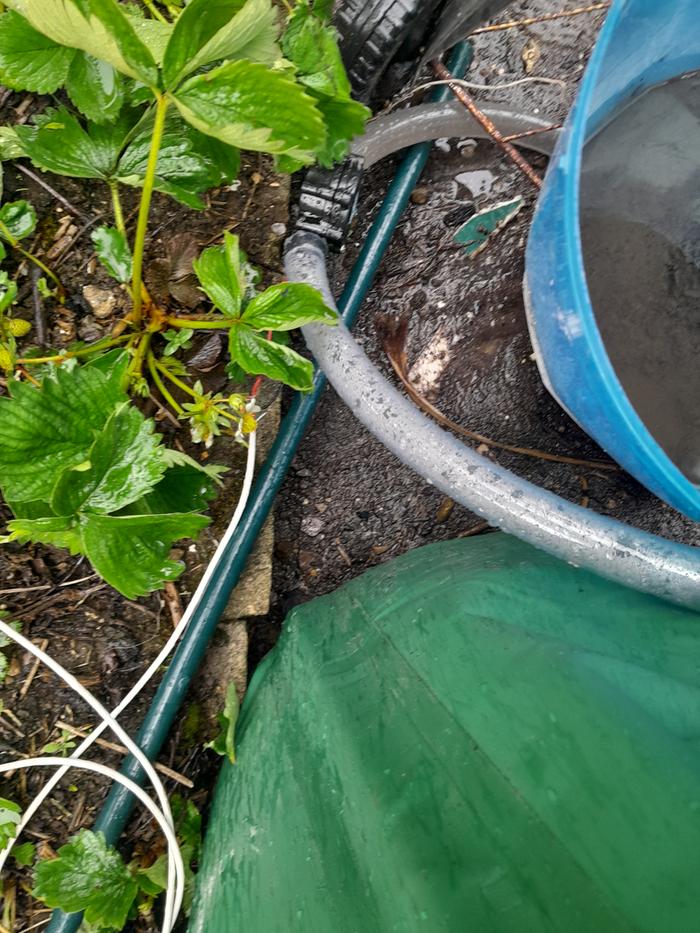

Thank you , that is completely true , it's not true closed loop , it's just if you seal it well the water can recirculate and you only loose a little to evaporation etc . I  was over playing it , but I felt maybe the original poster meant , like closed feeling water loop ? Sorry for being a little disingenuous,  but I thought the original poster should be encouraged,  because it seems my system is a pretty new idea , and you just never know where something new will come from ! ? I have real trouble with leaks etc and getting anything filmable,  but I have just been able to make a short video where you can see water oscillating down and up a pipe , it's pretty rubbish as a video and set up , but it shows oscillation,  though not restart . You are 100 percent right though , and I do apologise for misleading . Sorry about that
