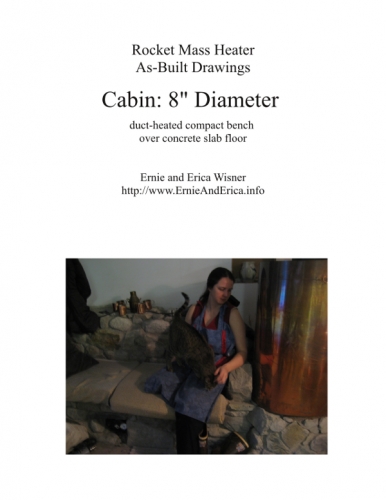

Rocket Mass Heater Plans - Cabin 8"


steward
Posts: 3994
Location: Montana
339
bee books food preservation fungi
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Plans for this heater now available on the Permies Digital Marketplace!


Description:
"
Cabin 8" RMHeater - compact 8" diameter rocket mass heater, 3.5' x 9' footprint on concrete slab floor.

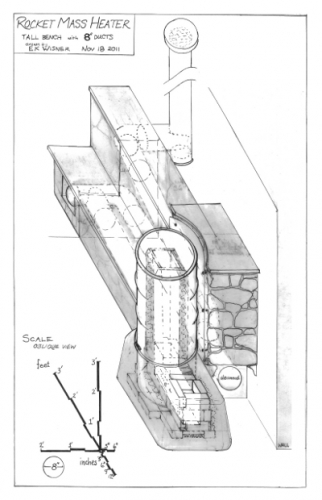

As-built drawings including plan, elevations, cross-section, and brick-by-brick layout for critical combustion areas. Builder's notes describe materials and tools, how to configure a removable barrel, attach wooden seat & tile mantlepiece. Optional decorative and functional elements are also discussed including fieldstone facing, copper barrel cover, and air channels for protecting combustible walls.
The original installation heats a 840-sf cottage in alpine/high-desert climate near the Canadian border (snow Oct to April) on about one to 1.5 cords of wood per winter.

PDF, 18 pages, 8.5" by 11", color illustrations (prints fine in B&W too). File size about 1 MB. (This is the 3rd updated version, with 4 additional pages compared to the original.)
"




Buy the plans here!

$19.95

Rocket Mass Heater Plans - Cabin 8"
Buy access to this content
Seller Erica Wisner




Combo Packages That Include This Plan:

Rocket Mass Heater Plans Combo
All of Ernie and Erica's Products Combo

Ernie & Erica, the creators:
