Christmas toys - how do I pin these together?  RSS feed


Aaron Festa
Posts: 149
Location: Connecticut
1
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
This is more a topic under frugality but I need help doing some really simple woodworking. I'm making the Blacksmith/Bear wood toy that I had seen on an episode of Roy Underhill's show. I can't figure out how the pieces get pinned together. They are supposed to move back and forth as if they both swinging an axe but if I nail them I'm thinking that would prevent them from moving freely. Ive attached a picture please don't make fun of the craftsmanship. I also made a Jacob's ladder and plan to make a wood push toy. On a bigger topic anyone have ideas that a newbie can make using a coping saw and some files and chisels?
[Thumbnail for WIN_20141209_191343.JPG]

Bill Bradbury
pollinator
Posts: 684
Location: Richmond, Utah
32
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Looks like a great gift! I would use spring pins to hold them together.

Gift idea;small carved picture frames cut from one piece of wood. You probably know that you can remove the coping saw blade, thread it through a small hole drilled in the wood blank and then re-install the blade to cut out the inside shape. This method can be used to make beautiful simple picture frames without joinery which can be problematic for the beginner. After shaping, then relief carve the frame.

Finish- this will make a huge difference in the overall look. Zinser makes a cheap, premixed shellac that I like a lot. This gets thinned with alcohol to make a durable coating that can protect a toy like this while still being non-toxic. If you make a little mistake the shellac can be sanded with 400 grti and then re-coated.

Ken Peavey
steward
Posts: 2524
Location: FL
89
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Aaron Festa wrote: On a bigger topic anyone have ideas that a newbie can make using a coping saw and some files and chisels?

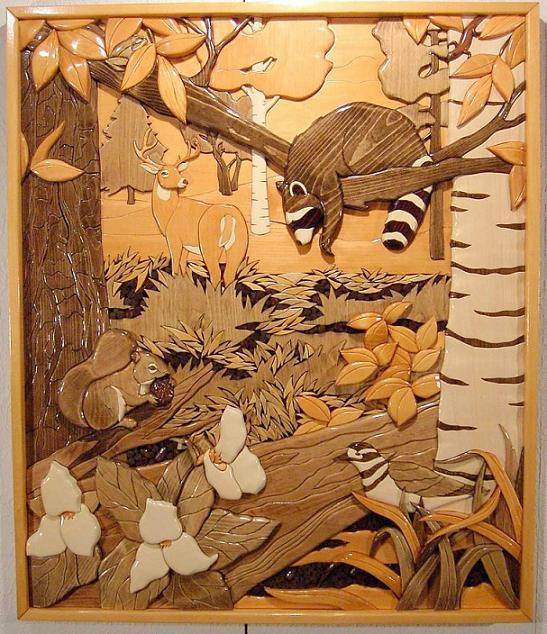

Intarsia is a form of woodworking which fits coped pieces to form the piece. Colors are handled with different species, but can be polished, stained and painted. The basic tools for this artform is a coping saw, some files, and chisels.

The level of detail can range from simple...


to extreme...


to OH MY!

It's akin to putting together a jigsaw puzzle, in 3-D, and you get to make all the pieces.

Aaron Festa
Posts: 149
Location: Connecticut
1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Bill thanks I'll get spring pins. I like the coping saw idea. That never dawned on me.

Ken thank you as well. I'm very intrigued with what we have shown.

Bill Bradbury
pollinator
Posts: 684
Location: Richmond, Utah
32
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Just as an FYI; the key to intarsia is to tape the pieces of raw wood together where they will meet and then cut the package, this results in perfect joints on complex shapes.

Judith Browning
Posts: 5955
Location: Arkansas Ozarks zone 7 alluvial,black,deep loam/clay with few rocks, wonderful creek bottom!
377
bike chicken fungi trees urban woodworking
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
These might have something useful...and they are the full episodes it looks like your project,Aaron, is about four minutes in, and like he says they all are similar to make....I hadn't seen these two shows before.




Judith Browning
Posts: 5955
Location: Arkansas Ozarks zone 7 alluvial,black,deep loam/clay with few rocks, wonderful creek bottom!
377
bike chicken fungi trees urban woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

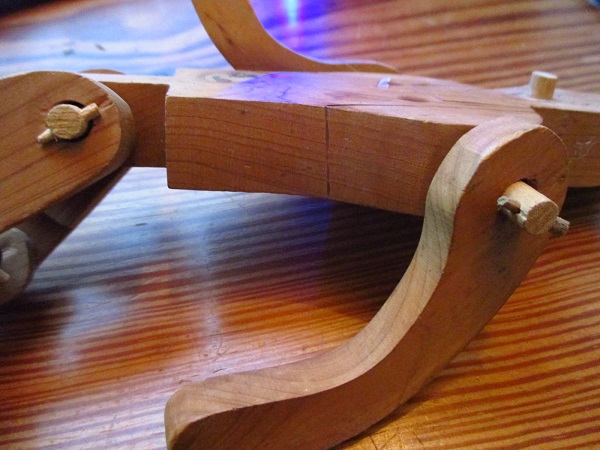

This is a 'dancing' doll....many folks around here have sold things like these for decades. The joints appear to be small, maybe 1/4 inch dowels with a very small hole for the peg. It has held up to much abuse by our children and grandchildren.
the lines are simple woodburning and the wood itself had no finish..... years of use have given it a nice patina.
[Thumbnail for IMG_1864.JPG]
[Thumbnail for IMG_1866.JPG]

Aaron Festa
Posts: 149
Location: Connecticut
1
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Thanks Judith! I really like the dancing doll. I'll give it a try. Just need to make it a dancing bear... the little guy really loves bears.

Judith Browning
Posts: 5955
Location: Arkansas Ozarks zone 7 alluvial,black,deep loam/clay with few rocks, wonderful creek bottom!
377
bike chicken fungi trees urban woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Aaron Festa wrote:Thanks Judith! I really like the dancing doll. I'll give it a try. Just need to make it a dancing bear... the little guy really loves bears.


A bear would be great....the 'doll' has a dowel in back to hold it over a flexible piece of something that you sit on to hold in place....dance the doll out at the end...I'll see if I can find a video to embed for those who haven't seen one 'dancing'. They are fun and rhythmic along with other music or on their own.
I found one similar to ours...not a great video though.....

Ann Torrence
steward
Posts: 1191
Location: Torrey, UT; 6,840'/2085m; 7.5" precip; 125 frost-free days
111
bee books chicken duck goat trees
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
these limberjack things fascinate me.


Aaron Festa
Posts: 149
Location: Connecticut
1
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
That is fantastic!!! Thanks for sharing. I'll have to make two now. I want my own and I don't like to share...lol
