How to identify rims so that I can find replacements for my haywagon?


Posts: 67
Location: Mille Lacs, MN
7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
In the tall brush of my property was a decent condition Minnesota running gear.
A couple of the rims are rusted thru and I'd like to find replacement ones but don't know where to start.

Attached are photos of a couple of the rims and a picture of the model/serial of the Minnesota running gear, and tire.

I believe they are 15" rims...
They are 5-bolt pattern.
The spacing between each bolt is 3.25", approximately.

Tires say "P205 / 75R15"

Any one know how to help me find the proper terminology so I can go to a junk yard and find replacements?

Thanks,
[Thumbnail for IMG_1409.JPG]
[Thumbnail for IMG_1410.JPG]
[Thumbnail for IMG_1411.JPG]

gardener
Posts: 3073
Location: Central Texas zone 8a
819
2
cattle chicken bee sheep
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Measure from center of bolt to center of the second bolt. That in inches is the size. If it's 4.5" then the term is 5 x 4.5. 5 being number of holes.  4.5 being the distance.

Andre Lasle
Posts: 67
Location: Mille Lacs, MN
7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

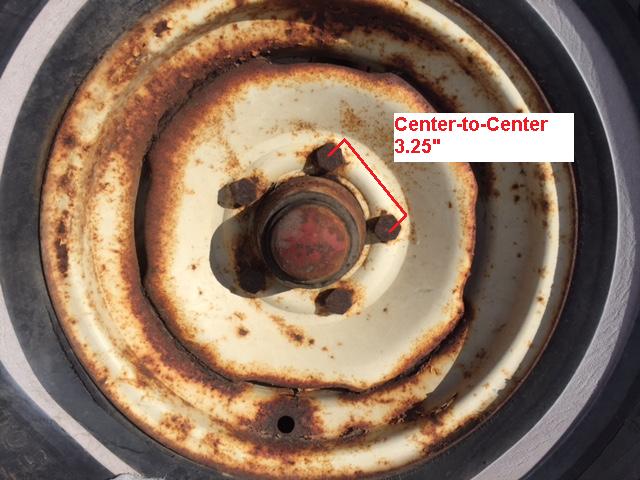

If I understand you right, its 3.25"
(See attached illustration)

Is there a measurement for the width of the rim, if viewing from the front- the distance between the two edges?

[Thumbnail for IMG_14090.jpg]

wayne fajkus
gardener
Posts: 3073
Location: Central Texas zone 8a
819
2
cattle chicken bee sheep
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
No. Skip one. I said second bolt, but meant second bolt after the first. Hope that makes sense.

pollinator
Posts: 351
Location: S. Ontario Canada
29
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Wayne means to measure the diameter of the bolt circle. As in this pic. You'll need to know the diameter of the rim( 15", from the R15 on tire) , width, (probably 6 but check) and offset. Lay the rim on the ground, measure up to the flat part where the bolts would touch the axle.


Andre Lasle
Posts: 67
Location: Mille Lacs, MN
7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Based on Roy's measurement points, the distance is 5.5" (5 1/2").
