Hello everyone, hoping someone can help me with this thing. I have a well on the property. There is currently no electric to the property so getting it up and going is not possible right now. However I am hoping someone can tell me the steps involved in getting this thing working. I do not know anything about this pump or how to get it running. I assume I will need some sort of on and off switch. I also assume there is a water line that is buried somewhere under the old foundation pad. I am hoping I can get electric soon, throw a switch on and then wait to find the line once there is a good mud puddle. Am I way off track? Any help would be greatly appreciated!

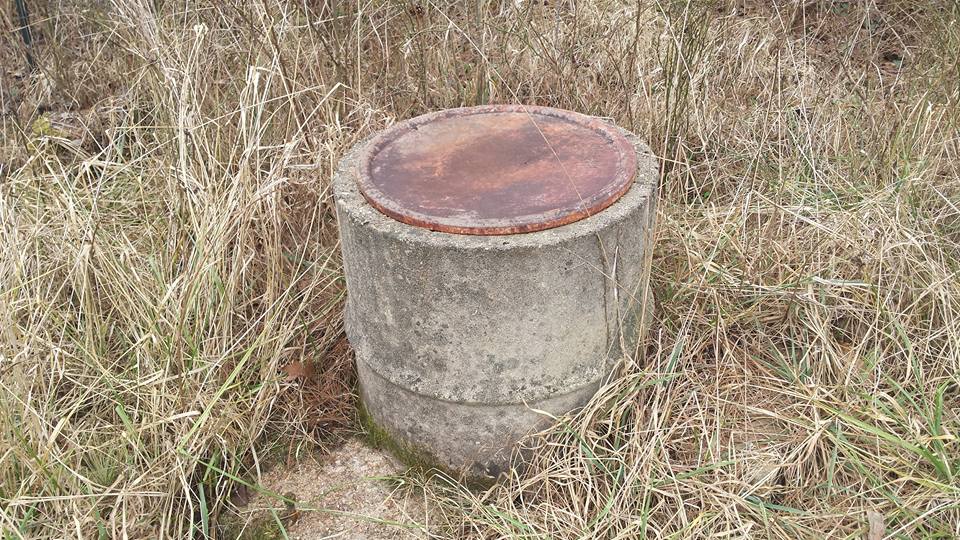

[Thumbnail for 16684036_10154463090103121_6403127054988642231_n.jpg]

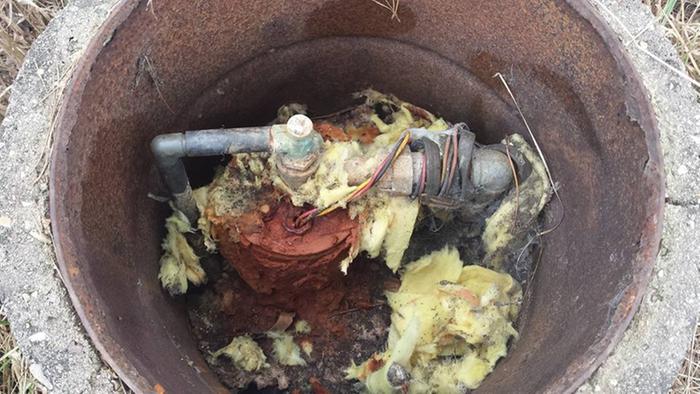

[Thumbnail for 16711823_10154463089668121_7529668018718272682_n.jpg]

Posts: 5
Location: Michigan, tip of the pinky
1
fungi solar wofati
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I would try disconnecting both sides before firing it up. If it does spin, too much back pressure can burn out the motor. I've had to replace a submersible well pump because the above ground pipe froze (shoulda' been buried).

Posts: 1007
39
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Electricity to simply see if it works. I think a normal install involves a pressure switch with turns it on and off as needed. A pressure tank is next in line. After that it is distributed to where needed (faucet, commode, etc)

Nick Marlowe
Posts: 6
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Thanks Tim and Wayne. Wayne, is the pressure switch something that is on the pump or where would I install it? I am wondering what I need to do to hook this up to a camper. Will I need a pressure tank separate from my camper or can I just find the water line, put a hose end on it and screw it straight to the camper?

wayne fajkus
Posts: 1007
39
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
With a camper, I'm sure you could use just the pressure switch to turn it on/off. I forgot a back flow  preventer.  It would go before the pressure switch, or all the pressure would go back down the hole. It would constantly cycle on and off.

The pressure tank stores a volume of water under pressure. It smooths out the flow. In a camper w limited water use, it may not be needed.

pollinator
Posts: 381
Location: Officially Zone 7b, according to personal obsevations I live in 7a, SW Tennessee
42
bee books food preservation forest garden cooking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
A couple sites I found helpful when I was loking into our well troubles.
http://inspectapedia.com/water/Water_Pump_Repair_Guide.php
http://www.envisupply.com/pumps/submersible-pumps-troubleshooting.htm
Oh. And I'm not a expert.
