IBC TOTE trouble


Posts: 1
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I have several IBC totes. Couple have coarse thread valves. One has fine thread. The edges of that fine thread have been buggered up, and I can’t get an adapter to thread on there. Any suggestions?

pollinator
Posts: 814
Location: Appalachian Foothills-Zone 7
202
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Careful work with a small triangular file might clean the threads up enough to get your fitting on...

Posts: 60
Location: Nova Scotia
7
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I use a rubber cuff with a pipe clamp.

steward
Posts: 15582
Location: Northern WI (zone 4)
4880
7
hunting trees books food preservation solar woodworking
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

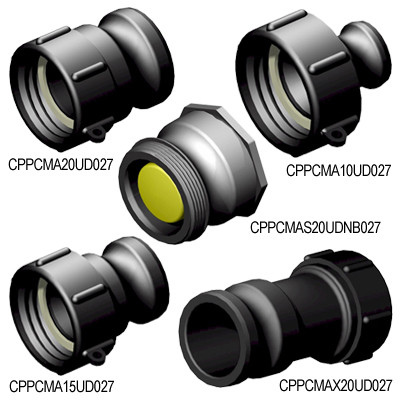

I think there are three different types of connections for an IBC.  One is a really coarse thread (top two images below), one is a standard NPT plumbing thread and the third is a deceptive one.  It's a really fine thread on the end of the fitting.  But it's really only there to screw on a dust cap.  The actual connection is a cam lock recess behind the small threaded bit (center and lower two images in this picture:


If you actually have the cam lock, don't worry about the ruined threads and go get a cam-lock connector to latch onto that puppy.

If you have the NPT style (standard plumbing thread), I'd try the file trick Gary suggests.  If that fails and you really need it to work, I'd get a galvanized metal fitting of the same size (perhaps a coupling), cut it in half and use the piece as a threading die to smooth out the grooves of the threads.  It's hard to describe and I've never done it but I think it would be worth trying.  I can make up more words to try to describe my crazy idea if you want.
