10 x 10 ft Shed Shelter Gazebo Pergola CarPort Idea & Build From Rough-Cut Lumber Off The Land


Posts: 595
Location: ontario, canada
9
transportation fungi tiny house
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I wanted a shelter to park my 83 firebird project under cover this winter, but i have no garage.  i wanted to avoid building permits and inspections so i've made a few quick designs under 108 sq ft, where a building permit is not req'd in my area.  the second design is more closed rather than open, but the barn doors lock open and provide a larger open shelter combined with a large overhang on both ends and swinging barn doors on both ends.  here are my preliminary designs, construction has begun and i haven't published how much i've accomplished yet, but the timber frame is 99% complete already and so far i've built it all myself.


John McDoodle
Posts: 595
Location: ontario, canada
9
transportation fungi tiny house
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
here is the 2nd design update with more cladding , more closed in, and the option to lock the doors open and make longer walls, figuratively turning a 10x10 closed shed into a 10x18 open carport.


John McDoodle
Posts: 595
Location: ontario, canada
9
transportation fungi tiny house
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

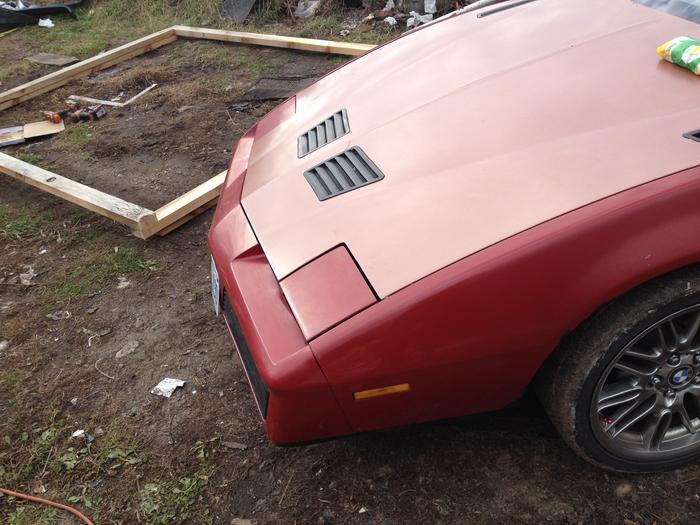

the first steps.  standing up posts and beams, later laminated into heavier posts and beams
[Thumbnail for IMG_5776-1-.JPG]
[Thumbnail for IMG_5780-1-.JPG]

John McDoodle
Posts: 595
Location: ontario, canada
9
transportation fungi tiny house
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

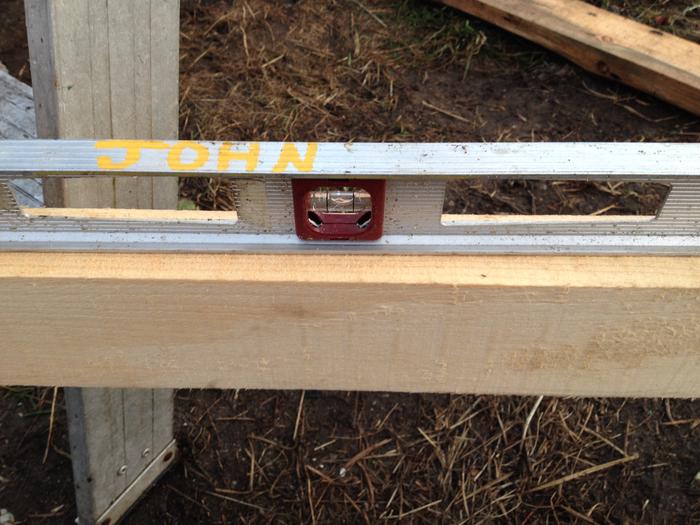

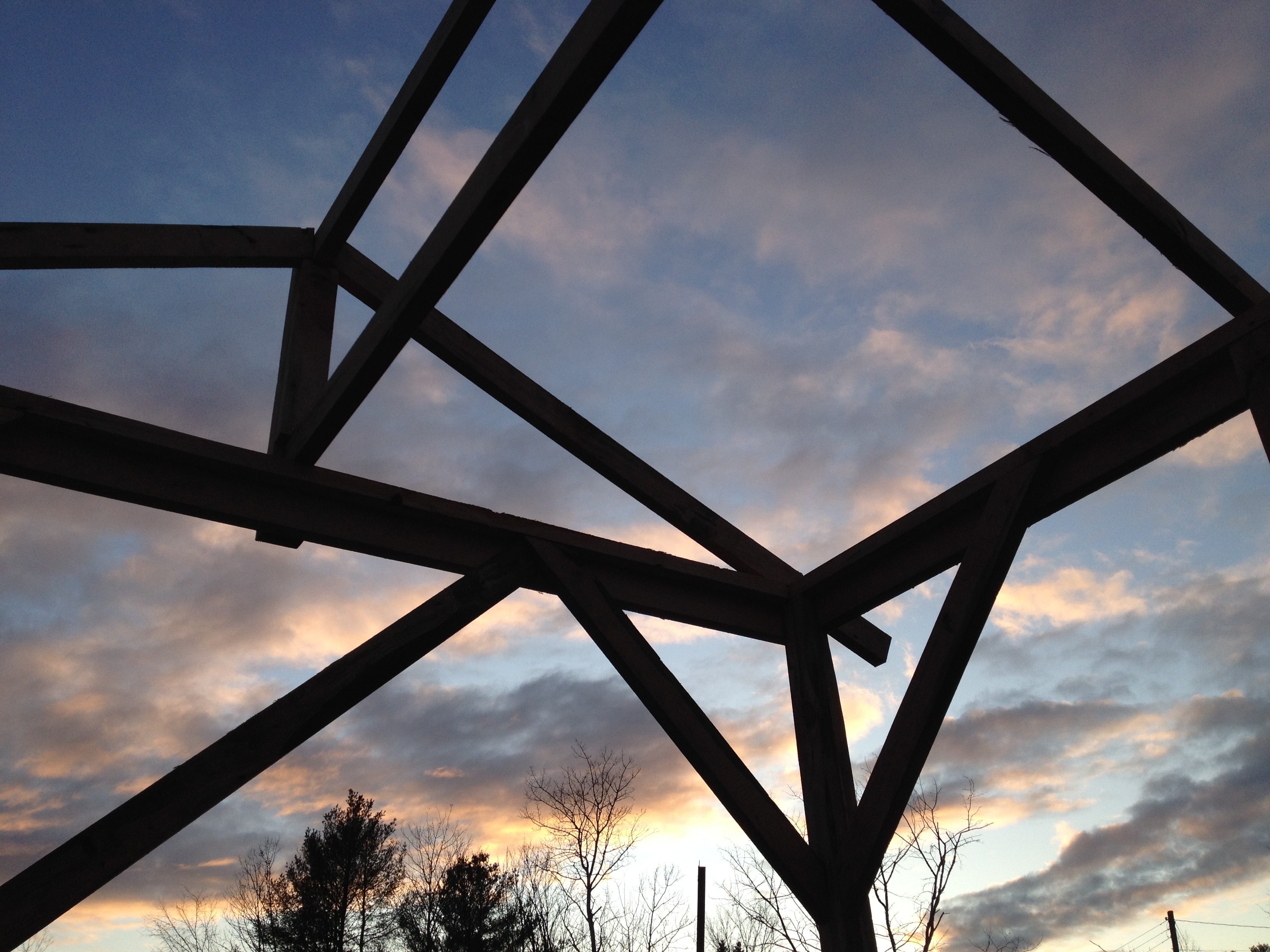

braces, ridge beam, rafters.  i laminate most of these 2x4's into 4x4 posts and beams eventually, with different overlapping connections. usually 2 different length boards are laminated together creaing/instead of cutting notches at the lapping joints.  im using 3" screws & a rigid 18v cordless impact driver for all the connections, plus i sink the screws in well and deep.
[Thumbnail for IMG_5781-1-.JPG]
[Thumbnail for IMG_5782-1-.JPG]

pollinator
Posts: 1146
Location: Victoria BC
136
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Looking good. Like the doors to stretch the size. Same ridiculous size limit around here..

I have laminated a number of beams out of 2x6 through 2x12 material. I usually use construction adhesive combined with screws, and use a center layer of 5/8 or 3/4 plywood.. plan on switching to spiral shank nails from a gun, for speed, still with adhesive.

Never integrated the connections with the laminating, as these have all gone on roundwood posts. The most I have done thar direction is integrated plywood gussets to posts or braces.. like how your method is minimizing the heavy lifting!

John McDoodle
Posts: 595
Location: ontario, canada
9
transportation fungi tiny house
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

Dillon Nichols wrote:Looking good. Like the doors to stretch the size. Same ridiculous size limit around here..

I have laminated a number of beams out of 2x6 through 2x12 material. I usually use construction adhesive combined with screws, and use a center layer of 5/8 or 3/4 plywood.. plan on switching to spiral shank nails from a gun, for speed, still with adhesive.

Never integrated the connections with the laminating, as these have all gone on roundwood posts. The most I have done thar direction is integrated plywood gussets to posts or braces.. like how your method is minimizing the heavy lifting!



i'll show the joints later more closely but its neat how they overlap one-another and laminate into a notched post.  i've never used roundwood aside from cedar posts and slab-wood from the mill over the years.  the floor is 10x10 but i have somewhere near 40" of overhang on both gable ends, so the roof is 16.66 ft long, give or take, maybe more when i get the facia boards all buttoned-up.  the are true dimension rough lumber cut from the land.  so a 2x4 is truly 4" and a laminated 4x4 is truly 4" , and it looks nice and rustic, plus i got the wood in exchange for labor work, for my boss.  i also got the roofing steel "free" or in exchange for some MBRP stainless steel mufflers which i never used.  i have the roof steel on now and so far i only have $12 invested into screws, and some time, and some traded mufflers.  the steel even came with color matching rubber washer type screws  The XL overhang on the ends is a big design element for the doors to stay open and provide extra "temporary" shelter.  doors open is only "temporary" because they can be closed in the summer time or whenever  another key for me was keeping it under 108 sq ft with the doors closed, or at the corner posts, and obviously the barn doors can help alot but i haven't got that far yet.
