Spring water distribution.


Posts: 2
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hi.

Firstly thankyou everyone for this amazing resource.

Me and my partner have just bought some land in Portugal.

I have found a spring, and am wanting to tap it for water.

I am slowly trauling through spring box construction posts and videos and think I have my head around that.

But what im planning to do with the water I have not found anywhere (maybe due to a lack of correct terminology while searching).

The land is in a valley and consisting of both sides of said valley. One side heavily terrested and with ruins for reconstruction. The other with a forrested area (unfortunately hit heavily by the 2017 fires).

The spring is situated on the forested side of the valley conveniently at a simlar level (I would estimate an elevation of around 35 meters from the bottom of the valley).

I plan on collecting the water close to the spring in a tank, probably an IBC, and running a pipe down the valley and back up the otherside into another IBC at the same elevation.

The distance for the pipe will be aproximately 120 meters

In my head, both should fill equally. Simple.
Have I overlooked something?
How important is the pipe diameter?
Would a tap at the bottom be advantageous for air trappment?

I made need to prime the system with some kind  pump, but im not sure.

All theory but excited to try it.
Seems maybe too simple.

Would love any input.

Cheers.

pollinator
Posts: 213
42
solar wood heat
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hi Tom,

I like your questions; I'm certainly not the expert on this board.   Could you post a simple drawing of the layout?   That would really help simple folks like me follow the question and the thread.....and who knows, I may even notice something that the experts here might not (but I doubt it, they're pretty good).


pollinator
Posts: 2602
Location: Massachusetts, Zone:6/7, AHS:4, Rainfall:48in even Soil:SandyLoam pH6 Flat
191
forest garden solar
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Yes your idea works. It's brilliant.
If the IBC tank of the forested side is 34m above the valley. I would place the IBC tank on the other side at 32, because there will be some pressure loss due to friction.

There is also the big worry of air entering the pipe and then creating airlocks at undulations/high points. https://www.itacanet.org/doc-archive-eng/water/gravity_flow_pipelines.pdf


T Adey
Posts: 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Thankyou for your replies.

The PDF is really interesting.

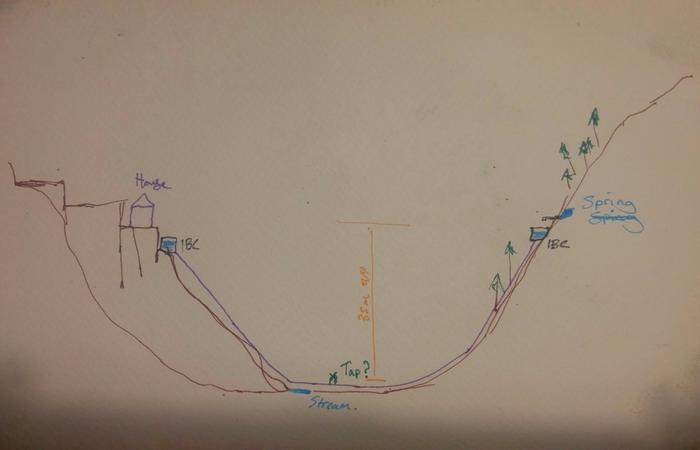

Here is a basic sketch of my idea.

Im thinking that because im not so bothered about flow rate that the pipe diameter is not so important? Not sure.
[Thumbnail for 20200201_145526-01.jpeg]

Orin Raichart
pollinator
Posts: 213
42
solar wood heat
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Off hand, I'm thinking 2" pipe....what do you think S Bengi?

S Bengi
pollinator
Posts: 2602
Location: Massachusetts, Zone:6/7, AHS:4, Rainfall:48in even Soil:SandyLoam pH6 Flat
191
forest garden solar
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Whats the total run of pipe, is it 150m?
Whats the friction loss on 150m (450ft) of pipe 1inch or 2in, not counting partial air lock?
Whats the original flow rate of the spring/seep.
I assume you only need about 100gallon per day (377L/day) or 4gallon an hour or 9oz/minute. But maybe while building the cabin you will need alot more than that per day?
