New style biochar burner - not your typical oil drum


pollinator
Posts: 3033
Location: Kent, UK - Zone 8
415
books composting toilet bee rocket stoves wood heat homestead
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi Folks,

I’d like to share my new style biochar making setup.

It is based on the principals of the trench burn that I played with last year very successfully. Most of my feed material is long branches - hedge trimming, prunings etc... and we get a lot of it. I don’t want to cut it down to tiny pieces for a retort style.

Anyway, the easiest way to show it is with a picture.

When using it, start fire with small dry sticks and keep on adding material until it is burning well across the whole length of the drum. Then keep on adding more fuel over an hour or so, as it burns down. The branches burn up, and the embers fall to the bottom of the drum, where oxygen can’t reach it. So long as you keep adding more fuel above the char is protected by the flames above.

When finished, I just rolled the whole drum over and shovelled soil around the edges to exclude air. 24 hours later it was cool and ready to use.

The char produced is fine and crumbly, and the drum can be placed either where you want the final char, or taken to where the fuel is. Very easy.

The finished drum
The finished drum
A burn in progress
A burn in progress

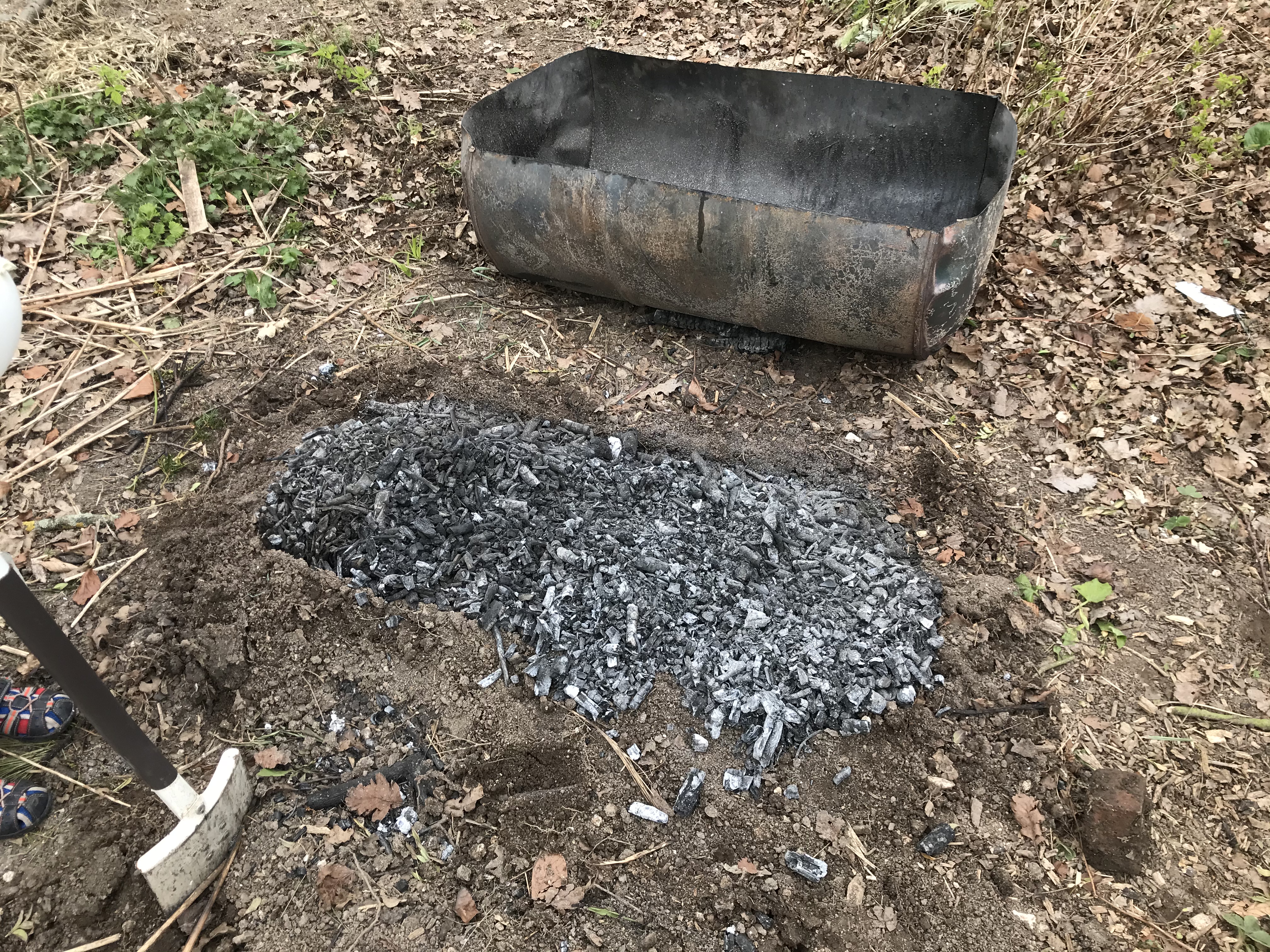

The finished pile of biochar
The finished pile of biochar

pollinator
Posts: 2553
Location: 4b
706
dog forest garden trees bee building
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Very cool idea. It would work well for me right because I don't have water at my land.

Michael Cox
pollinator
Posts: 3033
Location: Kent, UK - Zone 8
415
books composting toilet bee rocket stoves wood heat homestead
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Trace Oswald wrote: Very cool idea. It would work well for me right because I don't have water at my land.



That was a key consideration for me as well. We do have water, but typically not where the material is that we need to burn.

gardener
Posts: 3404
370
3
forest garden fungi trees books food preservation bike
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I like to see different models that apply well to different locations and situations.
JohN S
PDX OR
