Log Dogs on a 16" EGO cordless chain saw


master rocket scientist
Posts: 6776
Location: latitude 47 N.W. montana zone 6A
3666
cat pig rocket stoves
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi All;  Recently the question was asked about adding "bucking teeth" to an EGO 16" saw.
After looking mine over and trying a bar guard and teeth from a gas saw.
I think it could be done.

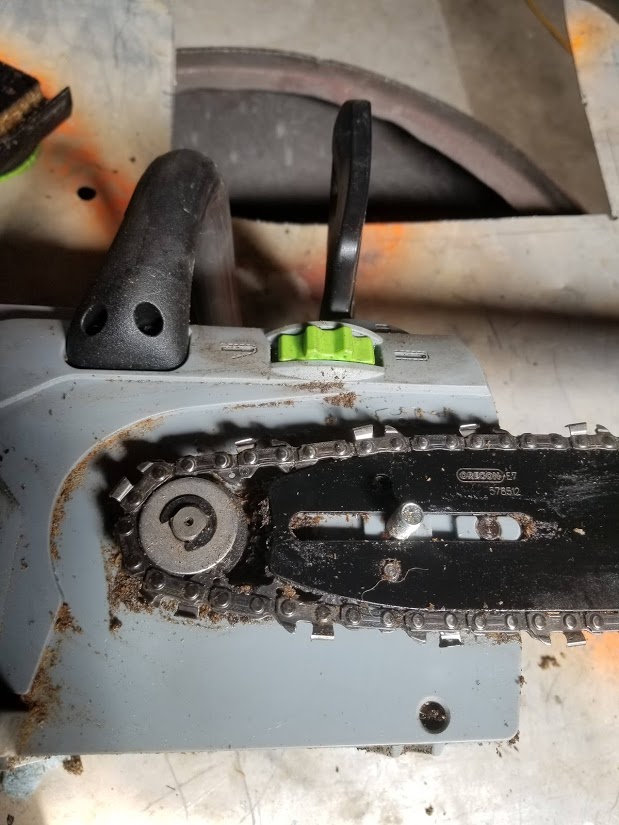

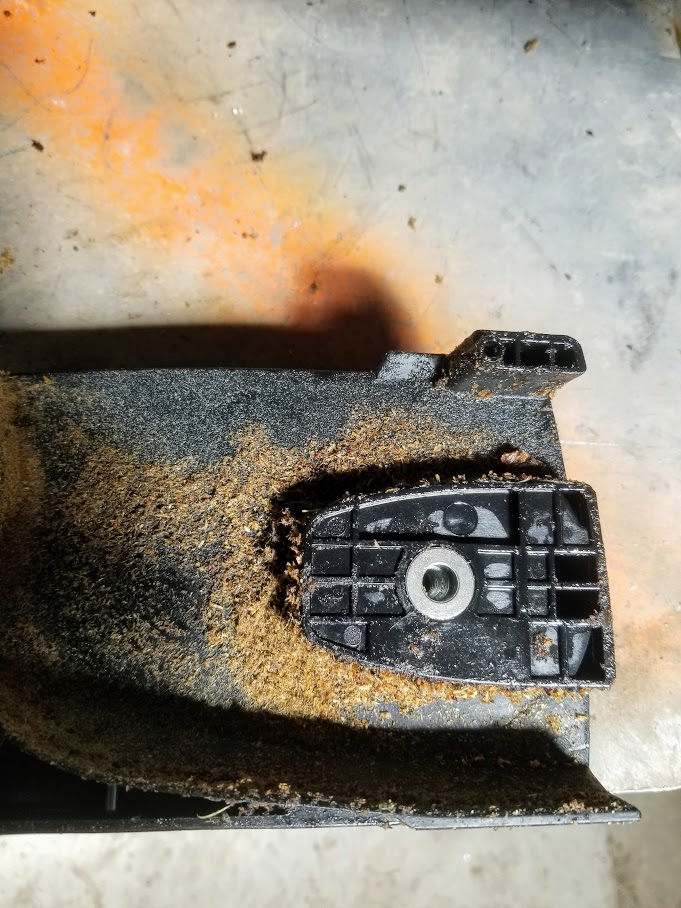

As you can see in the photo's, there is one stud in place, it might need to be longer and another that "might" be removable to install a longer stud.
The bar plate and teeth holes ... almost line up perfectly.
Will it work for sure??? Who knows? Is it a good idea???
The body is all plastic... torque it enough and I'm sure it will break...
But now a days everything is plastic, so with care it could work for years.

Will I do this to my EGO?  No need, I got it to cut mountain maple for my smoker.
I'll use a gas saw if I need dogs.

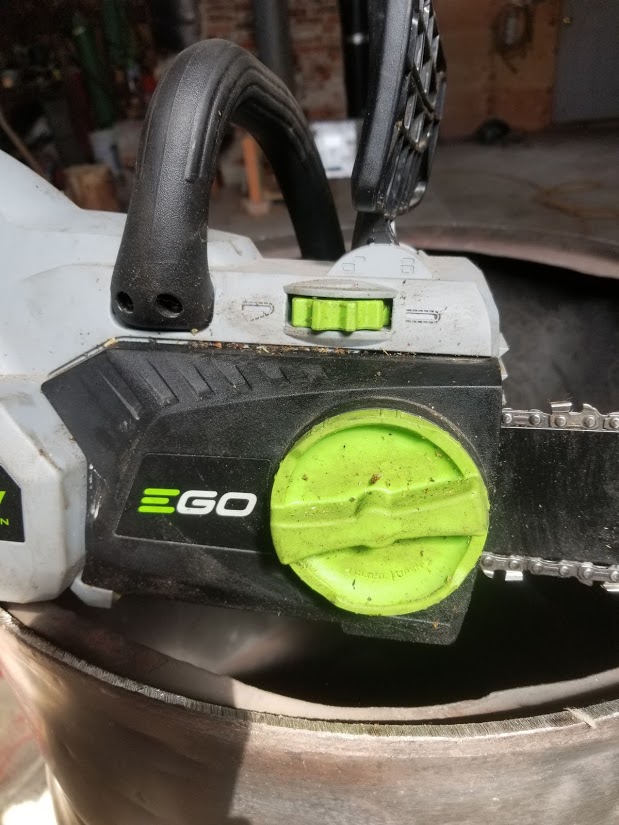

EGO 16"
EGO 16"
[Thumbnail for 20200413_122255.jpg]

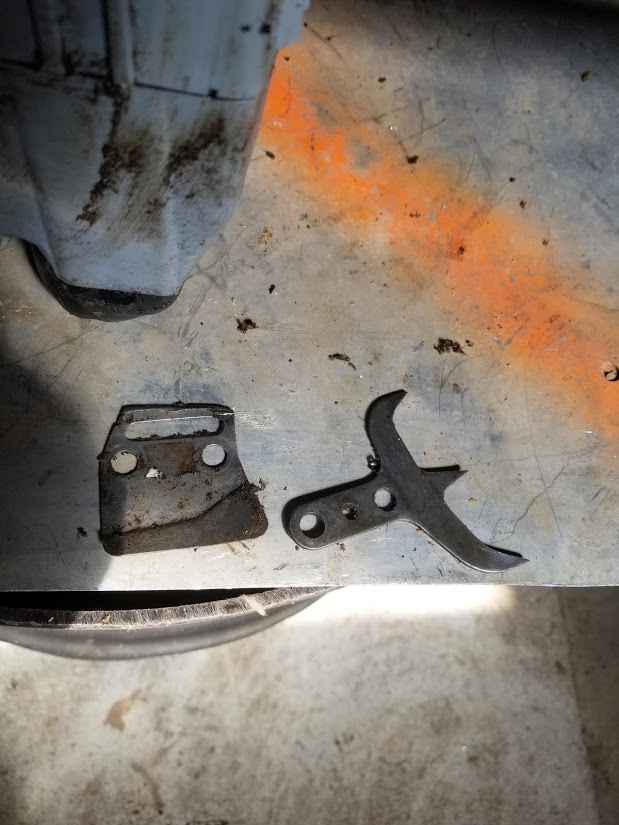

borrowed parts
borrowed parts

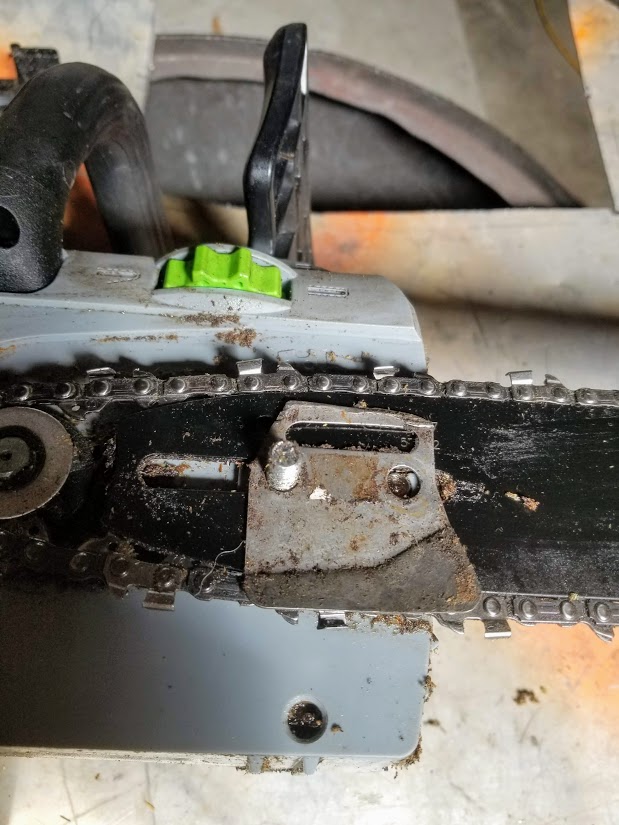

not far off
not far off

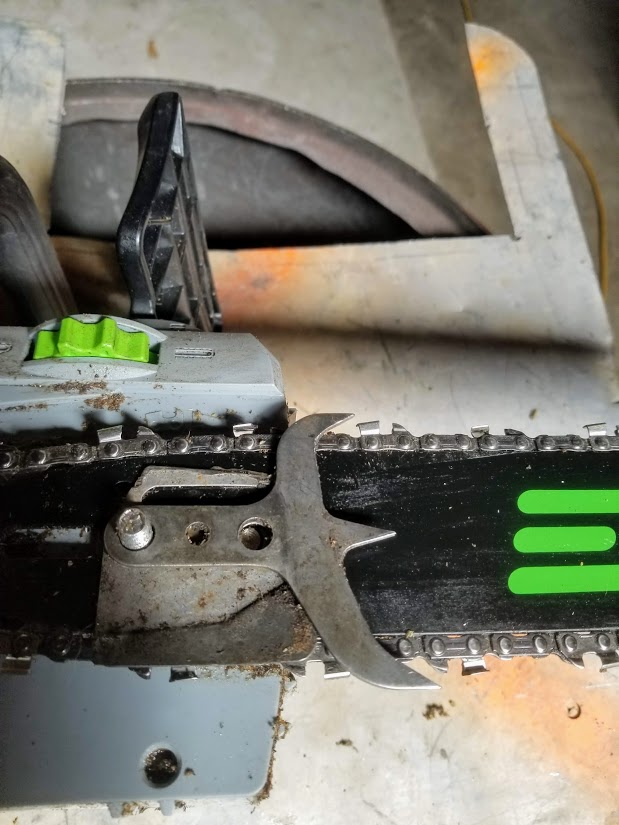

could be done
could be done
[Thumbnail for 20200413_122504.jpg]

Rocket Scientist
Posts: 1815
Location: Kaslo, BC
530
building solar woodworking rocket stoves wood heat greening the desert
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I sure hope Ego warranty reps don't see your post, otherwise the first question they may ask on their warranty card is: "Do you know Thomas Rubino?"

I'm a big fan too of stretching the limits of what tools were originally designed for (but maybe should have been) so I can appreciate your documentation of this particular hack. Cross that one off my bucket list.

gardener
Posts: 5461
Location: Cincinnati, Ohio,Price Hill 45205
1137
forest garden trees urban
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Thanks for this post!
I googled around to find out what you where talking about so now I know what a full wrap bar Vs a flush wrap bar is,  and what the heck log dogs s are.
