RMH J-tube (Northern Wisconsin)

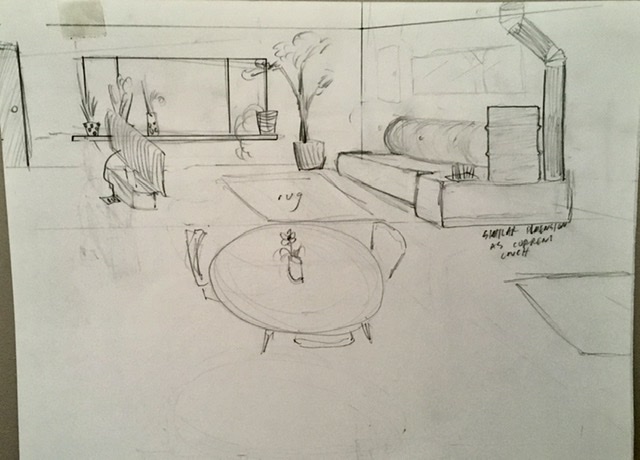

A sketch of my idea.

6” system because 6” is already in for existing wood stove.

Need to buy supplies and try to finish before winter. First I will need to shore up the floor as this house is on stilts.

I want to use a basic design like at Cooper Cabin, but without the crazy long chimney!

Hi Travis;   Welcome to the wonderful world of rocket science!
Tell us more about your home and its construction (pictures help).
There are options these days over what kind of rmh you build.
There are these wonderful things called brick bells.(Stratification chamber) They are much more flexible in size and location than a piped mass is. Your floor may not need upgrading or as much.
They also can be upgraded to an 8" later, much easier than a piped mass.

I hear you about an existing roof jack being 6". Tell us more about your current chimney. Is it straight up and exposed ? Thin wall pipe or insulated?  Or is it a block chimney?

There is also the new batch box style.   They need some metal fabrication to build but they are superior to a J tube. With a longer hotter burn, using larger wood that lays flat. A door that covers the whole thing so no exposed flames to the room and no chance of "smoke back"

These are things that can be easily retro fitted later if you don't limit things too much this year.
A 6" J in northern Wisconsin will need to run a lot.

20’ x 20’ cabin on posts, with dormer loft.

I recently added a 16’ x 20’ addition which is master bedroom, bathroom, and closet.

We ran an electric space heater in the addition, and the loft during last winter. I am still okay with supplementing electric heat to those areas. We prefer the sleeping areas cool.

I will get back about the other questions next week. I am taking my son camping this weekend.

I have some experience with using RMH (batch and J-tube) at Wheaton Labs.  While I completed the tasks to received a RMH pep badge, I have yet to finish the process by posting the tasks on the site. With working both styles, I’d prefer the J-tube in my home.

Thanks for the warm welcome!

I decided to not build this because the original construction of the cabin’s floor had me thinking the weight of the RMH would cause damage. Possibly catastrophic damage. The builder laid the floor joists flat.

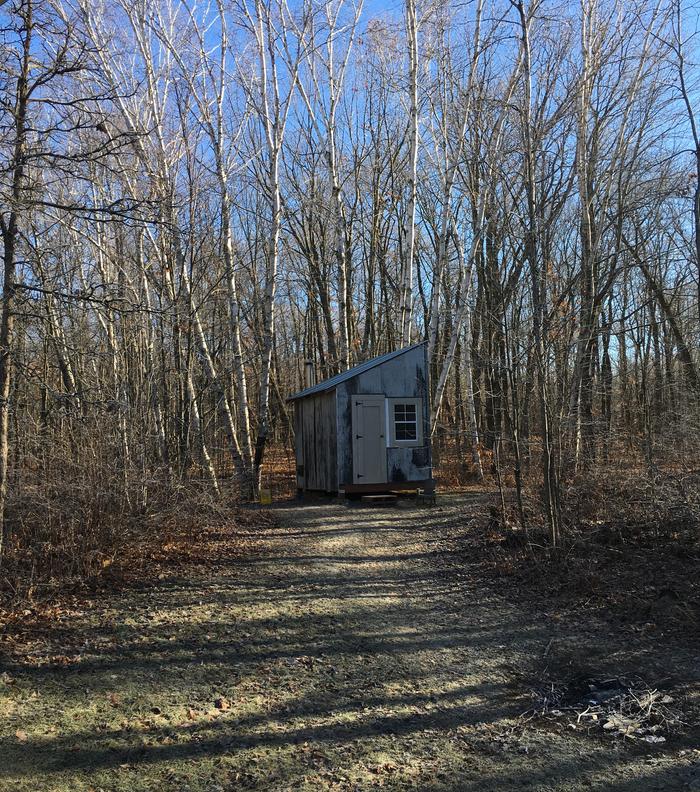

I decided to upgrade the commercial, wood burning stove. And build an outdoor sauna.

Hi Travis;
It's always better to be safe.
It sounds like your cabin's " builder " was an apprentice builder without a clue...  He laid floor joists flat???  Who ever heard of such a thing?
Are you planning on repairing the floor support?
