High Heat Spalling


rocket scientist
Posts: 6528
Location: latitude 47 N.W. montana zone 6A
3398
cat pig rocket stoves
  • Likes 9
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi All;
I replaced the original secondary air tube in our greenhouse batchbox late last season, it had spalled down to unusable condition.
At that time I installed the original prototype Dragontech quick change secondary supply tube in its place.
Yesterday in 15 minutes I replaced the carbon steel riser stub with a new one!
Simply twist and lift the old degraded stub out and drop in a new one!
15 minutes included cleaning all the ash from the firebox .
With my Dragontech design door I was able to simply slide the secondary tube back 6-8" .
This facilitated removing the ash build up in the slotted port entering the riser.
With all the ash removed the air tube slid right back into place without ever removing the door!

Unfortunately I made this repair early in the morning and did not take the time to document the process.
It really couldn't have been any faster or easier!

We burn that rocket hot , nonstop all day everyday from September-  April or beyond.
I expect to change  the riser stub again before the end of burning season.
At $5 or so for a replacement  stub I can do this as many times as needed.
Or for $80 or so I could use a RA330 stub from Dragontech and never need to replace it again!








[Thumbnail for 20211113_105108.jpg]
[Thumbnail for 20211113_105046.jpg]
[Thumbnail for 20211113_105122.jpg]
[Thumbnail for 20211113_105129.jpg]

thomas rubino
rocket scientist
Posts: 6528
Location: latitude 47 N.W. montana zone 6A
3398
cat pig rocket stoves
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi All;
I installed that "new secondary air stub" on November 12th 2021.
As of today, Feb 25th 2022 it's shot,
My photo show's its current condition.

This batchbox  sees severe use.  It runs non stop  apx 12hrs a day all winter.
3.5 months is a reasonable time to expect a piece of plain steel to last at those temperatures.

With my quick change secondary tube.
It will take just a minute to change that worn out part with a new replacement.
A standard 6"  long piece of 2" schedule 40   pipe is around $5

I have decided to replace it with a stub  of high heat RA330 at $80 .
Time will tell, but I expect this to be the last stub I ever need.
I will update photo's at the end of burning season this year and again Mid burn season next year.


After 3.5 Months at 2000F
After 3.5 Months at 2000F

thomas rubino
rocket scientist
Posts: 6528
Location: latitude 47 N.W. montana zone 6A
3398
cat pig rocket stoves
  • Likes 10
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Approximately 10 minutes including  ash cleanout  from start to building a fire.

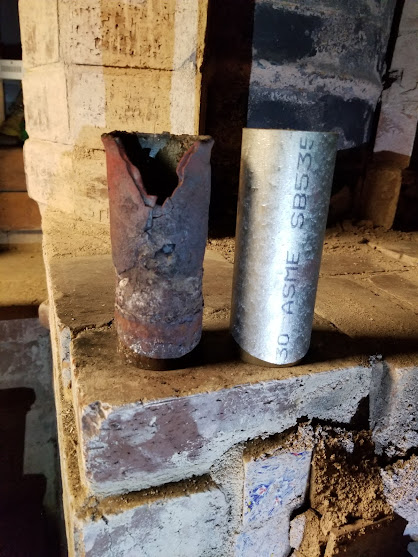

plain steel & RA330
plain steel & RA330

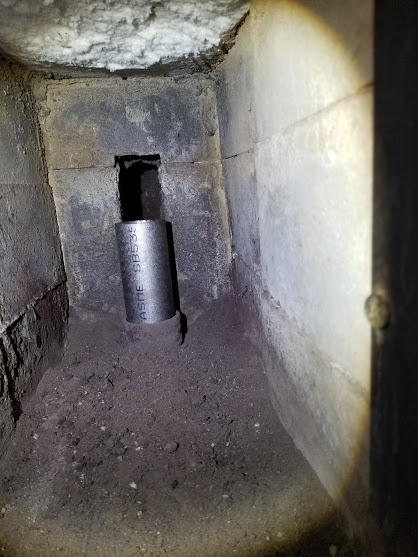

Ready for new stub
Ready for new stub
RA330
RA330
A smooth takeoff
A smooth takeoff
Full burn
Full burn

pollinator
Posts: 464
Location: Toyoura Hokkaido
163
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Thanks Thomas!

Appreciate all the time you take to document!

Hope all’s well…

Peter & Co.

pioneer
Posts: 337
34
chicken wood heat rocket stoves
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hey Thomas,

What was the result of that RA330?

thomas rubino
rocket scientist
Posts: 6528
Location: latitude 47 N.W. montana zone 6A
3398
cat pig rocket stoves
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hey Thomas;
It is 100% as good as the day I installed it!
I liked it so much that I bought another for my shop stove.

thomas rubino
rocket scientist
Posts: 6528
Location: latitude 47 N.W. montana zone 6A
3398
cat pig rocket stoves
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

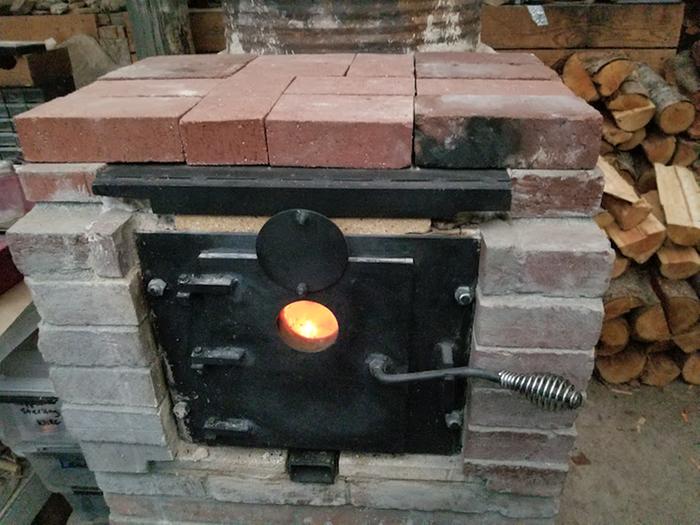

Here is the RA330 this season, still perfect and expected to stay that way.
The last picture is nothing but steam and snow on the mountain.
[Thumbnail for 20221024_194258.jpg]
[Thumbnail for 20221024_194309.jpg]
[Thumbnail for 20221023_115215.jpg]

Thomas Tipton
pioneer
Posts: 337
34
chicken wood heat rocket stoves
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Thanks for the update Thomas.  That's some impressive metal!
