How to fit PVC pipe to threaded-hole in barrel


Nathan Nithin
Posts: 1
1
posted 1 year ago
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
I'm helping build a rain water catchment system using 9 barrels that come with two holes in the top. We already have an older system in place but water leaks from one of the two holes that come with the barrels. The holes leak because the threads are not the same size as the threads that PVC pipe fittings use.

My brother has a 3D printer and says he can design a part to fit but I'm wondering if anyone's already encountered this problem and what they did.

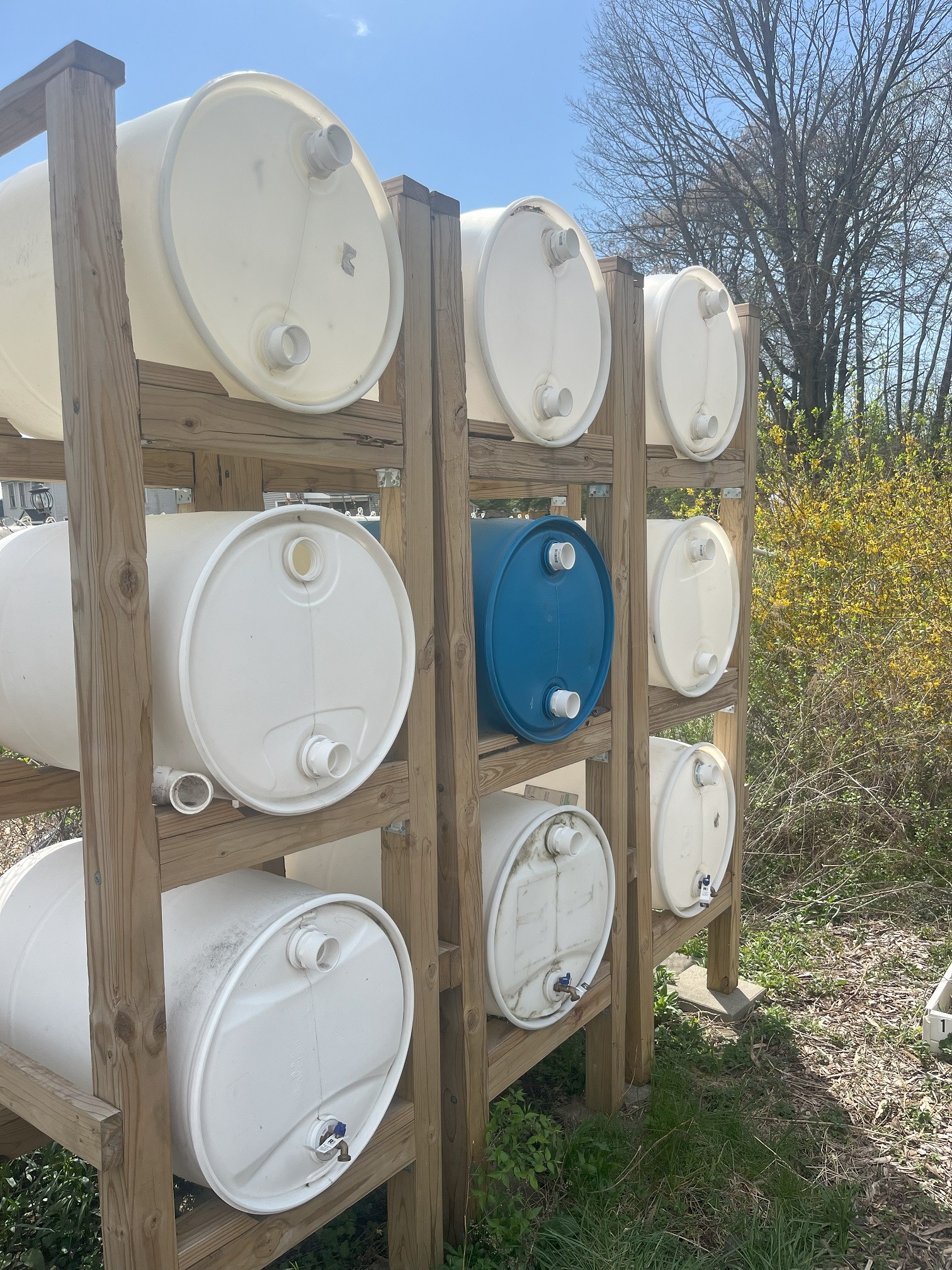

New system waiting for PVC
New system waiting for PVC

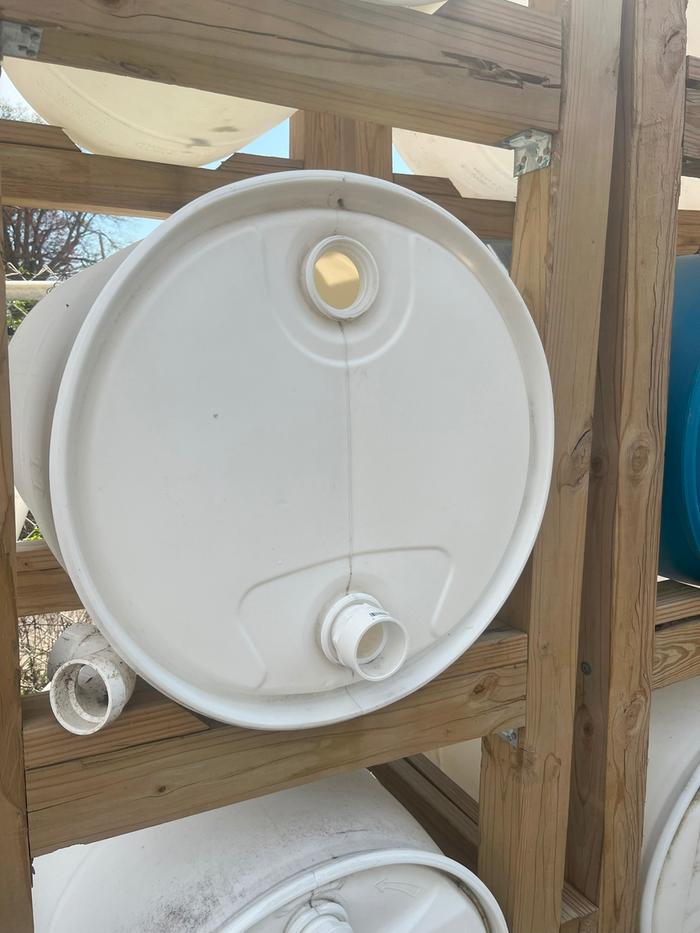

Top of barrel. Top hole is the hole with bigger threads
Top of barrel. Top hole is the hole with bigger threads

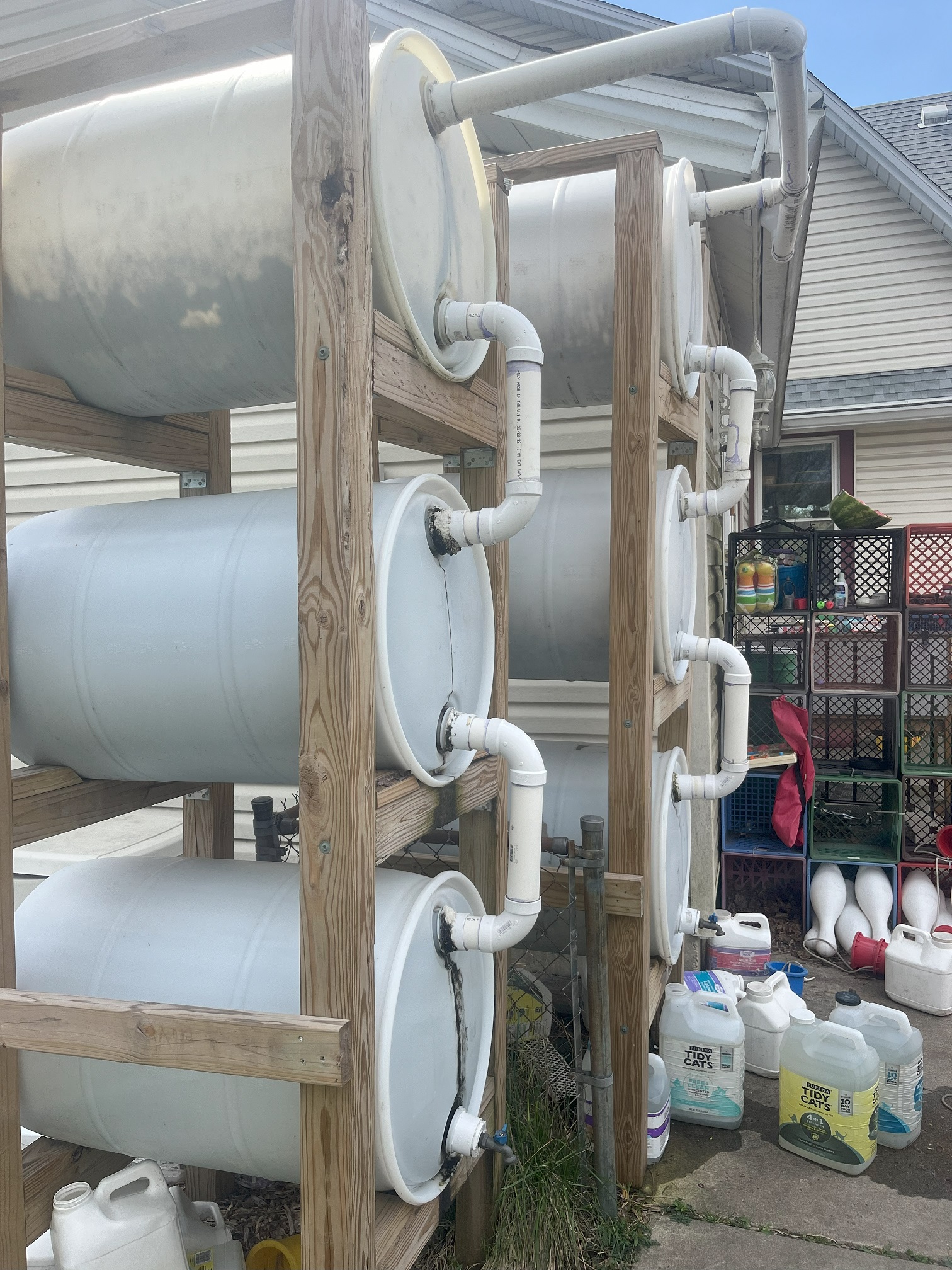

Old system we are trying to mimic
Old system we are trying to mimic

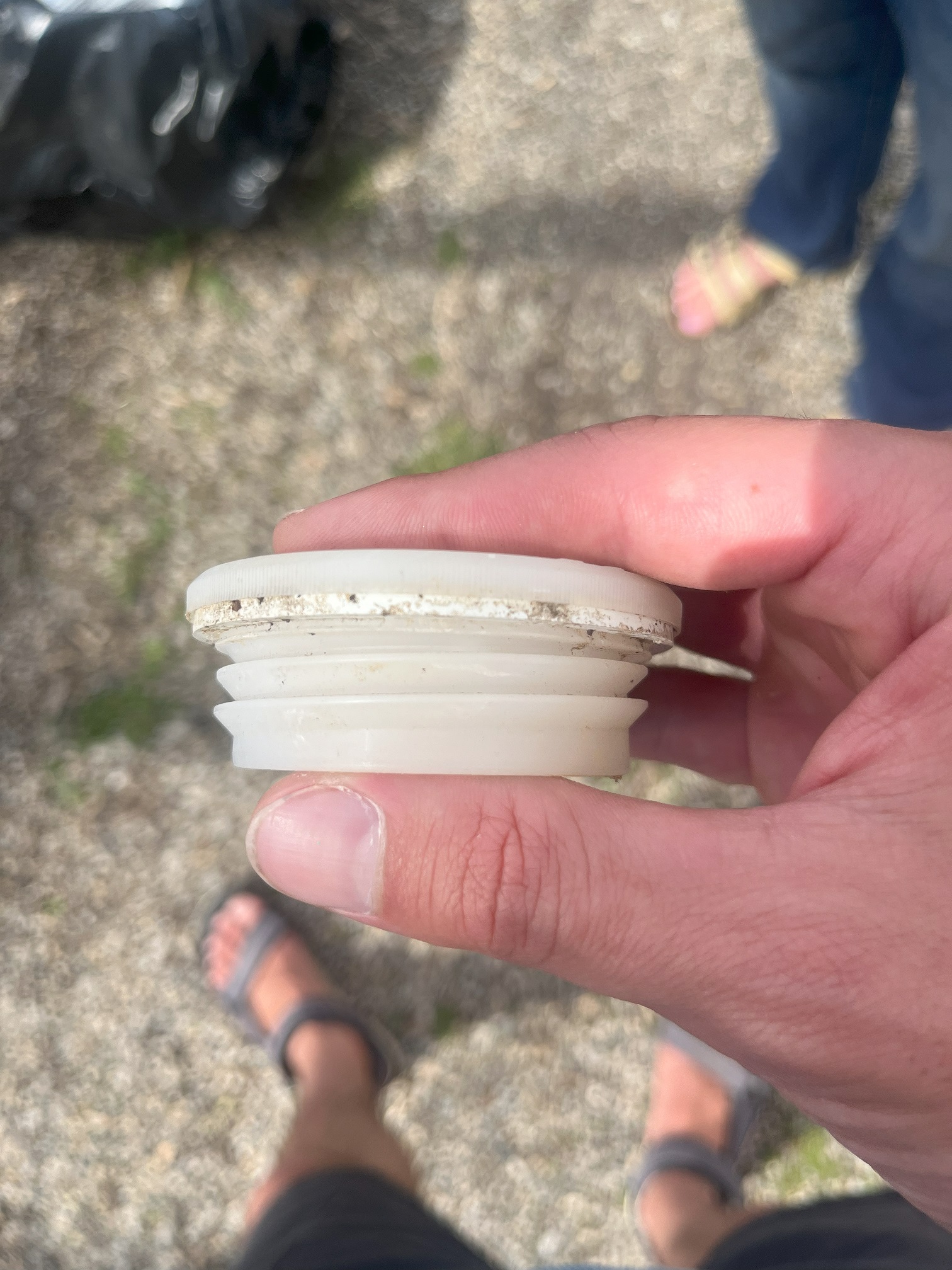

Cap that fits into hole with larger threads
Cap that fits into hole with larger threads

Robert Ray
gardener
Posts: 3388
Location: Cascades of Oregon
881
posted 1 year ago
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
The coarse thread is called a 2 inch buttress thread adapters are available.

Our inability to change everything should not stop us from changing what we can.
