My New Fire Brick J-Tube  RSS feed


Posts: 60
Location: Southern USA
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Here's a few pix of my new J-Tube. Thanks to my neighbor Marlene for her help!

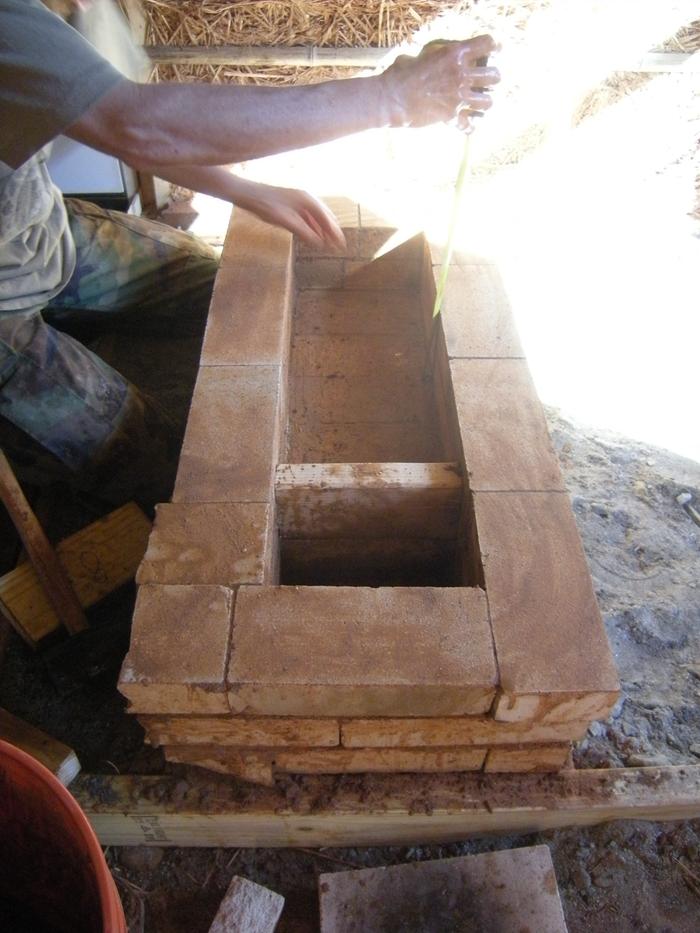

[Thumbnail for J-Tube1.JPG]
[Thumbnail for J-Tube2.JPG]

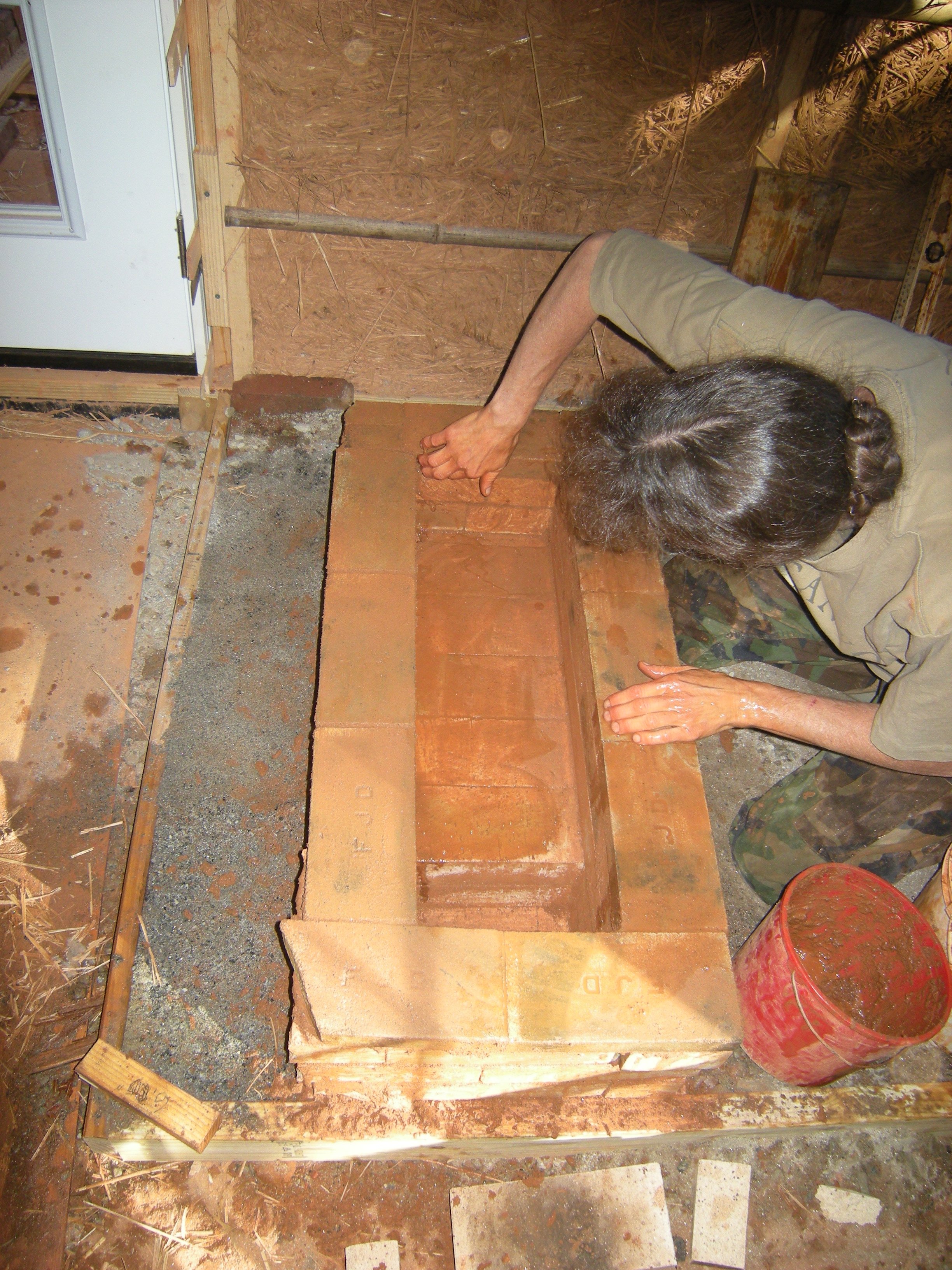

[Thumbnail for J-Tube3.JPG]

Pack McKibben
Posts: 60
Location: Southern USA
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
This RMH is being built in a room on the south side of a double wide Mobile Home. I'm wanting to see if an 8" RMH will heat a 1200 sq (approx) MH.
The generated heat will rise into the higher MH. I have an active fan that will blow that heat to the far end of the MH through it's small attic area to help,
when necessary, distribute that heat.
[Thumbnail for J-Tube5.JPG]
RMH side of room

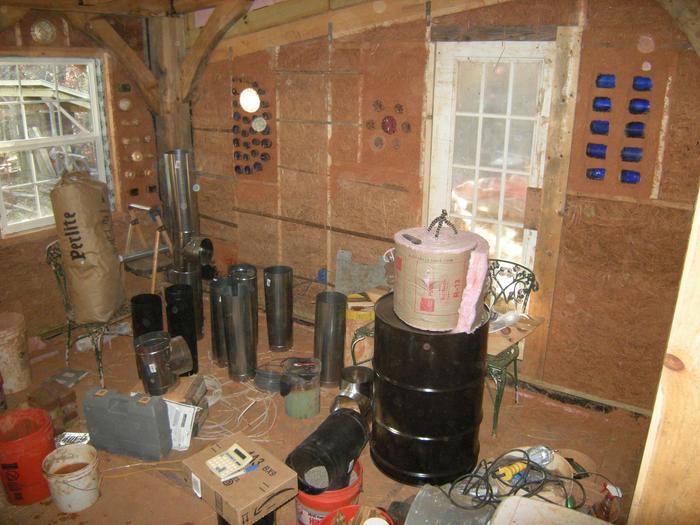

[Thumbnail for J-Tube6stuff.JPG]
stove pipe, 55 gal drum, etc. materials

Posts: 67
1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
not sure where your from but thats got to be the most interesting looking mobile home interior ive ever seen..

reminds me of an earth ship...love it!

Pack McKibben
Posts: 60
Location: Southern USA
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Brian: well thank ya brian. Being a natural builder, I'm renovating "what I have at hand". Which happens to be a mobile home. I'm turning it into a green (as possible) home.

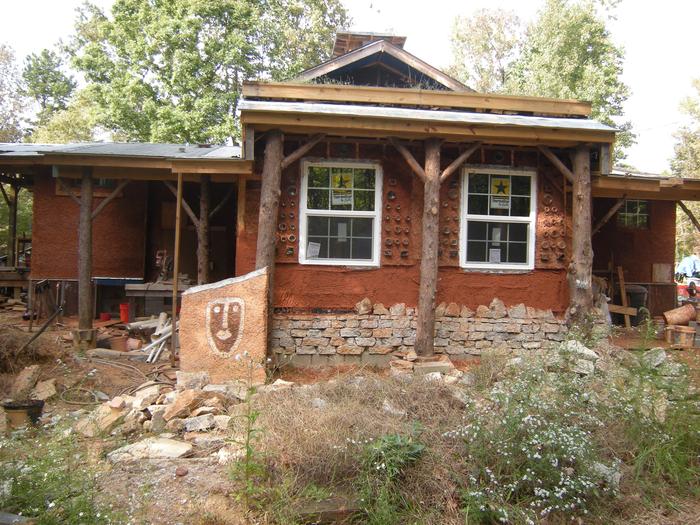

[Thumbnail for OwlSwampEH.JPG]
My MH renovation in progress

Pack McKibben
Posts: 60
Location: Southern USA
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
allen: my EARTHEN floor.....before all the walls were up.
[Thumbnail for earthen2Floor-005.jpg]
2' deep, insulated, earthen floor being constructed in south side attached room
