LINCOLN FIRE CLAY FOR J-CORE?  RSS feed


Posts: 6
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
is Lincoln fire clay ok for a poured J-core?
there's no Muddox fire clay in my area.

pollinator
Posts: 4154
Location: Northern New York Zone4-5 the OUTER 'RONDACs percip 36''
59
books fungi hugelkultur solar wofati woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
michael valdez : If you can get Lincoln, get lincoln 60 Big AL !

gardener
Posts: 1560
Location: latitude 47 N.W. montana zone 6A
146
cat pig rocket stoves
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
michael; I used lincoln fire clay on my cast core, mixed with perlite ,refractory cement and fiberglass strand . I used matt walkers "plans" to form up my core and my heat riser , everything worked great. Using a piece of sonitube as a sacrificial form for the heat riser was by far the best way for me. Only recommendations i will make are to make sure you have enough fireclay & perlite on hand before you start pouring or like me you will run short in the middle of your pour and have to do a cold joint in the middle of your core .

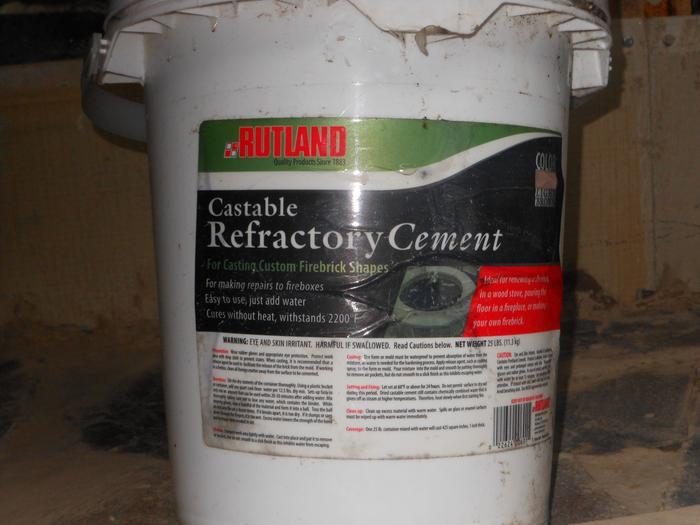

[Thumbnail for DSCN2108.JPG]
[Thumbnail for rocket-mass-heater-001.JPG]

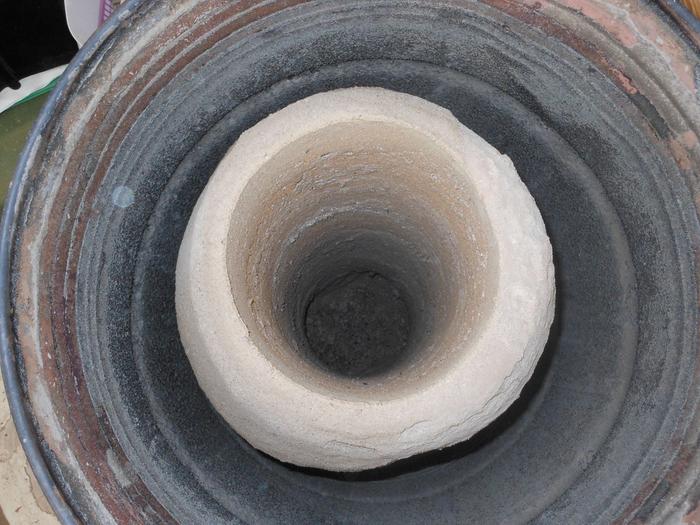

[Thumbnail for rocket-mass-heater-054.JPG]

michael valdez
Posts: 6
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Thanks Allen, thanks Thomas.
