Rocket mass heater and Porta Cabin (love shack) Layout and design  RSS feed


Posts: 641
Location: Missoula Mt
42
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

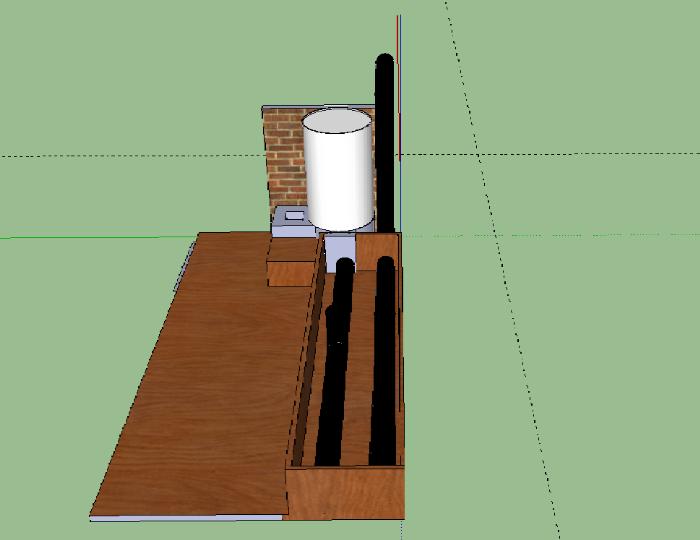

Here are some screen shots of a sketchup I did for the layout of the Love shacks RMH. What do you guys think about it? Any Ideas that would improve the design?
Let me know what you think.
[Thumbnail for Love-shack-Design-pic-1-design-1.png]
[Thumbnail for Love-shack-Design-pic-2-design-1.png]

Sam Barber
Posts: 641
Location: Missoula Mt
42
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
So this is going to be a pebble style RMH that is going to be as compact as possible width wise and as long as the love shack is lengthwise. The picture is showing the layout sans pebbles, Walls and door. It is going to be a 6 inch system.

gardener
Posts: 2708
Location: Southern alps, on the French side of the french /italian border 5000ft high Southern alpine climate.
93
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Sam, exit above the roof ridge!

Sam Barber
Posts: 641
Location: Missoula Mt
42
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Do you want a birds eye view picture?
[Thumbnail for Love-shack-Design-pic-3-design-1.png]

Satamax Antone
gardener
Posts: 2708
Location: Southern alps, on the French side of the french /italian border 5000ft high Southern alpine climate.
93
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Nope.

I was just saying that if you go just througfh the wall, you should prolong the pipe upwards untill you are above the nearest tall object. Usualy the apex of the roof. And it's better to use insulated tube outside.

Sam Barber
Posts: 641
Location: Missoula Mt
42
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I see That could be an option
