Solid fuel boiler with a bunker that burns wood chips


Retra Smokorivsky
Posts: 8
Location: Ukraine
1
posted 2 months ago
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
In Ukraine, many people have been switching to renewable heating sources in recent years. In rural areas, small (10-40 kW) solid fuel boilers are often installed. The fuel for them is made from wood residues, branches, corn cobs, and stalks. This is quite economical.
The video shows such a boiler running on wood chips. The boiler is controlled by an automatic unit that maintains a constant temperature of the coolant and controls the air supply. A control panel on the wall controls the fuel bunker, feeds fuel into the boiler, and periodically stirs the fuel to prevent it from clumping.

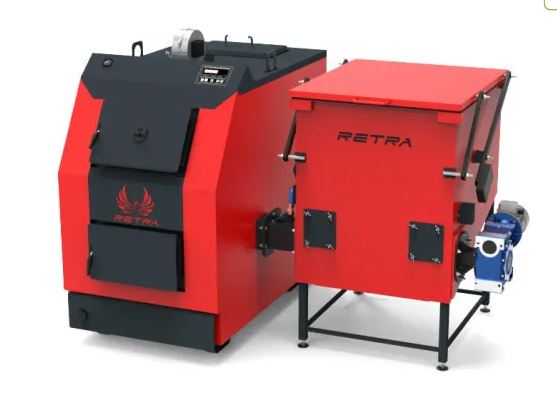

The Retra-3M Bio 32 kW solid fuel boiler is designed for burning pellets, sawdust, wood chips, and wood shavings.
The Retra-3M Bio 32 kW solid fuel boiler is designed for burning pellets, sawdust, wood chips, and wood shavings.

Anne Miller
steward
Posts: 18093
Location: USDA Zone 8a
4610
I like...
dog hunting food preservation cooking bee greening the desert
posted 2 months ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Have you looked at the Rocket Mass Heater as a better alternative?

Invasive plants are Earth's way of insisting we notice her medicines. Stephen Herrod Buhner
Everyone learns what works by learning what doesn't work. Stephen Herrod Buhner


Retra Smokorivsky
Posts: 8
Location: Ukraine
1
posted 2 months ago
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator

Anne Miller wrote:Have you looked at the Rocket Mass Heater as a better alternative?



In the case described, it is not applicable. We needed to create an economical heating system for a three-story building with fairly strict safety requirements.

Riley Iwamoto
Posts: 2
posted 2 months ago
  • Likes 7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Hello from Canada.  Some of my ancestors came here from Sokal and Lviv.

Were you mainly looking to share the technology or looking for feedback?
If the latter, and to be sure that I understand correctly, does this three storey building house multiple units or just one?  I am interested in the labour availability.  It appears that the automation makes it fairly low maintenance if electricity is available.  Knowing that Russia is targeting your energy infrastructure during winters, I do hope there is a way to manually feed it fuel if the power goes out.

Riley

Retra Smokorivsky
Posts: 8
Location: Ukraine
1
posted 2 months ago
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator

Riley Iwamoto wrote:Hello from Canada.  Some of my ancestors came here from Sokal and Lviv.

O. Lviv - is the best. The Arsenal Museum, City Hall, and small cafes — this is good old Lviv.


Retra Smokorivsky
Posts: 8
Location: Ukraine
1
posted 2 months ago
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
This boiler with a bunker heats the elementary and high schools. To be honest, there are two buildings... It is quite easy to maintain. An electronic controller monitors the temperature of the water, the outside air, and the air inside the building. If desired, the temperature can be increased or decreased. You can even set day and night heating modes.
An employee is only needed to fill the bunker with wood chips/pellets.
If the power goes out, the boiler will continue to operate, the water will flow by gravity, and fuel can be loaded into the upper hatch, but in this case, it is better to use logs or briquettes. Therefore, we recommend having a small supply of firewood... or an electric generator...


Timothy Norton
Steward of piddlers
Posts: 6785
Location: Upstate New York, Zone 5b, 43 inch Avg. Rainfall
3472
I like...
monies home care dog fungi trees chicken food preservation cooking building composting homestead
posted 2 months ago
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Out of curiosity, how long could a person expect to run the boiler with a full hopper of chips/pellets? Is there an average idea of run time?

- Tim's Homestead Journal - Purchase a copy of Building a Better World in Your Backyard - Purchase 6 Decks of Permaculture Cards -
- Purchase 12x Decks of Permaculture Cards - Purchase a copy of the SKIP Book - Purchase 12x copies of Building a Better World in your Backyard


Retra Smokorivsky
Posts: 8
Location: Ukraine
1
posted 2 months ago
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator

Timothy Norton wrote:Out of curiosity, how long could a person expect to run the boiler with a full hopper of chips/pellets? Is there an average idea of run time?



Minimum 2 days, maximum 5, if the temperature is set to minimum or it is warm outside.

Retra Smokorivsky
Posts: 8
Location: Ukraine
1
posted 1 month ago
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator

Retra Smokorivsky wrote:

Timothy Norton wrote:Out of curiosity, how long could a person expect to run the boiler with a full hopper of chips/pellets? Is there an average idea of run time?



Minimum 2 days, maximum 5, if the temperature is set to minimum or it is warm outside.



I consulted with an engineer... And I will clarify... If you use pellets, the time will be twice as long. Since wood chips have a lower bulk density, you need more of them. But they are lighter and easier to load into the hopper.
At night, the boiler can be manually switched to “night mode” using the control panel or remote control, or remotely via ModBus. In night mode, the coolant temperature is lower - 60°C. During the day, we set the temperature to 85°C. And you can connect an external thermostat.
