Sauna Build (cob)


gardener
Posts: 522
Location: Victor, Montana; Zone 5b
262
hugelkultur forest garden composting toilet building rocket stoves
  • Likes 8
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

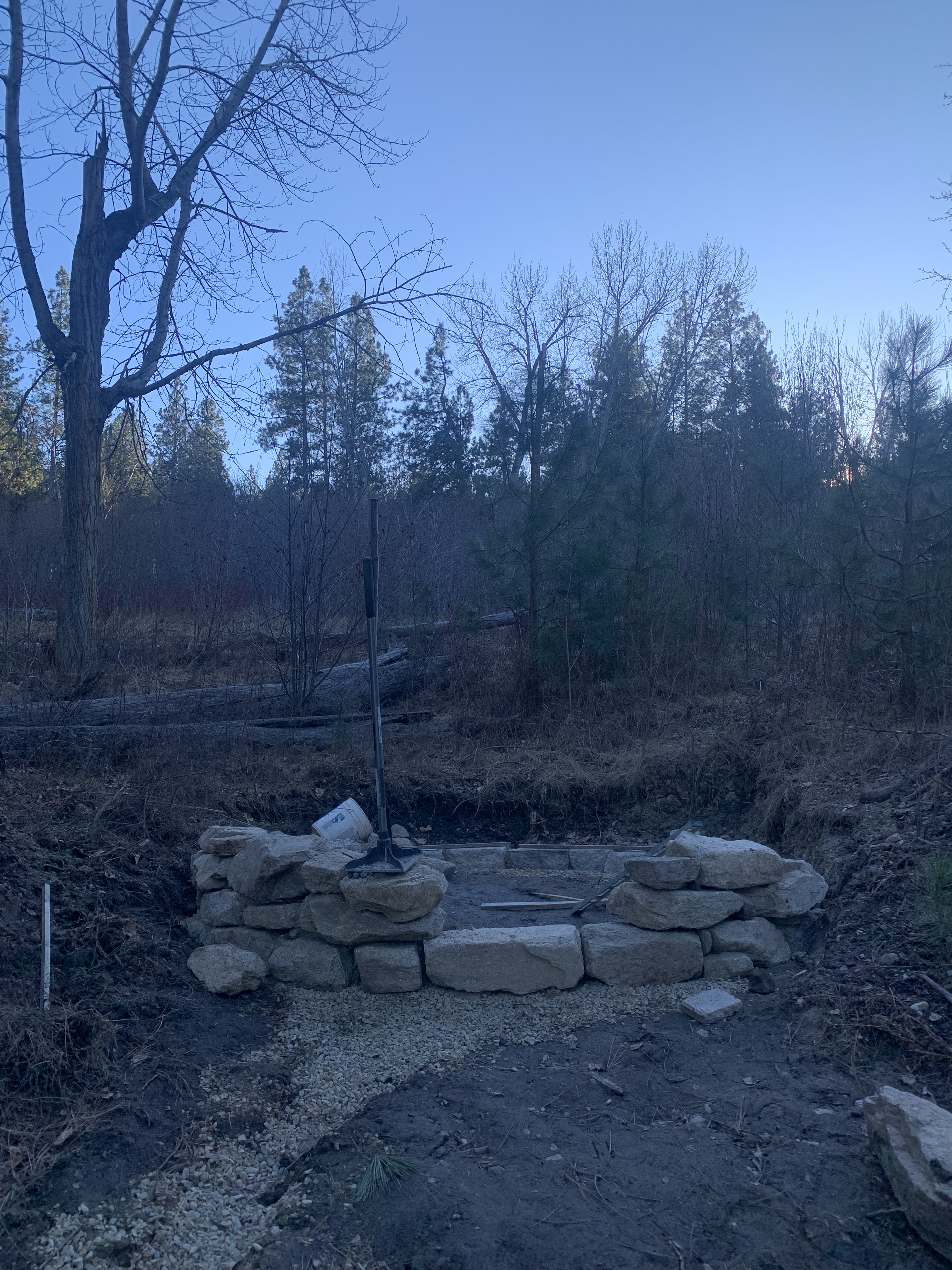

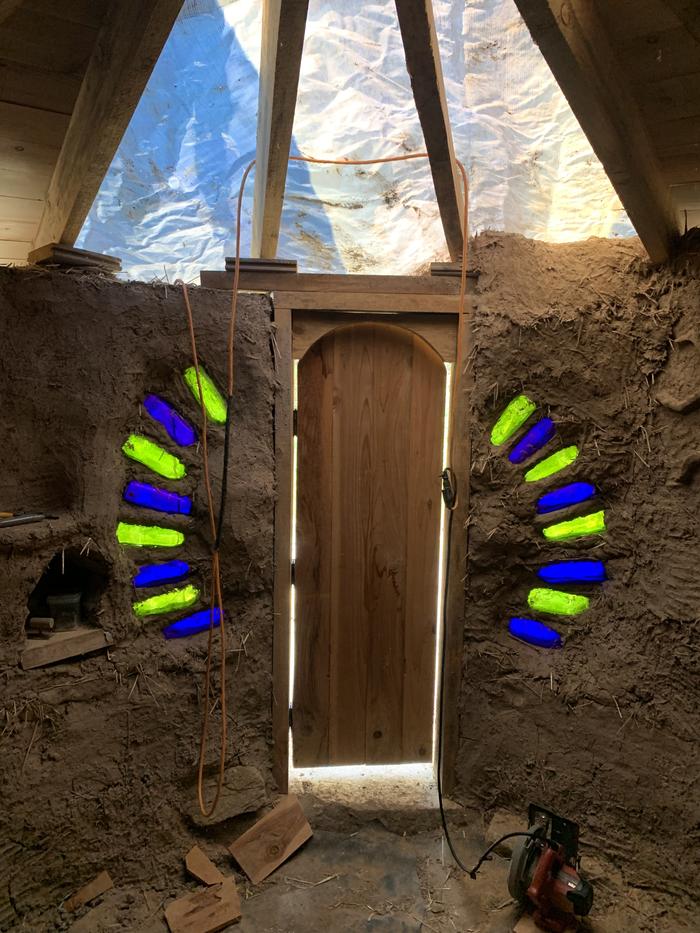

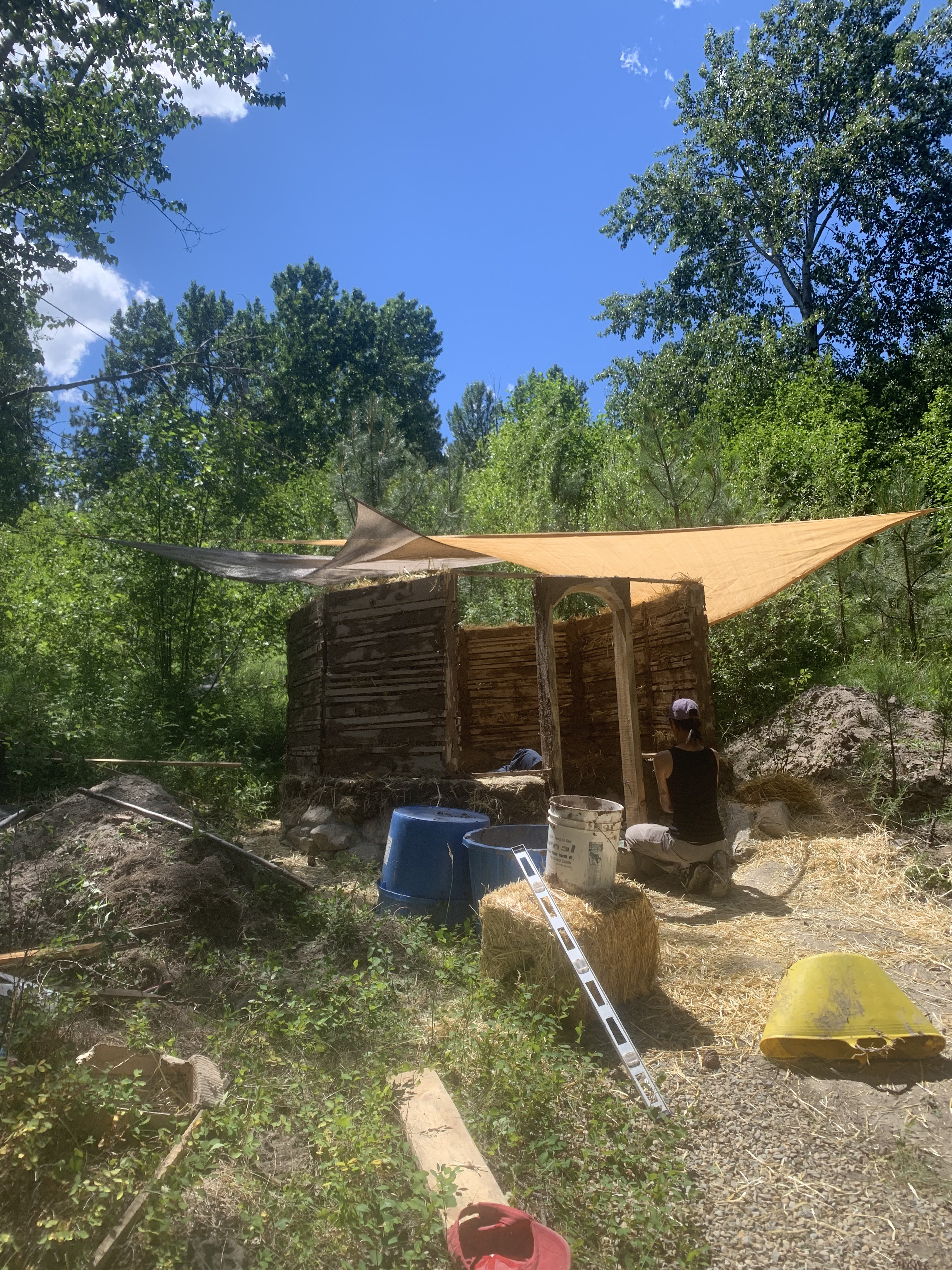

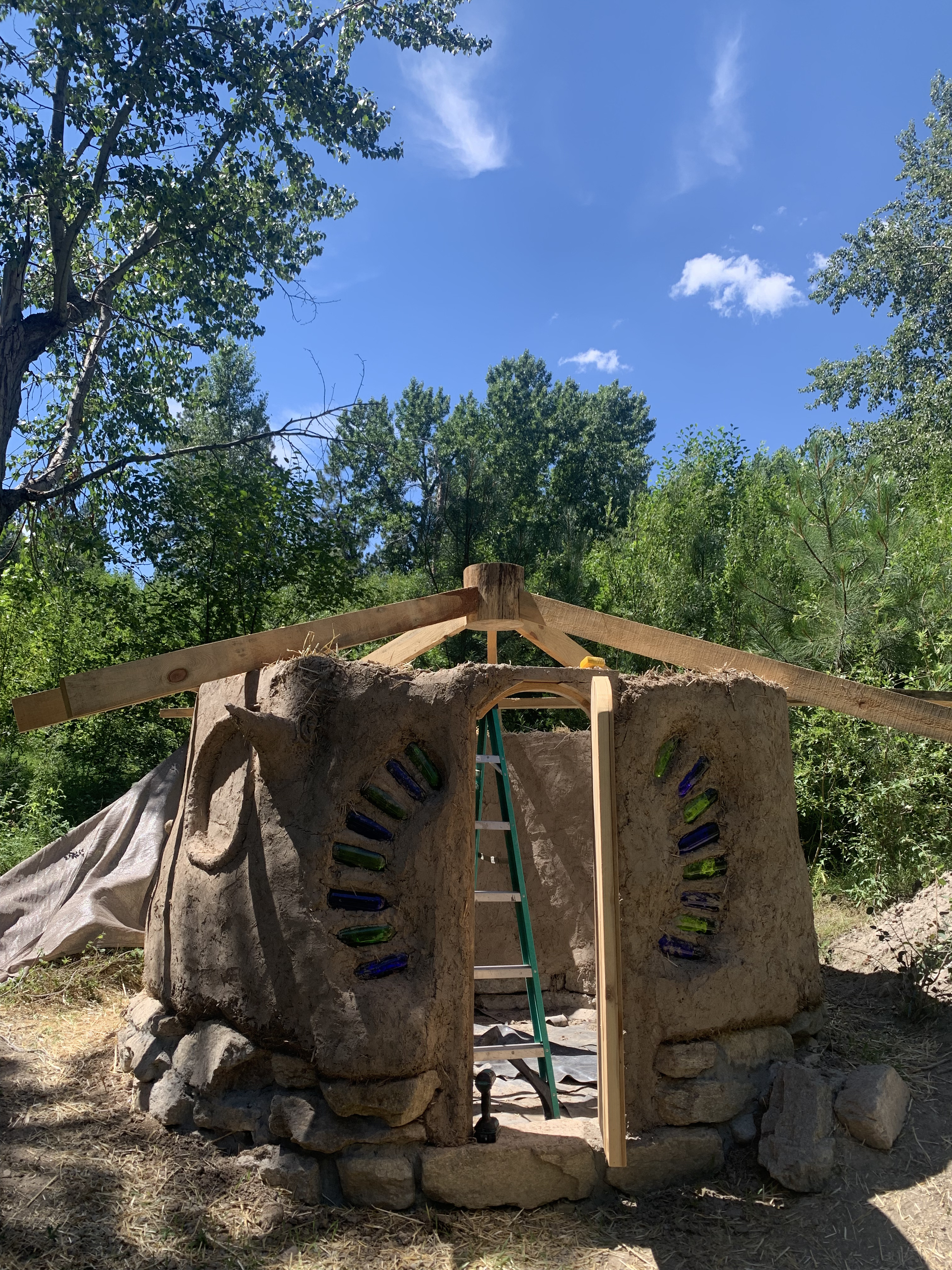

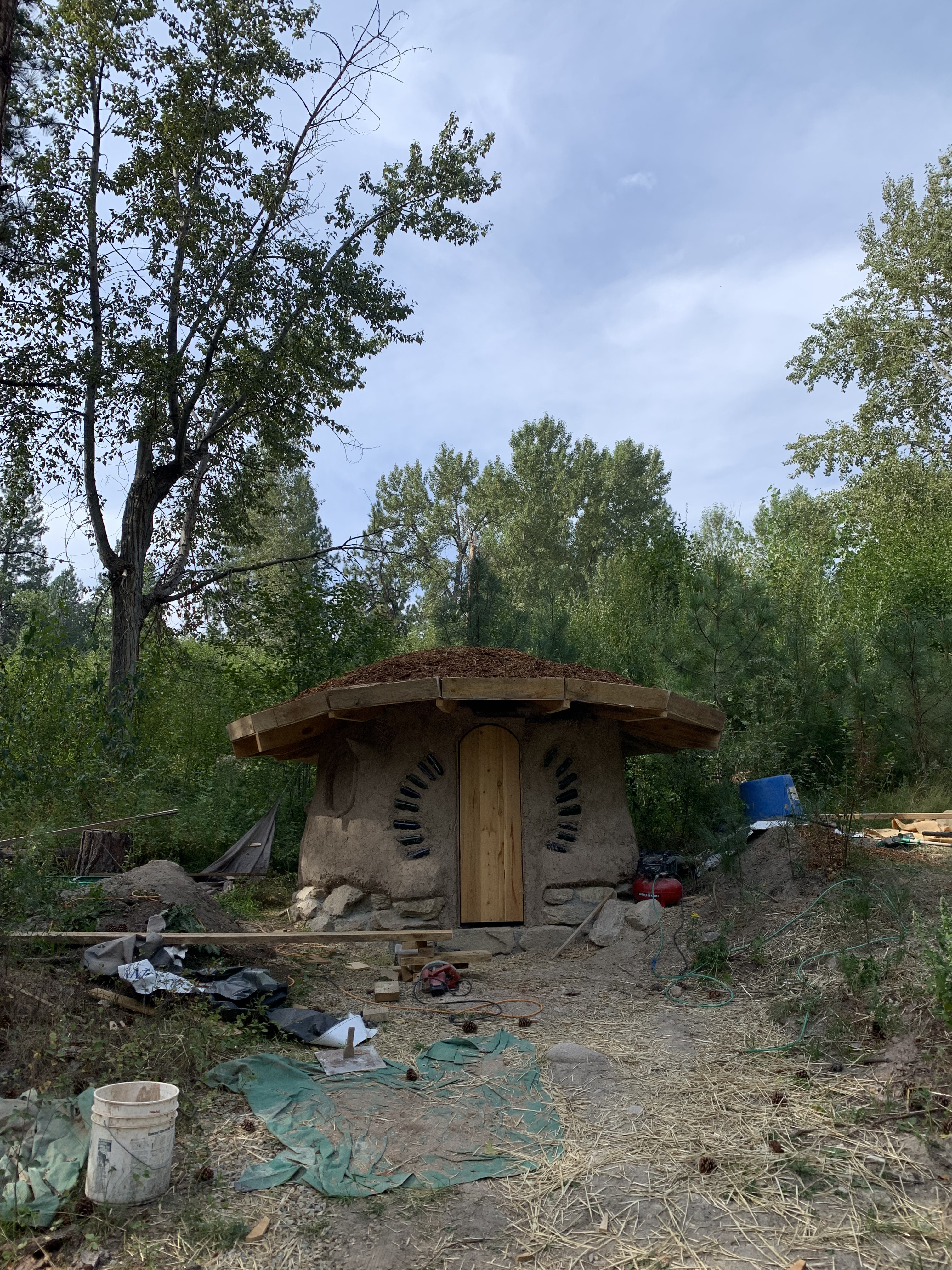

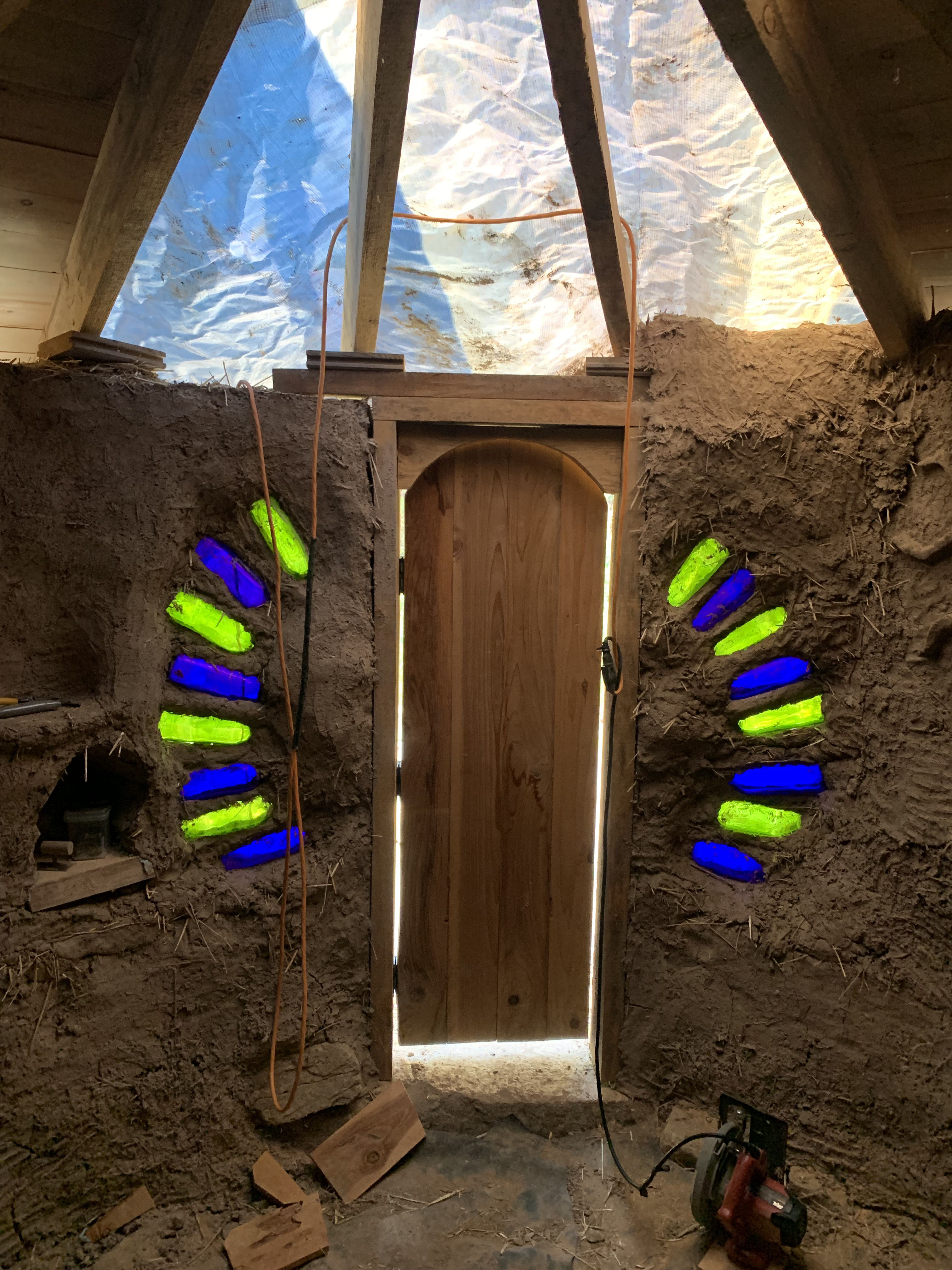

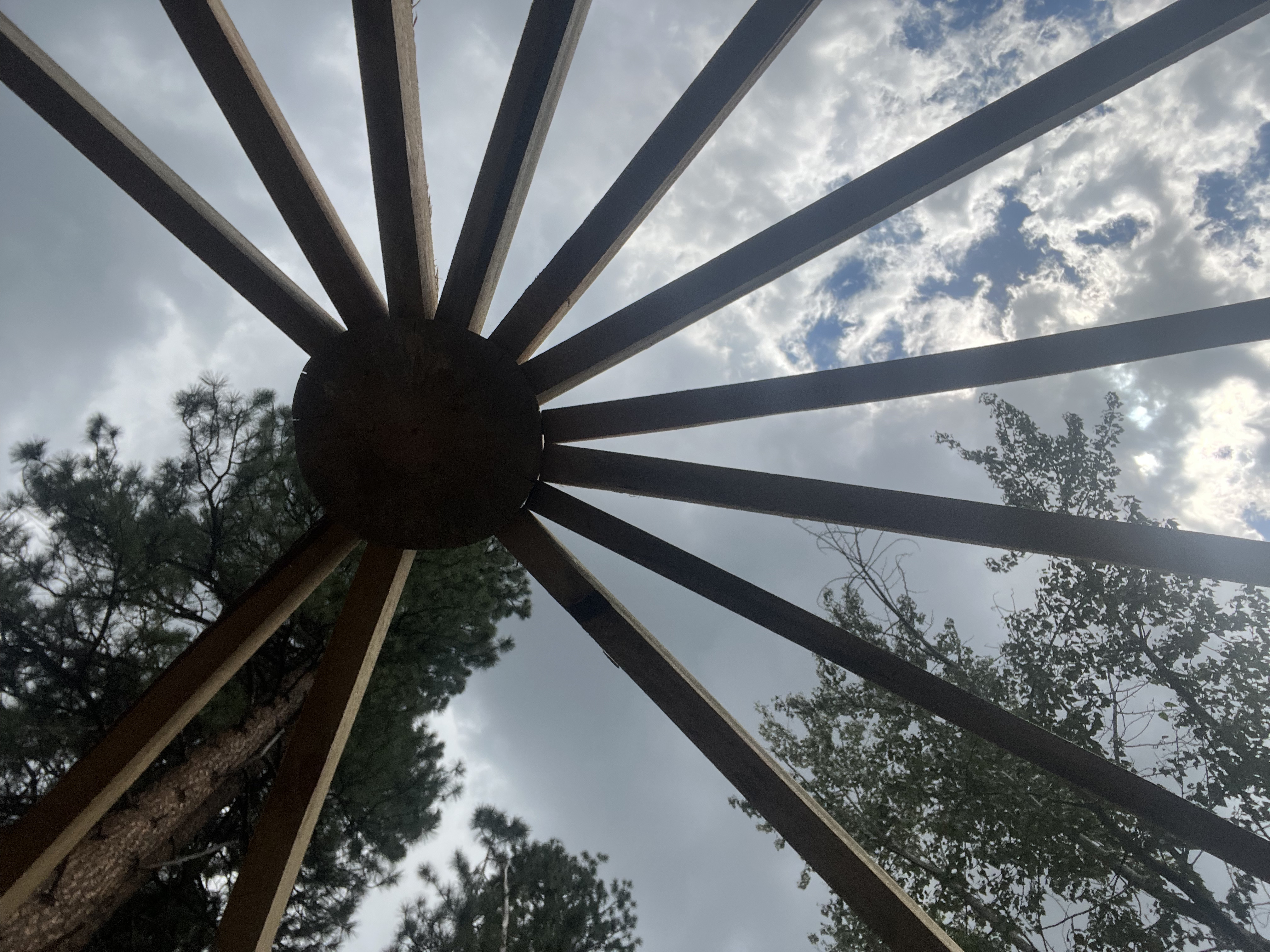

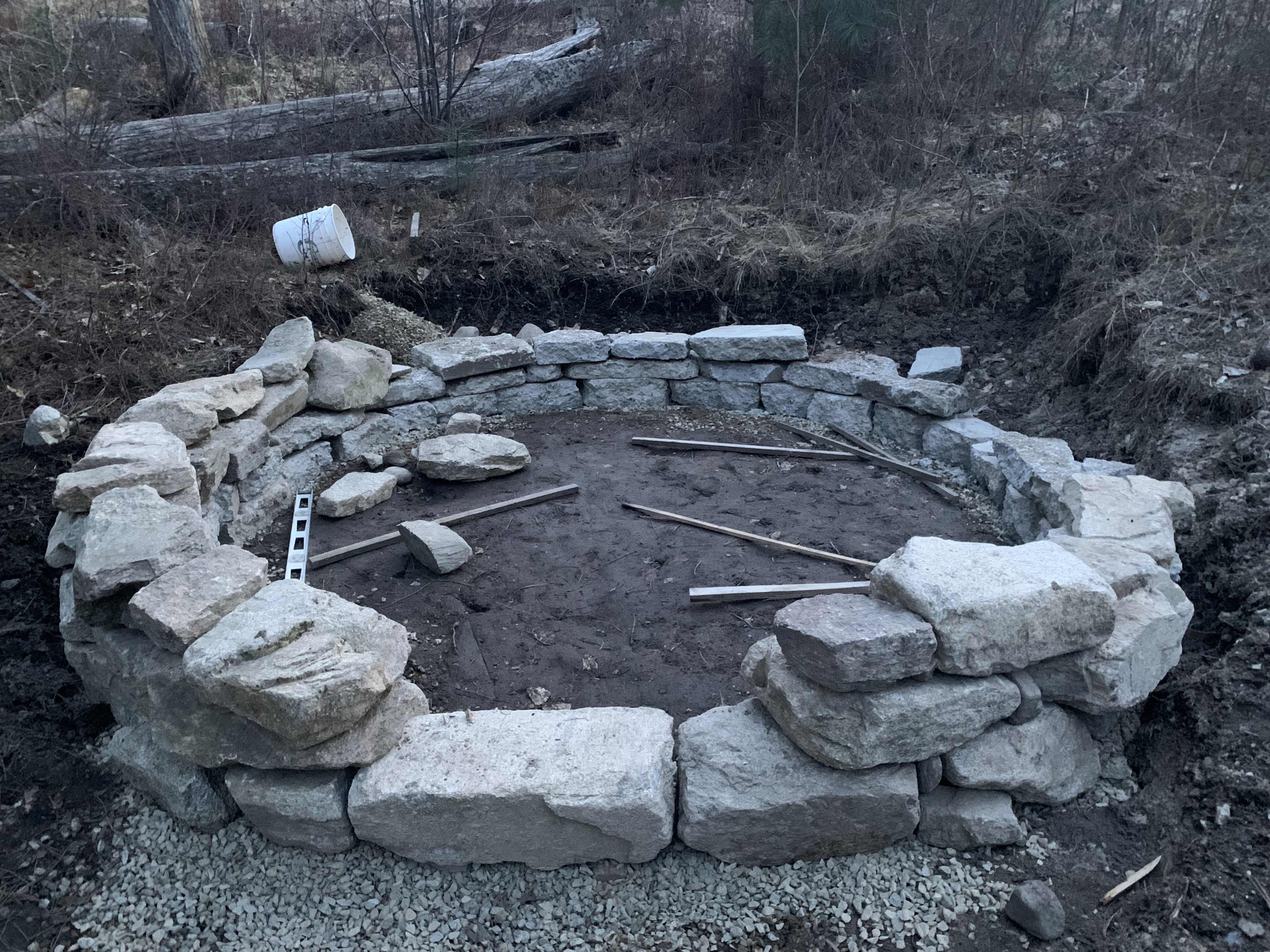

Thought I would share some photos of this years build. We have been building a cob sauna on the property and it is nearly there. Currently I'm working on the roof and will then be putting in 6" batch RMH (shorty) for the heat source. We did a majority of the cob during a 4 day cob workshop where we had 6 people working together to build the walls. Hope somone enjoys! It has been a fun one.

[Thumbnail for IMG_4600.jpg]
[Thumbnail for IMG_5036.jpg]
[Thumbnail for IMG_1837.jpg]
[Thumbnail for IMG_4605.jpg]

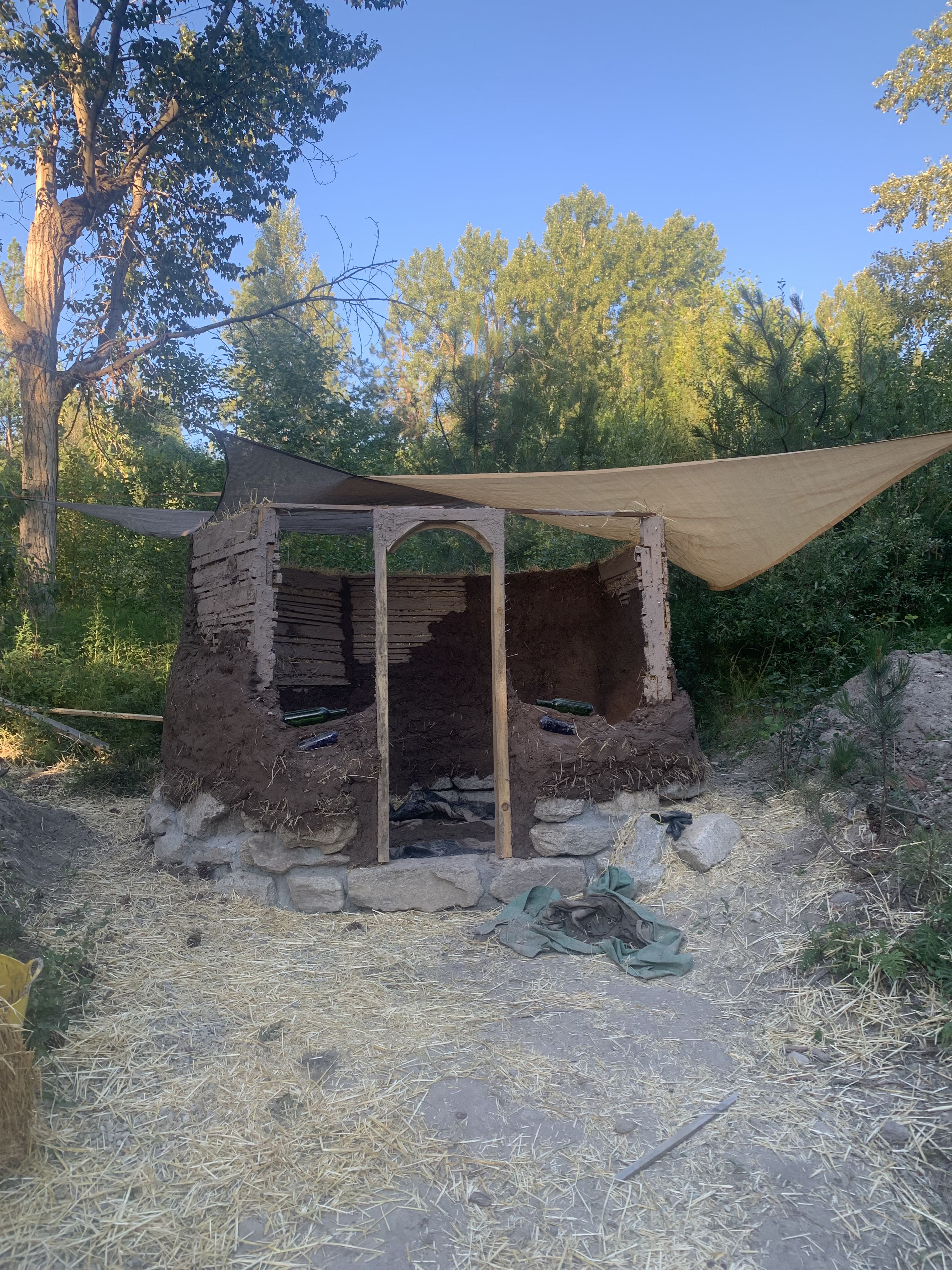

[Thumbnail for IMG_4907.jpg]
[Thumbnail for IMG_4901.jpg]

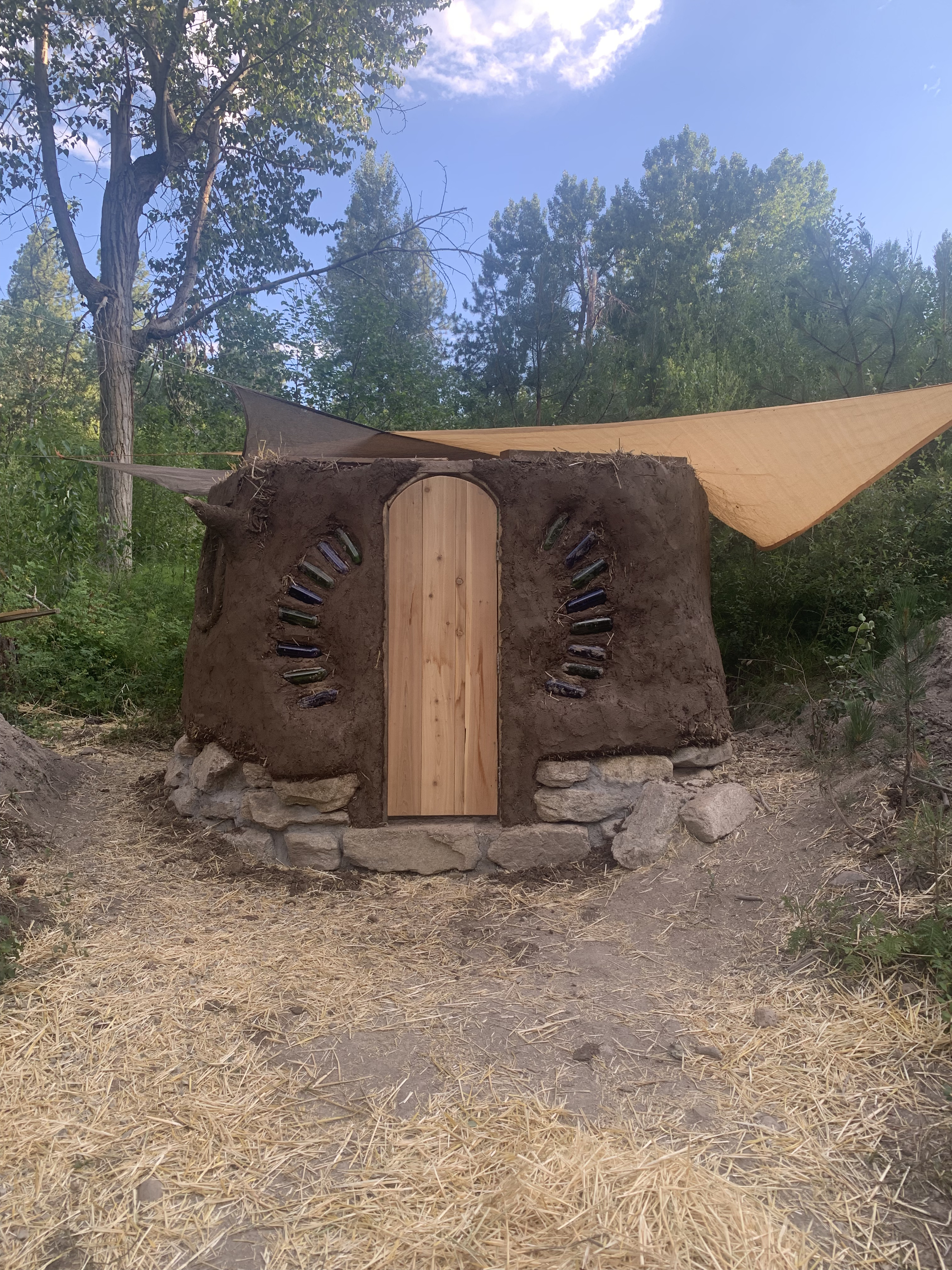

[Thumbnail for IMG_4912.jpg]
[Thumbnail for IMG_4950.jpg]
Filename: IMG_5036.HEIC
File size: 2 megabytes
[Thumbnail for IMG_5060.jpg]

pollinator
Posts: 6365
Location: Bendigo , Australia
611
plumbing earthworks bee building homestead greening the desert
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
sthat wattle and daub on the walls?

Daniel Ray
gardener
Posts: 522
Location: Victor, Montana; Zone 5b
262
hugelkultur forest garden composting toilet building rocket stoves
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

sthat wattle and daub on the walls?



Yes, we did a pallet cob as made popular by Miguel Elliott (sir cobsalot). I did a similar build for our outdoor composting toilet and I really enjoyed the process, so went for it again. People seem to enjoy the method.

John C Daley
pollinator
Posts: 6365
Location: Bendigo , Australia
611
plumbing earthworks bee building homestead greening the desert
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Miguel Elliott (sir cobsalot)


Do you mean this place? https://www.skool.com/living-earth-structures

Daniel Ray
gardener
Posts: 522
Location: Victor, Montana; Zone 5b
262
hugelkultur forest garden composting toilet building rocket stoves
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
A few photos and update on the sauna. Nearly ready to rock and roll. The stove is complete-minus the finish plaster. I have the floors done and am drying it all out. If anyone was wondering about using a rocket in a sauna, this one will do the trick. I have a 6" batch rocket to peter's specs heating approximately 70 square feet (455 cubic feet). The test run had the main barrel temp around 600F, secondary barrel bell at 350F and ambient temperatures hit 130 after a 45 minute burn. I expect it too perform a bit better once the water is gone from the cob and I have the door sealed.
[Thumbnail for IMG_5249.JPEG]
[Thumbnail for IMG_5245.JPEG]
[Thumbnail for IMG_5233.JPEG]
[Thumbnail for IMG_5244.JPEG]
