Structural screws; Timberlok and GRK RSS compared  RSS feed


Dillon Nichols
pollinator
Posts: 597
Location: Victoria BC
28
  • Likes 2
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I screwed together most of the parts of a roundwood wall today. I found both GRK 'RSS' and Fastenmaster 'Timberlok' screws at home depot, and bought some of each to see how they compared for this use.

Performance was noticeably different, so I thought I'd share the results.


Head style:
Timberlok: socket drive with fairly narrow head
RSS: Star drive with larger head

I preferred the socket drive on the Timberloks, mostly because I don't ever need a star drive for anything else. If you get the retail packaged screws, both brands include a driver bit.
OTOH, I preferred the larger head on the RSS; the Timberloks strike me as too easy to drive overly far through the wood, which leaves me worried about pull-through. After a test drive, I used washers with the timberloks, but not the RSS.

Dimensions, Strength:
Timberlok screws all share a shaft diameter of 0.189" and minor/major thread diameter of 0.172/0.260.
RSS screws come in a variety of thicknesses scaling with their length; 6" are available as 5/16s or 3/8s, 8" only in 3/8s. The 5/16s is a hair thicker(and stronger) than the Timberlok spec; the 3/8s is quite noticeably so. Going by their site they have sizes up to 3/8x20"!

Function:
I bought 8" timberloks, along with 5/16x6" and 3/8x8" RSS. I drove all into green doug fir. No predrilling was needed.

Timberloks were easier to drive, though a bit harder to start. My cordless impact driver running an 18v 2ah battery could handle them fine unless I hit a knot, and it was easy to do with one hand aside from starting them. The relatively short amount of thread made them well suited for pulling the components together; in some cases the RSS screws could not do so because of the threading present in the beam.

However, at some spots where I wanted to pull two pieces tight by screwing through side-grain into end-grain, 8" timberloks would pull out or strip the end grain portion.

Switching to an 8" RSS screw for the same task solved the issue in each case. I had to use a cordless drill for the RSS screws; with a 4-ah battery it could just barely handle them, and it was near the limits of a one-handed operation for me. It wouldn't reliably drive these with a 2ah battery, not able to draw enough juice.


I'll add a picture when I remember to bring the camera up.

I've seen timberloks used on several projects, but never RSS screws before. I ended up pleased to have both, and figure I'll continue using a mix when I need this sort of fastener.


I'm hoping to track down some SPAX structural screws to see how those compare, and some suitable wood for pegs for future projects.

What sort of fasteners do you prefer?

Rob Bouchard
Posts: 41
Location: BC, Canada
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I've been using 8" fastenmaster headlok screws to put sip panels over my post and beam house, they work amazing. I ran out and had to get some similar grk screws and was quite disappointed with the pulling strength of them. The fastenmaster would straighten out a 2x6 on end where the grk would snug it, but not pull it tight against my timbers. Same deal with knots though... Stay away from them!

Dillon Nichols
pollinator
Posts: 597
Location: Victoria BC
28
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Huh, interesting, exactly opposite from my experience! To be fair, the RSS' were larger diameter, so perhaps in a true apples to apples test the fastenmaster design is superior... this possibility would be more compelling if they made larger diameter screws!

Looks like the headlok has an almost identical design to the timberlok except for the head itself. Do you recall which model of grk you tried?

Rob Bouchard
Posts: 41
Location: BC, Canada
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I just looked and it was the RSS, but you are correct they are a bigger diameter. The other notable difference was the price! $1.90 each for the GRK and $. 70 for the fastenmaster.

Rob Bouchard
Posts: 41
Location: BC, Canada
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
The other difference could be the Douglas fir I was screwing into was almost as hard as stone and very well cured... About 10 years or so.

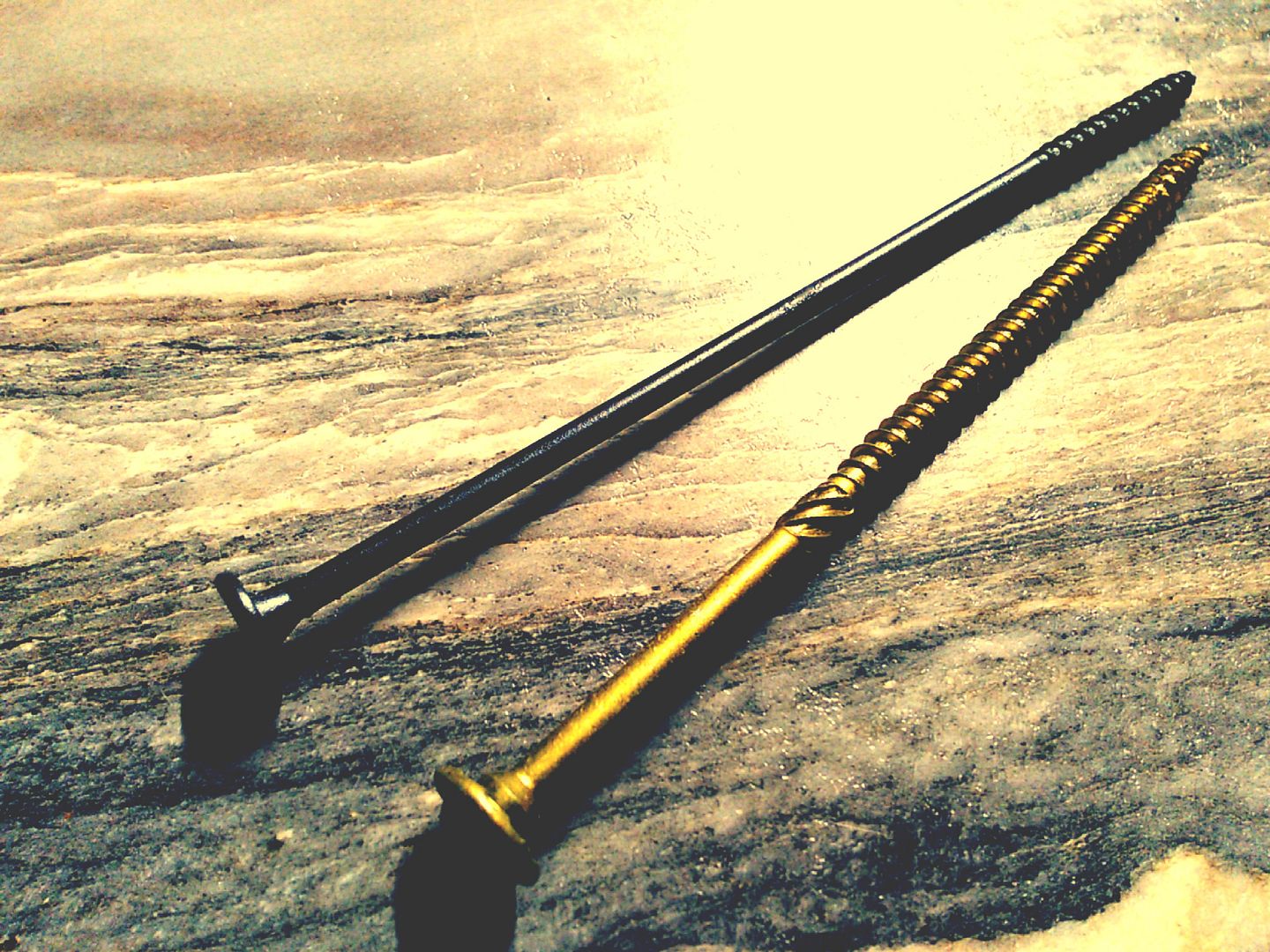

Here is a pic for anyone that has no idea what we're talking about.

Headlok on top, grk below. This is a 7" grk in the picture.


Dillon Nichols
pollinator
Posts: 597
Location: Victoria BC
28
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Whoa, that's a big price difference; in my case the timberlok 8" were in a 12-pack for $1.58 ea, and the GRK RSS were bulk @ more like $2.40 ea for 8" or $1.29 for 6".

It adds up fast at these prices; combining 8" timberlok with 6" RSS was good for most connections, and cheaper, and the 8" RSS bailed me out on the hard ones.

My doug fir was still standing a month ago, and has been rained on most of the time since, a substantial difference from yours!

Where are you getting your Timberloks?

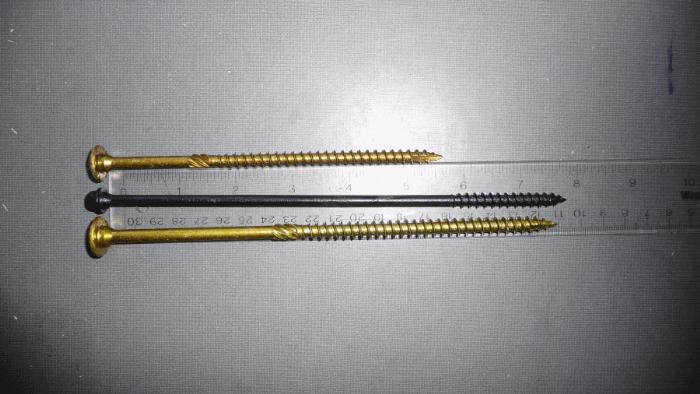

Here's a comparison pic of the ones I used.
[Thumbnail for RSS-vs-Timberlok.gif]

Rob Bouchard
Posts: 41
Location: BC, Canada
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I got the headlok's from my sip supplier, I think they were even less if you bought a box of 250 around $. 64.

R Scott
Posts: 3358
Location: Kansas Zone 6a
32
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I love the rss screws. I have never snapped one of the big rss ones, while I have broken several timberlocks. Prices are closer here (timberlocks are way more expensive here).

The threads go way further up on the rss, which can be good or bad depending on the application. Much better for bolting a 2x to a post, not so good for bolting to timbers together.

kyle yoder
Posts: 1
Location: NE Missouri
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Really pleased to see this thread. Have been looking for a comparison on the three brands of structural screws and came up empty until I found this. Would love to hear more of your experiences.

I do a lot of wonky joinery with a hodge podge of wood types. Most of it is hardwood. Some of it is especially hard wood -- black locust and occasionally osage ("hedge"). Because of how hard the wood is, I almost always have to pre-drill first, which I realize takes some of the benefit out of these fasteners but it's still worth it in my opinion.

So far, I've primarily used Spax brand, because it is what I can buy in 50 pc boxes at Menard's -- the local big supply store. I have been overall pleased with them. They look closest to the GRK (with the thread further up the shaft), although I've never used the GRK so can't compare it. I have some headlok (same brand as timberlok, think the head is just smaller) screws that I haven't tried out yet, will report on details as I learn more.


Dillon Nichols
pollinator
Posts: 597
Location: Victoria BC
28
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I've used these for a few more odd tasks since first posting. My main complaint is that they are expensive, and too damned useful to do without now that I'm used to them!

I still find I prefer the RSS performance/strength wise, but the little driver bits they provide have gotten old fast. The timberlok packs not only include a better driver bit (locking 1/4" type, vs the small one the GRK folks provide which is meant for a bit-holder... and then the bit-holder breaks), but it's very easy to use a socket set to tighten the hex-headed Timberloks down, if your driver isn't up to it.

I haven't yet had to resort to a socket set or corded drill when installing these, however I had to use a breaker bar/socket when removing some after a few weeks, as the timbers shrank around them!

I am finding that these screws are really nice for temporary applications, as they are not only much stronger while holding things up, they come back out without breaking, where other screws often snap.


Rob Bouchard
Posts: 41
Location: BC, Canada
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Lol I have to agree! I've been using them for all sorts of things and that extra length sure comes in handy for fastening jobs where nothing else would work.
