This is a badge bit (BB) that is part of the PEP curriculum. Completing this BB is part of getting the wood badge in Rocket.

This BB requires you to build another J-Tube Rocket Mass Heater that is different from the one you built for your straw badge.


These are some potentially useful resources:
  - The Rocket Mass Heater Builder's Guide by Erica and Ernie Wisner
  - Top Questions About Rocket Mass Heaters
  - New Build - Need Help
  - Building My First RMH (Tommy's Tea Dome)
  - Farm House RMH, First In House Build

This is a potentially helpful video on building a RMH.

Rocket Mass Heater Full Build (time lapse)

From the video description:
"So I decided to go back thru and use all the High speed video footage and compile a video, speed it up a bit (was over an hour) and give you the build One time through. Thanks For watching."

To get certified for this Badge Bit you must provide:

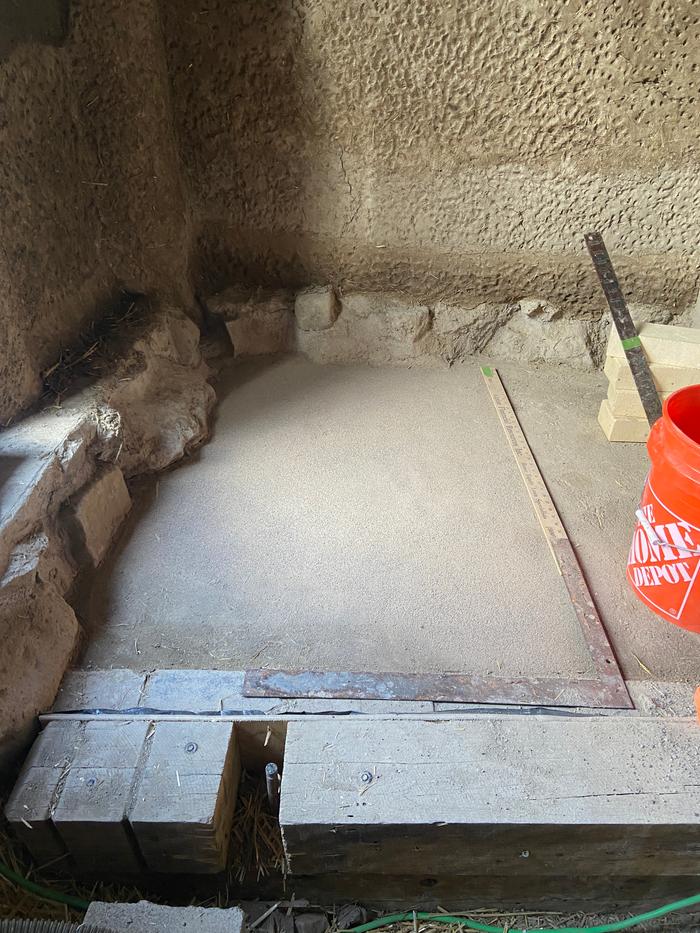

  - pic of area before build

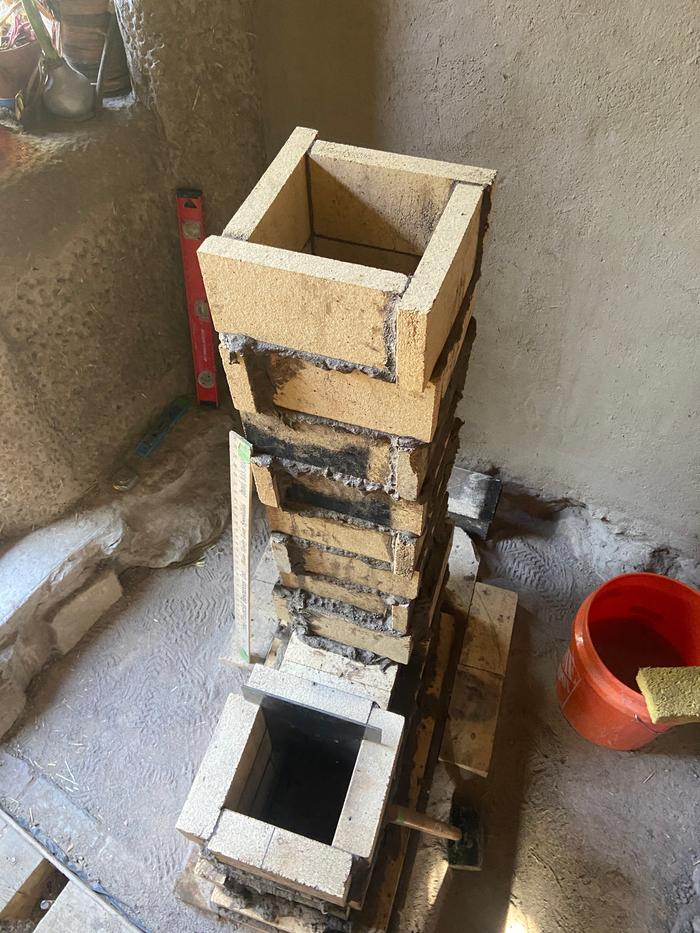

  - pic of core (exterior of burn tunnel, heat riser and manifold) without barrel

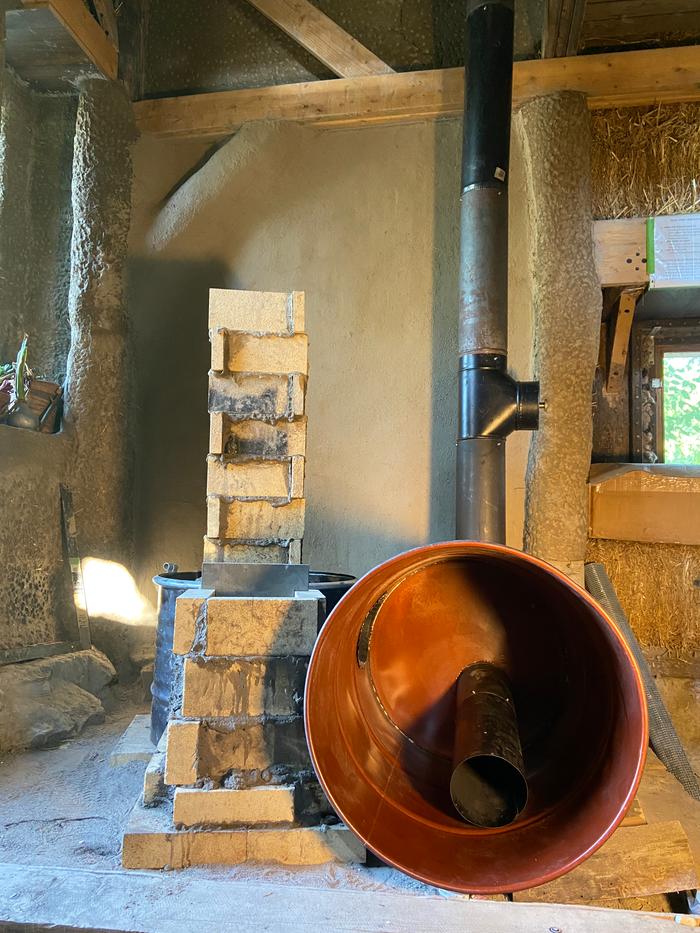

  - pic of ducts or stratification chamber before mass

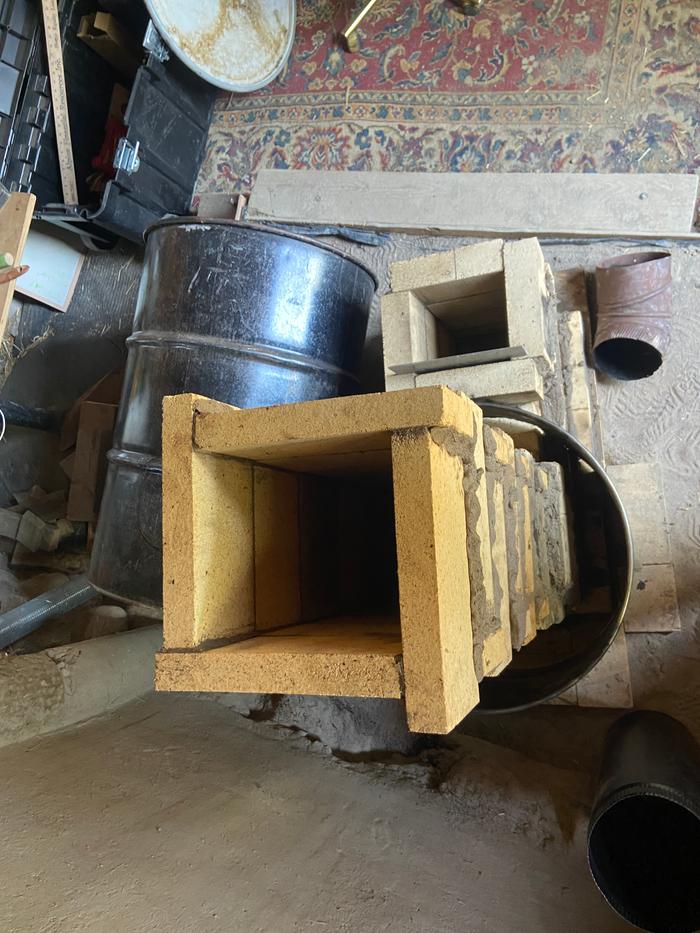

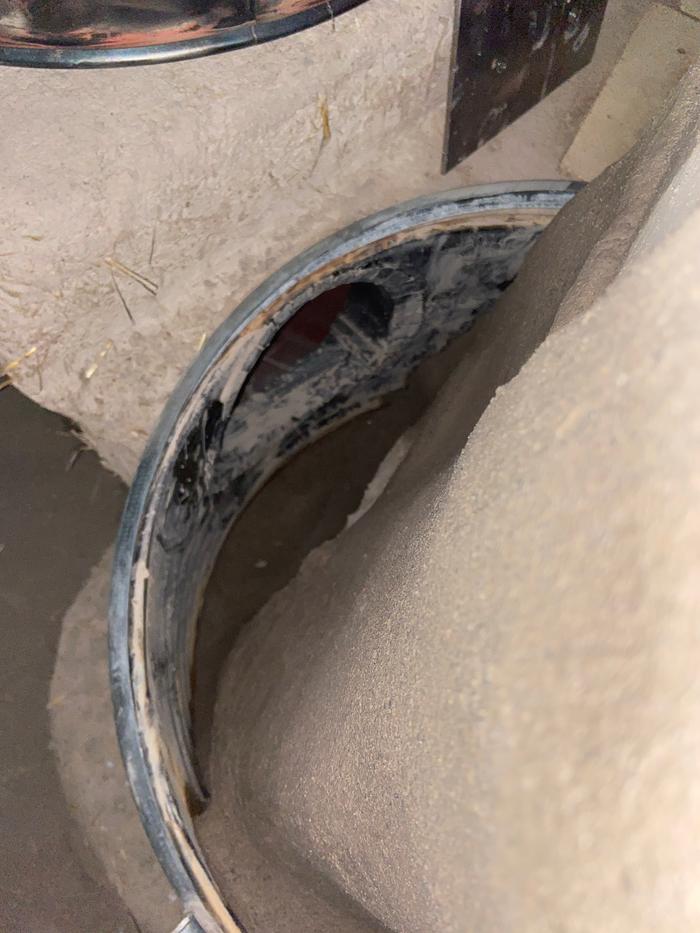

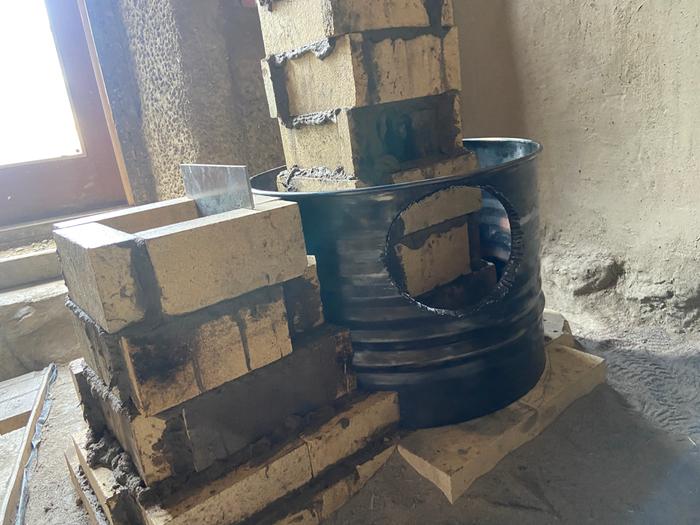

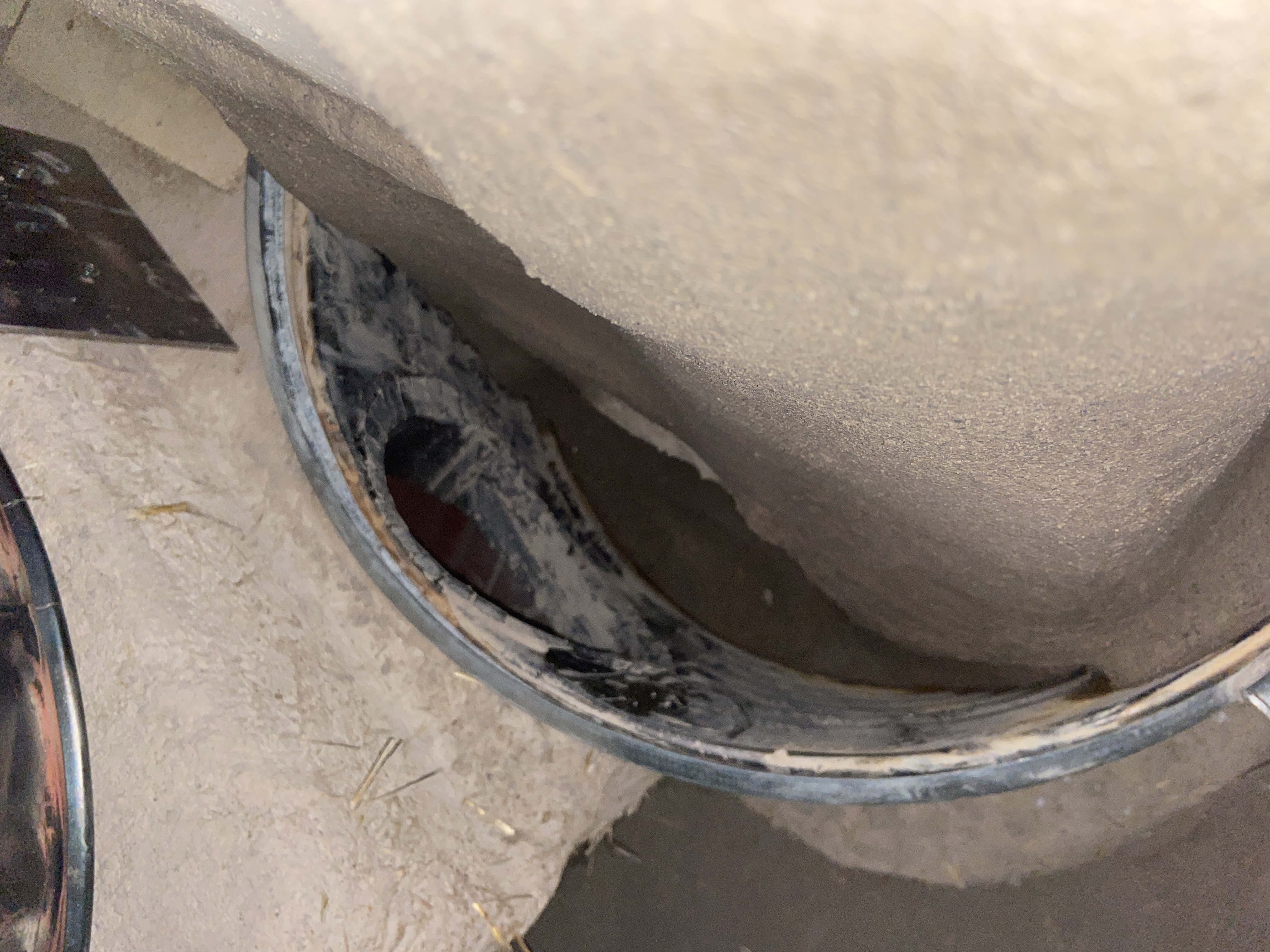

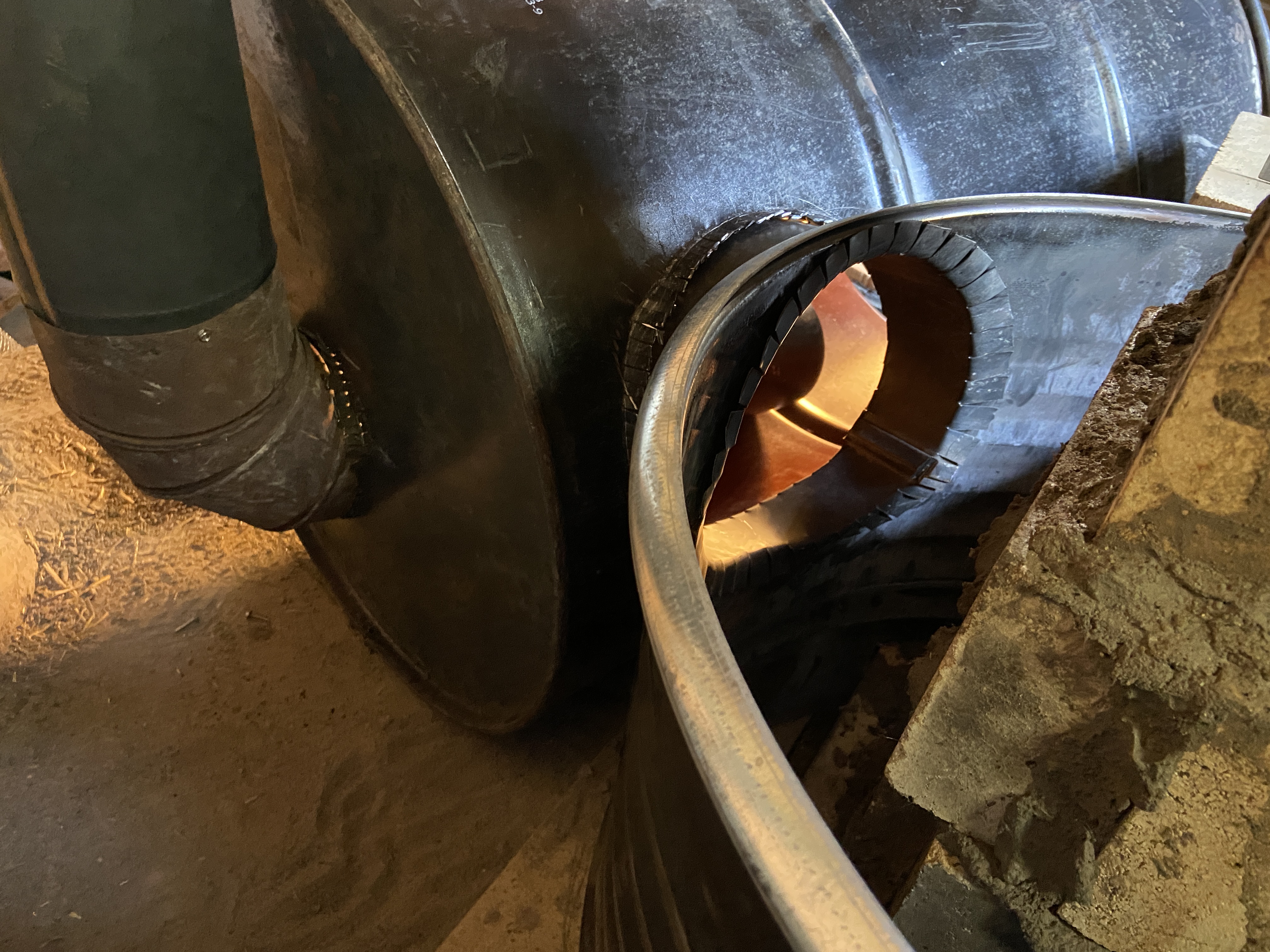

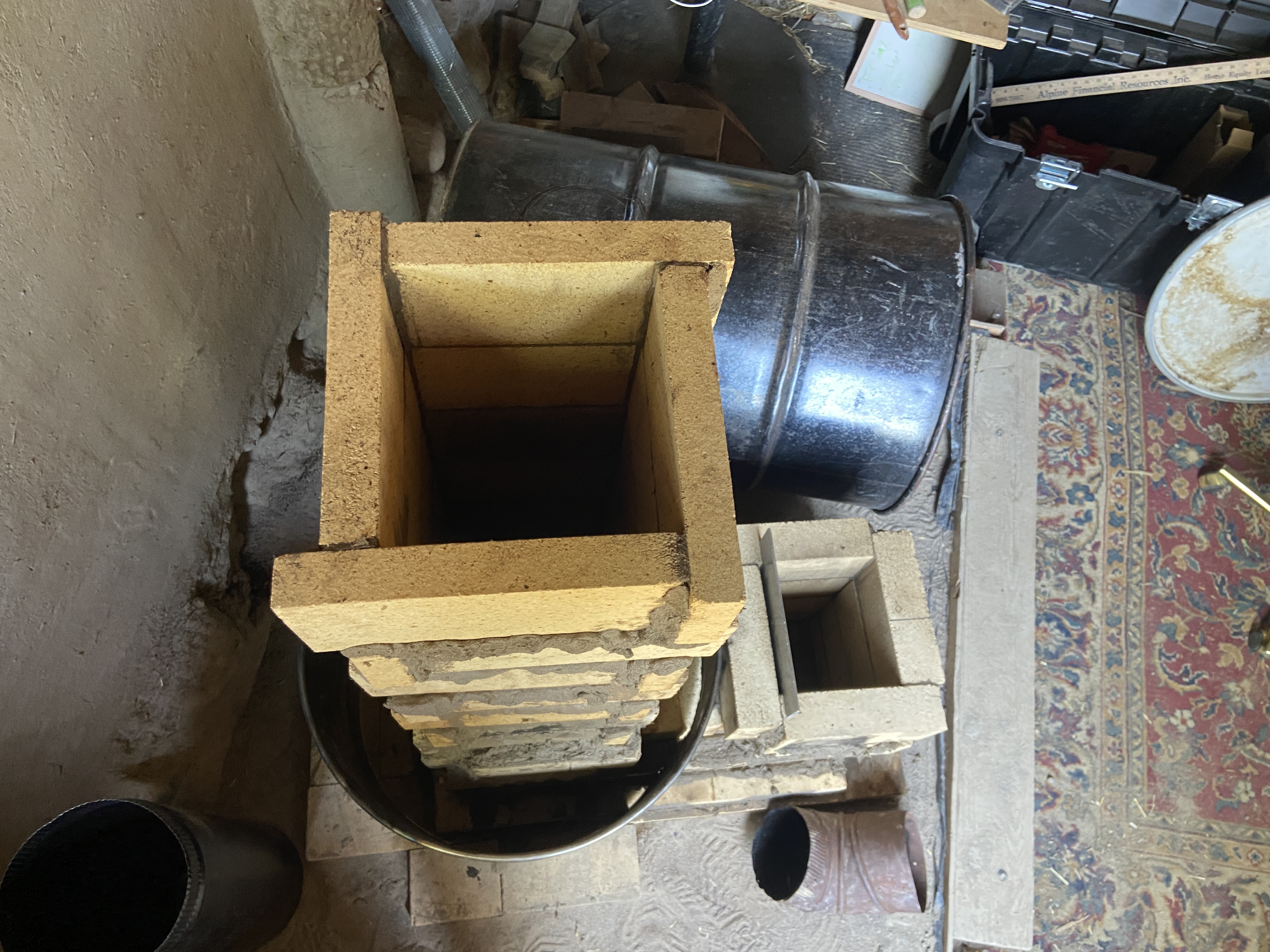

  - 3 pics of manifold

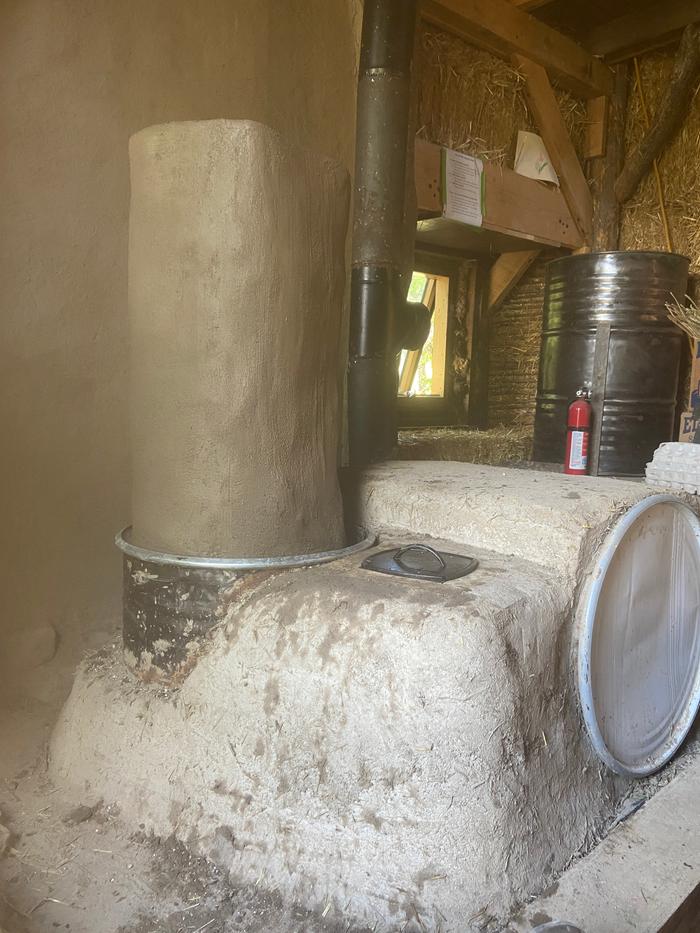

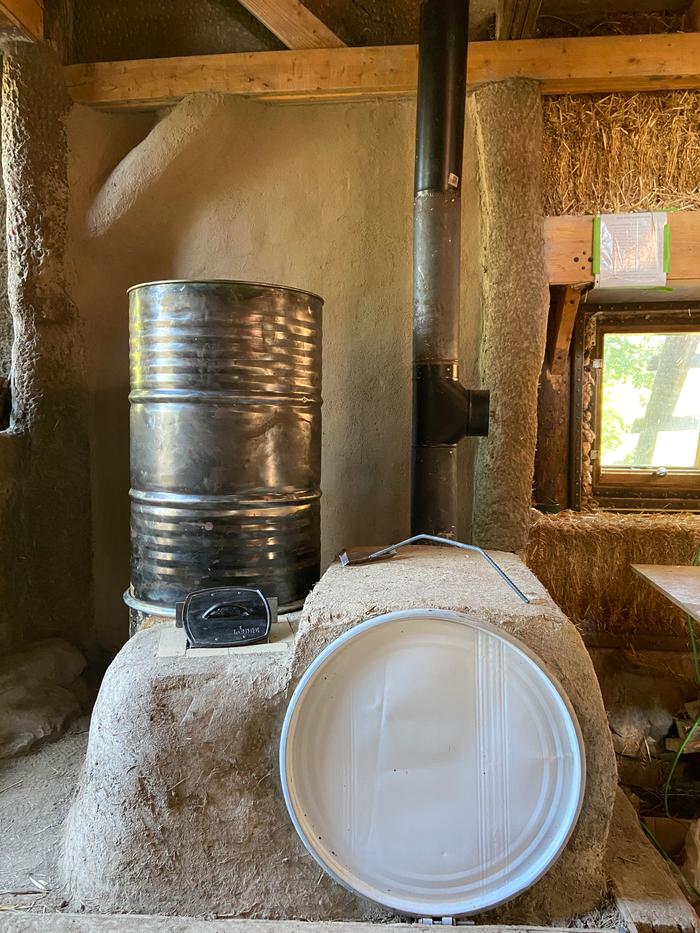

  - pic of completed product
  - pic of vertical exhaust going into the ceiling
  - pic of vertical exhaust coming out of the roof
  - 2 minute video of starting the fire and proving there are no smoke leaks
