Passive solar heated house in the high Himalayas


gardener
Posts: 2068
Location: Ladakh, Indian Himalayas at 10,500 feet, zone 5
472
trees food preservation solar greening the desert
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
My housemate explaining passive solar heating at my house in the high desert. You can ask me for details if you have questions, because being only 3:45 minutes this video doesn't have much detail.


pollinator
Posts: 489
290
solar wood heat
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Hi Rebecca,

You're right, the technical details are missing from the video...

...could you post a drawing for the trombe wall of the house?

if the outside wall serves as the trombe wall, what is the internal construction of the wall itself (does the wall have different layers of materials or is it homogeneous)?

how does the attached greenhouse attach to the house?

how is one floor air vented to the other floors (if at all)?

I like the fact this is being done in Ladakh!  Some monks have used reflective metals to heat their monasteries....I would welcome any and all pics and diagrams you post

Rebecca Norman
gardener
Posts: 2068
Location: Ladakh, Indian Himalayas at 10,500 feet, zone 5
472
trees food preservation solar greening the desert
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I don't have a picture or diagram of the trombe wall. It's seen at 1:45 in the video. It's just a half-trombe wall. The downstairs south-facing wall is rammed earth, like the rest of the house, with windows that are not very large since the real winter glazing for the downstairs is the seasonally attached greenhouse. Upstairs, the south wall is largely windows, with a concrete-block wall up to only 2.5 feet high (the half-trombe wall), inside the floor-to-ceiling window, to absorb, store and moderate some of the sun's direct radiation. In the video at 1:10 and 1:45, Rohit is sitting on it. It's about 6 inches thick (because the standard cement or earth bricks in our area are 6x6x12 inches). It's painted black on the outside, facing the glass, to increase heat absorption from the sunlight. There is a 5- or 6-inch gap between the wall and the window -- That might not be ideal thermally, but I've lived with these type of half-trombe walls at our school for over 20 years, and being able to stick your arm inside for cleaning or maintenance is important. The beam above those windows is a reinforced concrete beam, because the roof is earthen and very heavy. All other lintels in the house are wood.

The greenhouse is attached to an iron frame with a type of long wavy wires called "clips" (I'm sure there's an American term but I don't know it) that you wedge into a narrow aluminum gutter that is bolted to the iron frame. It takes a small crew, at least 4 or 5 people, to put it on in November (excuse for a party to invite some of my former students), but only takes 30 minutes if at least one person knows how to do it. You hang the piece of UV-resistant plastic out over the top of the frame, pull it tight along the top, and wedge the "clips" (wavy long stiff wires) into the top edge of the frame, locking the top of the plastic in place. Then it's pretty easy to go down and clip the sides. We fix the bottom with a trench and soil, rather than clips. It is said to be helpful to to attach the greenhouse on a hot midday, when the plastic is as stretched and flexible as it's going to get (though maybe the metal frames expand more so maybe it doesn't matter). It takes only two people to remove the plastic in springtime.

The floors are not vented to each other, especially in winter, when the thermal buffer zone, ie stairwell and the east-west corridor along the north edge of the house, is closed off from the south facing rooms. The upstairs rooms do get a bit too cold at night in winter, these first two years, below 10C, which is not very nice. I was away for January this year, and I slept down in the living room for January last year, as did Rohit this recent January while I was away. I arrived on Feb. 8th and the house started warming up within a few days, and is comfortable even upstairs now, in late February.

The roof insulation is not great and I'm planning to improve it. It's only natural "straw-clay," about 6 or 8 inches thick. There's a gap 8 inches thick between the horizontal joists, hidden by the thin wooden ceiling, and I'm planning to put some more serious insulation in those spaces this year. I think it will make several degrees of difference. If the upstairs bedrooms stay above 12C on January nights, I'll be happy.
[Thumbnail for 20200225-clip-mechanism-for-greenhouse-copy.jpg]
Long wavy wires called "clips" get jammed into aluminium gutters bolted to the greenhouse frame
[Thumbnail for 20200225-greenhouse-outside-in-Feb-copy.jpg]
The seasonal attached greenhouse in February
[Thumbnail for 20200225-half-trombe-wall-copy.jpg]
Half trombe wall, ie short thermal-mass wall inside a large south-facing window, to store heat
[Thumbnail for 20200225-large-windows-with-half-trombe-wall-copy.jpg]
Half Trombe wall
[Thumbnail for 20200225-inside-of-greenhouse-in-Feb-copy.jpg]
Greenhouse in Feb, with parsley, kale, rosemary and thyme booming
[Thumbnail for 20200225-thermal-buffer-zone-stairwell-on-north-side-of-house-copy.jpg]
The stairwell is in the north side of the house and not heated
[Thumbnail for 20200225-thermal-buffer-zone-corridor-on-north-side-of-house-copy.jpg]
This corridor runs along the north side of the house and is shut off in winter from the south side of the house with a door

Orin Raichart
pollinator
Posts: 489
290
solar wood heat
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Thank you! my brother would probably like your passive solutions better than mine since these solutions here are barely even noticable parts of the house!

gardener
Posts: 2736
Location: Fraser River Headwaters, Zone3, Lat: 53N, Altitude 2750', Boreal/Temperate Rainforest-transition
451
hugelkultur forest garden fungi trees books food preservation bike solar woodworking
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
If I get it right, the corridor with the stairwell and storage space then acts as an unheated heat envelope.  It serves to buffer the inside warm living space from the outside more extreme cold temperatures, while still being useful indoor space.  Pretty great design!

gardener
Posts: 3355
Location: Cincinnati, Ohio,Price Hill 45205
417
forest garden trees urban
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Rebecca,  the north side corridor  has a sink and a washing machine(?) ,is the water supply  not effected by the cold?

Roberto pokachinni
gardener
Posts: 2736
Location: Fraser River Headwaters, Zone3, Lat: 53N, Altitude 2750', Boreal/Temperate Rainforest-transition
451
hugelkultur forest garden fungi trees books food preservation bike solar woodworking
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
My guess is that even though this part of the house is unheated, the attached heated part shares some heat with it, enough that it does not freeze.

Rebecca Norman
gardener
Posts: 2068
Location: Ladakh, Indian Himalayas at 10,500 feet, zone 5
472
trees food preservation solar greening the desert
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Right, the whole north side of the house is the unheated "thermal buffer zone": corridor, stairs, dry composting toilet, and storerooms. It does go down close to freezing, but in January (while I was away) this year it actually touched freezing according to the thermometer, so my housemate would run some water in the corridor sink whenever he passed it at night, and these indoor pipes didn't freeze or get blocked. It was an unusually cold and cloudy winter.

I'm planning to insulate the roof better this summer, and maybe put plastic over those corridor windows for the coldest month, and then I think the corridor will never go close to freezing again.

Ooh, I found some pictures that will help.
[Thumbnail for 2016May05-passive-solar-house-foundation.jpg]
Foundations. Dry stone with a concrete plinth layer on top.
[Thumbnail for passive-solar-house-ground-floor-plan.jpg]
Ground floor, with the thermal buffer zone at the top

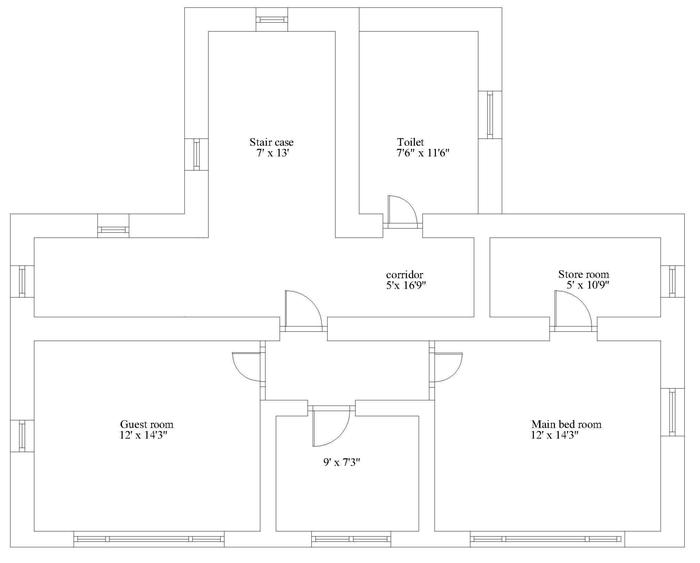

[Thumbnail for passive-solar-house-upstairs-plan.jpg]
Upstairs

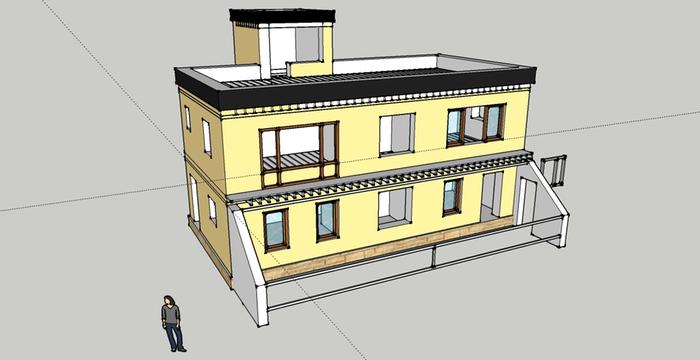

[Thumbnail for passive-solar-house-sketchup.jpg]
The thing sticking up on the roof is the stairwell, with the water storage tank inside

Rebecca Norman
gardener
Posts: 2068
Location: Ladakh, Indian Himalayas at 10,500 feet, zone 5
472
trees food preservation solar greening the desert
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
In summer with the plastic removed from the greenhouse frame, it can't overheat and cook the plants. I find it best to put the plastic on in mid-October and remove it in late April or even early May. Seedlings and cold-weather plants tend to get roasted on sunny days in April if we don't remove it, but tender seedlings can still get zapped by frost in May if we do. I try to cover tender seedlings at night after the greenhouse is removed, but of course mistakes get made...
[Thumbnail for 20190720-attached-greenhouse-frame-in-summer.jpg]
