Has anyone ever used one of these to make cob?

http://www.youtube.com/watch?v=r-fUMqtQ5L4

http://www.youtube.com/watch?v=mgP1cwyw44M

http://www.youtube.com/watch?v=RdabqoUK3eg


it's a machine to "mull" foundry sand (which is basically sand with about 8-10% clay added).

The sand is given a sort of squeezing/mixing action which seems ideal to mix cob.

I'm planning to build one - I do some aluminum casting as a paying hobby - and it would
be relatively simple to adapt it for cob mixing; perhaps a toothed roller, rather than smooth,
and a heavier squeeze?

Miles Flansburg
steward
Posts: 3981
Location: Zones 2-4 Wyoming and 4-5 Colorado
166
bee books forest garden fungi greening the desert hugelkultur
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Howdy Gregg, help me understand what you are trying to do so I can learn. It seems that these machines sort of grind or pulverize the sand /clay mixture. Is that what you are trying to do? Or do you want to mix the cob with water in one of these?

Gregg L'Oeuf
Posts: 11
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I'm thinking that I can add sand, clay, straw and water to the mixer, and save myself the labour
of mixing the cob "by hand" so to speak.

I usually work as a two-man team (with my son), and would like a machine that could keep us supplied
with cob, same as a cement mixer would keep us supplied with render on a conventional construction
site.


Gregg L'Oeuf
Posts: 11
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
The machines don't so much crush and pulverise - more a turnover/squeezing action, which I'd've
thought was perfect for mixing cob?

Miles Flansburg
steward
Posts: 3981
Location: Zones 2-4 Wyoming and 4-5 Colorado
166
bee books forest garden fungi greening the desert hugelkultur
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
OK, I wouldn't know. I have always seen pictures of folks using a "stomping grapes" style. I guess you could give it a try and see what happens.

Kirk Mobert
Posts: 145
Location: Point Arena, Ca
13
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Umm.. These may work.
I think that the turnover motion should be enhanced a bit..

You may find that the straw tends to get tangled into EVERYTHING. It may make the process impossible or at least difficult at best.
I've used cement mixers to mix the sand and soil together, but I ALWAYS dumped it out and mixed in the straw manually (by foot).

Good luck with it. Let us know how it goes..

Miles Flansburg
steward
Posts: 3981
Location: Zones 2-4 Wyoming and 4-5 Colorado
166
bee books forest garden fungi greening the desert hugelkultur
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I have used pug mills to mix different things before.

http://www.bing.com/images/search?q=pug+mill&qpvt=pug+mill&FORM=IGRE

As you can see there are all sorts of sizes and designs but basically it is just a big mixer with two shafts with paddles that intertwine and move the material from one end to the other while it is mixed.

Misha Rauchwerger
Posts: 3
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Hi Gregg,

First off, what are you making? an oven or a structure? for small scale projects I might consider a small mixer machine, but if you are trying to make a building, forget it. I have tried: cement mixers, mortar mixers, rototillers, small tractors, and excavators. Hands down the excavator wins. in a matter of a few hours you can have a 10 or 15 cubic yard pile of cob to last you weeks of building. It is by far the most efficient mixer, and does a pretty good job of it. nothing to get straw all wound up on. and it can deliver the cob right where you want it. And, you could get a pond out of the deal if you mix in a pit near the building. And it can dig your footings, do all the site utilities, move big rocks, lift beams, and more.

The next best mixer is a small loader tractor, ideally 4 WD. You can lay out the various components using the bucket, then with a combination of driving over it to mash, and the bucket to turn can make a lot of mix in a reasonable time. It takes practice to get a consistent mix.

Mortar mixers can work, but you have to make the mix more on the wet side, and the straw can wind up on the mixer. I've had best results adding the straw and clay first, making a wet mix, then add sand to stiffen it up. Patrick Henneberry of Cobworks on Mayne Island, BC uses a mortar mixer.

Gord and Ann Baird built their home in Victoria BC with a rototiller. My experience was not as positive as theirs. It's hard work, you still have to pick up and move the material by hand, long straw can get wound up on the tines, and you are slogging in the cob all day.

Anything that you have to bucket the material in, and wheelbarrow it out means carrying your entire building multiple times. I've foot mixed entire buildings, so I know what it is like. Plus, a diesel tractor can run on SVO if you want to improve the sustainability factor.

Hope this helps,
Misha Rauchwerger
www.builtinbliss.com

Craig Nabors
Posts: 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I have just finished up a small cob cottage and I used a mortar mixer and thought it worked pretty well. In the beginning I mixed the clay and sand in the mortar mixer then dumped it out onto the tarp and used my feet to mix in the straw. I was really worried that the straw would bind up my mixer but I found that if I made my batches a little smaller the mixer did just fine. If you have access to a mixer it will save you a lot of time and energy but I must say that mixing with your feet is also really fun.

R Scott
Posts: 3349
Location: Kansas Zone 6a
32
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I have seen mullers used for small rammed earth mixers, but not cob. I think the difference is the moisture content. A muller would gum up as soon as the cob got wet enough to be cob. It would be fine for pre-mixing sand and clay and pulverizing the clay for faster cobbing by hand. Sand and unsifted clay through the muller, then sift to a tarp to incorporate water and straw.


Dustin Mattison
Posts: 31
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

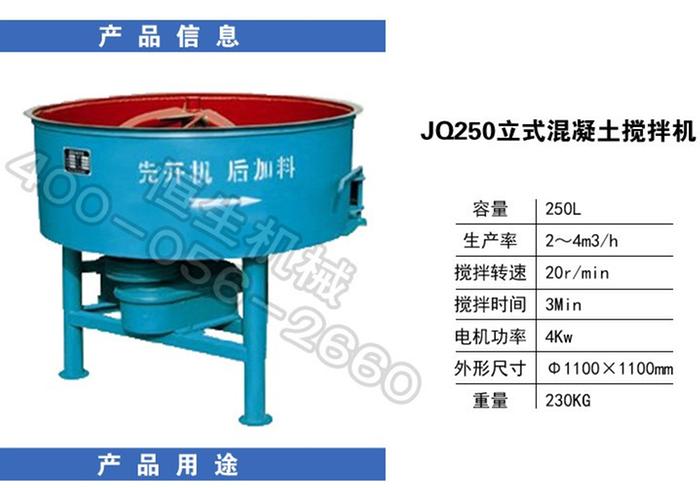

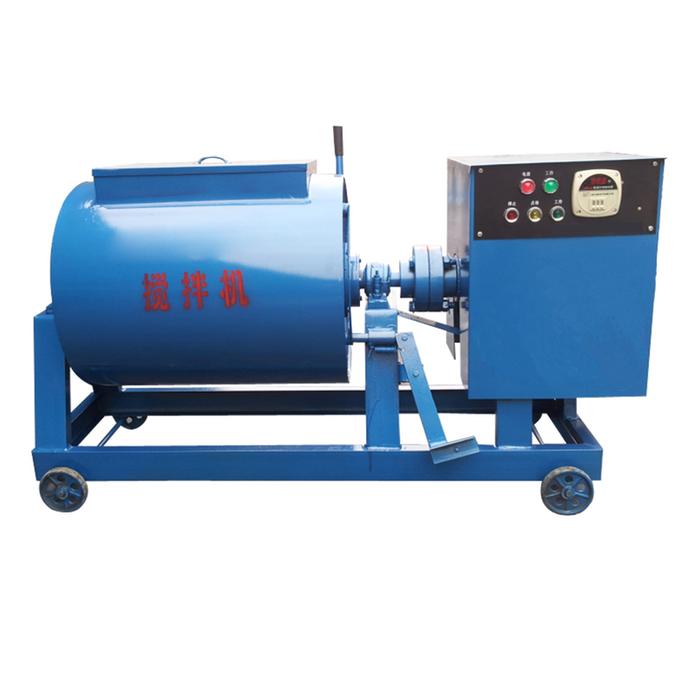

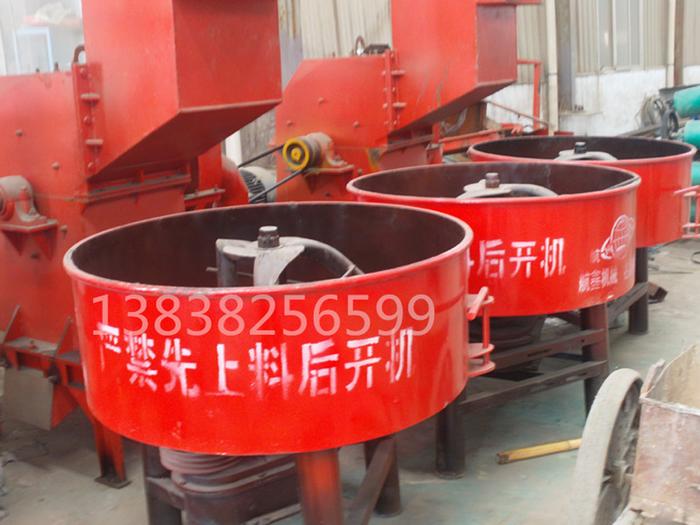

I have been reading this thread about "Mechanical Mixer for Cob" and I have done some research. I live in China and I found these 2 types of mixers. See pictures below. Can anyone tell me which one would probably work better for mixing cob?

[Thumbnail for motarmixer.jpg]
[Thumbnail for 12106947_984843798205529_1600615356674686722_n.jpg]
[Thumbnail for motarmixer2.jpg]

Dustin Mattison
Posts: 31
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

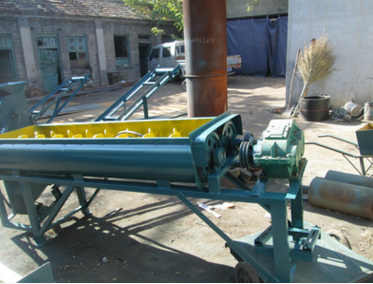

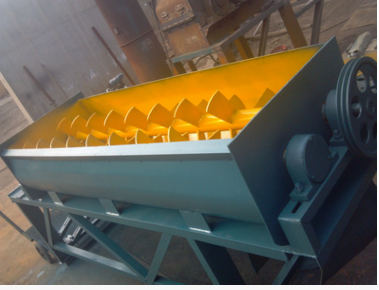

As a continuation of my previous post above, here are two more pictures. Would this type work the best for cob mixing?

[Thumbnail for mortarmixer444.png]
[Thumbnail for mortarmixer44.png]

Dustin Mattison
Posts: 31
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Dear all, what do you think of this type of auger machine? Would it work if there is only 1 auger, or do I need 2 side by side?








Avalon Laux
Posts: 25
Location: Traveling (No Permanent Address yet)
hugelkultur rabbit tiny house
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I seen a YouTube Video on a Mixer that seems to mix the Cob pretty well, and didn't seem to hurt the straw that was placed in it.


Jennifer Meyer
Posts: 24
Location: North Carolina
1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
The only problem I have with cob in a cement mixer is that the straw tends to get caught in the paddles of the mixer. I save my mixer for making lime plaster, where the length of the straw is much shorter.

For mixing cob, I form a shallow depression in the earth (our soil has a high clay content), then add straw and water. I drive the bobcat into the resulting puddle and spin around in circles until the cob is of desired consistency. I think this method would work well with any machine that is not prone to getting stuck--an ATV or pickup truck with 4-wheel-drive should be able to do the same work. It reduces the mixing time to almost nothing, so I can spend more time applying.

Scott Billups
Posts: 5
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

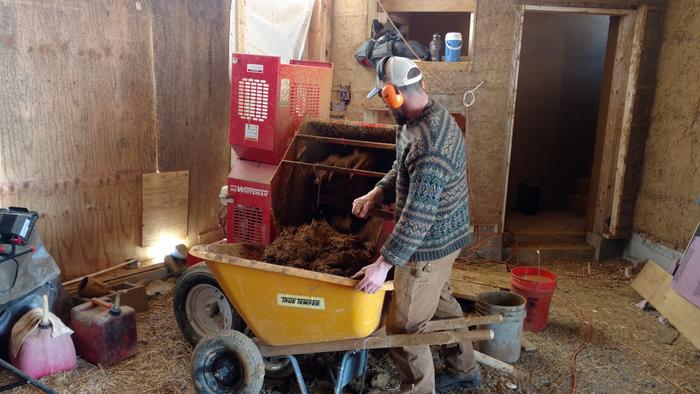

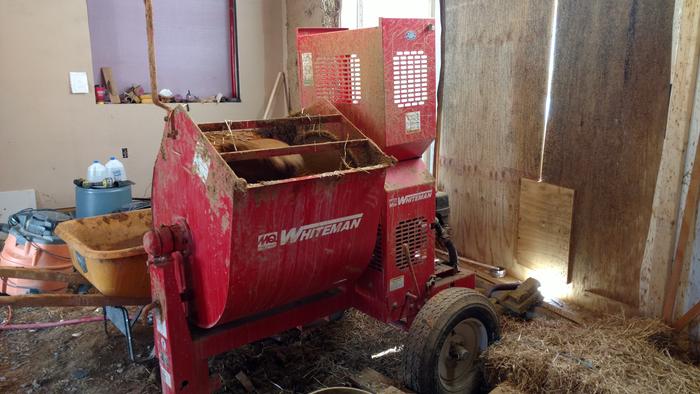

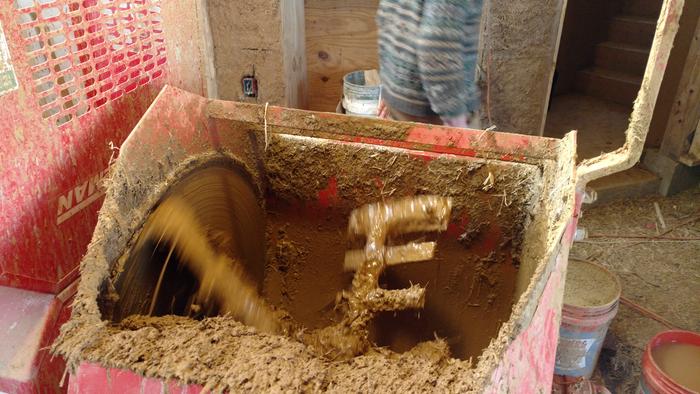

I've used a Masonry Mixer once, and it worked well. It's still a lot of "lifting heavy buckets", but it beats the tarp method for speed/bulk.

[Thumbnail for IMG_20170305_105959461.jpg]
[Thumbnail for IMG_20170305_110235321.jpg]
[Thumbnail for IMG_20170305_110119956.jpg]

Daniel Schmidt
Posts: 101
Location: Jacksonville, FL
5
solar tiny house woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I've seen numerous home made foundry sand mullers, and I can see where the straw would get hung up on certain designs. One design I remember hearing about involved a cement mixer and cannon balls. Having some really large and heavy iron balls to force the material around and no plow to get straw tangled up on. I'm not certain if this would do a complete mix, but if you are limited on manpower then this could be an option to get the materials together and perhaps just need a bit of fine tuning to get it right. I'm not really sure how bad a plow, paddle, or other device would work or if any designs would be less likely to catch straw and bind up.

The good thing with this is you don't need perfect shape or diameter. You could probably find someone willing to attempt to cast them for you for a reasonable price, and it wouldn't matter how spherical they come out. Something roughly round should tumble and push material around, and do so substantially if it is heavy enough. It might be worth checking out.
