Help with grid tie system design


Posts: 11
Location: New Brunswick, Canada
1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
A good friend of mine is taking advantage of local government incentives to install a grid tie system to his house. He will be on net metering so doesn't require batteries or a charger right now. If I design and install his system for him he will give me some panels which I can use to power my off grid home. I don't have access to the government incentives because I'm not grid tied, so this will be my chance to get into more solar than my 2 40w RV panels and hopefully stop running the generator all the time.

He has 20 480w panels he got a good deal on. I need to choose an inverter and deside how to wire the system. These are the panels:
Filename: Datasheet_Q_Cells_Q.PEAK-DUO-XL-G10.3-475-495-2021-08-Rev02-NA__TheCabinDepot.pdf
Description: Panel info
File size: 587 Kbytes

master steward
Posts: 7602
Location: southern Illinois, USA
2801
goat cat dog chicken composting toilet food preservation pig solar wood heat homestead composting
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I would begin by talking with whoever will be buying the electricity.  They may have complete plans available.  Also, you may want to check with the local officials providing the grant.  The requirements may extend well beyond what is needed for the grid tie in.

R Webber
Posts: 11
Location: New Brunswick, Canada
1
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
He has submitted a partial plan to the power company. They allow you to design and install your own system as long as they approve the design. They want a wiring diagram and the specs for the panels and inverter.

If I wire the panels in 2 banks of 10 series for 480 volts I think I can use this inverter:

What do you think?
Filename: Backed_by.pdf
Description: Inverter
File size: 723 Kbytes

pollinator
Posts: 955
Location: Central Ontario
184
kids dog books chicken earthworks cooking solar wood heat woodworking homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

R Webber wrote:He has submitted a partial plan to the power company. They allow you to design and install your own system as long as they approve the design. They want a wiring diagram and the specs for the panels and inverter.

If I wire the panels in 2 banks of 10 series for 480 volts I think I can use this inverter:

What do you think?


That is a battery based off grid inverter not meant for net metering. The solar power store which distributes that inverter can help you design a system. I do my own designs but I do buy from them sometimes.

John F Dean
master steward
Posts: 7602
Location: southern Illinois, USA
2801
goat cat dog chicken composting toilet food preservation pig solar wood heat homestead composting
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
You may want to contact MWANDS … Missouri Wind And Solar.  I find them to be very helpful, even if it doesn’t involve a sale.

David Baillie
pollinator
Posts: 955
Location: Central Ontario
184
kids dog books chicken earthworks cooking solar wood heat woodworking homestead
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

R Webber wrote:He has submitted a partial plan to the power company. They allow you to design and install your own system as long as they approve the design. They want a wiring diagram and the specs for the panels and inverter.

If I wire the panels in 2 banks of 10 series for 480 volts I think I can use this inverter:

What do you think?


Using their available equipment you would probably choose the solar edge for straight net metering or the Sol Ark for a net metering with batteries.

pollinator
Posts: 131
Location: Northern Wisconsin Zone 3B
48
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Don't most modern grid tie systems use micro inverters?


David Baillie
pollinator
Posts: 955
Location: Central Ontario
184
kids dog books chicken earthworks cooking solar wood heat woodworking homestead
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

J Hillman wrote:Don't most modern grid tie systems use micro inverters?


Some use microinverters, some use maximizers at each panel, some use high voltage strings. It usually depends if it's ground mounted or roof mounted and local regulations.

pollinator
Posts: 3828
Location: Massachusetts, Zone:6/7 AHS:4 GDD:3000 Rainfall:48in even Soil:SandyLoam pH6 Flat
557
2
forest garden solar
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
The data sheet for the inverters that it only output 6000W and the name of the inverter is 6000XP, but the solar panel array is 9600W (20*480W).
The inverter MPPT operates at 120VDC to 385VDC so I would put 250VDC (5panels each at 50V) on each MPPT string.
Do you plan on getting two of those 6000W inverters for the ~10kW solar array


Seeing as how you like this brand I recommend getting this 10,000W model that they offer.
https://luxpowertek.com/wp-content/uploads/2023/12/LXP-LB-US-8-10K-datasheet.pdf

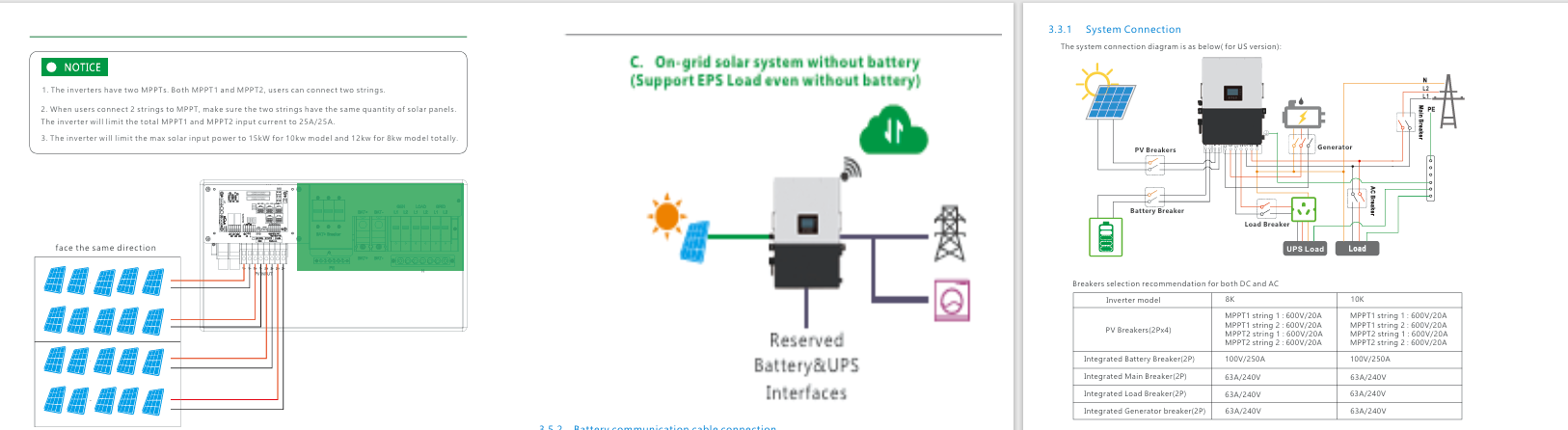

Then you can do the 4strings each with 5panels
https://luxpowertek.com/wp-content/uploads/2023/08/LXP-LB-US-8-10k-Usermanual-8.15.pdf

[Thumbnail for electric.png]
