Look at this rmh

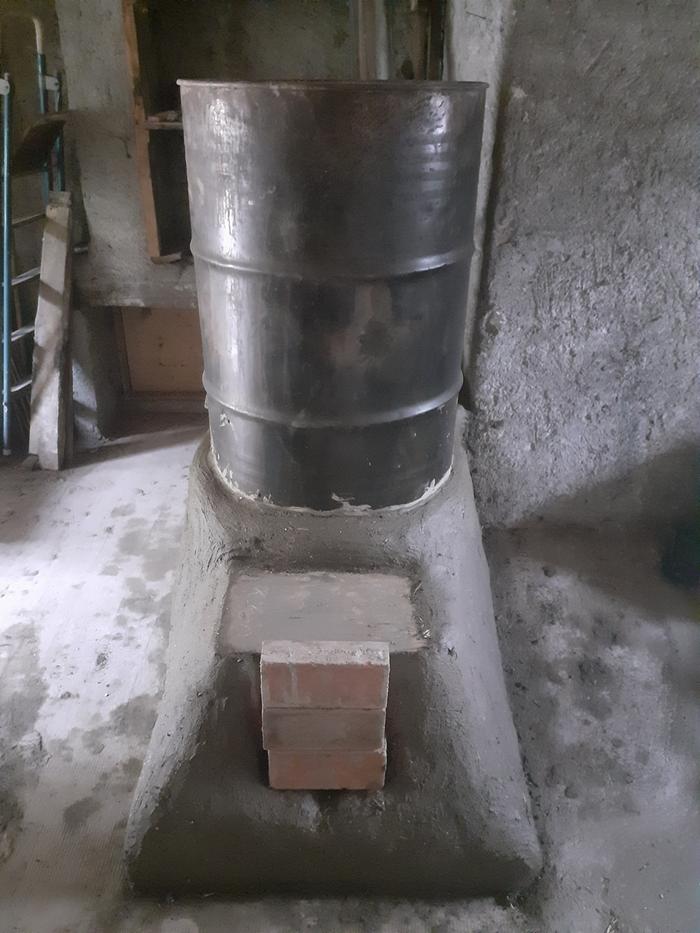

here is my new rocket mass heating

core: 130mm batch box in refractory tiles insulated with cellular concrete and expanded clay

thermal battery: half barrel split with cob

for now it's still smoky, but it's still soaked
of water

Do you find any errors in the photos? help me please

https://drive.google.com/folderview?id=12YY8_NI_vQbA4DZElZedj9IRtCDZsi2L

Very nice build Cedric!
I can't see your photos very well, but what I can see looks good.
A piece of aluminum foil across the top and face of your door opening will help with the smoking back into the room.
Are you planning on creating a door for it?
As the water dries out your draft will improve as your mass heats up.

thomas rubino wrote:Very nice build Cedric!
I can't see your photos very well, but what I can see looks good.
A piece of aluminum foil across the top and face of your door opening will help with the smoking back into the room.
Are you planning on creating a door for it?
As the water dries out your draft will improve as your mass heats up.

hello
right now I'm using 3 bricks as a temporary door, do you recommend replacing it with aluminum foil?
I would like to build a very simple door, without glass, I have some questions:
What is the percentage of primary air compared to CSA? where in the door?

does the door need to be insulated?

the ceiling of the combustion chamber is a cast iron plate, as can I make the door frame

I'm almost ready to wear my first BBR door

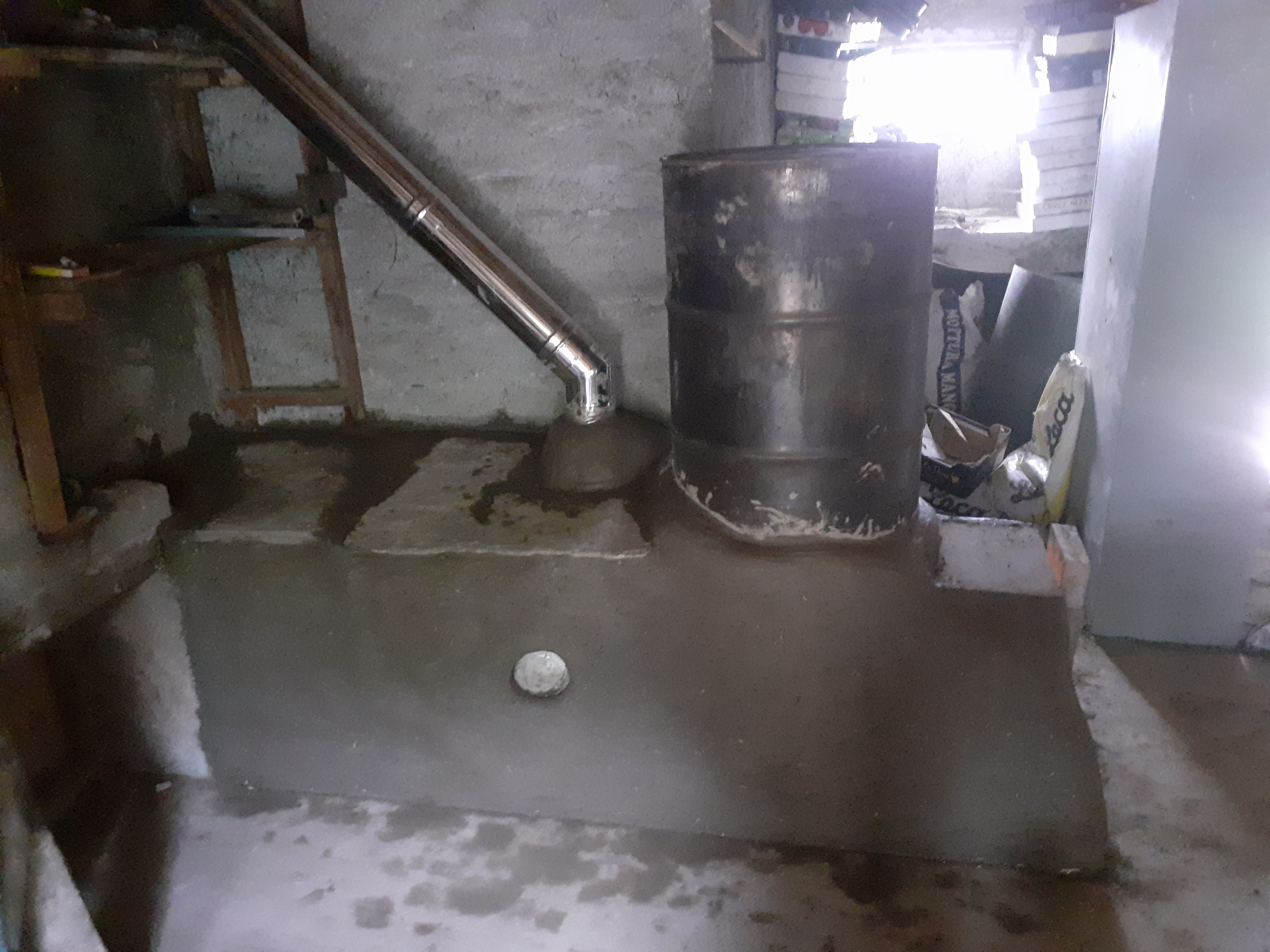

I improved the heater, here is the result!
if you want to see the photos of the construction:
https://drive.google.com/drive/folders/12YY8_NI_vQbA4DZElZedj9IRtCDZsi2L
Whats do you things?
