High heat rare earth magnets


master rocket scientist
Posts: 7005
Location: latitude 47 N.W. montana zone 6A
4048
cat pig rocket stoves
  • Likes 9
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

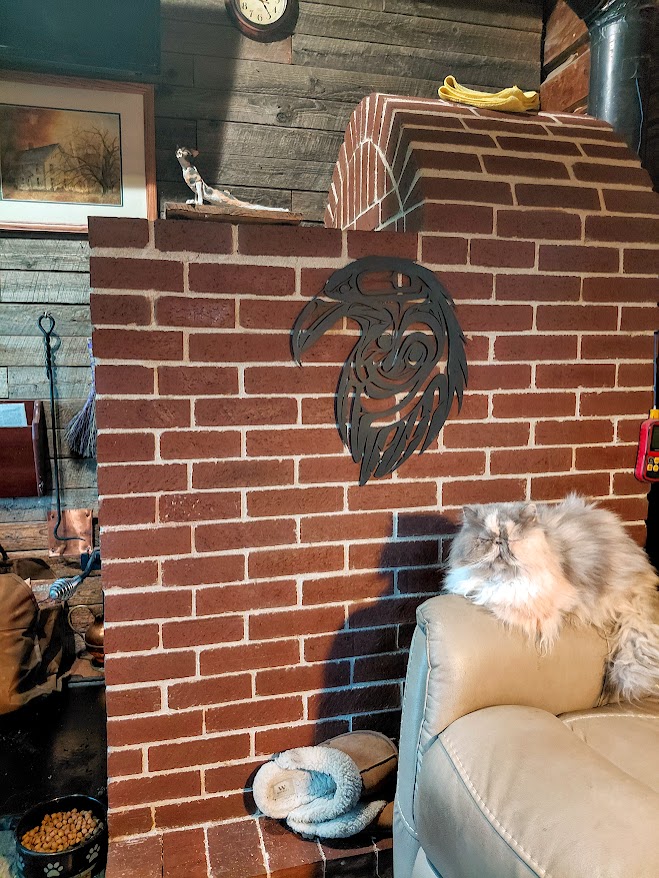

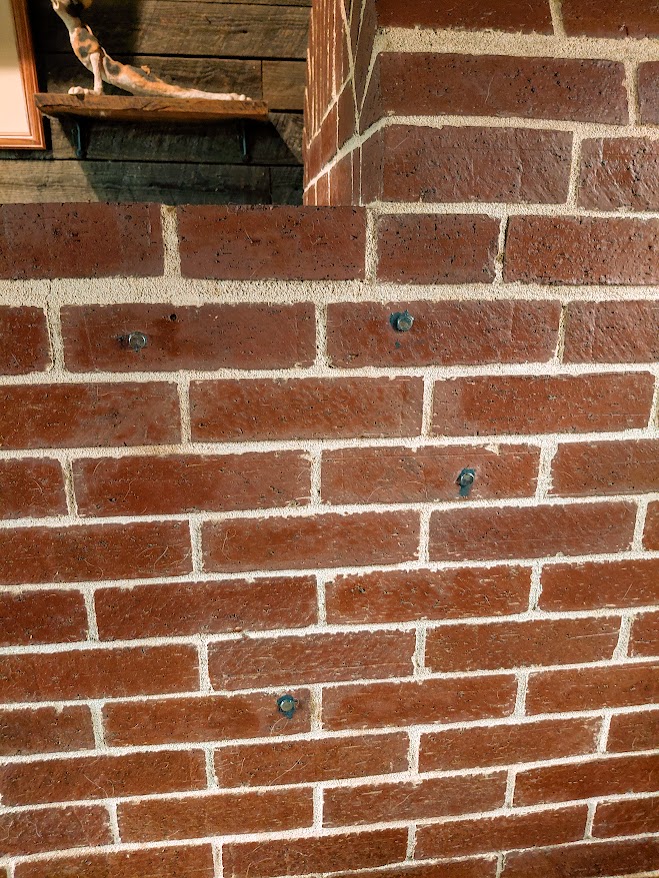

When I was attaching metal art to the brick bell of a mass heater, I chose to use rare-earth magnets epoxied to the bell, and my metal art attached to them.
On my double skin bell, this has worked perfectly.
I used the same method on Shorty, my single skin bell.
It seemed to work perfectly... until we had a cold morning, when I added an extra batch to Shorty.
Oh my, she really throws heat if you double up... unfortunately, standard rare-earth magnets do not hold as temperatures rise.
Permies rocket scientist Fox warned me about his attempts to use RE magnets, which failed as soon as the temperature rose.
And indeed he was spot on, as the second load in Shorty got to roaring, my metal raven art suddenly fell to the floor!
It was not damaged. But it refused to stay on the bell.
A search online and I found this https://www.kjmagnetics.com/products/high-temp-magnets?gad_campaignid=22284168230
Good to 428F or 220C. I doubt I could get the outer skin that hot on Shorty; our house is way too small.
Standard rare earth magnets are only good to 176F 80 °C

Cost is negligible, and they are holding perfectly!
If you want to add bling to your dragon, high-heat rare-earth magnets are the way to go!


[Thumbnail for 20251209_122236.jpg]
[Thumbnail for 20251209_164749.jpg]
[Thumbnail for 20251104_063028.jpg]

pollinator
Posts: 4243
Location: Tennessee 7b
353
  • Likes 8
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hmmm, now you got me wondering….

Could you rig up magnets to automatically close a bypass?

pioneer
Posts: 1044
Location: Inter Michigan-Superior Woodland Forest
198
7
transportation gear foraging trees food preservation bike building solar writing woodworking wood heat
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Thomas, did you consider the pros and cons of the magnets vs mortaring some sort of angle iron into the outer skin?
