$4 shock absorbing record player base from a couple two-by scraps and 4 discarded squash balls


steward
Posts: 11287
Location: South Central Kansas
3367
11
kids purity fungi foraging trees tiny house medical herbs building woodworking wood heat homestead
  • Likes 16
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
We've been spinning a lot of vinyl here lately. I have grown tired of requesting that my children walk lightly through the room to avoid causing the needle to skip. Indeed, I would rather encourage dancing.
There are a number of ways I could've gone about this: a wall mounted shelf, a sandbox โ€“ style shock absorbing platform (which is cool), or any number of store-bought, often expensive solutions.
What I went for instead was using a couple scraps of 2 x 4 and four discarded squash balls. In the next few days, I'd like to come back and describe the simple process and provide a few images. May this initial post be a reminder for me to do so.

master pollinator
Posts: 6083
Location: Canadian Prairies - Zone 3b
1869
  • Likes 11
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Brilliant!

High tech, low tech, recycling, repurposing, creativity, dancing, spinning vinyl ...

Analogue rules!

Beau M. Davidson
steward
Posts: 11287
Location: South Central Kansas
3367
11
kids purity fungi foraging trees tiny house medical herbs building woodworking wood heat homestead
  • Likes 11
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Okay, here it is!  After living with it for a couple weeks, I now fully endorse this method of stabilization.  No amount of youngsters dancing and tumbling has caused the needle to skip.

Some notes:
- This was just a prototype, but I may or may not ever get around to rebuilding it with anything nicer than 2x4 scrap from a decommissioned road-side futon frame find.
- The "double-yellow" dot squash balls are the best density of material for this purpose, and you can currently get them used from ebay for $1 per ball.  They mail them media mail (which I think is technically a no-no?  Is a ball "media"?) so maybe order more than 4 so they can fill a box.
- Used squash balls are better than new ones, because evidently squash balls come with some sort of gunko on them.  They would still work just as well, just a little more gunky.
- This was dry fit with pretty tight cross-lap joint, no fasteners.  It holds together firmly, and gravity helps as well in this scenario.
- The recessed holes were bored with a 1.5-inch spade bit on a cordless drill on a mortisser stabilizer tool thingy.  It probably has a real name.  The bit was a bit more aggressive than I would have liked, but it worked.
- The squash balls just barely squeeze into the holes and stay put perfectly.

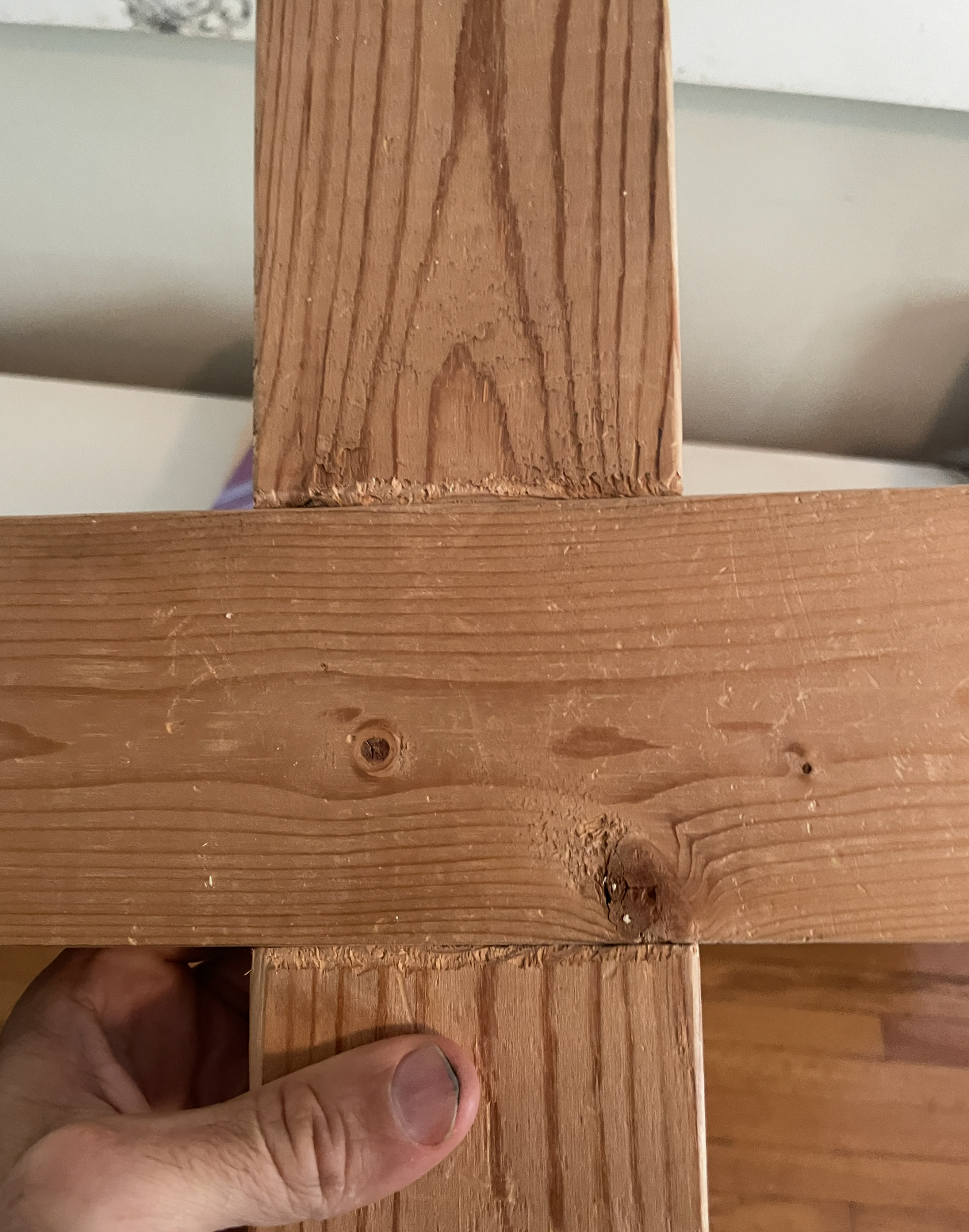

cross-lap join face close-up
cross-lap join face close-up

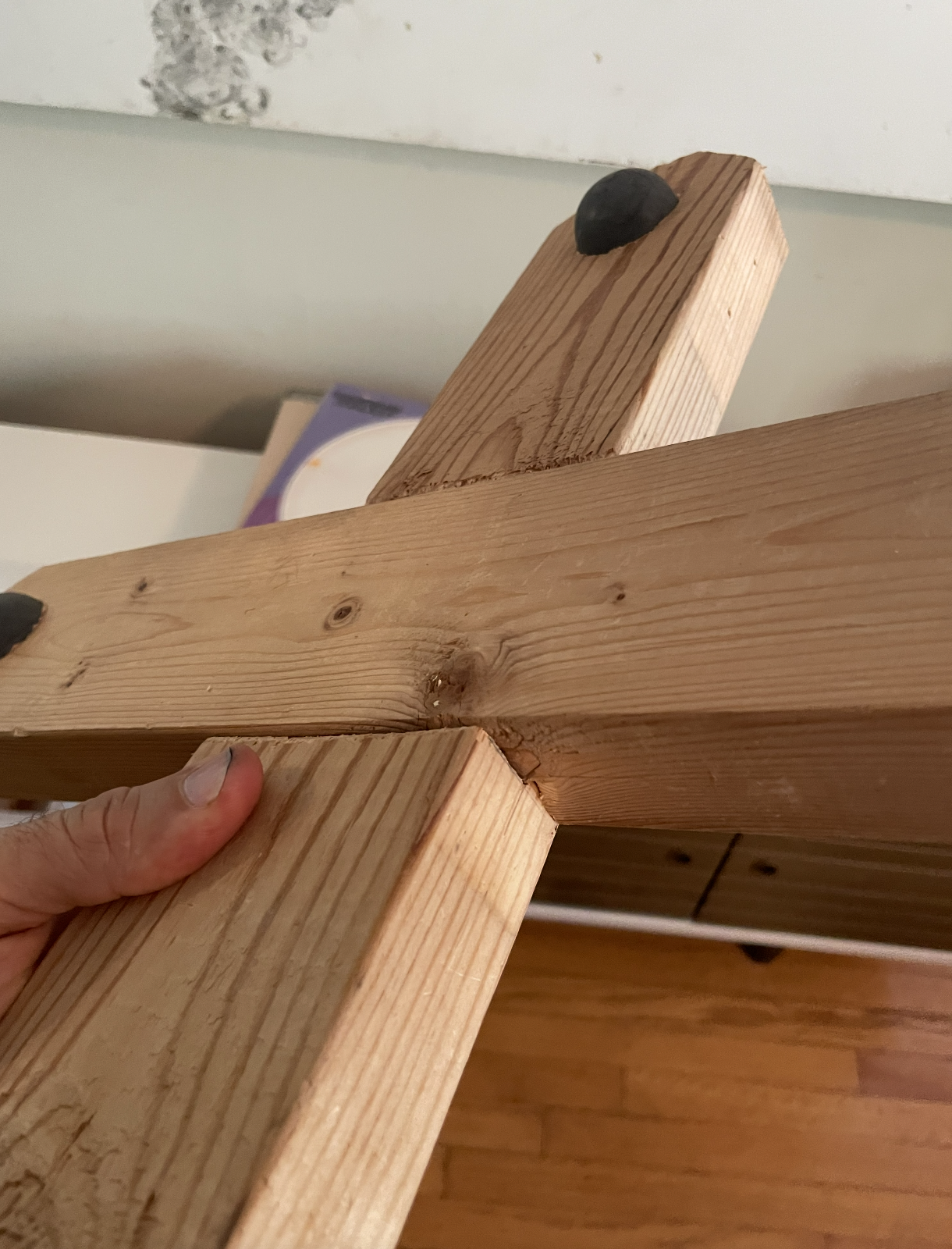

cross-lap joint angle close-up
cross-lap joint angle close-up

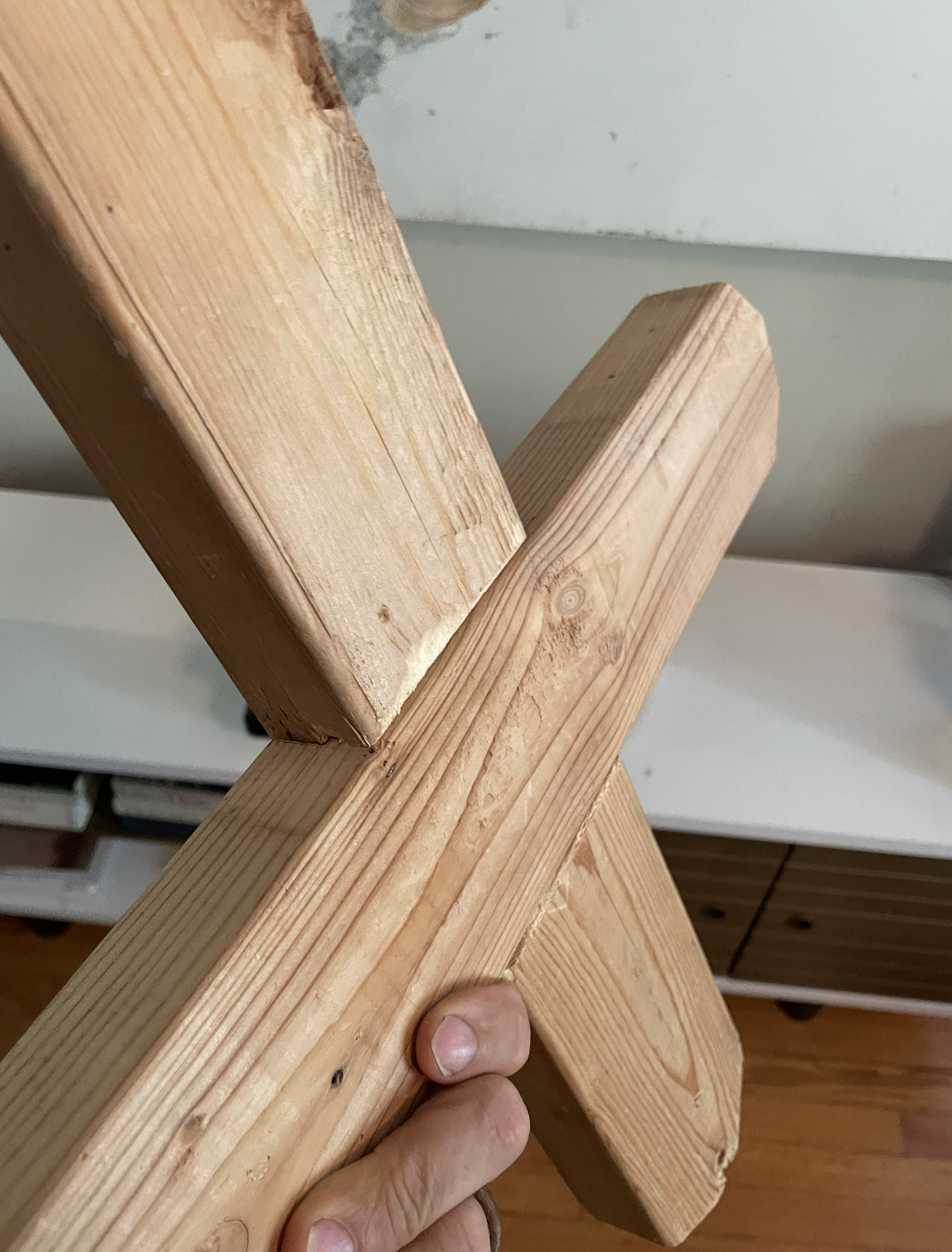

another cross-lap joint close-up
another cross-lap joint close-up

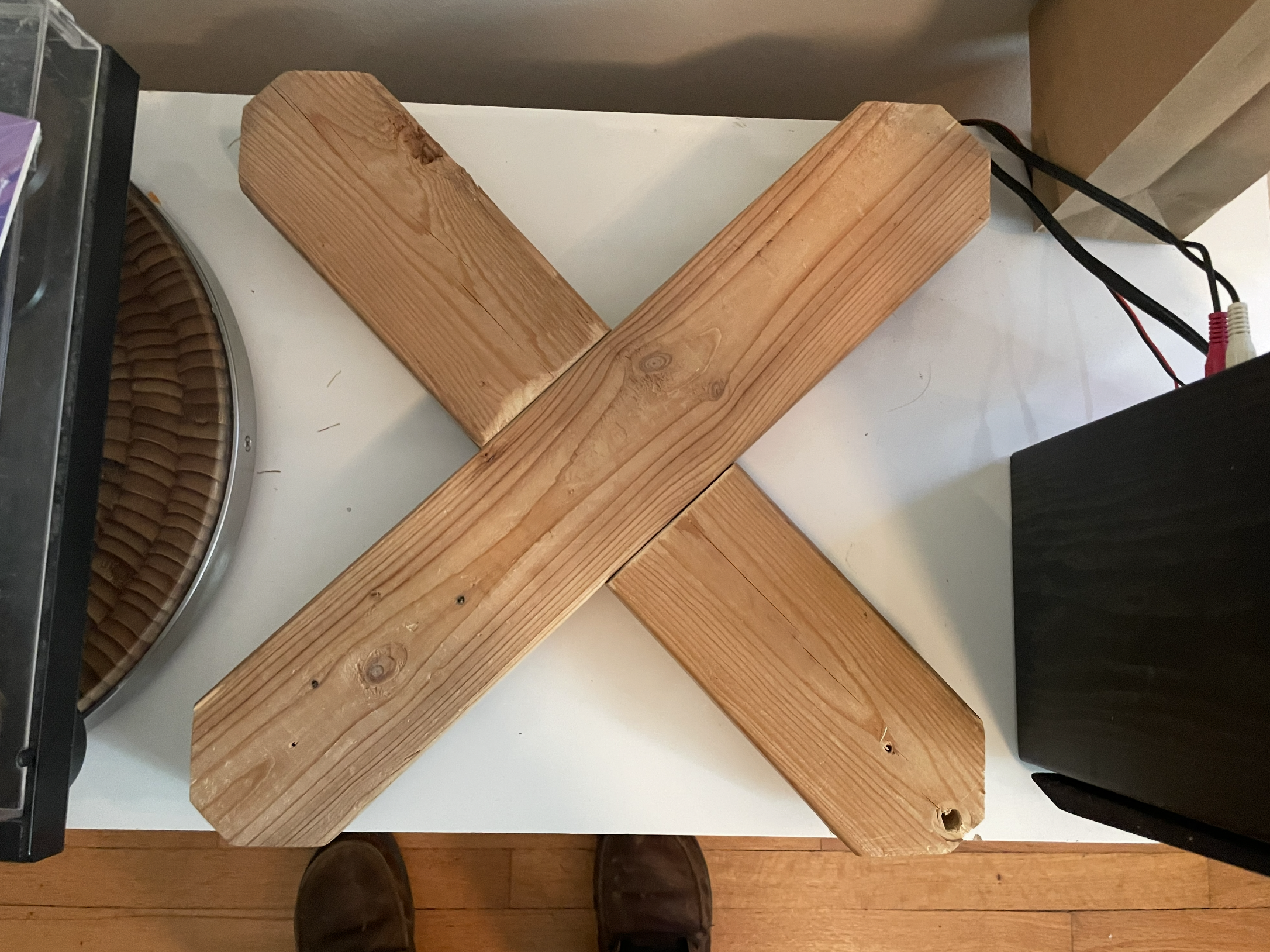

top down look at the record player stabilizer
top down look at the record player stabilizer

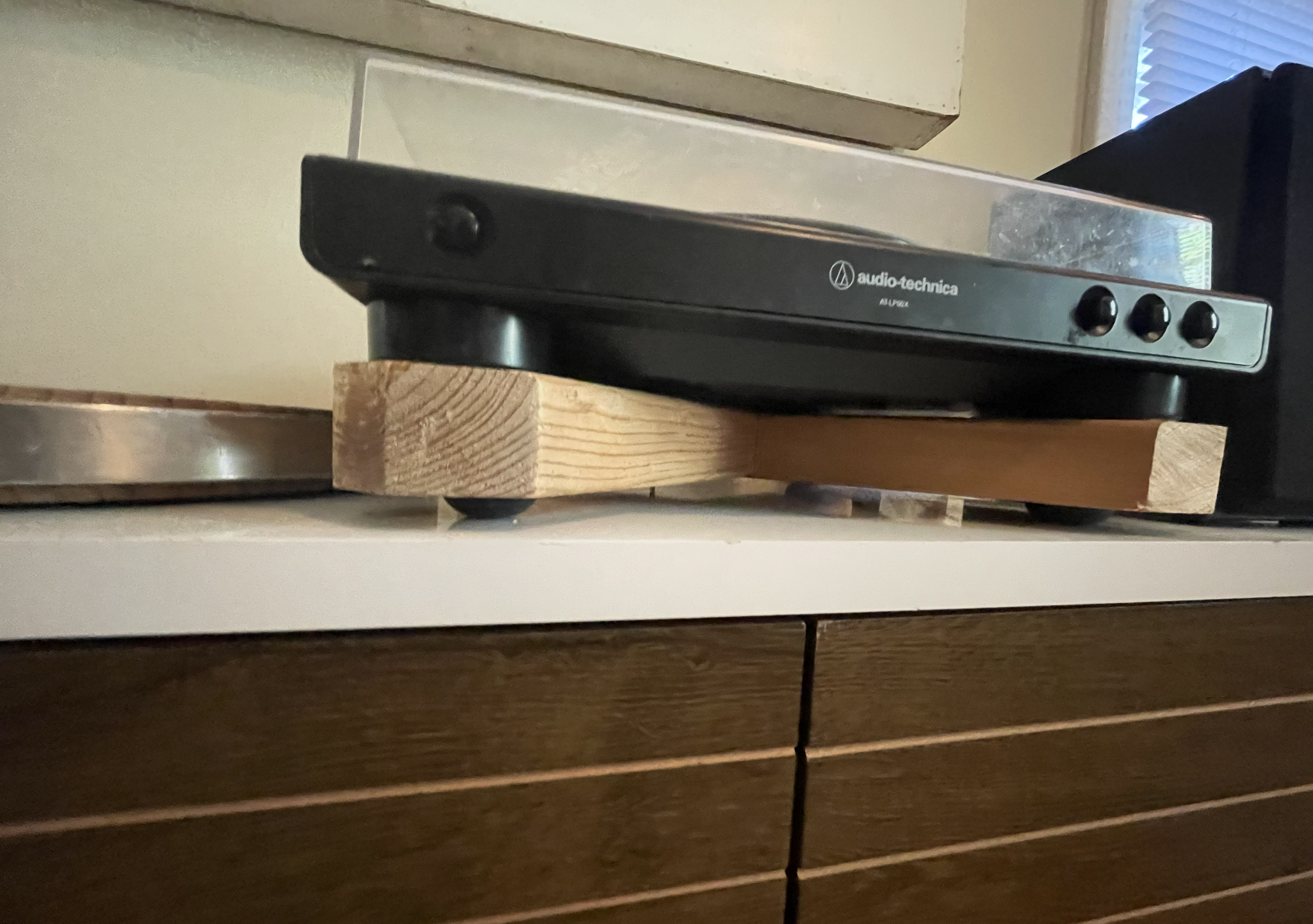

front profile of the record player stabilizer
front profile of the record player stabilizer

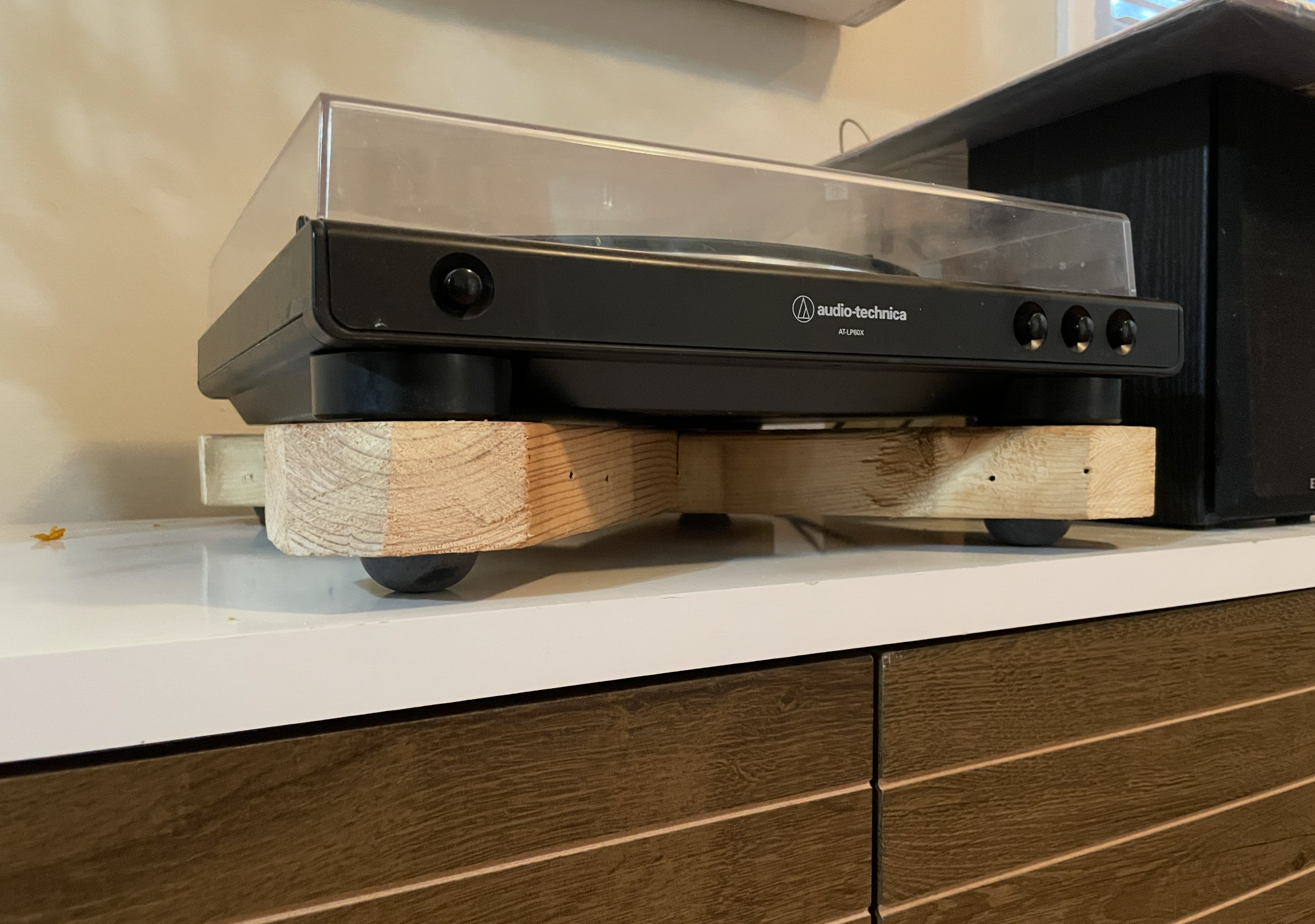

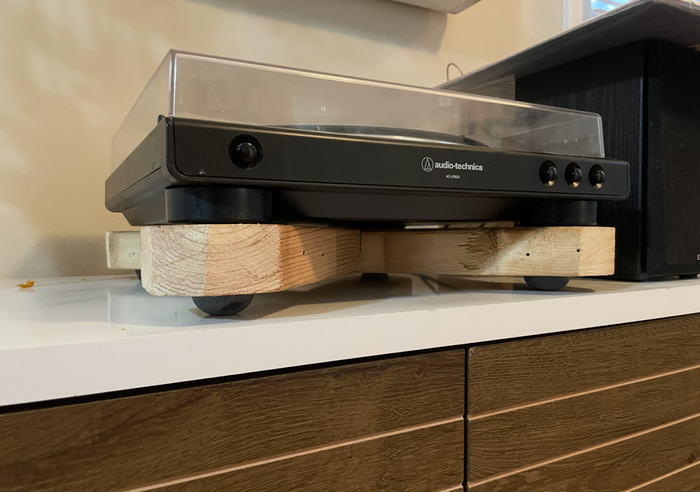

diy squash ball record player stabilizer platform
diy squash ball record player stabilizer platform

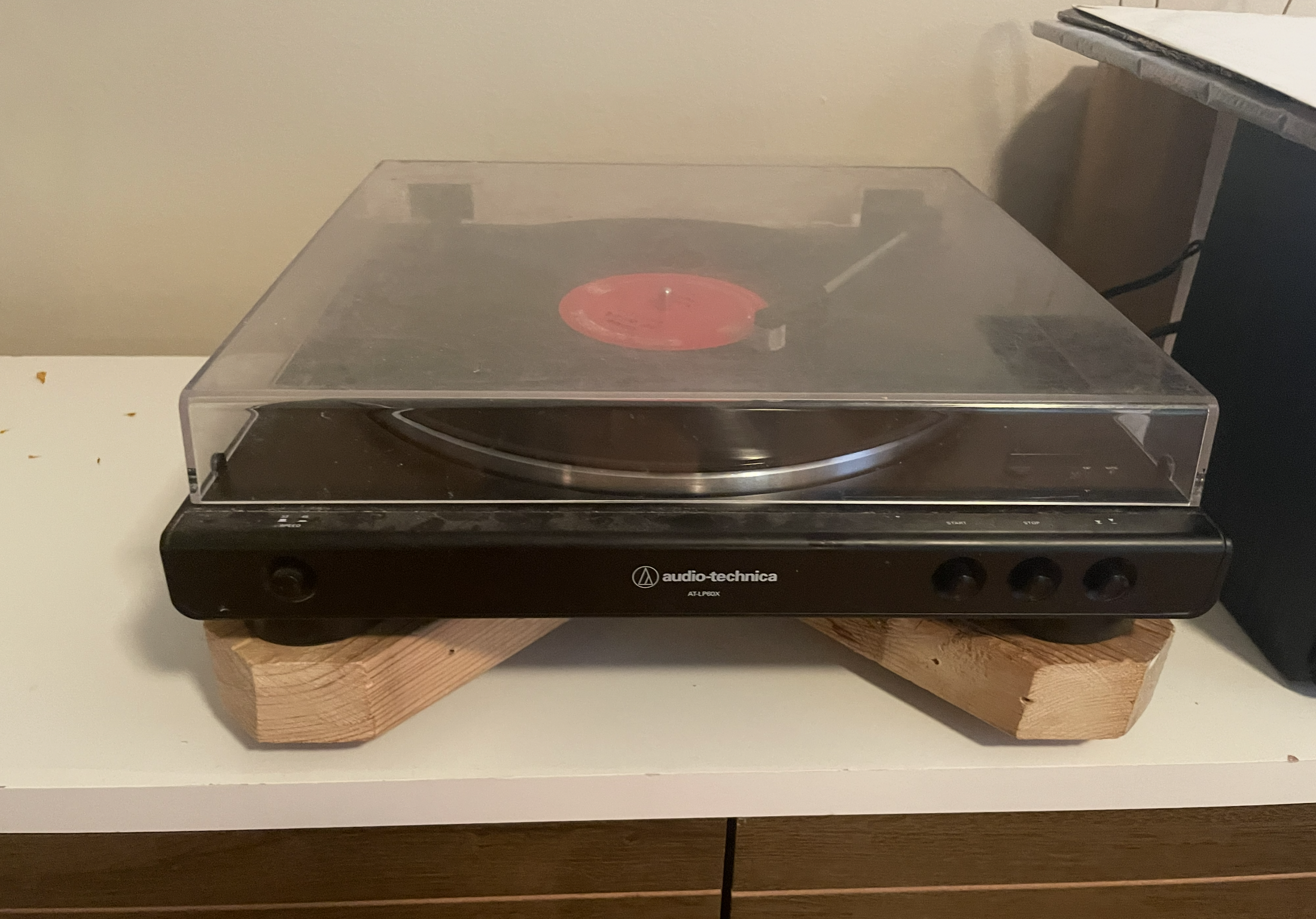

record player stabilizer platform
record player stabilizer platform

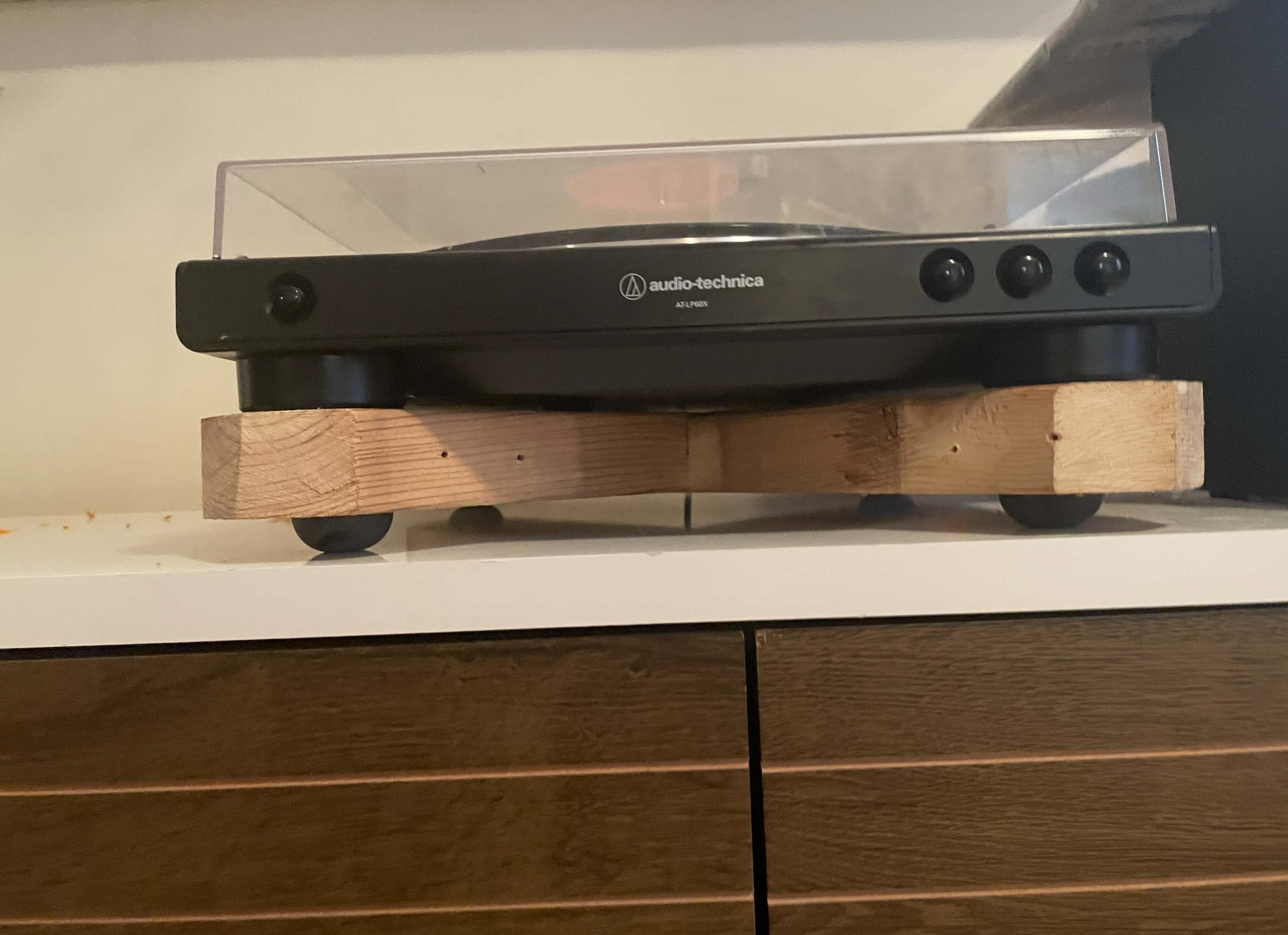

squash ball record player shock absorber
squash ball record player shock absorber

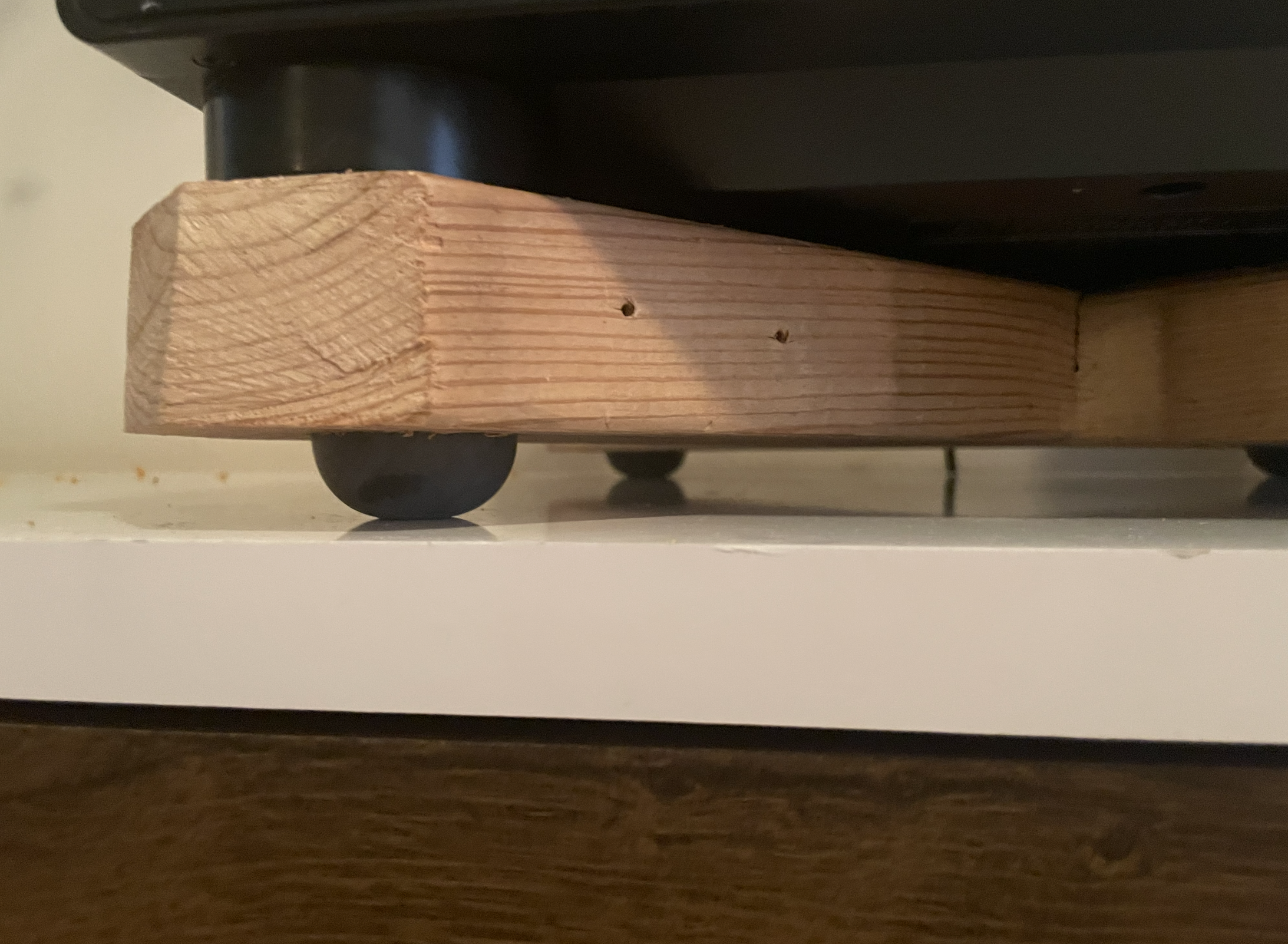

close up of squash ball foot
close up of squash ball foot

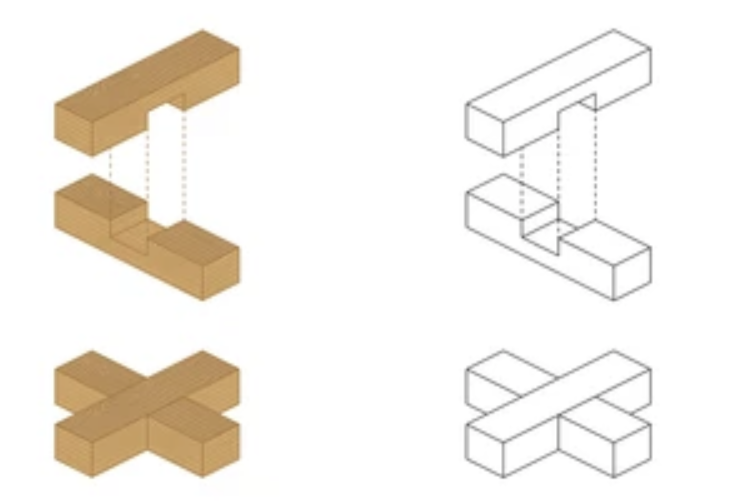

cross-lap joint diagram making an x out of 2 2x4s
cross-lap joint diagram making an x out of 2 2x4s

Posts: 10887
Location: a temperate, clay/loam spot on planet earth, the universe
4099
4
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
that's great to know!
Kids are grown and gone but a little more shock absorption wouldn't hurt for ours as there's always rollicking grandkids.

Got the same brand by the way ....it's a good one๐Ÿ˜Š

Do you suppose tennis balls would work as well or is it the density of the squash balls that make it work?

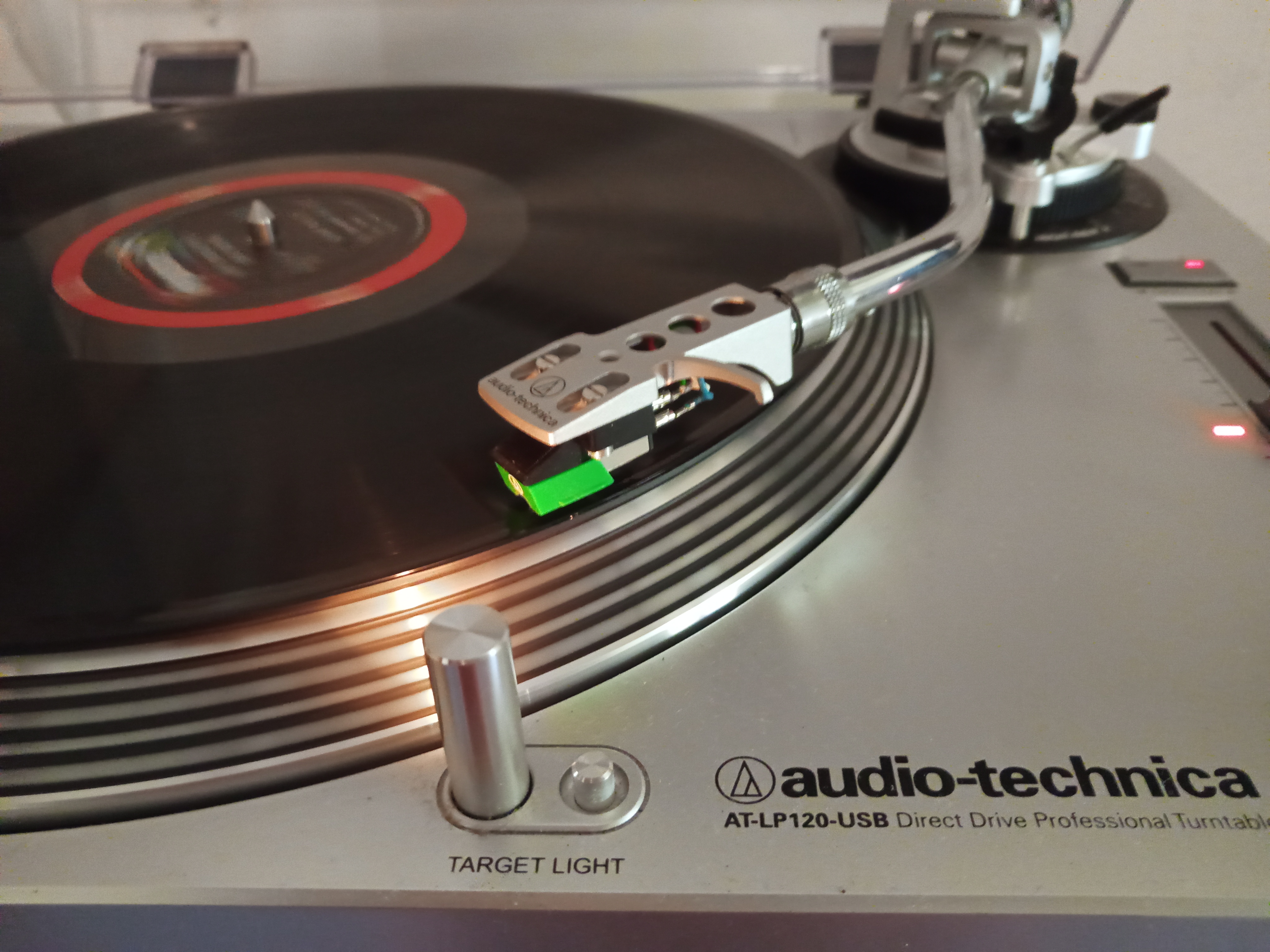

sonny rollins spinning
sonny rollins spinning

Beau M. Davidson
steward
Posts: 11287
Location: South Central Kansas
3367
11
kids purity fungi foraging trees tiny house medical herbs building woodworking wood heat homestead
  • Likes 8
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Judith Browning wrote:that's great to know!
Kids are grown and gone but a little more shock absorption wouldn't hurt for ours as there's always rollicking grandkids.

Got the same brand by the way ....it's a good one๐Ÿ˜Š

Do you suppose tennis balls would work as well or is it the density of the squash balls that make it work?




Grandkids sound fun.  :)


My understanding is that tennis balls will not work, but rather make everything bouncier and way more precarious.  The magic is exclusive to certain material densities and recovery rates, and 2-dot squash balls just happen to fit the bill.
