Here we go again, starting a new build! What a joy!
For the first time, I’m trying my hand at constructing a DSR3; the visible double-vortex design really fascinates me.
You can find the questions I asked during the design phase, as well as the SketchUp file for the project, right here



I’m hoping the refractory material I ordered arrives next week, so I can continue with this wonderful adventure.

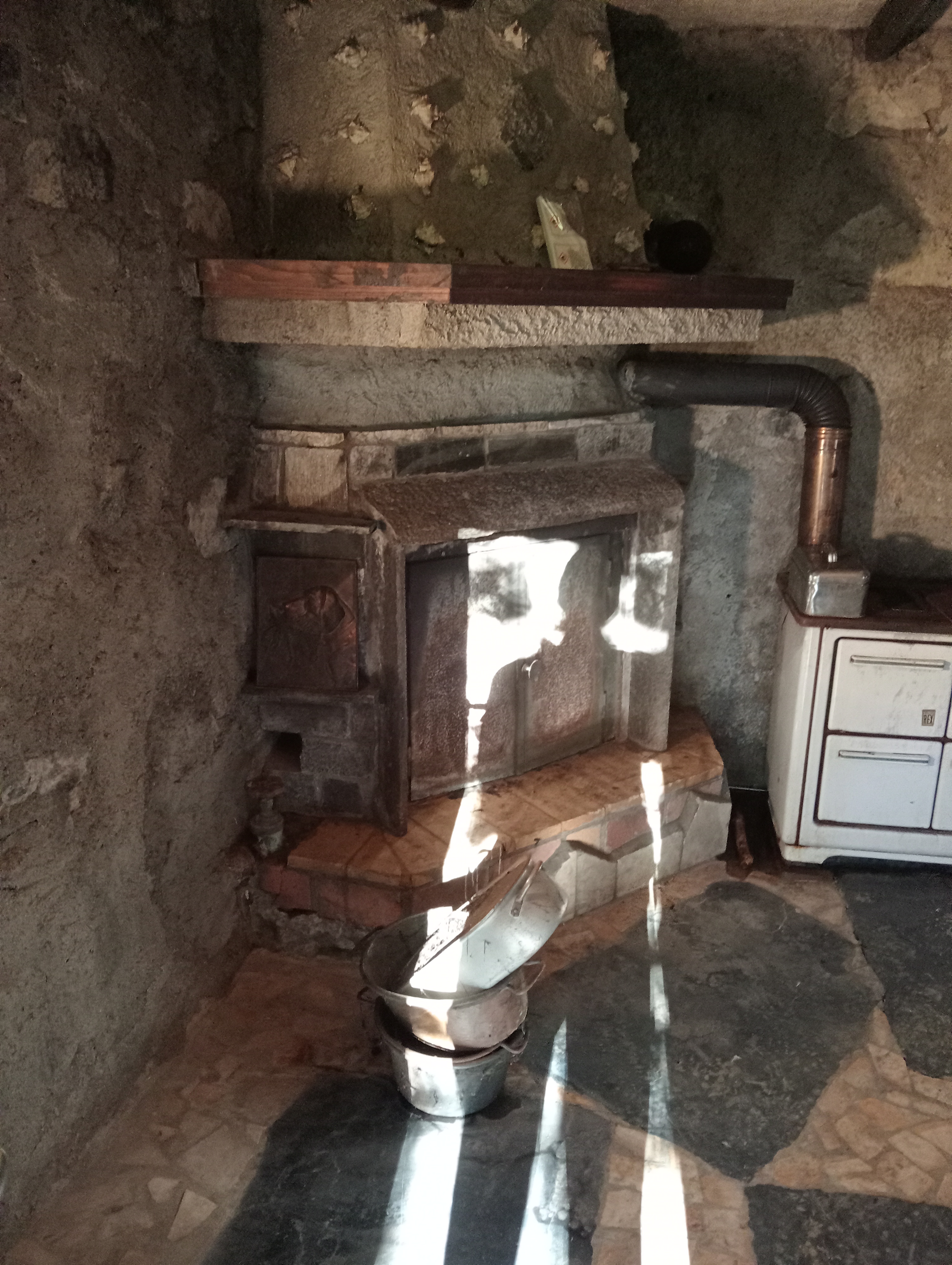

First, the old fireplace was demolished—the concrete from back in the day was incredibly tough!
First, the old fireplace was demolished—the concrete from back in the day was incredibly tough!

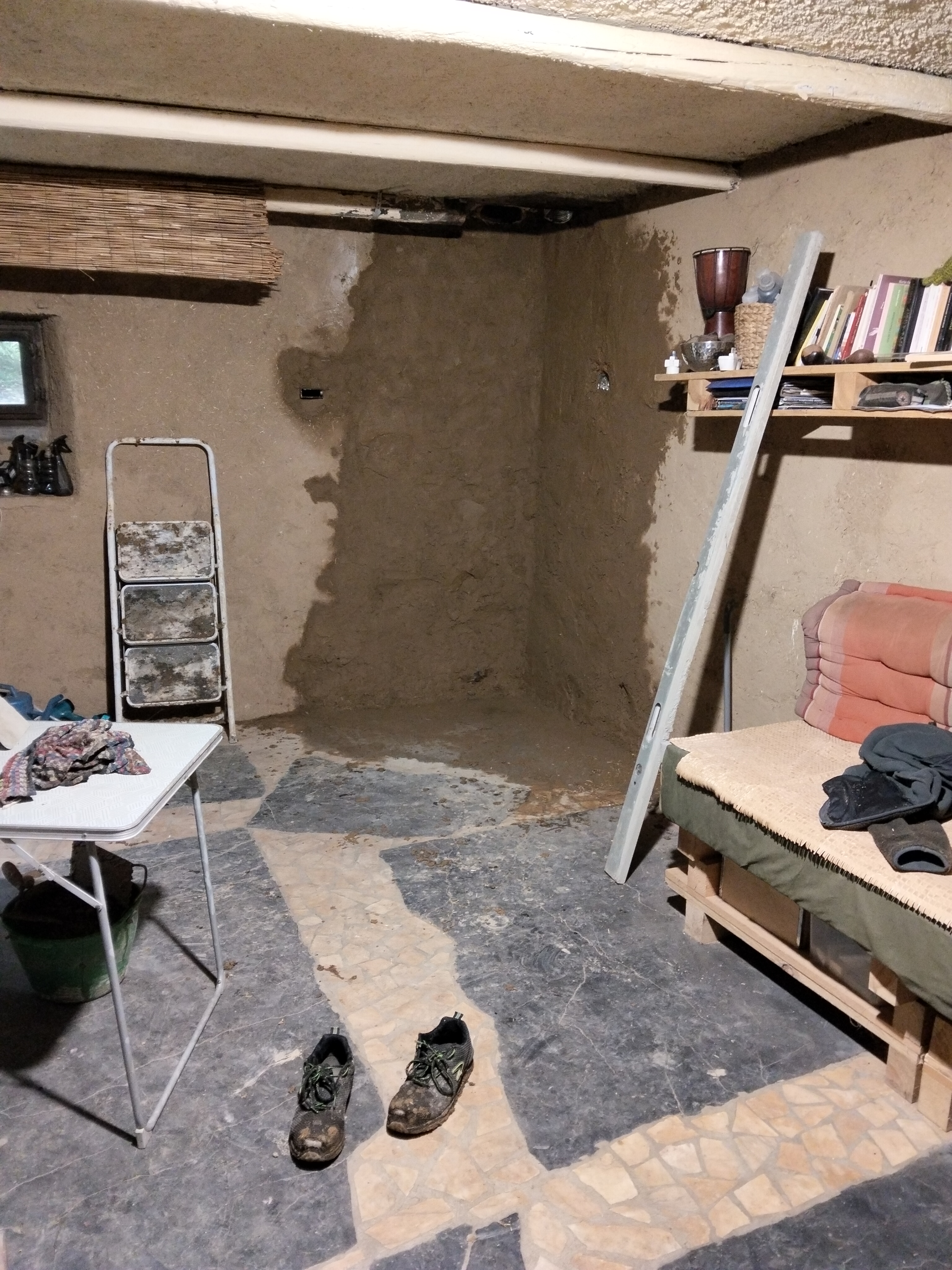

After that, the raw-earth wall was plastered.
After that, the raw-earth wall was plastered.

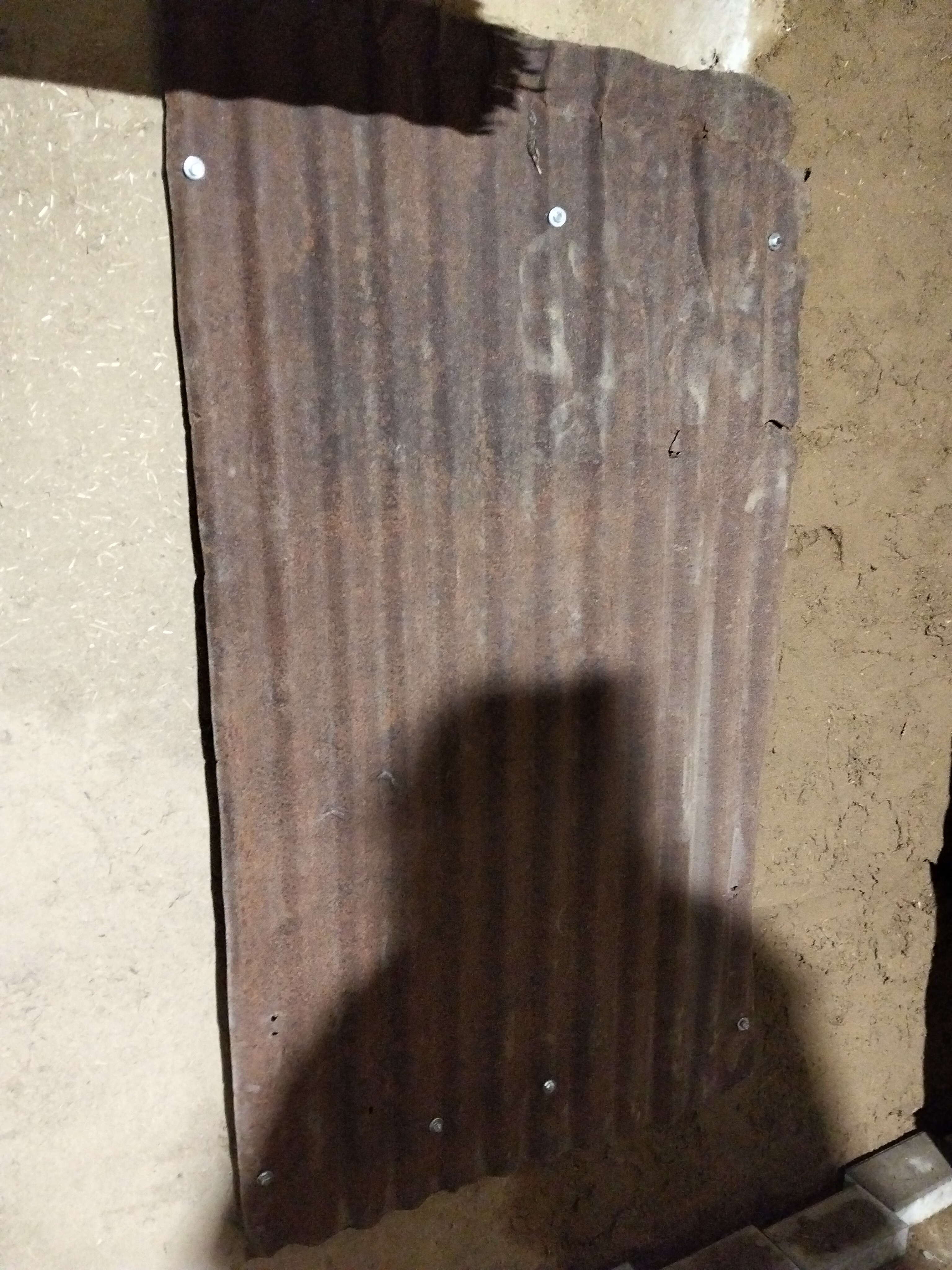

A heat shield was installed on the back wall to make the most of the heat on that side as well—a great way to put some recycled materials to use.
A heat shield was installed on the back wall to make the most of the heat on that side as well—a great way to put some recycled materials to use.

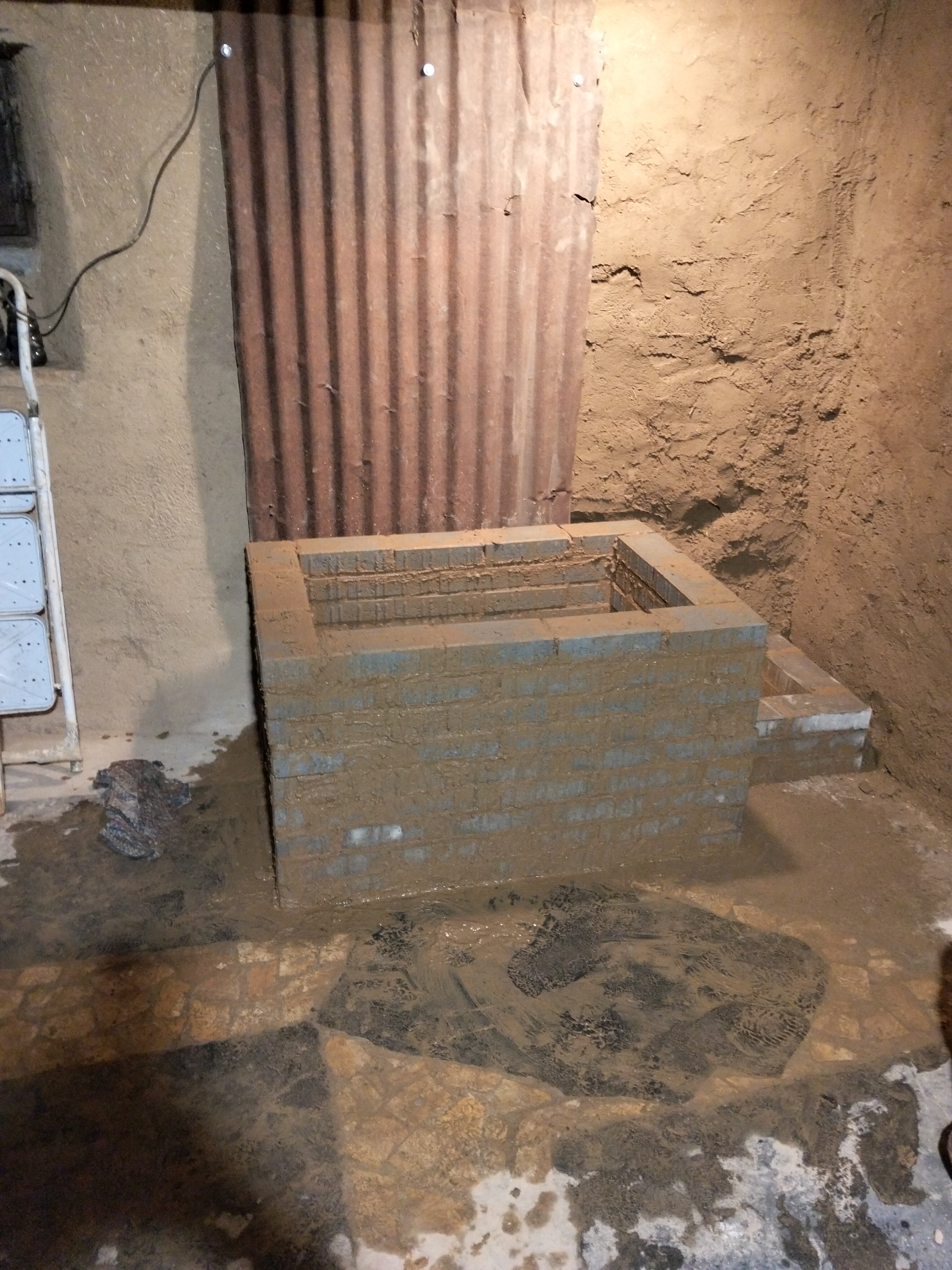

The bell is built primarily using cement clinker and raw earth.
The bell is built primarily using cement clinker and raw earth.

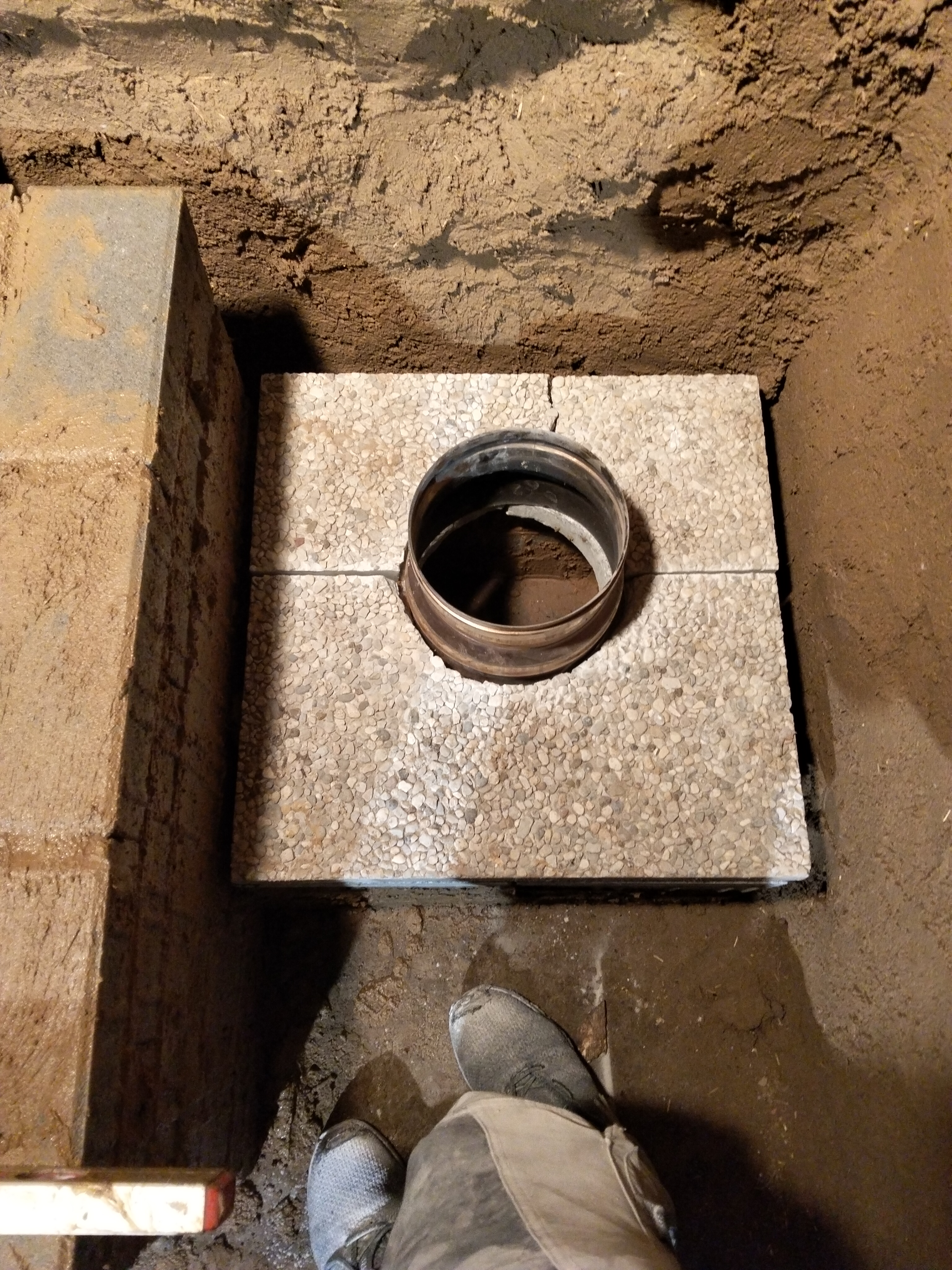

The gas outlet was constructed using old cement tiles and a 200-to-180mm reducer.
The gas outlet was constructed using old cement tiles and a 200-to-180mm reducer.

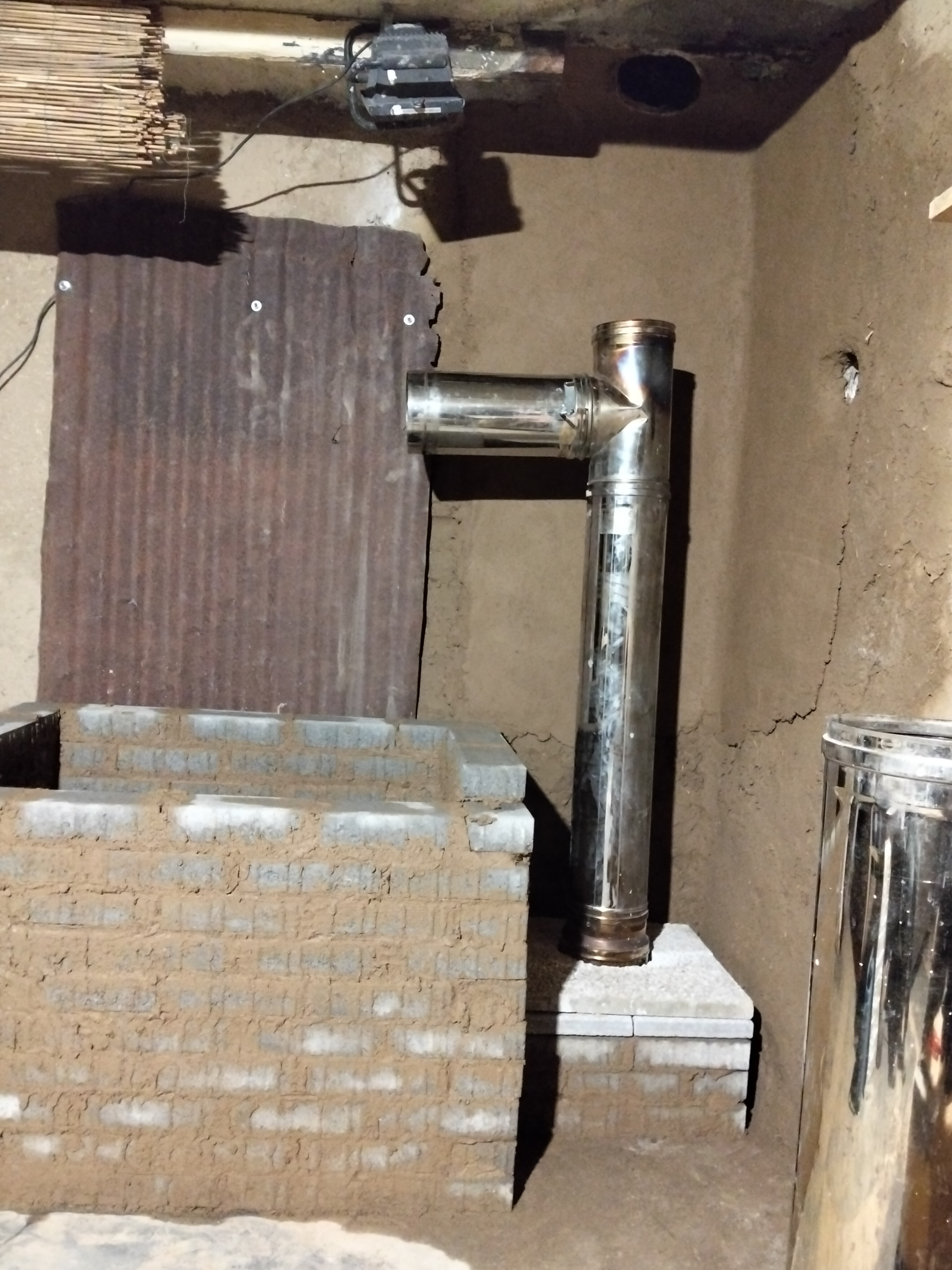

Working on the bypass—the build is progressing very quickly!
Working on the bypass—the build is progressing very quickly!

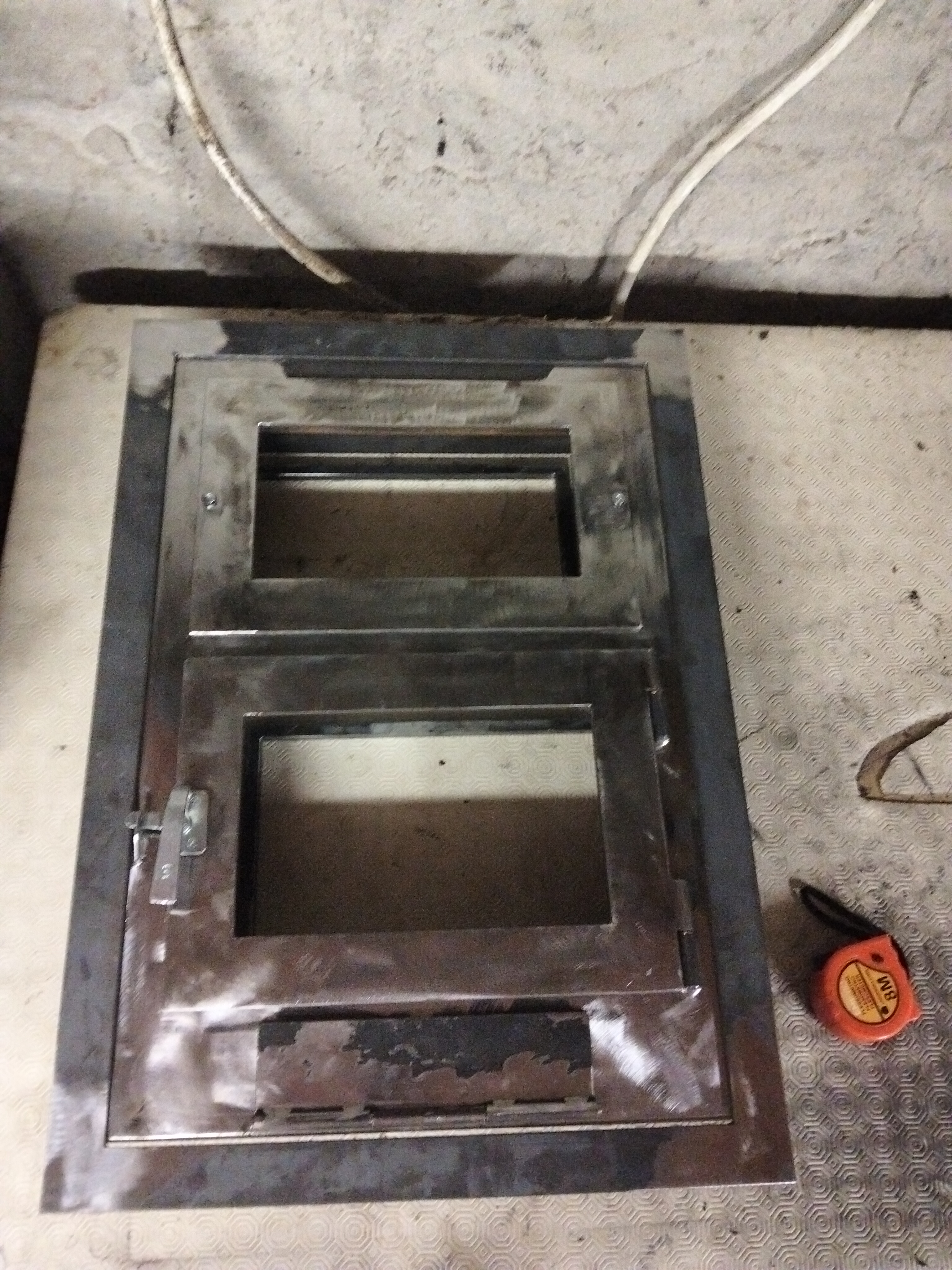

I spent an entire day crafting the double door; now, I’ll be taking it to a company that specializes in high-temperature powder coating.
I spent an entire day crafting the double door; now, I’ll be taking it to a company that specializes in high-temperature powder coating.

Cedric
