Tamera and their Water Retention Landscape

Posts: 28

posted 10 years ago

Number of slices to send:

Optional 'thank-you' note:

Send

Michael Cox wrote:Thanks for sharing this. When I visited this area of Portugal last year I though at the time that it was crying out for help. Parched bare earth, monocrops of cork oaks or olives and overgrazed land between.
Little evidence, at least where we were, of any kind of permaculture thinking.

Michael,
There are a small number of properties with some kind of permaculture thinking: 1) Tamera, in the village Relíquias near Odemira, Vila Nova de Mil Fontes;
2) HERDADE DO FREIXO DO MEIO is a 440 hectars property in the village Foros de vale de Figueira, Montemor o Novo, in the district of Evora. See https://www.facebook.com/freixodomeio; There are many small projects in the big property. See https://www.facebook.com/diasnas.arvores.7
Kind regards.
North Portugal
Benjamim Fontes

benjamim fontes

Posts: 28

posted 10 years ago

Number of slices to send:

Optional 'thank-you' note:

Send

Tyler Ludens wrote:

Devon Olsen wrote:^looks like you got a nice guide for waht to do with your area

All it takes is a few tens of thousands of dollars!

The area of the lake one is aproximately 4 hectars. The prise, i guess, was 140 thousands euros. But now Tamera does not need Seep Holzer to build lakes (water retention spaces). They have a team from Tamera people that builds water retention spaces for the neighbours.
It must be less expansive for them. They have to pay only the machinery 100 euros for one hour for two machines.
I visited a dam builded by Tamera's team in neighbours property and it was very well designed and very clean, wonderfull in all regards. They builded in the neighbours property a new dam and I visited the earthworks last august. Now it must be full with water. But I have not seen it.
kind regards.
Benjamim Fontes

Burra Maluca

out to pasture

Posts: 12494

Location: Portugal

3372

I like...

posted 10 years ago

1
Number of slices to send:

Optional 'thank-you' note:

Send

I just found this, made by John D Liu, who I met while I was there in 2012. He was kinda awesome...

How permies.com works
What is a Mother Tree ?

PEP - BB10 Badge (verified skill)
Skill verified by gir bot

Paulo Barros

Posts: 36

Location: Arruda dos Vinhos, Portugal

I like...

posted 5 years ago

2
Number of slices to send:

Optional 'thank-you' note:

Send

Hello Permies

I have been with some friends a few days at Tamera on august 2013.
We took some photos, which I'll start to share with you.

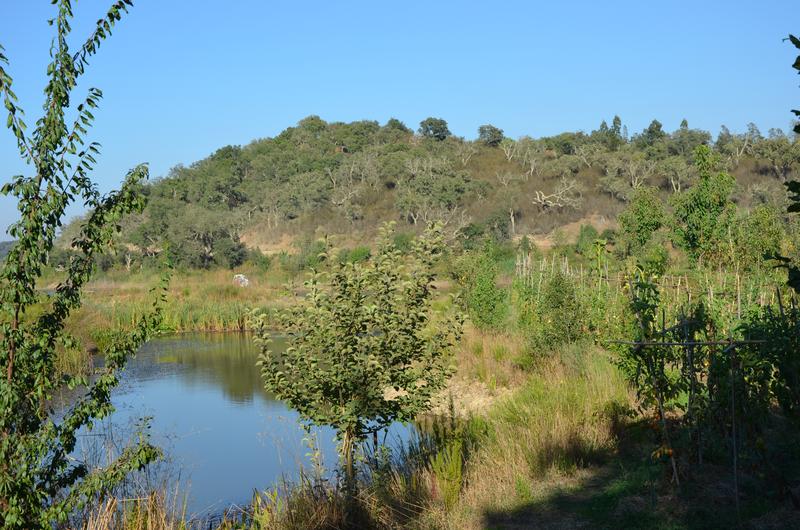

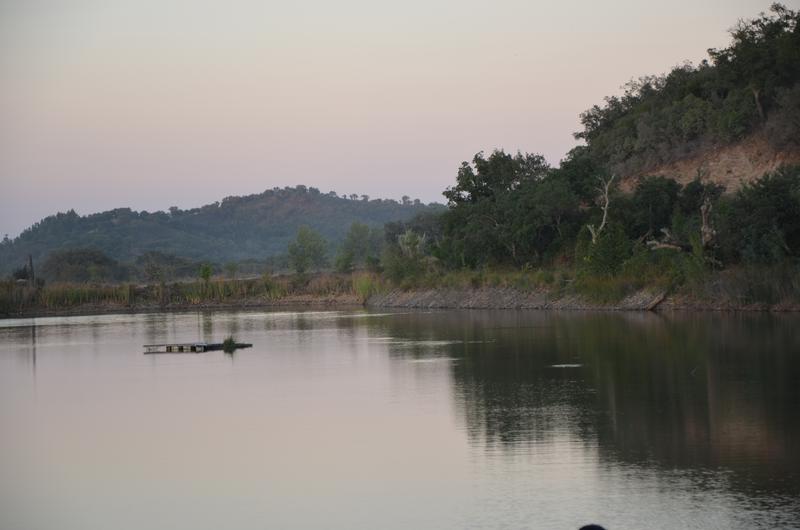

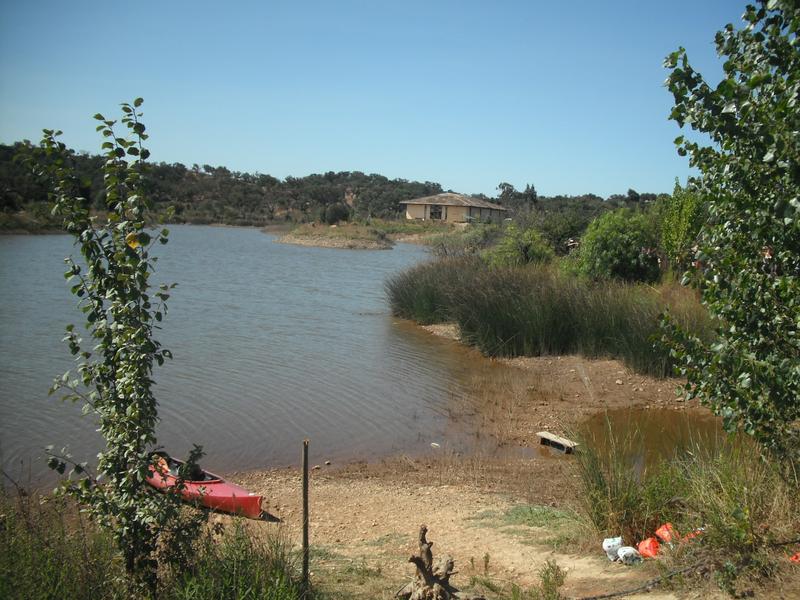

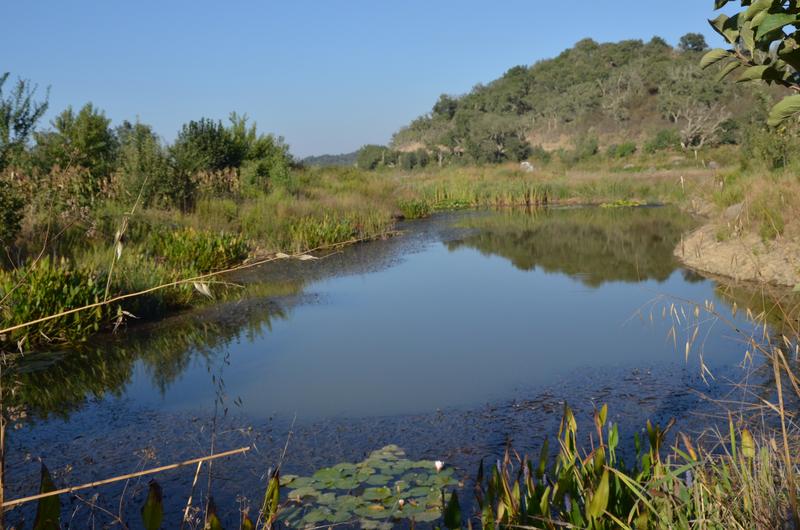

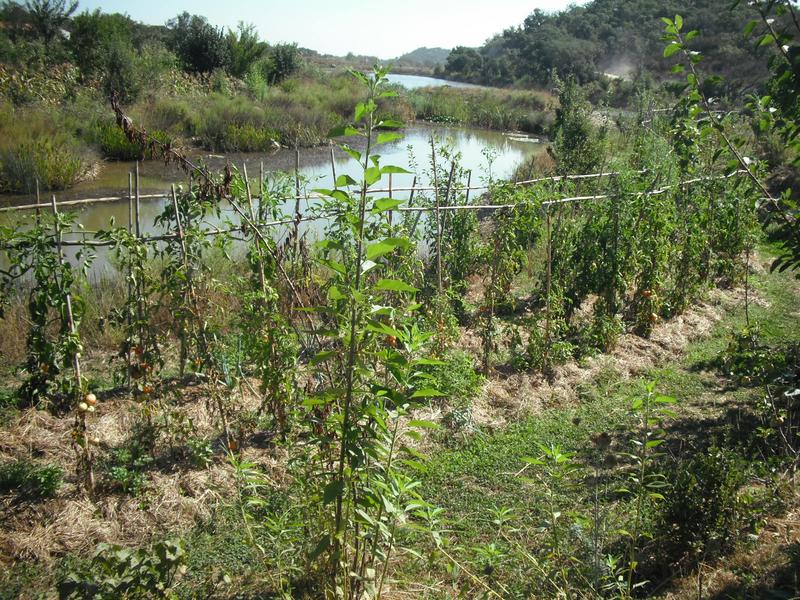

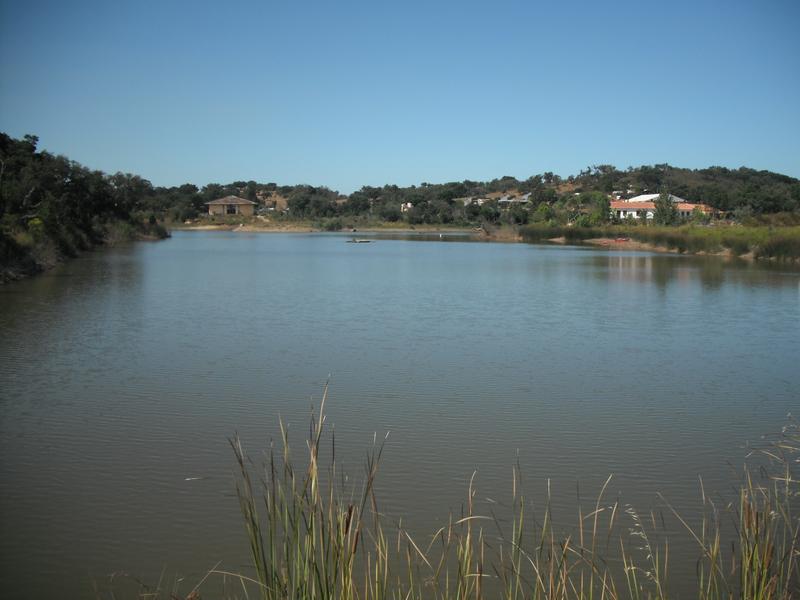

Some photos about the water retention

If you liked, next days I will share more... soo stay tunned

"Nobody made a greater mistake than he who did nothing because he could do only a little" - Edmund Burke
"Pelo menos uma vez na vida precisamos de um advogado, um médico, um arquiteto, mas 3 vezes por dia precisamos de um agricultor."

Paulo Barros

Posts: 36

Location: Arruda dos Vinhos, Portugal

I like...

posted 5 years ago

1
Number of slices to send:

Optional 'thank-you' note:

Send

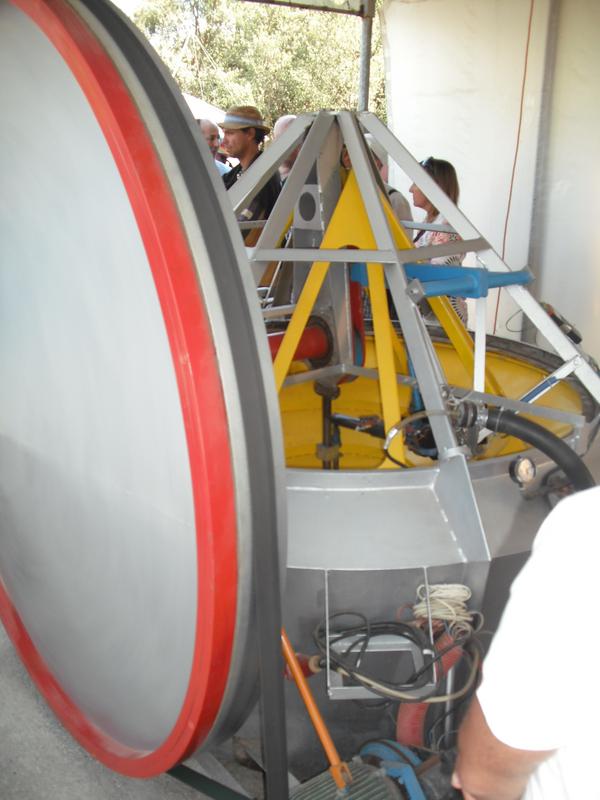

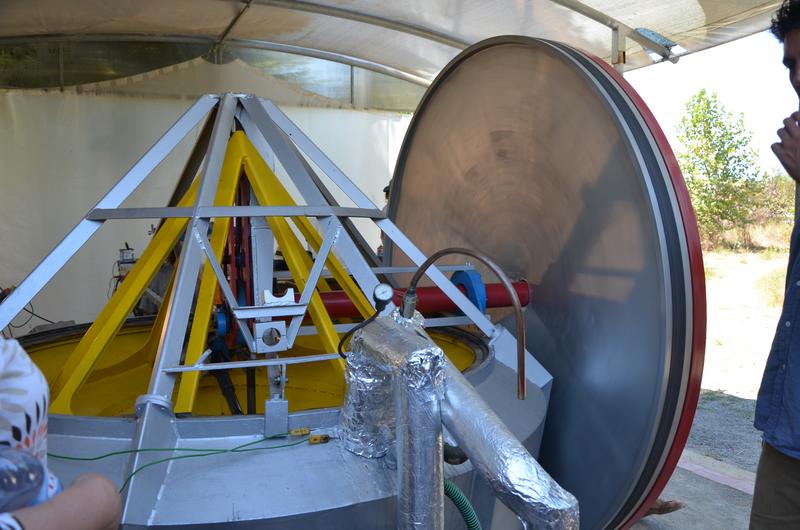

Photos of the Stirling Engine

Burra Maluca wrote a good explanation of how it works

Paulo Barros

Posts: 36

Location: Arruda dos Vinhos, Portugal

I like...

posted 5 years ago

Number of slices to send:

Optional 'thank-you' note:

Send

Hello Permies

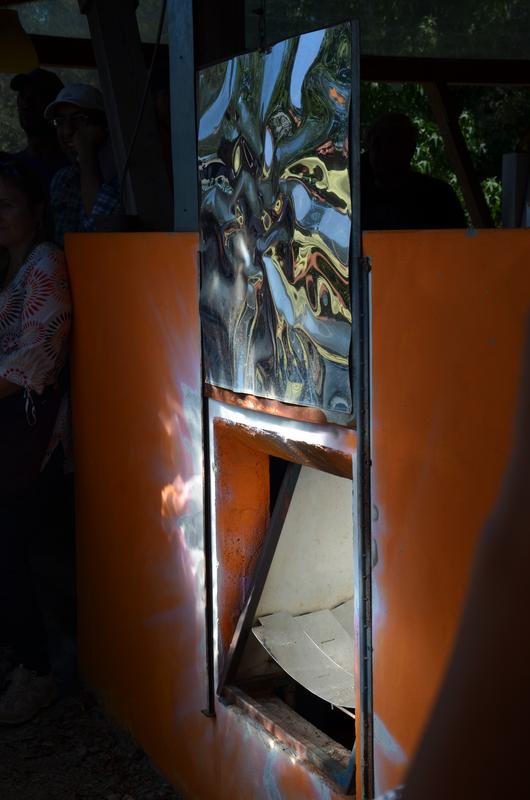

In the following two photos we can see, a stove that works together with a Scheffler mirror - solar reflector with a fixed focus, where sunlight is concentrated at a point, which is reflected again at the bottom of the pan.

I hope you enjoyed, because, next days I will share some more

Paulo Barros

Posts: 36

Location: Arruda dos Vinhos, Portugal

I like...

posted 5 years ago

2
Number of slices to send:

Optional 'thank-you' note:

Send

Hello Permies

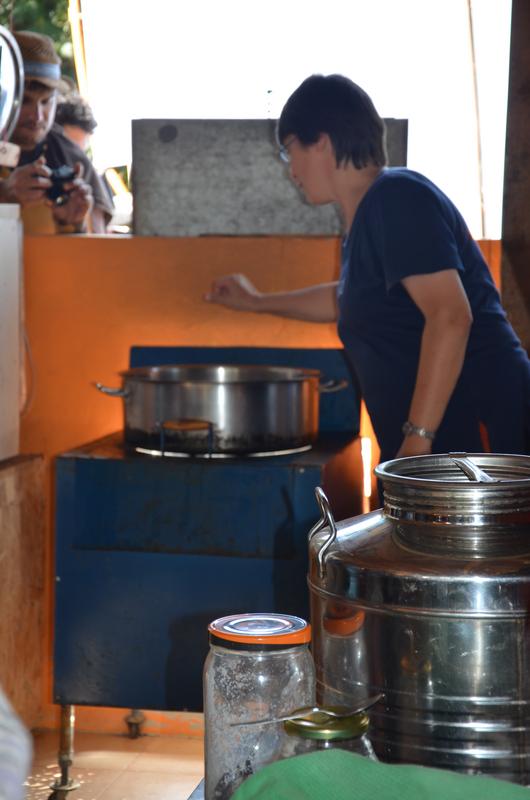

The next photo, just like the two previous photos were taken in the summer kitchen of the experimental field.

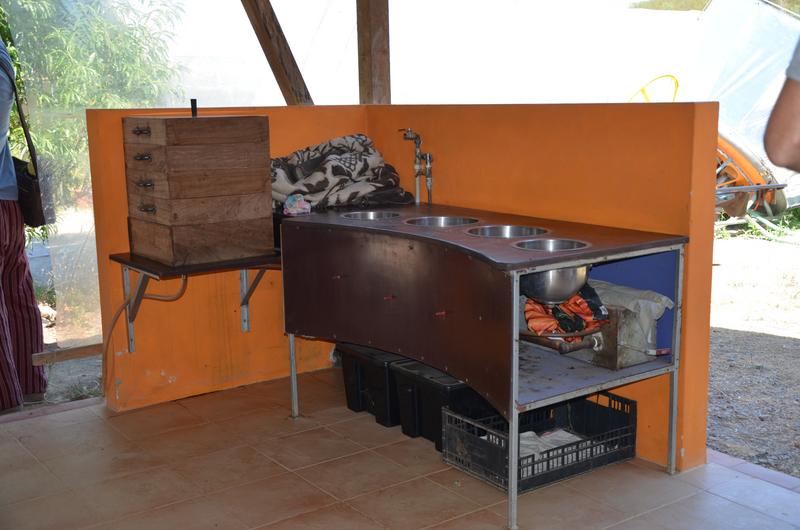

In this photograph we can see a solar stove that has several mouths and consists of several double-walled aluminum pots where hot oil circulates in closed circuit. The oil flow is regulated with a manual valve that opens and closes as required, allowing an exact setting of the temperature for cooking. The oil should have a minimum temperature of 150 ºC, thus making it possible to fry, to bake and to cook in the oven.

and...

"The stacking wooden boxes on the left are for steaming food, and the big brown box has 'hot pockets' which pans fit into, surrounded by hot oil." - Information taken from the Burra Maluca post.

All good for ALL

Paulo Barros

Posts: 36

Location: Arruda dos Vinhos, Portugal

I like...

posted 5 years ago

2
Number of slices to send:

Optional 'thank-you' note:

Send

Hello Permies

In the following photographs we can see the vegan food with which we feed during our stay in Tamera:

It looks soo tasty, isn't it!?

All good for ALL

Paulo Barros

Posts: 36

Location: Arruda dos Vinhos, Portugal

I like...

posted 5 years ago

1
Number of slices to send:

Optional 'thank-you' note:

Send

Hello Permies

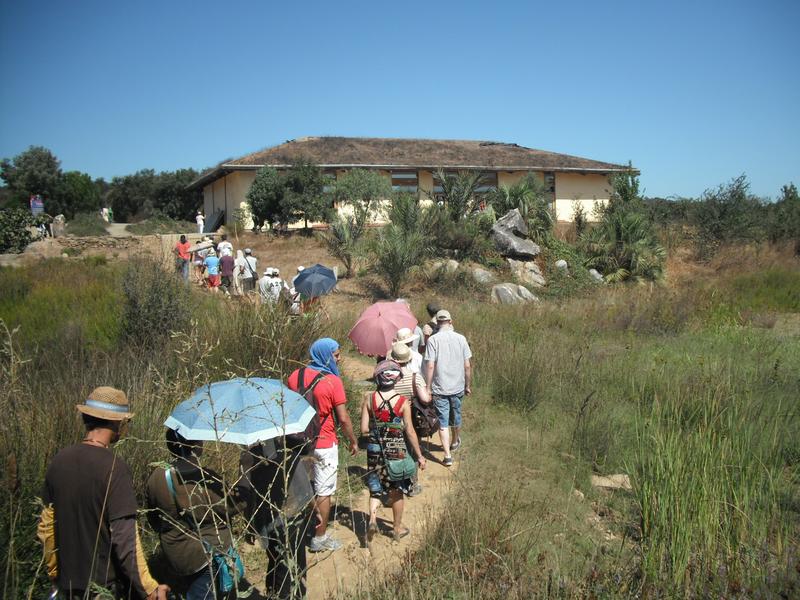

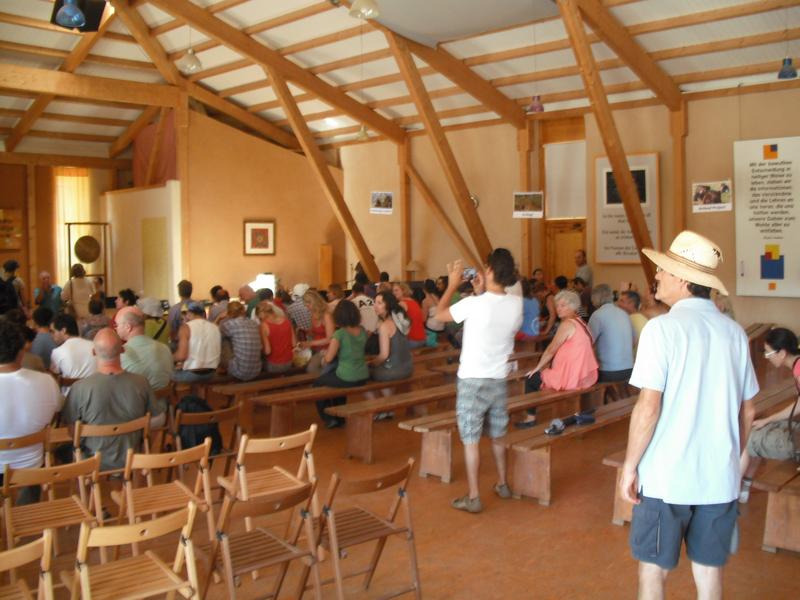

Continuing sharing of some photographs taken by me and friends on August 2013, today's sharing is about the auditorium of the Research Center for Peace of Tamera.

The walls of the auditorium of the Research Center for Peace of Tamera are 8 meters high and has space for 400 people, is the largest building built with straw bales and earth in the Iberian Península. The green roof and the earthy exterior walls fuse harmoniously with the landscape.
The auditorium is a building with a wooden structure and stacks of straw bales which were later towed on both sides with earth, that on the outer side, the earth was mixed with lime to protect it from the rain.

All good for ALL

Paulo Barros

Posts: 36

Location: Arruda dos Vinhos, Portugal

I like...

posted 5 years ago

Number of slices to send:

Optional 'thank-you' note:

Send

Hello Permies

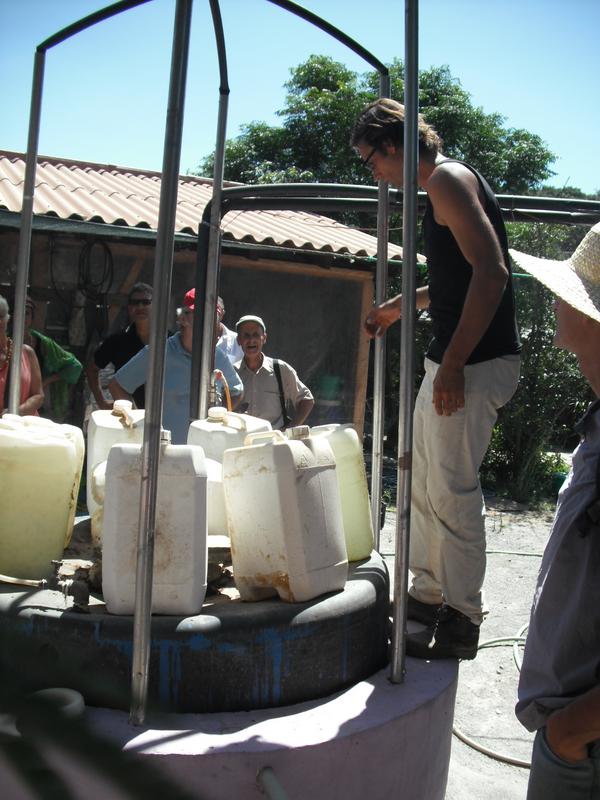

I share a photo of a biogas biodigester located in the solar village in Tamera.
In Tamera they sought to supplement insufficient solar radiation in the winter months with the construction of the biogas biodigester.
Biogas can be generated from any form of biomass through anaerobic processes (the facility is free of oxygen).
During the course of the year, the most diverse forms of biomass are produced in Tamera: kitchen wastes, pruning of trees and shrubs, horse manure and human manure.
The purpose of the installation is to take advantage of this energy potential to obtain clean energy.
This Nepalese biogas facility consists of an underground fermentation pit covered by a dome in masonry or concrete.
Here, the organic material is fermented through microbes, forming methane gas, which rises and accumulates in the dome and from there is led to a deposit or is channeled directly into the kitchen.
The fermented material passes to an evaporation tank, is dry and can be used as fertilizer in the garden.

All good for ALL
