Pizza oven plan

Posts: 9
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I am planning to make a pizza oven fueled by a pellet rocket stove.  I've seen great things online about plans for rocket stoves and modifying it for more air, more temp, etc. What I can't find is a formula or rule of thumb for getting X temperature at the output from X amount of either pellets or air.

I want to make my rocket stove terminate in the back of a dome which will be the pizza oven, then the front opening will have a flute for exhaust. I don't know if this is a worthy attempt because of these unknowns. I want 900F oven temperature. I had concerns over regulating temps and if it'll even get that hot.
Posts: 64
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
The thing with rocket stoves is most of the heat goes up the chimney, so while I have seen pellet BBQ rocket stove designs that worked until the tubes burned out, getting the heat transfer that you want for pizza might be a tall order.  Pellets are normally for steady state cooking.  I guess there is a demand for that given the extremely expensive gas models there are out there, but the traditional pizza oven seems a lot simpler if you just want to make the odd pie.
Posts: 3190
Location: Upstate NY, zone 5
  • Likes 3
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I think a major factor in the best answer for you is how you want to use it. Do you want to have an occasional afternoon/evening cooking session, or will you use it regularly for a whole day? Do you have a particular need to use pellets (presumably automatically fed), or could you use wood?

I have an L-tube rocket-fired cob oven, about 27" diameter x 20" high dome, with a 6"w x 9"h burn tunnel and 6" diameter heat riser. It splits into several channels under the oven floor and enters the dome at the edges, then exits by a 6" chimney above the door. It works well for normal baking, but does not generally get above around 500F. With a more direct flue design it would probably get significantly hotter. A smaller/lower dome optimized for pizza baking would probably increase the heat as well. This design is very economical on wood, using several wrist-sized sticks per hour, and gives steady heat due to the mass.
[Thumbnail for dragonoven-08.jpg]

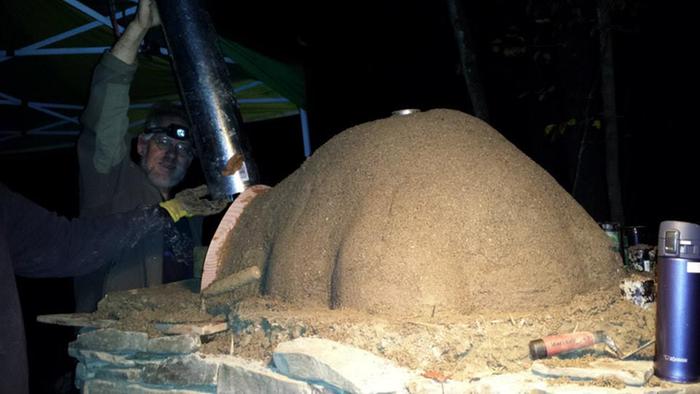

interior sand form showing chimney location
[Thumbnail for IMG_1179-w600.jpg]

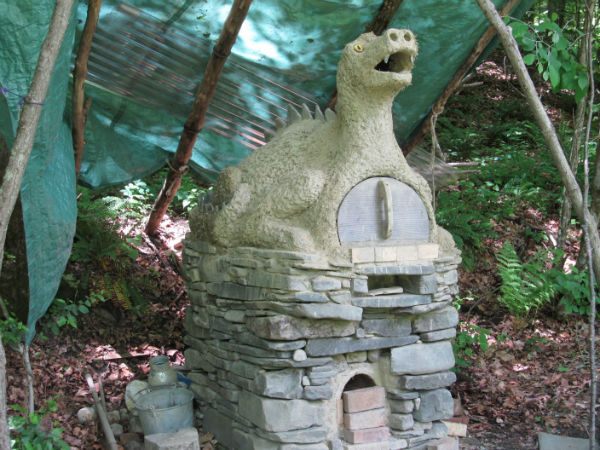

finished oven... dragon bread, yum!
Posts: 58
Location: Del Rio, TX
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

kyle mende wrote:I want 900F oven temperature.

My experience with cob ovens is that 900 F is TOO hot for pizza--it will burst into flames! About 700-750F makes for a fast-cooking pizza (1-3 minutes). I will be curious to see the design you choose.
