New stove build in Canada


Posts: 10
2
  • Likes 7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

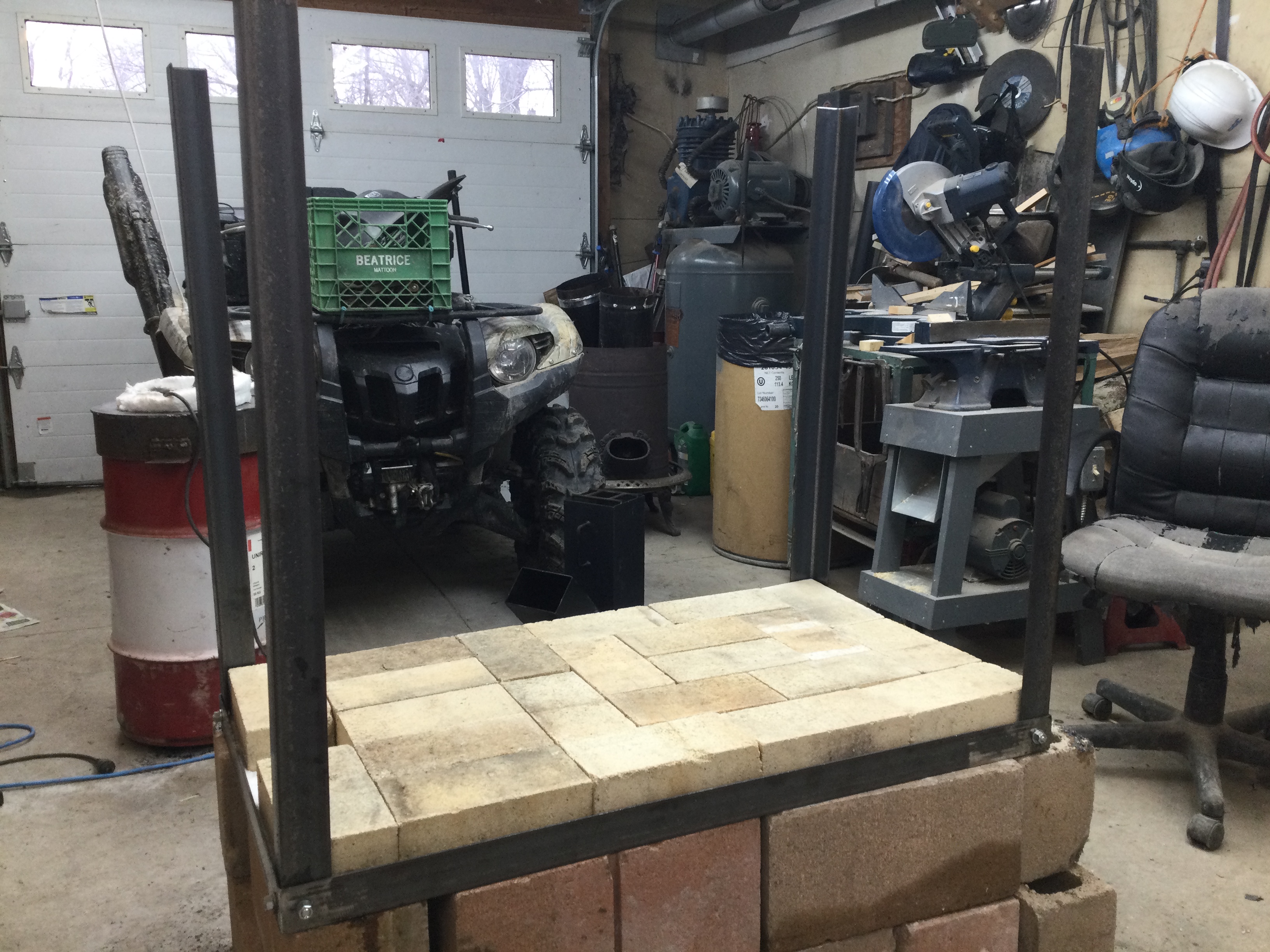

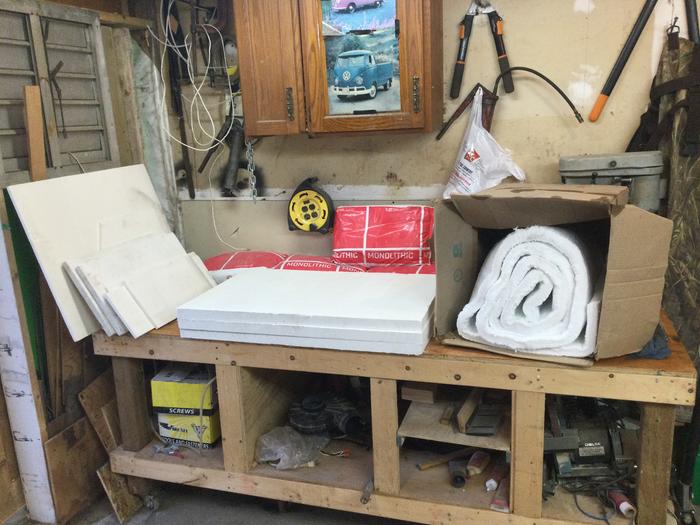

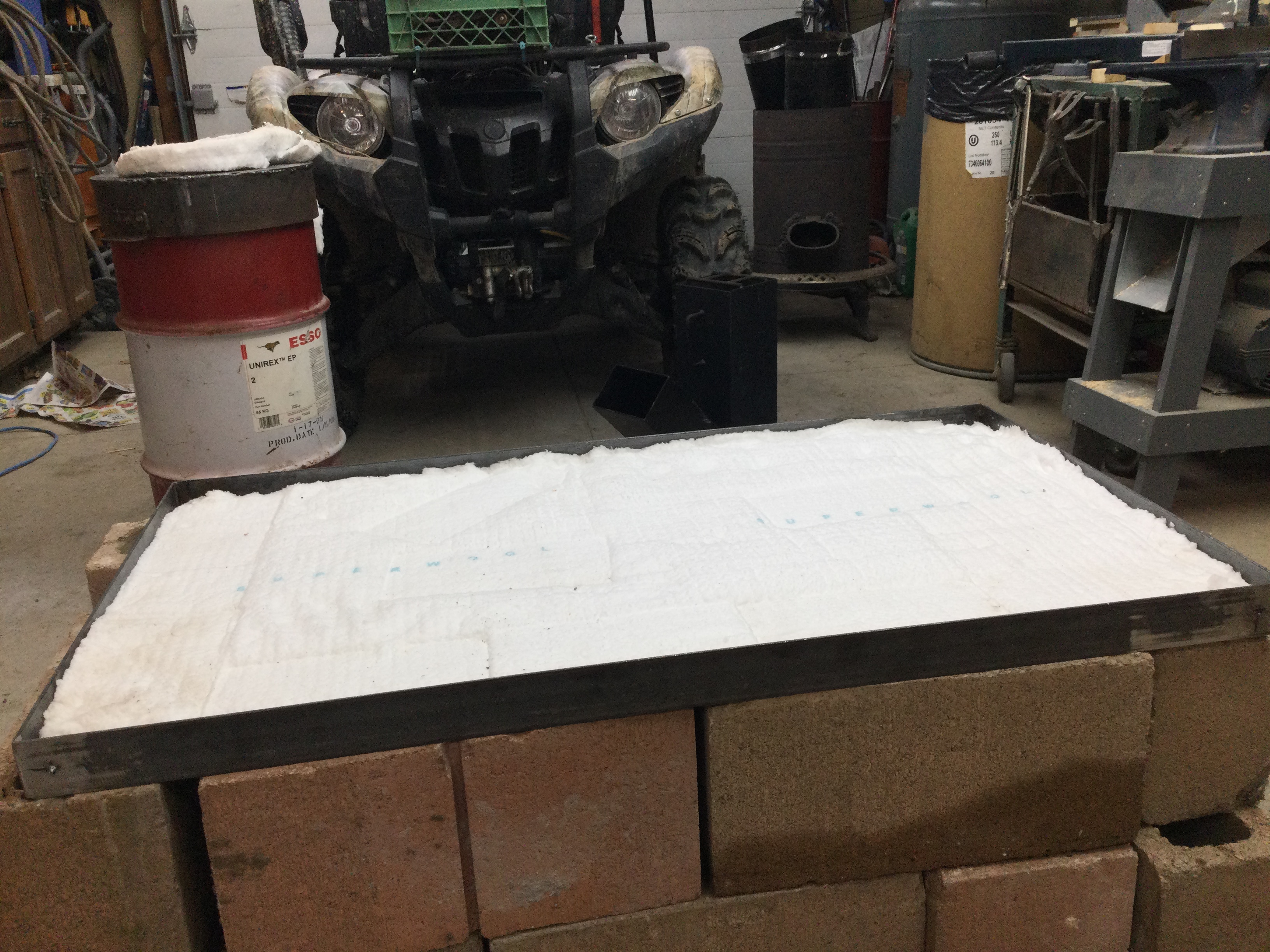

Good Morning, I have been reading and trying to plan out my stove build for a couple of years now. Ihave gathered some supplies and began building a week or so ago.
I appreciate any advice as I plug along.
This stove is actually being built for more of a novelty than neccesity. I am building it in our outdoor kitchen where we do all of our canning and food prep (butchering).
My goal is a vortex riserless stove with a flat top hot plate witha small bench to sit and read at night.
Basic design is being copied from Vortexstove over at donkeysite.
Looking forward meeting all that have gone down this road in the past

Tom
[Thumbnail for 838CFAD1-F4FE-43CC-B43B-52A9ACC4C94B.jpeg]
[Thumbnail for E827B8A6-C866-4DC2-B286-C9D69F3B907D.jpeg]

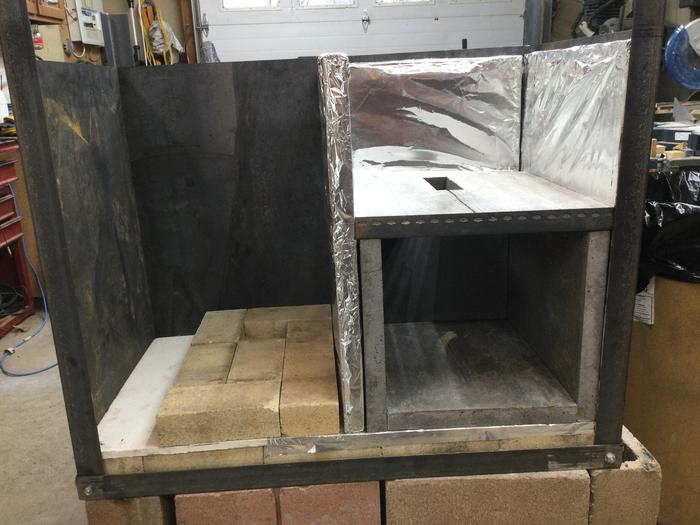

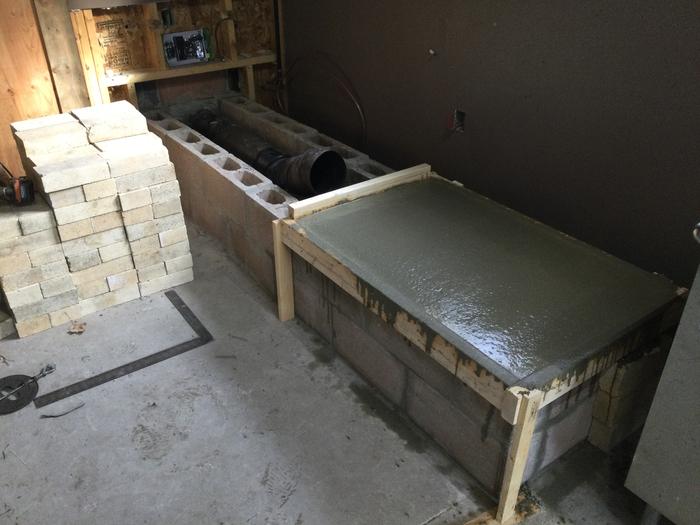

[Thumbnail for CEDFCE1D-56D3-4A76-86DF-67308C1BAFD1.jpeg]

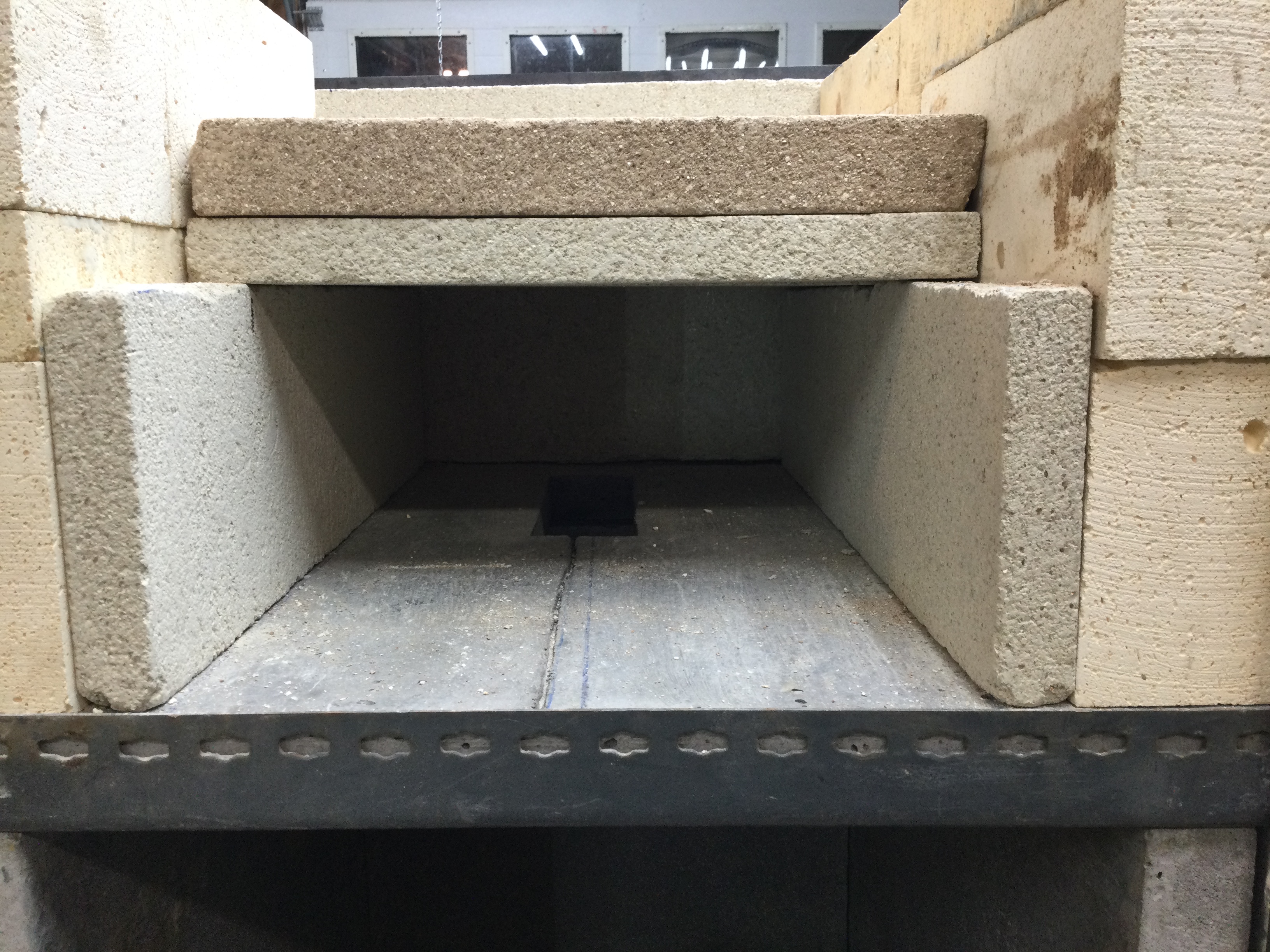

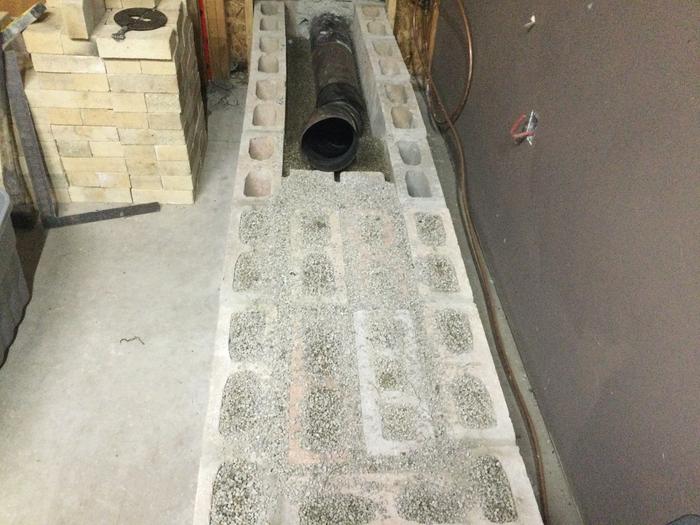

[Thumbnail for 30280F22-6520-4281-811E-81D53FBC5E5F.jpeg]

Rocket Scientist
Posts: 4542
Location: latitude 47 N.W. montana zone 6A
1597
cat pig rocket stoves
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi Tom;
Big Welcome to Permies!
Congratulation's on starting construction on your new Rocket!
Looks like you have all the right products on hand to make a supper addition to your summer kitchen!
We need many pictures please , as you commence your build!

tom ferrier
Posts: 10
2
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Thanks for the Welcome Thomas. This is my first time trying anything withbrick and morter. I was a car guy for a long time until my back didnt want me rolling around on the floor anymore

pollinator
Posts: 1866
Location: Canadian Prairies - Zone 3b
473
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Welcome, Tom! Awesome project!

tom ferrier
Posts: 10
2
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

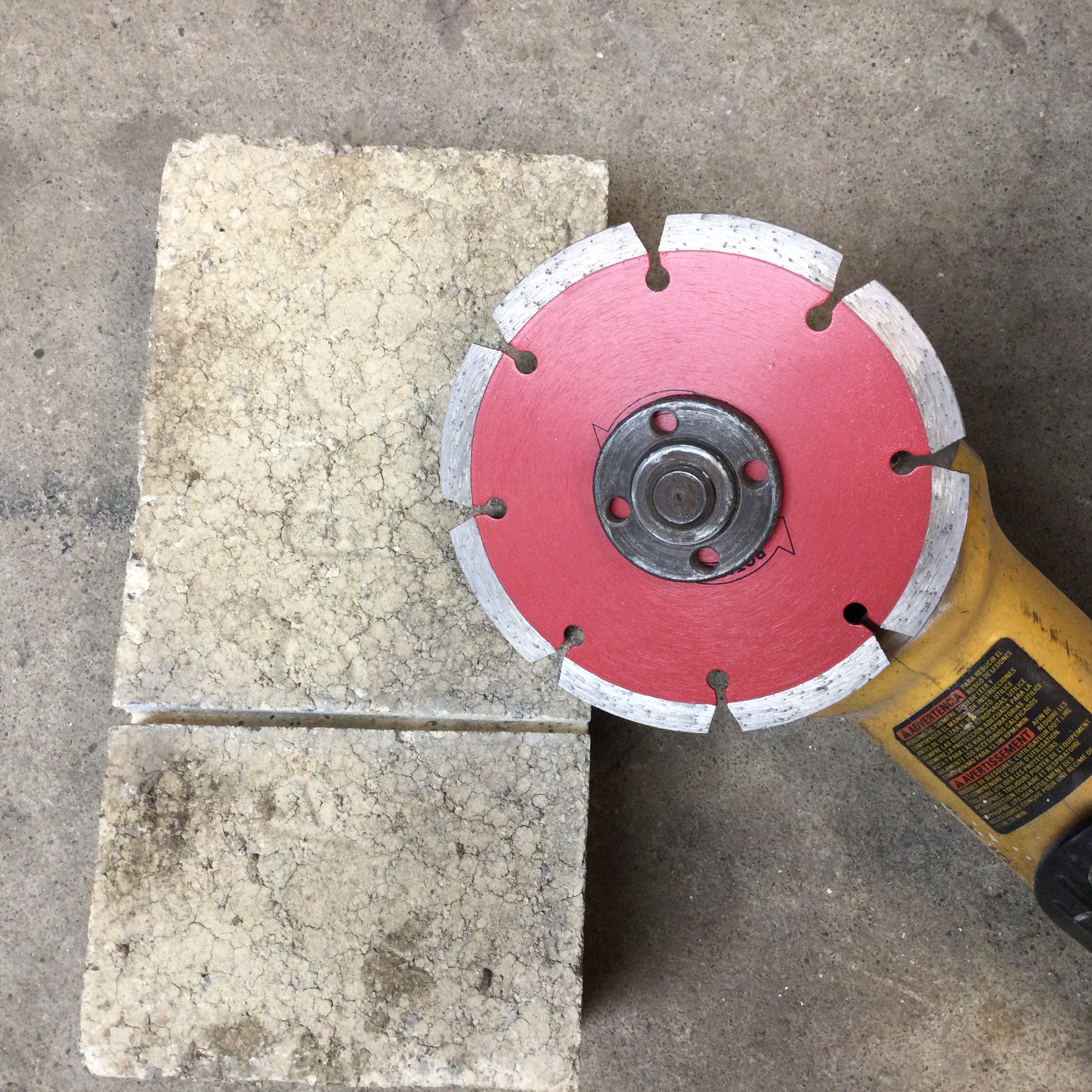

I was able to get some of the dense firebrick crushed up. I put it on top of the insulating clinker type material that I had put in the bottom half ofthe tunnel/bench. I plan onputting those bricks on top of the crushed firebrick to be the base of a bench/chair....somewhere for an ol navy vet to sit and warm an aching back
That is where I want the most of my heat transfer to takeplace. I am hoping I can control that some what by adding or removing those same bricks in the bell to the left of the firebox.


Got my descriptions backwards on the pics
crushed firebrick top half of tunnel
crushed firebrick top half of tunnel
like a big kid with buildingblocks
like a big kid with buildingblocks

pollinator
Posts: 301
38
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi Tom, interesting build, It might not matter to you at all but I am not sure if the concrete blocks and brick dust will be the best form of mass?
It might take a long time for the heat to penetrate  through the brick dust and the blocks as they may have some insulating property due to trapped air?

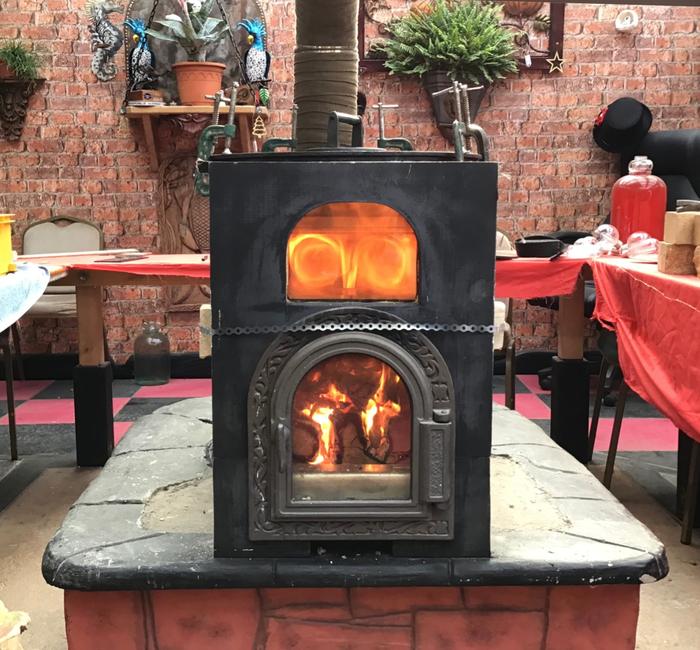

I built a vortex stove based on Trevs design but my version was not very successful , I think it was due to a few factors like back pressure, length of chimney and wood moisture.
My version did produce a fantastic display for short periods but it was very fickle and sensitive, so I reverted back to my old design.
However i did not copy Trevs exact specs so it is not surprising my vortex did not work fot me long term.
I am looking forward to seeing  how yours works for you as the display can be awesome!
[Thumbnail for A9041A2A-D5E2-48C7-9487-C6C5EB9F8213.jpeg]

tom ferrier
Posts: 10
2
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Thanks Fox what is generally used in the "tunnel" I was guessing as these bricks are very good at heat transfer.
I am building a 7 inch system

I use your video when I am trying to explain this stove to people lol

Am I correct in assuming the airflow (primary, secondary, and tertiary) is the most important to getthe visual vortex
I am also wandering from trevs specs but i am hoping to build this in a way that makes it easy enough to change if at first I dont succeed....I can try try again
Tom

Fox James
pollinator
Posts: 301
38
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi Tom, a popular method is not to have a tunnel  as such but a void or ‘bell’

I only have a small amount of  mass and it is cast from concrete and vibrated to remove any air.
Brick is popular as well, it is just that concrete blocks are quite porous  ie you can pour water straight through them because they are full of air pockets.
A good example might be the sun on a  beach will make the sand really hot on the surface but only a few inches down it will be cool as the sand works as a insulator due to the trapped air.

I did love my vortex stove, it was spectacular at the mid burn and I may build another one but my own personal circumstances make my j tube vortex much easier to use.

tom ferrier
Posts: 10
2
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

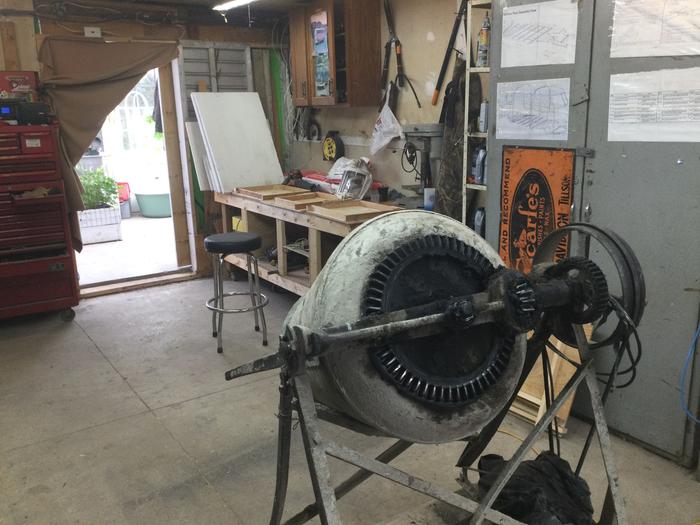

I made all the forms for the firebox today. I spent the rest of the day trying to figure out my vibration for this refractory. My best solution seems to be the reciprocating saw with no blade in it.
Tomorrow afternoon will be the test
[Thumbnail for 55186908-7A2D-4AF4-9863-6BD9727F8A94.jpeg]
[Thumbnail for 58E0FEF3-1F33-4713-ADE5-AB42DAA562D8.jpeg]

tom ferrier
Posts: 10
2
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Oh yeah! Any suggestions on what to use on the forms for waterproofing and non sticking.

Used oil? .....Vegetable oil?

Fox James
pollinator
Posts: 301
38
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I make my molds from melimaime, refractory cement sticks even more that standard cement.
The problem with oils is that it contaminates  the cement, wax is better.
Tin foil works as does cling film but neither are anywhere as good  as plastic lined mold.
Are you adding fibres or steel pins to your mix?

tom ferrier
Posts: 10
2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Fox James wrote:I make my molds from melimaime, refractory cement sticks even more that standard cement.
The problem with oils is that it contaminates  the cement, wax is better.
Tin foil works as does cling film but neither are anywhere as good  as plastic lined mold.
Are you adding fibres or steel pins to your mix?



Hey James yeah wondered about getting myself into a pickle if I used old oil, figured I might get some weird chemical reaction
I have used marine spar varnish before for concrete and that seemed to work good.

I dug out my old Positive Air unit I use to use for painting cars I figure I will wear it ....seems this stuff is a bit nasty

I am not adding anything to the mix  I figured its just a box no structural component to it.

Are there any rules to this forum I should be aware of.

Tom

Fox James
pollinator
Posts: 301
38
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Plastic fibres are especially  effective, they are tiny but melt once heated and allow moisture to escape form the piece. It is moisture that more often than not causes cracking.

However many if not most refractory cements will already have burn out fibres in their product, some also contain stainless steel pins but normally only the expensive ones!

Varnish sounds good but it would have to be well cured.

Vibrating is very important to get the air bubbles  out but you will soon find out that refractory cement is mixed extremely dry, normally 4 litres per 25 kg.

Make sure you follow the manufactures  instructions with the water content and vibrate immediately it is put in the mold, it will start set in 10-15 minutes, most will be set hard in one hour and cured in 24 hours but it will still hold moisture until heated.

gardener
Posts: 764
Location: +52° 1' 47.40", +4° 22' 57.80"
142
woodworking rocket stoves wood heat
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

tom ferrier wrote:Oh yeah! Any suggestions on what to use on the forms for waterproofing and non sticking.
Used oil? .....Vegetable oil?


I used wax for 20 years until I discovered WD40 oil. Add sparingly and wipe any excess with a cloth.

tom ferrier
Posts: 10
2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Peter van den Berg wrote:

tom ferrier wrote:Oh yeah! Any suggestions on what to use on the forms for waterproofing and non sticking.
Used oil? .....Vegetable oil?


I used wax for 20 years until I discovered WD40 oil. Add sparingly and wipe any excess with a cloth.



Thanks Peter I have lots of that here

tom ferrier
Posts: 10
2
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Well I got the sides and back section of the firebox poured today. This mixer is a cement mixer I think it may have been better with a morter mixer The refractory wanted to roll into balls more than mix but I was able totake a large wooden "paddle" and help out with the mixing.
Looking forward to pulling the forms tomorrow.

I was thinking of putting these in the oven for a few hours tomorrow...good idea?
[Thumbnail for 1573E9AF-7E77-461A-B3D2-224898BA809F.jpeg]
[Thumbnail for 501CC2F7-02E1-4EFE-949B-F40680DBEAA1.jpeg]

Fox James
pollinator
Posts: 301
38
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
How did it work out?

tom ferrier
Posts: 10
2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

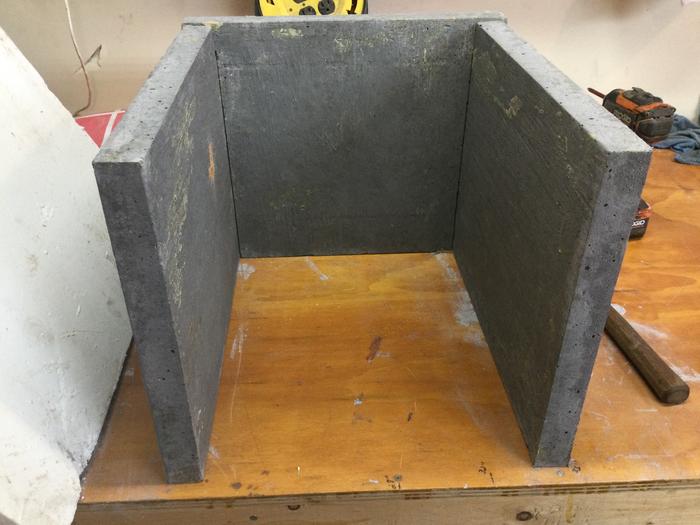

Im pretty happyso far....I still need to do the bottom, the top,and the two angled pieces.
I made those molds up today.

I am still trying to figure out my air intakes.
Is the P channel a good option for secondary air intake on these stoves
[Thumbnail for 8D955A6C-8E12-4BD0-83B1-FD507D717ABC.jpeg]

Fox James
pollinator
Posts: 301
38
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
There is no direct secondary air on Trevors design, just one air inlet below the door and the ability  to crack open the door.
I tried, tested and used a few different ways but found no improvement on the single inlet.
