I have to admit the choices available with RMH is overwhelming, I have the books, the DVD's and scanned the universe.
BUT I have reached a stalemate. I now know what I am after, but my head is spinning with ideas.
HELP PLEASE

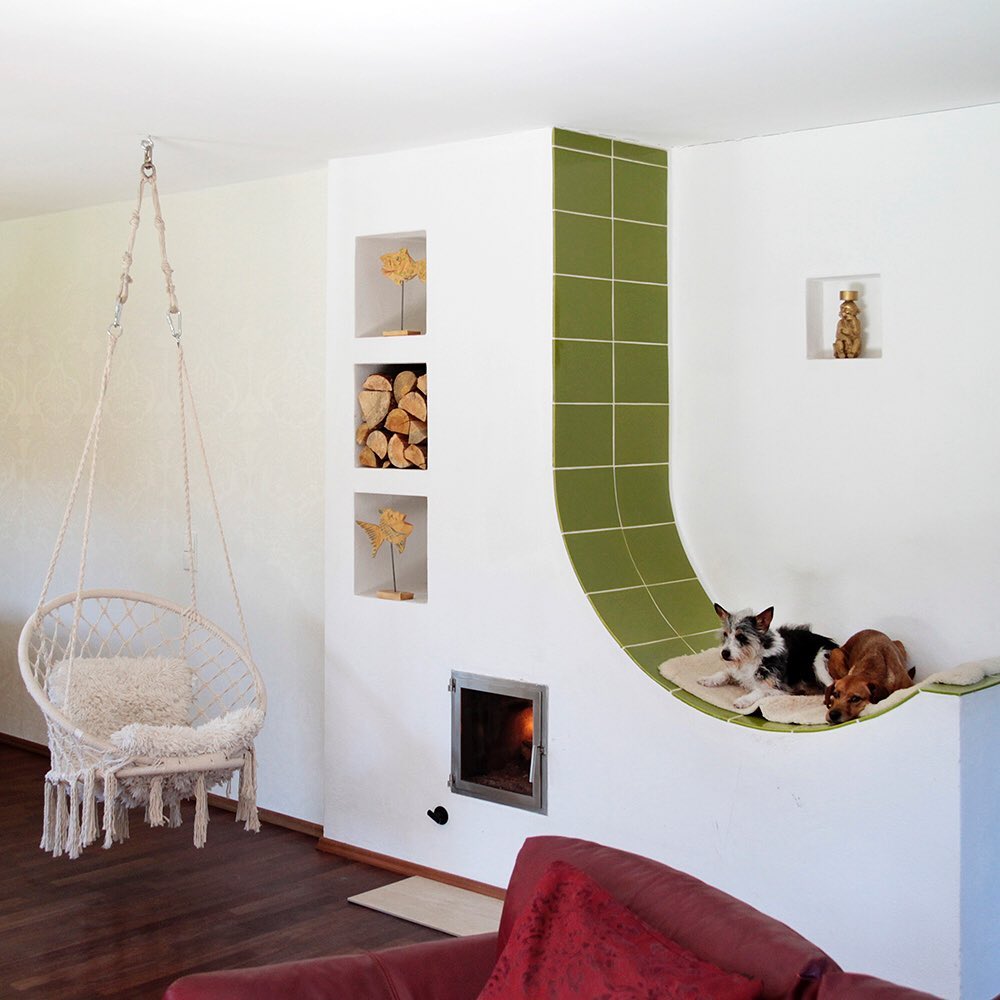

My situation 400 sq ft 2 roomed cottage, well insulated the picture below is what I have in mind.
I want a batch box, but I cannot get my head around a design.
Can I get some advise please?
Compact vertical system
Compact vertical system

John Daley Bendigo, Australia The Enemy of progress is the hope of a perfect plan
Benefits of rainfall collection https://permies.com/t/88043/benefits-rainfall-collection
GOOD DEBT/ BAD DEBT https://permies.com/t/179218/mortgages-good-debt-bad-debt


Gerry Parent
Rocket Scientist
Posts: 1842
Location: Kaslo, BC
534
I like...
building solar woodworking rocket stoves wood heat greening the desert
posted 4 years ago
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Hey John,
Sorry for my ignorance but have you even had the opportunity to build one  in your backyard yet?   Dry stacking bricks is quite fun and very satisfying because within an hour you can have a stove built and running with minimal effort.  Even tru to fabricate a batch box with the same technique.  It may not be dimensionally perfect but it may just give you the confidence you need to get yourself over the hump.
Going the extra distance you could cover the whole thing with cob which would seal it up better and give you an opportunity to practice some design ideas before you tackle the in-house installation.

Silence is Golden
For all your RMH needs:
dragontechrmh.com


Thomas Tipton
pioneer
Posts: 342
35
I like...
chicken wood heat rocket stoves
posted 4 years ago
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Some pictures of your cottage and the spot you intend to put it might spring some ideas into action.

Where there is Liberty, there is Christ!


John C Daley
pollinator
Posts: 5972
Location: Bendigo , Australia
542
I like...
plumbing earthworks bee building homestead greening the desert
posted 4 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
Gerry, Brick work etc is a skill I have, just working out the batch box shape , dimensions and where the pipes would run in something like the photo is the bit I cannot come to grips with.
Thomas, As for photos my small place is almost the same as the image presented, the ceiling is 8ft and the floor area available is about 2 ft x 5ft.

John Daley Bendigo, Australia The Enemy of progress is the hope of a perfect plan
Benefits of rainfall collection https://permies.com/t/88043/benefits-rainfall-collection
GOOD DEBT/ BAD DEBT https://permies.com/t/179218/mortgages-good-debt-bad-debt


John C Daley
pollinator
Posts: 5972
Location: Bendigo , Australia
542
I like...
plumbing earthworks bee building homestead greening the desert
posted 4 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
What are the Bell Tops please?

John Daley Bendigo, Australia The Enemy of progress is the hope of a perfect plan
Benefits of rainfall collection https://permies.com/t/88043/benefits-rainfall-collection
GOOD DEBT/ BAD DEBT https://permies.com/t/179218/mortgages-good-debt-bad-debt


Gerry Parent
Rocket Scientist
Posts: 1842
Location: Kaslo, BC
534
I like...
building solar woodworking rocket stoves wood heat greening the desert
posted 4 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator

John C Daley wrote:What are the Bell Tops please?


I think they are made from some type of type of dog. :)

Seriously though, what you are looking at appears to be a type of European Grundofen topped with tile, not a Batch Box heater coined by Peter van den Berg...a whole other beast.
If you are looking at designing a batch box, all your dimensions and descriptions of how to build one can be found here: batchrocket.eu/en/

Silence is Golden
For all your RMH needs:
dragontechrmh.com


John C Daley
pollinator
Posts: 5972
Location: Bendigo , Australia
542
I like...
plumbing earthworks bee building homestead greening the desert
posted 4 years ago
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
The Walker plans mention the parts needed, and it includes


Requires 3 36"x48"x1" Ceramic fiber board, 300 Red Bricks, Stone or Concrete Bench and Bell Tops, a little bit of sheet metal, and simple clay/sand mortar. Door and hardware instructions included.



Is it the concrete stepping stones?
batch-rocket-mass-heater-plans

John Daley Bendigo, Australia The Enemy of progress is the hope of a perfect plan
Benefits of rainfall collection https://permies.com/t/88043/benefits-rainfall-collection
GOOD DEBT/ BAD DEBT https://permies.com/t/179218/mortgages-good-debt-bad-debt


Gerry Parent
Rocket Scientist
Posts: 1842
Location: Kaslo, BC
534
I like...
building solar woodworking rocket stoves wood heat greening the desert
posted 4 years ago
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
If you ever had the opportunity to speak with Matt, he often says that his plans (excluding the core) are suggestions only.
Whatever shape or skin you decide upon to best suit your needs are often possible and with a plan purchase, he provides excellent consultation feedback.
Concrete stepping stones could be used as a bell cap if that's what you mean?

Silence is Golden
For all your RMH needs:
dragontechrmh.com


Glenn Herbert
Rocket Scientist
Posts: 4748
Location: Upstate NY, zone 5
689
5
posted 4 years ago
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
    Send
  • Quote
  • Report post to moderator
You mention "where the pipes would run"... if you make a bell, a hollow masonry box, there is no pipe configuring to do except for the exit chimney connection. That runs from the bottom of the bell cavity; you can have it running up within the bell volume as long as the entrance to the duct/flue channel is at the bottom. This is one reason bells have become so popular in the RMH world, the simplicity and flexibility of layout - no need to worry about duct length and number of elbows, just the internal surface area which should be in proportion to the system size as described at batchrocket.eu. You can make the exterior of the bell look just like the photo if you wish.
