Small truck-mounted winch cranes.


pollinator
Posts: 2743
Location: RRV of da Nort, USA
822
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I'm wondering of others here have experience or opinions on these small cranes for lifting objects into a pick-up bed or other adjacent location.  There are two general types-- one is supported on the ground with a hitch receiver connection for stability and the other is mounted in the pick-up bed itself.  Additionally, some are hand operated hydraulic or boat-winch style.  I'm interested in versions that have a 12V winch for powering the lift.  Does anyone have experience with these or viewpoints based on design?  Mostly it will be used for lifting feed bags, rocks or other heavy items, but I'm curious if one design is more combersome than the other.  Photos below of the ground-mount vs bed-mount styles.  I would be using it most with a metal-bed UTV 4X4.  Thanks!

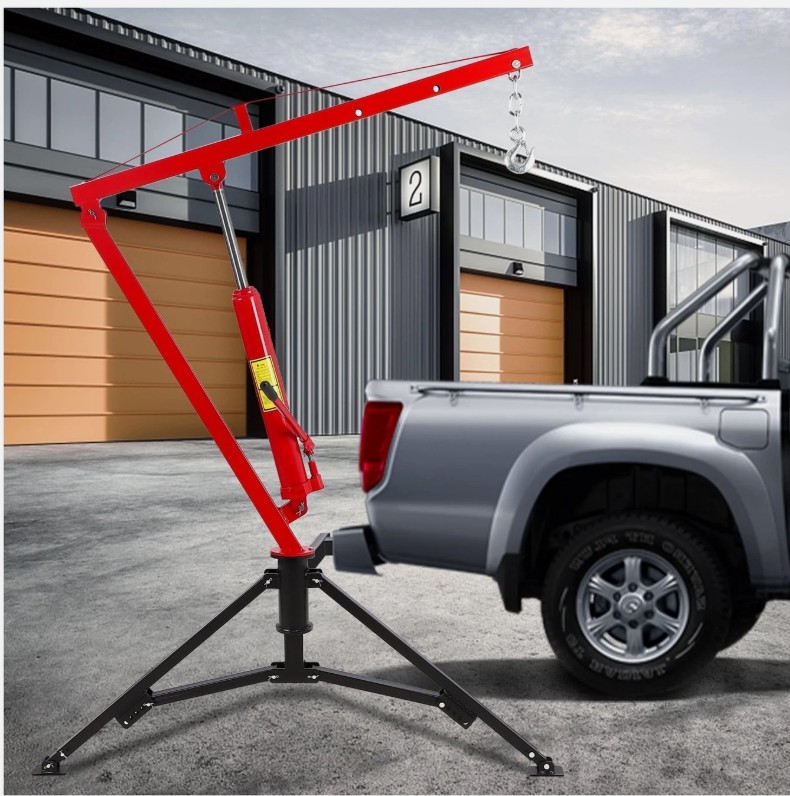

[Thumbnail for HitchCrane.jpg]

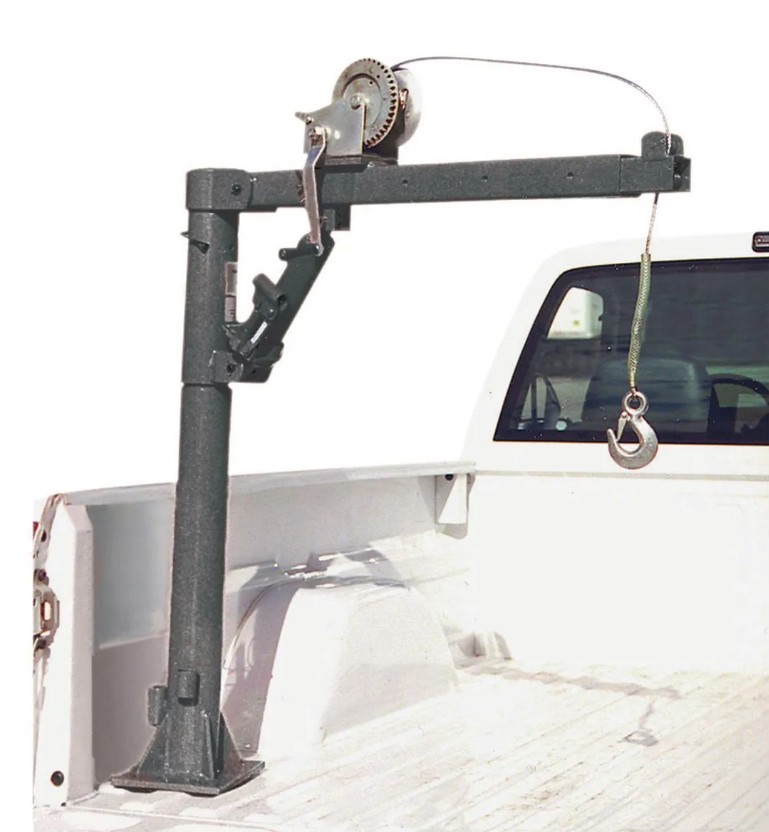

[Thumbnail for BedCrane.jpg]

pollinator
Posts: 5763
Location: Bendigo , Australia
521
plumbing earthworks bee building homestead greening the desert
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
What are these please?

UTV


I use the 2nd type to lift my sidecars that weigh about 250Kg on the my tray truck, it has a fabricated steel deck as the tray.
The truck itself is Chev C30 tray about 10 ft x 7 ft.
I use thelift  for any load I cannot easily handle otherwise.
With my broken back injury they are great to use.
I do use a 2nd 900 CCA Cold Cranking Amps battery for it, charged from the truck system.

pollinator
Posts: 4161
Location: Kansas Zone 6a
332
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
The receiver mounted ones are extremely cumbersome. The bed mounted ones need extensive fabrication work to connect it to the frame, there is nothing but sheet metal and wiring harness’s in that corner of the bed.

I ended up getting a toting trailer with a winch so I can drag things onto the trailer by myself.

steward
Posts: 17917
Location: USDA Zone 8a
4572
dog hunting food preservation cooking bee greening the desert
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I don't have any experience with these though I like this one:



https://www.harborfreight.com/12-ton-capacity-pickup-truck-bed-crane-60732.html

John Weiland
pollinator
Posts: 2743
Location: RRV of da Nort, USA
822
  • Likes 5
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

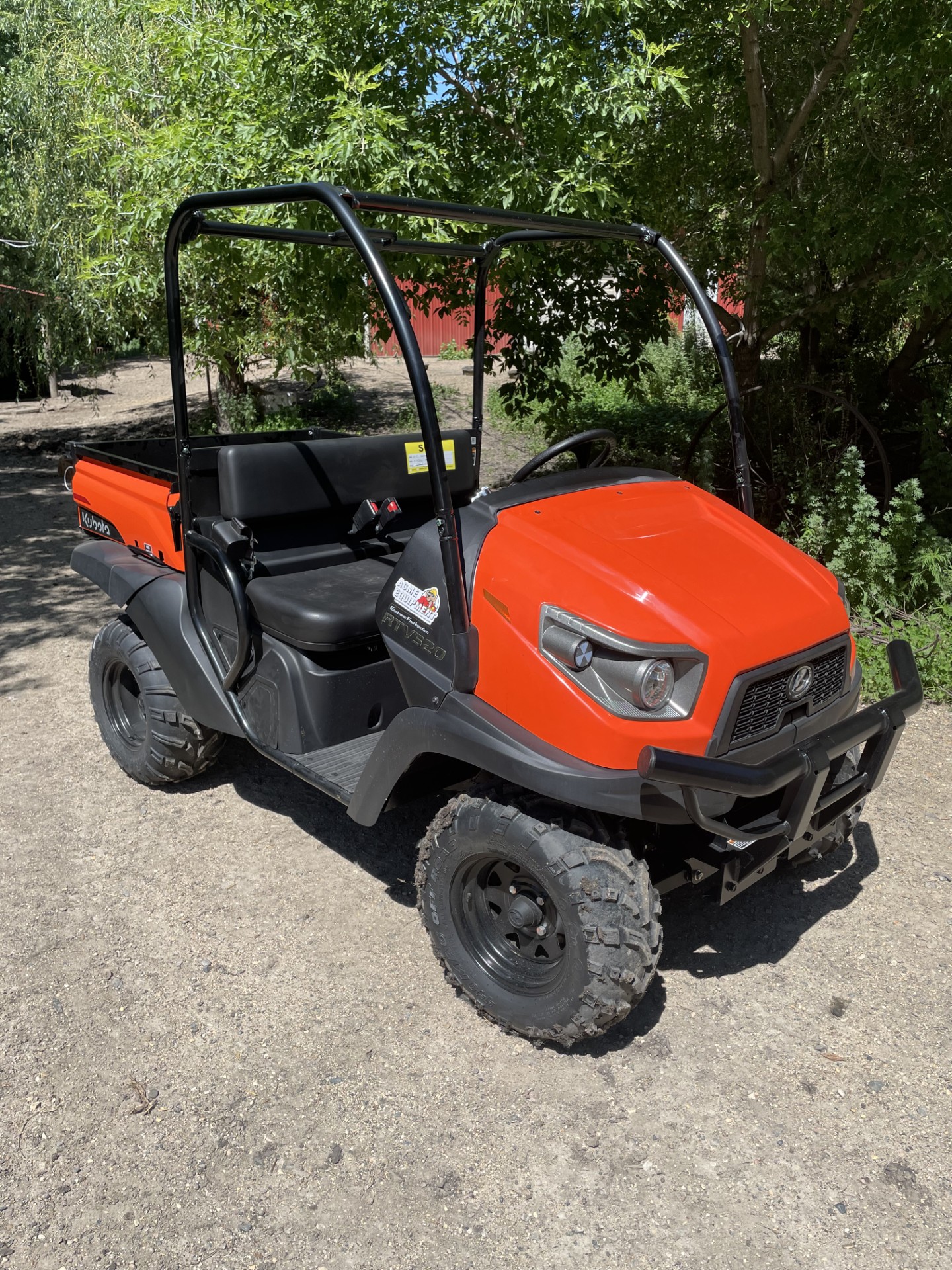

Thanks for these responses.  John D., "A Utility Terrain Vehicle (UTV), also known as a side-by-side (SxS), is an off-road vehicle designed for both work and recreation."  A photo of the Kubota with steel bed that I would be using is shown below.  But I agree with R Scott from what I've read-- there is not enough support in the bed sheet metal to be of much use in supporting the crane physics without modifying under the bed with reinforcing steel.  In this regard, I was thinking of bolting the crane mast to 2 X 12" lumber in a configuration that would provide the necessary support for a few hundred pounds of lift.  The Kubota is gas-powered, but a solar panel afixed to the roll bar over the driver's station might be used to maintain a beefy 12V LiFePO4 battery for powering the winch on the crane.  I kind of like the idea of a separate trailer that would have the crane mounted to the bed:  This could be a highway-approved trailer as well for use with the pick-up truck, but also used in the farmyard when attached to the UTV trailer hitch.  Thanks again and more input welcomed!
[Thumbnail for KuboRTV520.jpg]

John C Daley
pollinator
Posts: 5763
Location: Bendigo , Australia
521
plumbing earthworks bee building homestead greening the desert
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
think that UTV would flip pover.
I have seen the cranes bolted to steel trailers.
