Three Rocket Mass heater questions . . .

Some help with confirmation and clarification please.

I am now (finally) in the process of planning the  build of a rocket mass heater for my workshop. (Three Irish winters working in it have been three too many!)
- The workshop is a straw bale build with internal frame and traditional lime mortar render.
- Floor area is  52 sqm/ 560sqft
- Workshop volume   164 cubic m/58700 cubic ft
- I'm in Northern Ireland and generally work in metric.
-  Rough sizing of the stratification bell thermal bench would be (external) length: 3.0 m (10') width: 0.50 m (19.5") height: 0.45 m (17.5")

1.   I have read back and forward about ratios and just want to get confirmation on these before I use more time!
- I aim to build based on a 15cm/6" duct.
- The depth of my feed tube will be 30cm/12"
- The length of the burn tunnel will be 45cm/18"
- The riser will be 90cm/36"
- Gap between barrel top and riser top will be 5cm/2"
Does this seem correct?

2.  I am having trouble finding anything definitive regarding the distance the steel drum should be from the straw bale rendered wall or confirmation that standard brick work built up to shield the wall would be an acceptable thermal barrier . . . . . Anyone have any sound idea on this?

3.  The configuration looks like I will need to position the the exit tube from the bell at the same end as the manifold inlet . . . .  will this be an issue?  (Exit at floor level and inlet at the highest level possible.)

Any help useful comments gleefully received.

John

Hey John,
It’s exciting you’re starting the design process for your rocket mass heater.

To 1:
The dimensions sound about right. 30cm is not very deep. Since you have a lot of height in your workshop, why not go a bit higher?

The gap between barrel and riser can easily be a bit bigger. I would aim for 10cm.


To 2:
You could follow your local code as a reference. Just think of the barrel as a exhaust pipe and of your wall as flammable.
I would go for at least 40 cm, but that’s more feeling than knowing.
Where would you put the brick shield? Against the wall? Against the barrel?

To 3:
If I understand correctly, that’s the preferred way. Because you’ll have the barrel “kiss” the exhaust. You will just need to make everything ample enough for good flow.

Could you provide a little sketch for your design? That makes your questions much easier to answer with accuracy.

Hi John
You will be very happy once you get this built!

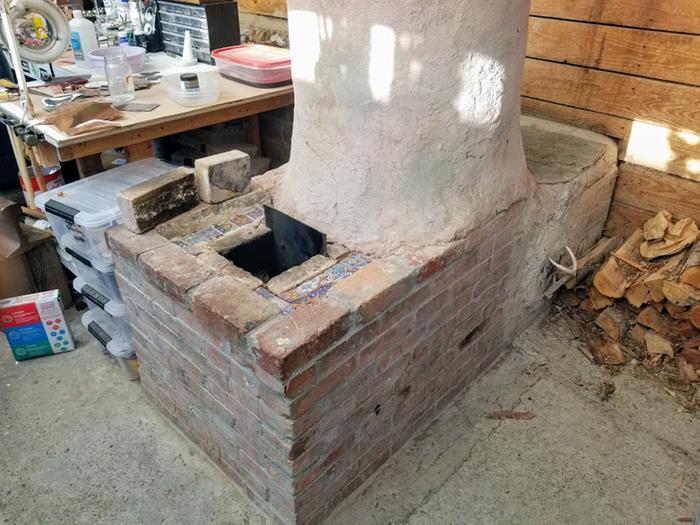

You're building a 6" J-Tube
Your specs will all work, but.
I would suggest increasing your feed tube depth to 40cm (apx 16")
The 45 cm (18") burn tunnel will  work fine, but personally I would lengthen it to 50cm (apx 20")
The riser height is good at 90 cm (36")
The 5cm (2") gap at the barrel top... in the original builds, it was believed that a tight gap increased flow to a piped system.
Over time, it became apparent that fly ash buildup on the top of the riser shrank the gap.
I suggest 7.5cm (3") minimum as your top gap.

Yes, a dry stack brick wall would protect your straw walls.
You can also cob up to 2/3rds of the barrel itself.  (more mass)
By placing your exit chimney next to the transition area, you can easily install a bypass valve to help you start smoke-free in shoulder seasons.

Thank you both for your input.

I've had a look at your suggestions and rejigged my plan slightly.
Because it is a workshop space (I build and run courses in building traditional skin on frame boats) I need to try to minimise the impact of the RMH into the working space and I limited myself in the original barn build by location of power points . . . which limits the places I can have the drum.

I've attached two (very crude) diagrams of the entire plan as it stands.

Once again, any an all useful comments hugely welcome!

Hi, living in Ireland you will have access to calcium silicate board which is available in 8x4 sheets.
That will be a perfect backing to protect the straw wall.
With that is place you can go pretty close, maybe 200mm  but ideally you would stand off the board 50mm so you can monitor the back side heat. If you can justify Magply (trade name for insulation board) they are about £120 for an 8x4 sheet, then do that as the boards has a very high heat rating and insulating properties.
You will also have access to vermiculate board (not readily available in the states) that will offer lots of uses. Vermiculite actually looks like compressed straw so if you are that way inclined, may suit your need best?
You may want to consider a space heater as well, with the use of two barrels and no mass you can heat a large area very quickly and can be built quickly and cheaply.
Of course a mass heater is going to be the best however, I would suggest you seriously consider a batch design and bell or even a J tube and a bell.
Basically a Bach rocket will be far easier to operate in a workshop as they don’t require such regular feeding of the fuel but, are considerably more complex to build.
The latest of Peter’s designs is perhaps the best as you can burn multiple loads in a day without polluting the atmosphere!
One last option is to build a Shorty core (up date batch rocket design) in a bell and also have a basic space heater single barrel J tube for additional, fast radiant heat!
A shorty and bell combo will only need lighting once a day to stop temperatures dropping to much overnight and a space heater J tube built with a single barrel and vermiculite board can be assembled in a day for little money but throw out heat like you won’t believe!

Thank You Fox James.
I'll be looking up the various backing boards.  Almost certainly less trouble than building the brick wall thermal block.!!
