A few pieces of scrap timber, 2 carriage bolts and some screws and glue, and my new workbench has a neat little moxon twin screw vise...
[Thumbnail for DCP_0805.JPG]

William Bronson
Posts: 1491
Location: Cincinnati, Ohio,Price Hill 45205
19
forest garden trees urban
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Cool tool!
Looks like the heads of the bolts are glued(?) to wood knobs.
What is holding the threaded ends?
Or do I misunderstand entirely.

John Hand
Posts: 3
1
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
William Bronson wrote: Cool tool!
Looks like the heads of the bolts are glued(?) to wood knobs.
What is holding the threaded ends?
Or do I misunderstand entirely.

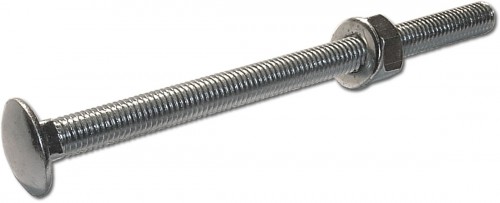

Hi William. The heads of the bolts have 1/4 inch of square shank underneath them, in front of the round rod. They are pressed and glued into the wooden knobs. 2 nuts are set into the vise backplate and holes are drilled into the bench to accomodate the bolts as they are screwed in. Hope that helps
[Thumbnail for carriage-bolt-nut-m12-x-220mm-2651-p.jpg]

Bill Bradbury
pollinator
Posts: 684
Location: Richmond, Utah
32
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

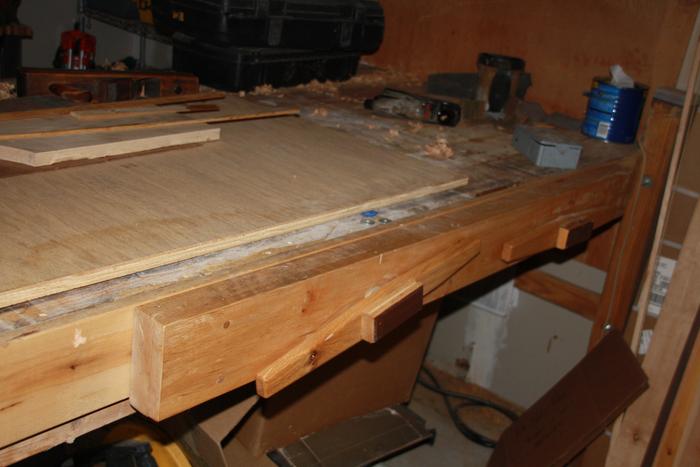

That's really cool, here's the one I made for my shop; 4' long and made of pegged, laminated maple.
[Thumbnail for IMG_7430.JPG]
Vise

John Hand
Posts: 3
1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
That's a nice piece of work Bill.
