Our first RMH


Posts: 97
Location: 6A
16
dog hunting cooking solar woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

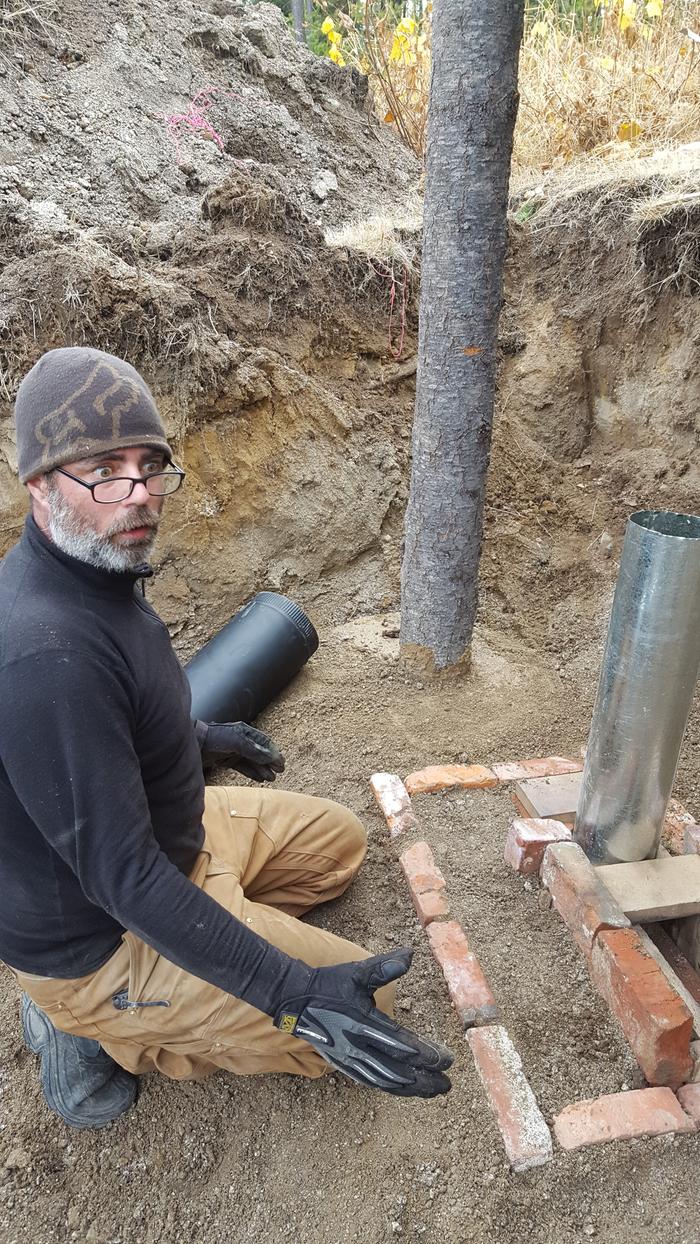

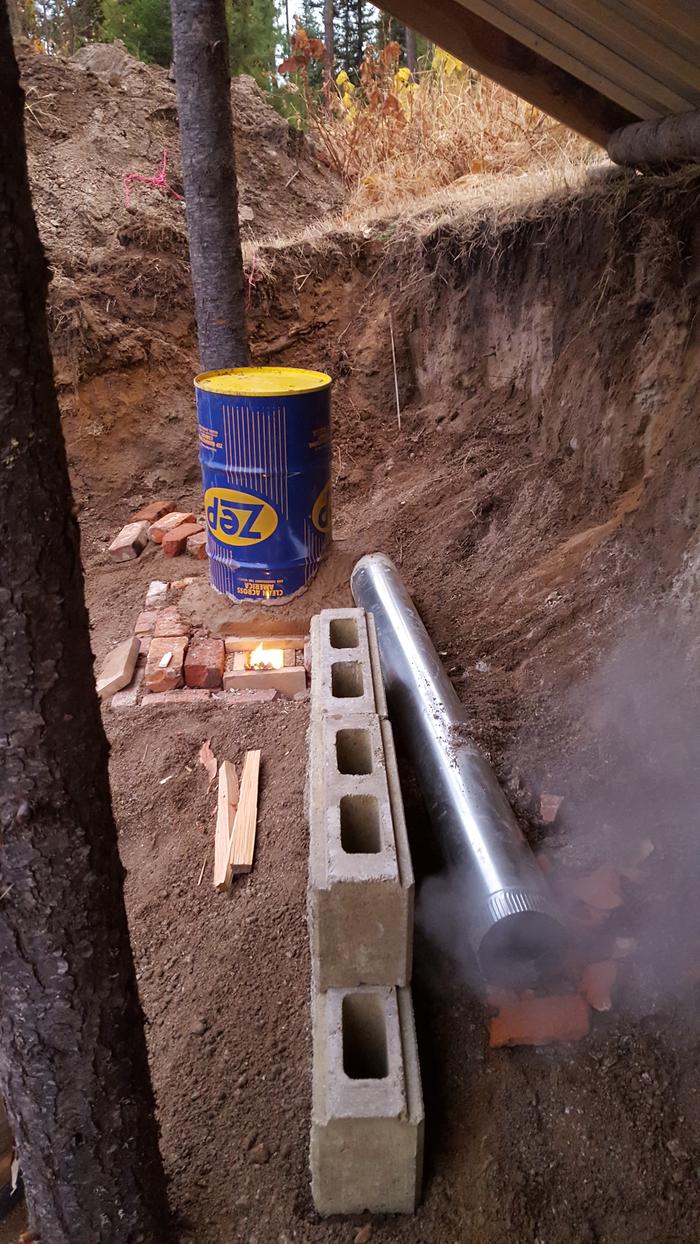

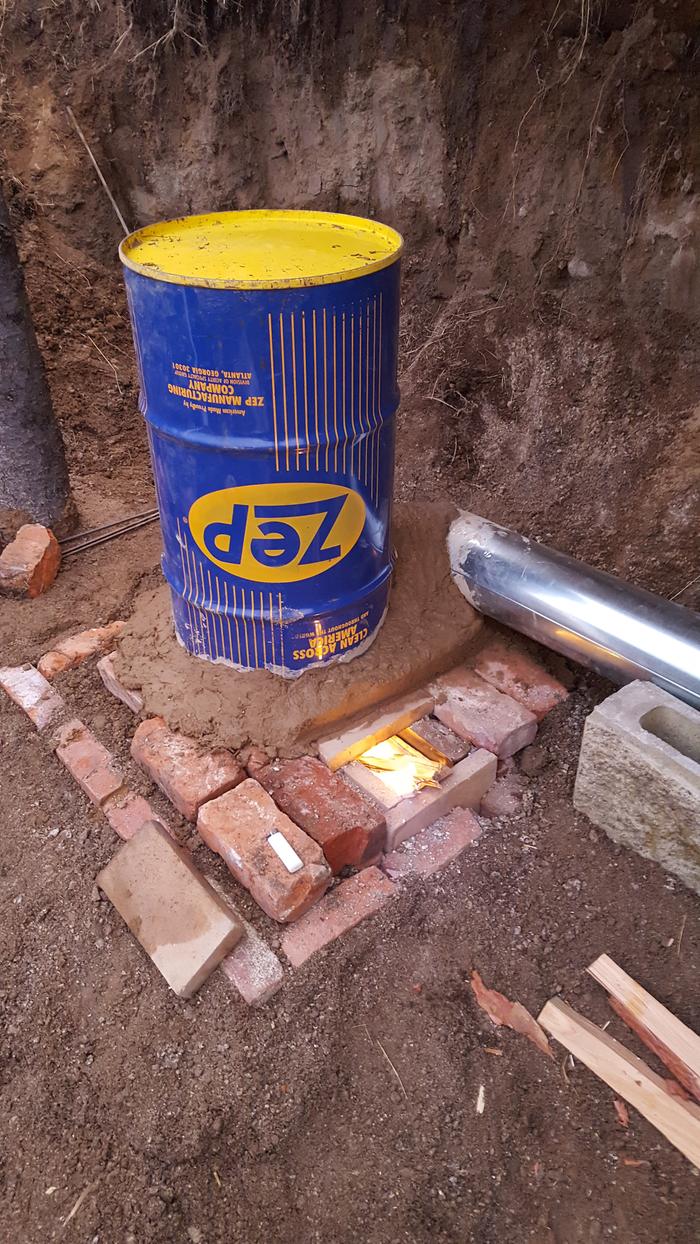

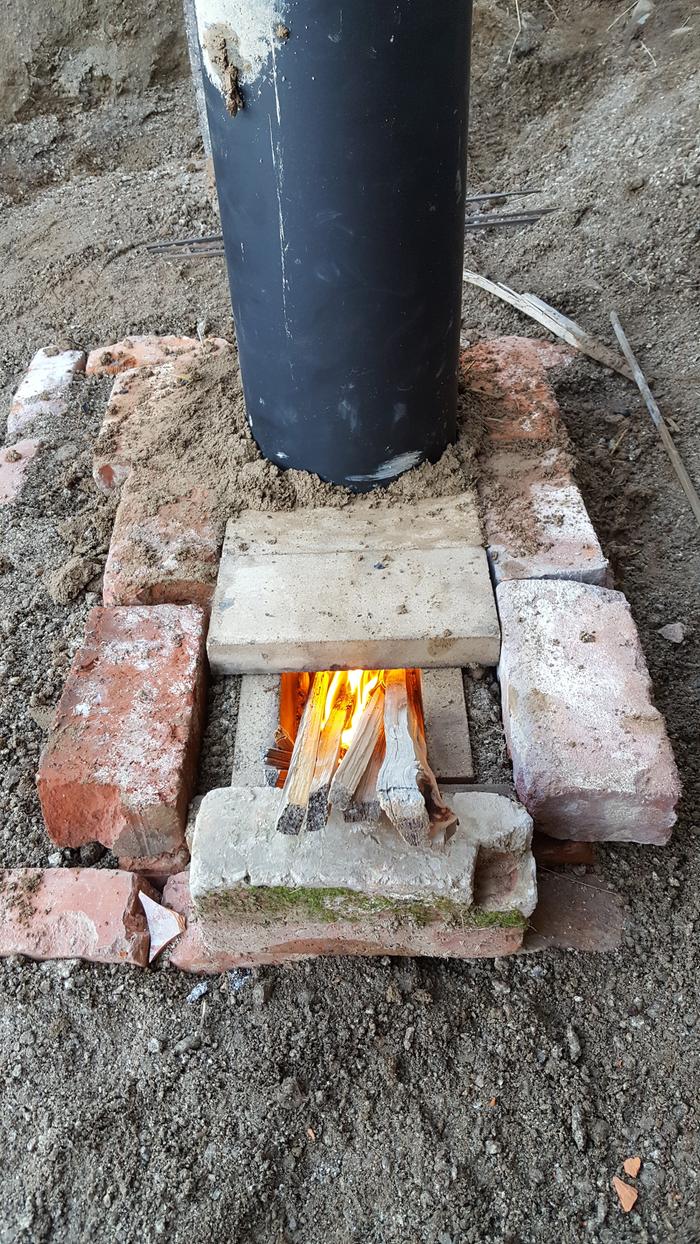

Been wanting to build one for a long time and today was the day. After researching tons and tons....I did none of it! this thing will probably explode soon LOL. But really thanks to Paul and ya'll we finally got it up...ish.
Its not done but it was nice to hear that wooshing sound of VICTORY!
[Thumbnail for 20171023_150219.jpg]
[Thumbnail for 20171023_155701.jpg]
[Thumbnail for 20171023_155151.jpg]
Mia approves
[Thumbnail for 20171023_175207.jpg]
[Thumbnail for 20171023_175157.jpg]

jim hughes
Posts: 97
Location: 6A
16
dog hunting cooking solar woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

jim hughes
Posts: 97
Location: 6A
16
dog hunting cooking solar woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
I rebuilt the J tube today burns a little better. top of the barrel idles around 700-750 I hit 800 a few times. Does that seem about right?

jim hughes
Posts: 97
Location: 6A
16
dog hunting cooking solar woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Work

gardener
Posts: 3171
Location: Southern alps, on the French side of the french /italian border 5000ft elevation
145
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
You don't have a vertical chimney?

If not- it will never work well.

jim hughes
Posts: 97
Location: 6A
16
dog hunting cooking solar woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

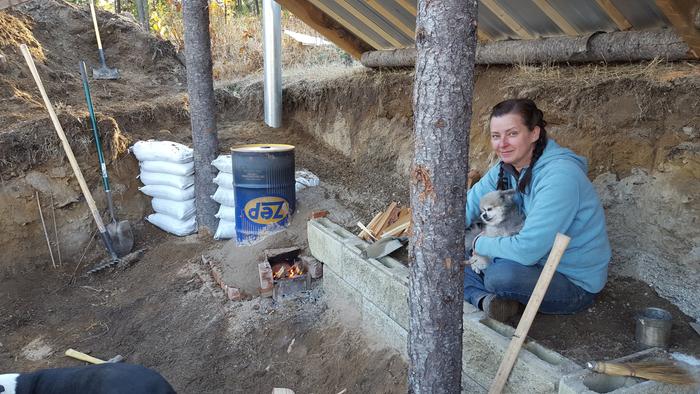

Worked on it today a bit. I think its dialed in. It has a vertical chimney this was just moch up.
[Thumbnail for 20171028_095917.jpg]
[Thumbnail for 20171028_141329.jpg]
[Thumbnail for 20171028_144709.jpg]

Satamax Antone
gardener
Posts: 3171
Location: Southern alps, on the French side of the french /italian border 5000ft elevation
145
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator

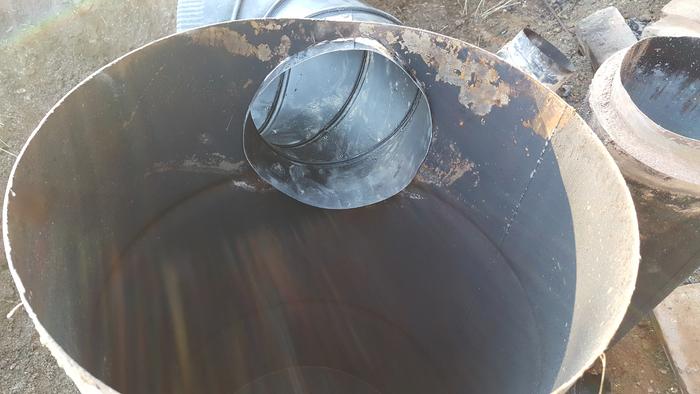

This is your transition area?

Too small.

https://permies.com/mobile/t/61657/Flue-exhaust-transition-plenum-pictures

Posts: 145
7
  • Likes 1
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Yup, make the manifold big....
[Thumbnail for 20140902_121533.jpg]

jim hughes
Posts: 97
Location: 6A
16
dog hunting cooking solar woodworking
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
This was my experiment. Thanks so much for all the help. I am real happy with the way this thing is running right now. I got over 900 on the barrel and the mass was charged in three hours and was warmish this morning (last burn at 6 pm checked at 5 am). I will run this version for a while, at least till I get the walapini closed in, and rebuild it in the future. A few things I need to do: more exhaust, I have about 16' in the mass. Larger manifold, proper clean out. I think that will about finish up. I also need to do a little R&D on my cobb lol. This works but its a little prone to cracking. We are on a budget so all of what you see was just stuff we have here or got cheap on craigs.

Thanks again

gardener
Posts: 2611
Location: latitude 47 N.W. montana zone 6A
426
cat pig rocket stoves
  • Mark post as helpful
  • send pies
  • Quote
  • Report post to moderator
Adding more sand to your cob mix should help on the cracking.
