Sidewinder rocket stove-- Walker variation


pollinator
Posts: 158
Location: Czech Republic; East Bohemia; Latitude 50˚ 12' 34"
41
11
  • Likes 9
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
So back in 2019, I built this prototype rocket stove to heat water. I think it would work great to make maple syrup, but I digress. I didn't like the metal in the burn chamber in rocket stoves. The double rocket pizza oven burned out the secondary air feeds rather quickly. So I thought I would make a channel outside the chamber to do it. I used metal here on the prototype, but I've since built a batch burn RMH with just fire brick for the feed. Anyway I have a lot of pictures of it. First is the overall configuration and the next set are the measurements.
It burned really well and very hot. I will use the design for brewing beer, but I will insulate the sides much more as it gets extremely hot. My friend had a laser thermometer on the bricks in the fire chamber while it was in Holland and it was 458C over 900F two hours after it went out. This can easily be done by cutting the firebricks to make the two channels. Or in the midwest they make handy firebricks with three tube like holes through them. Makes it easier
Anyway, I meant to share this back then, but I've been super busy these last few years. Sorry about that. I hope this can be helpful to anyone wanting to make a sidewinder.
And Thank you for the Walker stove inspiration.

Jason

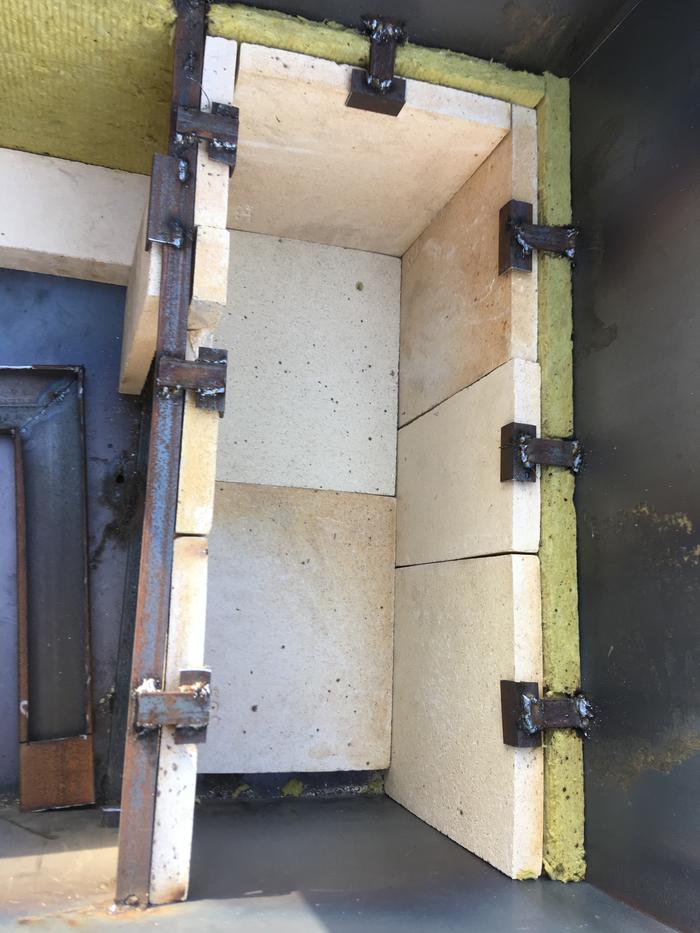

Burn chamber in background with air feed in foreground
Burn chamber in background with air feed in foreground
Venturi air feed at port
Venturi air feed at port
top view with tertiary air left side near port
top view with tertiary air left side near port

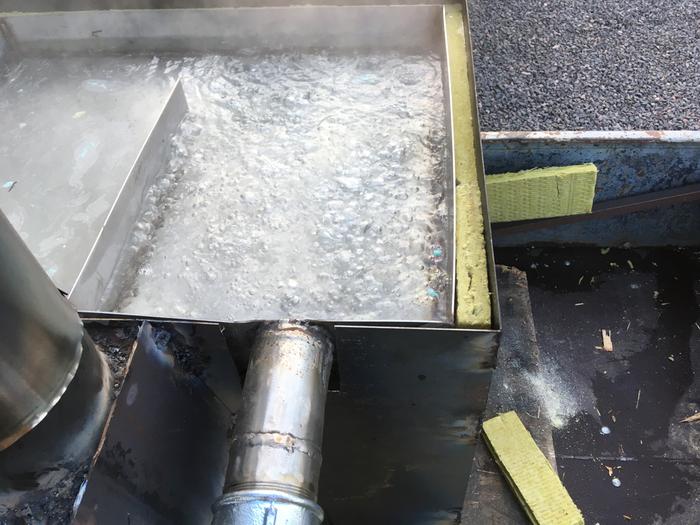

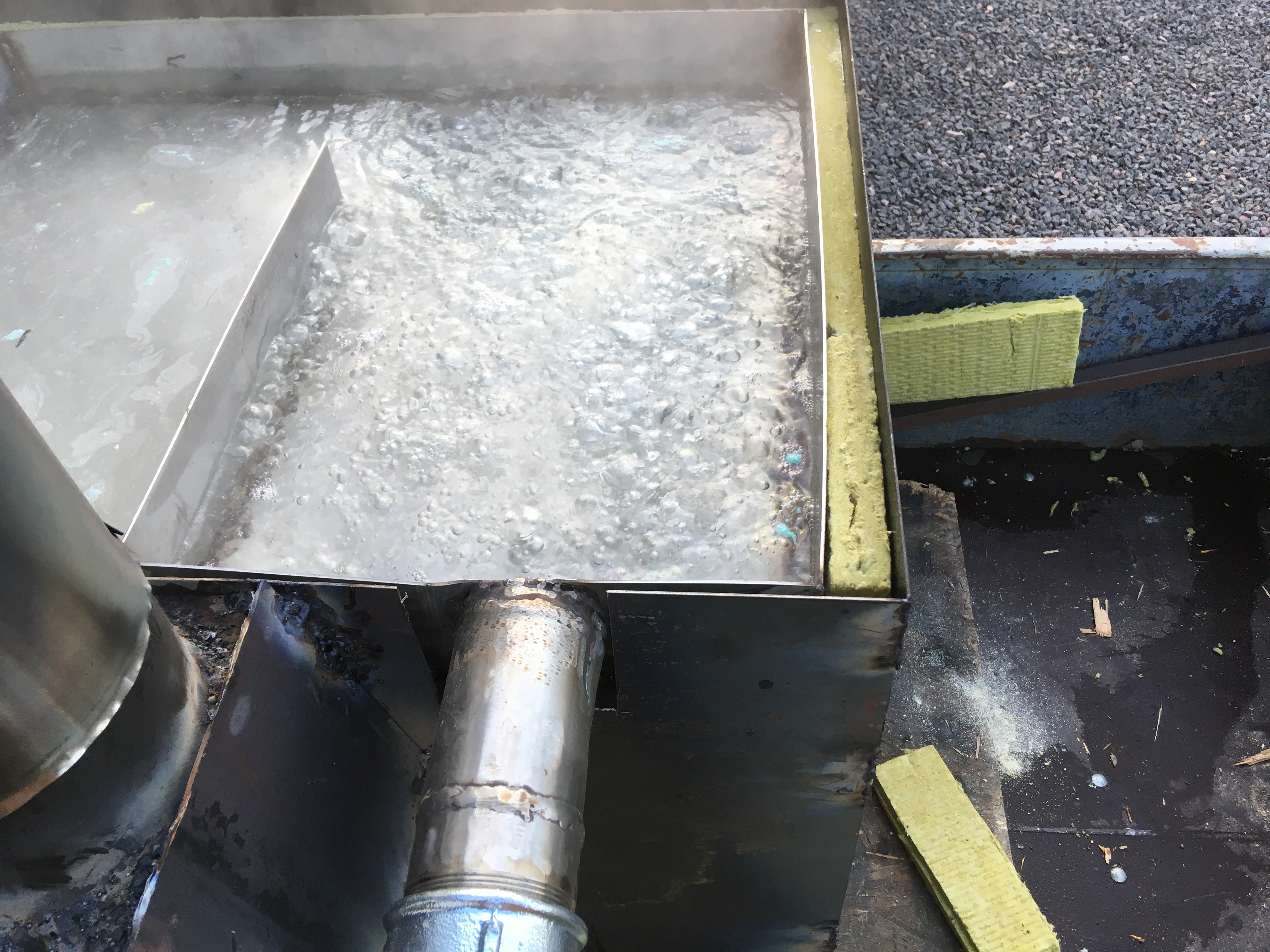

bubble bubble toil and trouble
bubble bubble toil and trouble
Ready for test fire
Ready for test fire

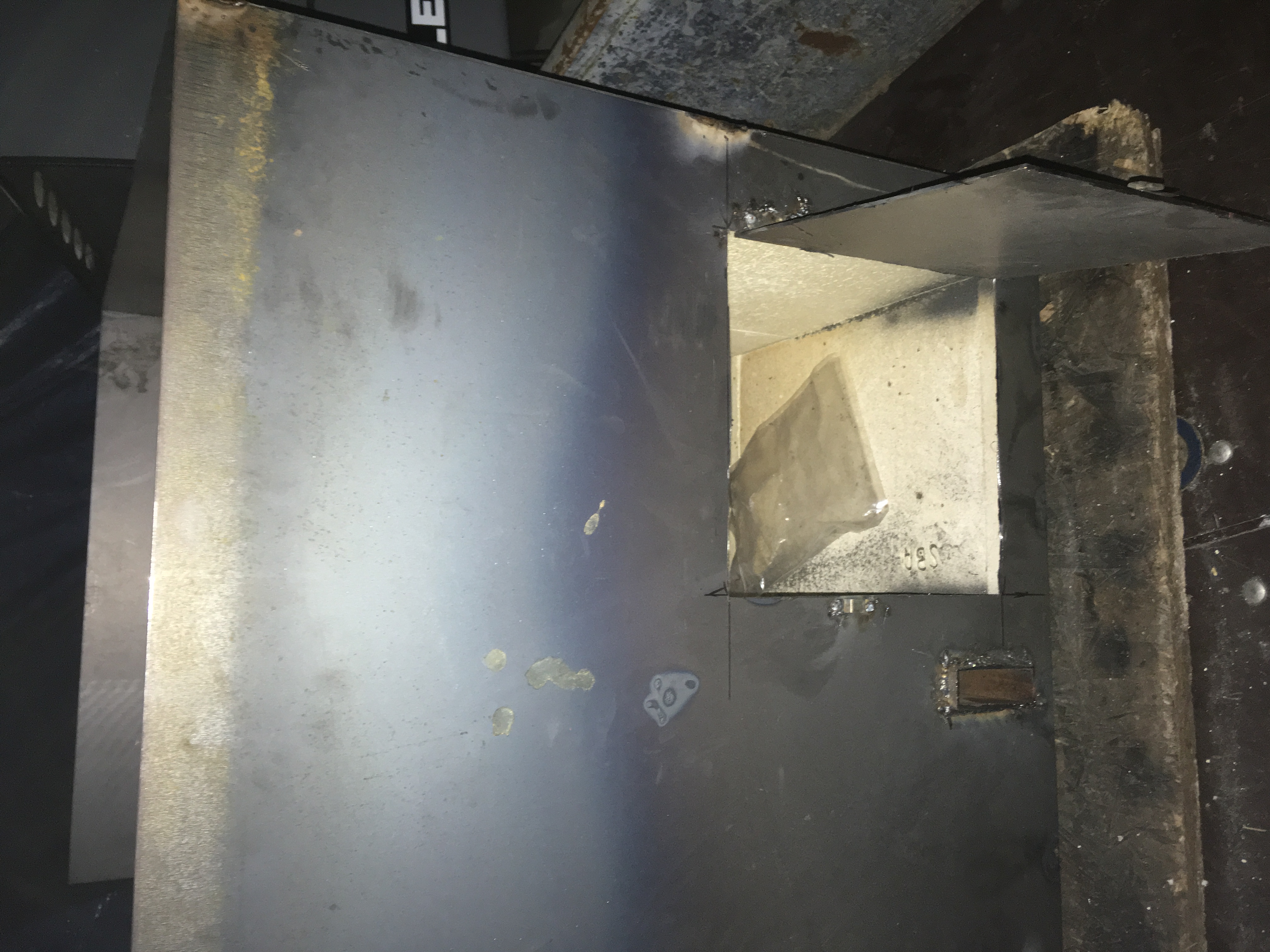

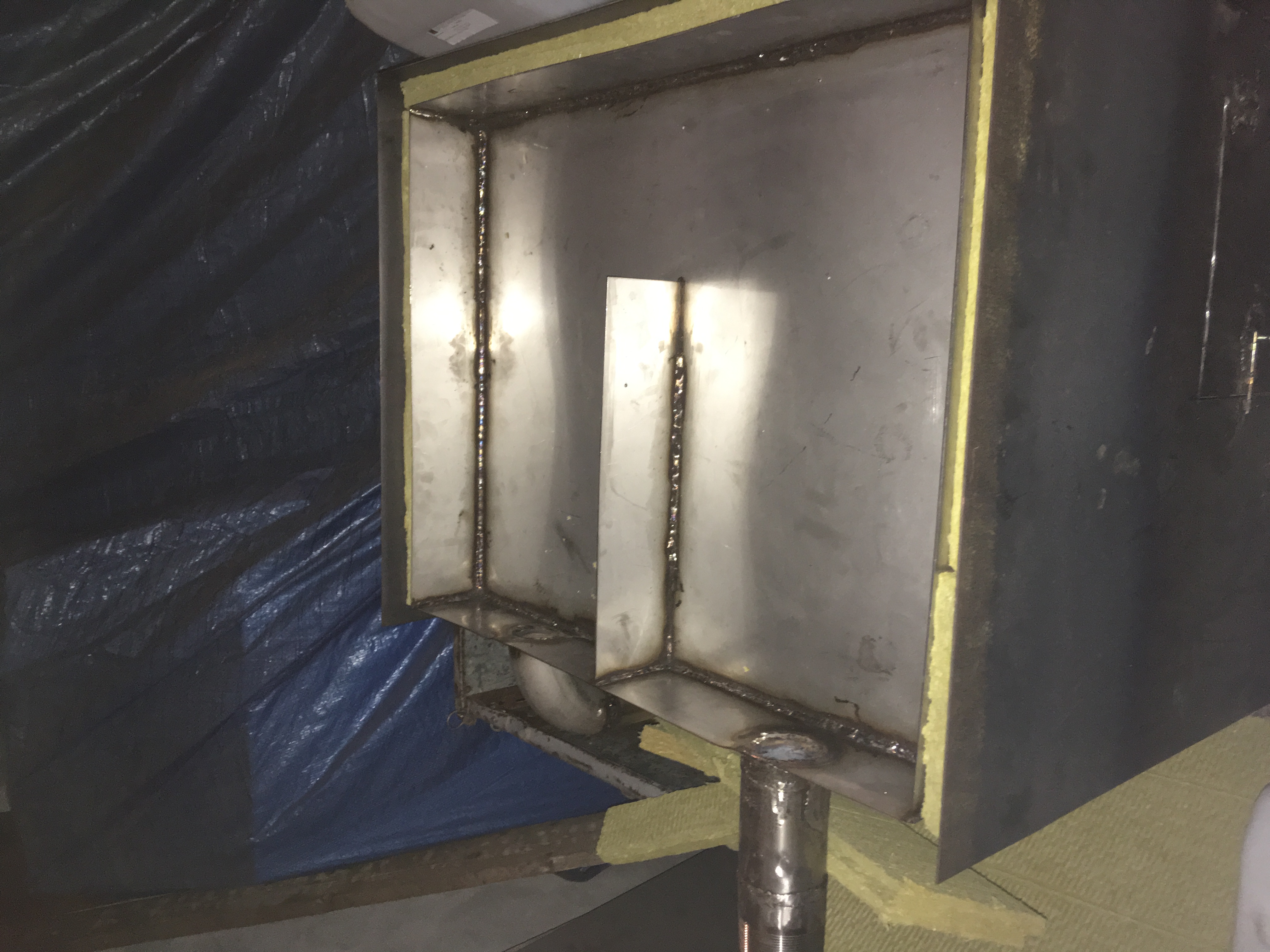

Under the stainless
Under the stainless

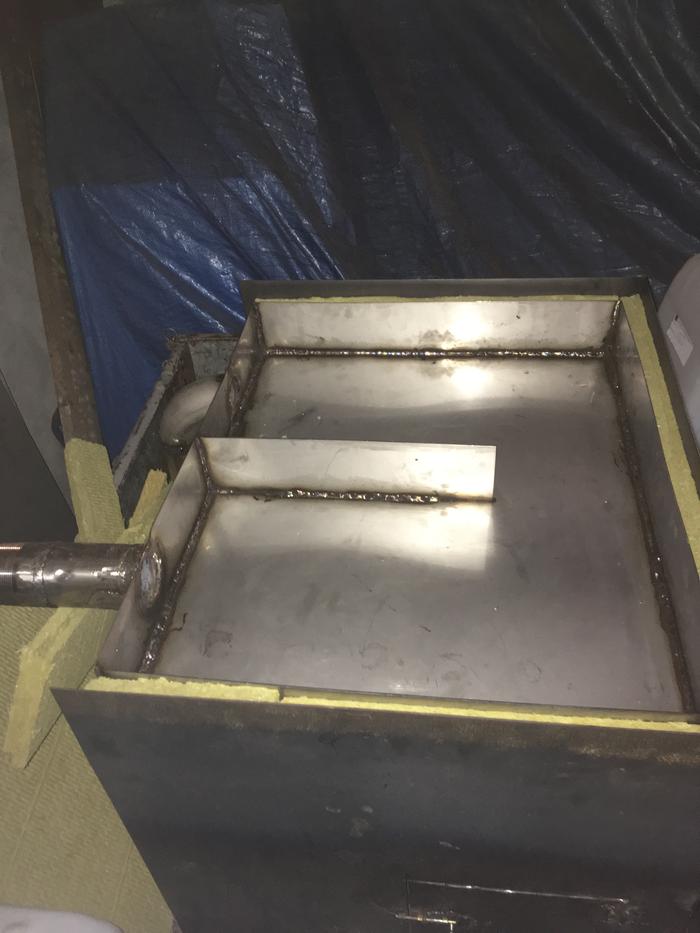

stainless water boiler, much more suited for syrup I think
stainless water boiler, much more suited for syrup I think

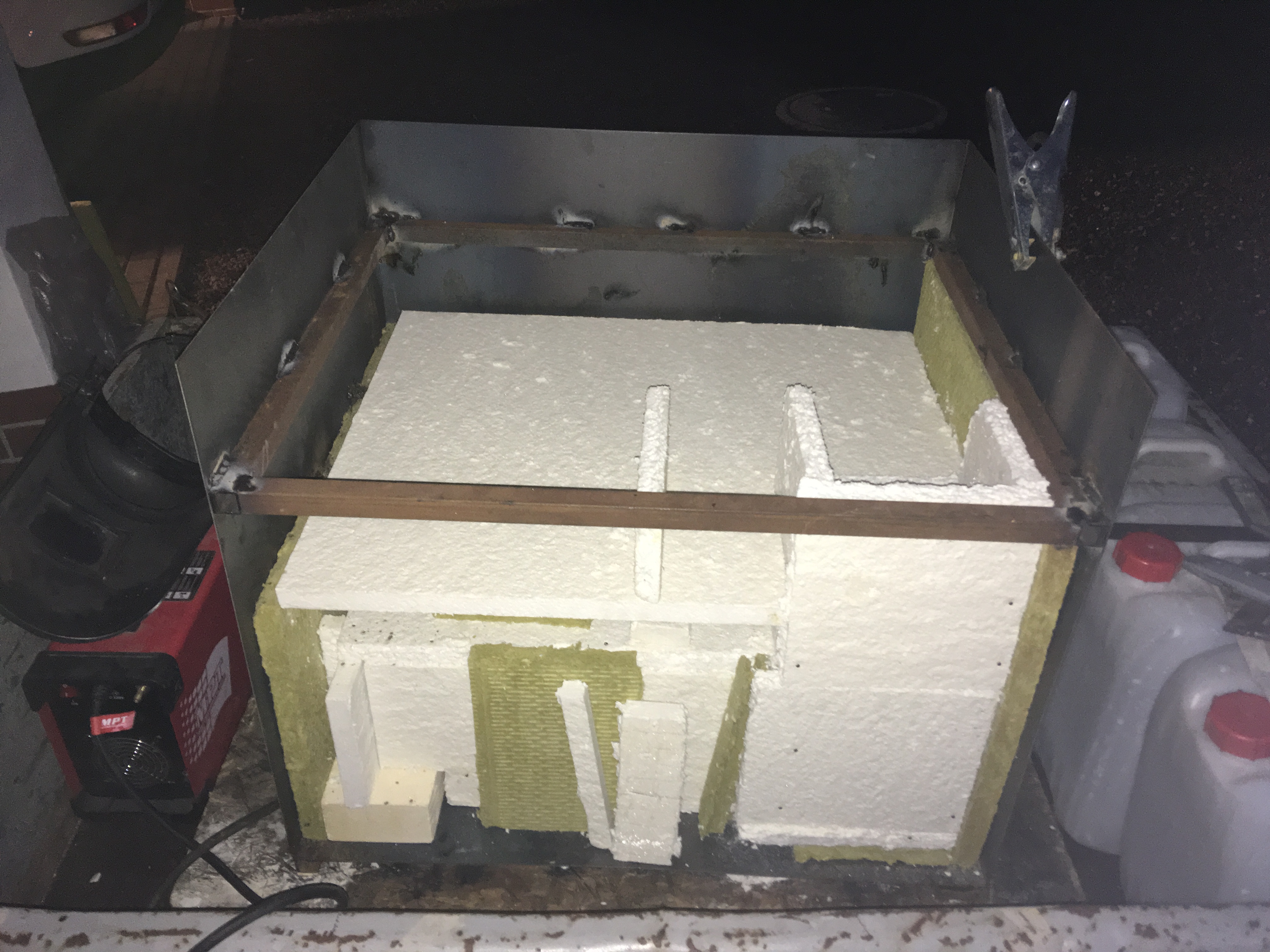

Duraboard top, kind of a waste of material-- heat rises and duraboard is not so strong laying flat
Duraboard top, kind of a waste of material-- heat rises and duraboard is not so strong laying flat
The walker riser-ish thingy
The walker riser-ish thingy

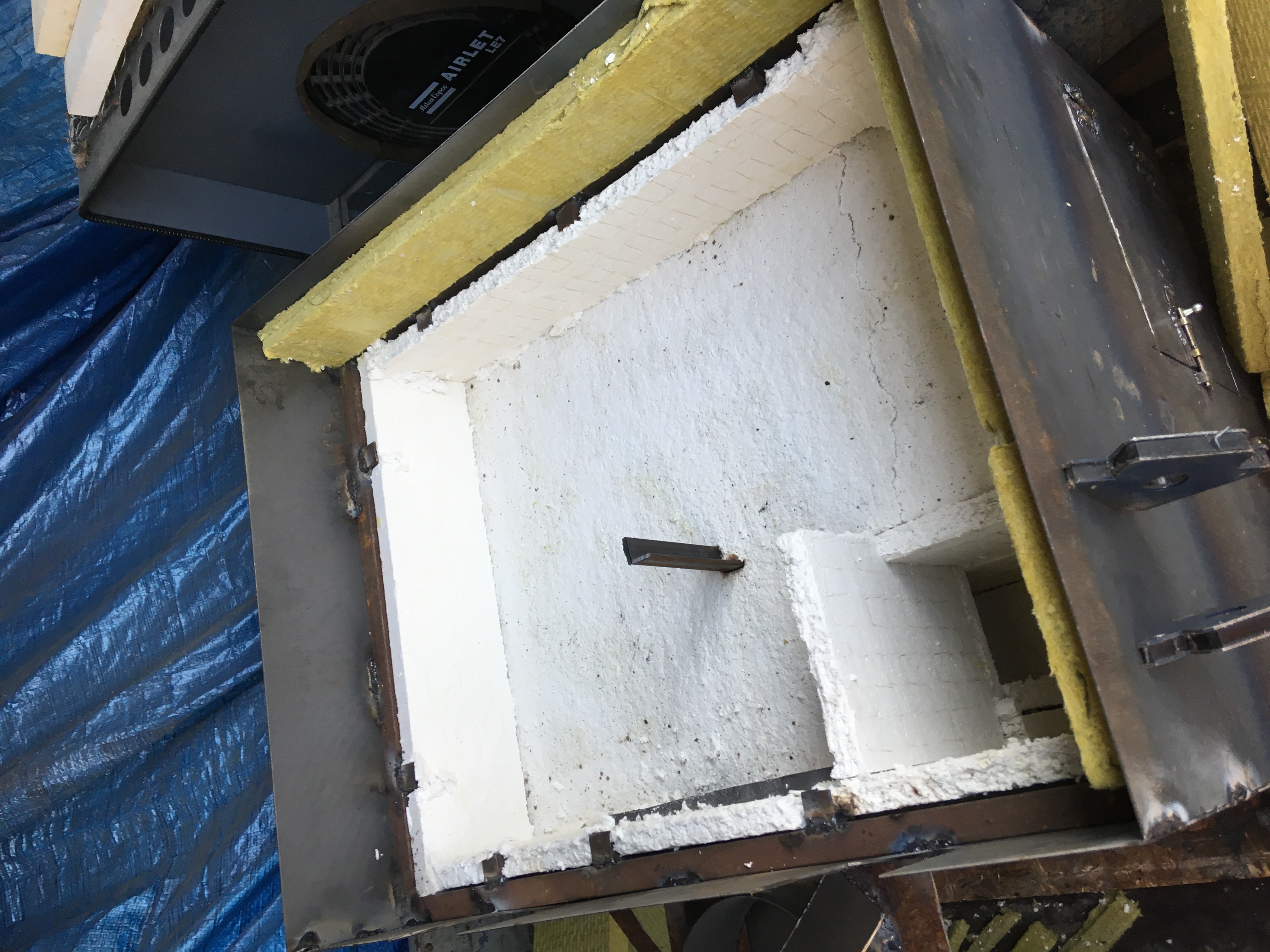

Burn tunnel in duraboard
Burn tunnel in duraboard

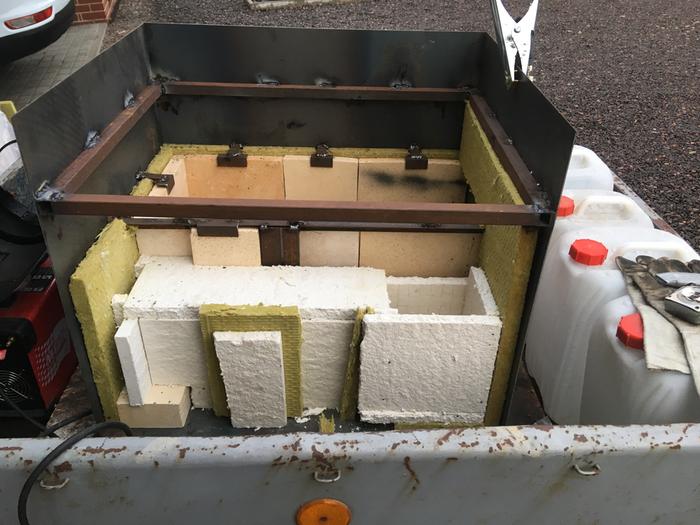

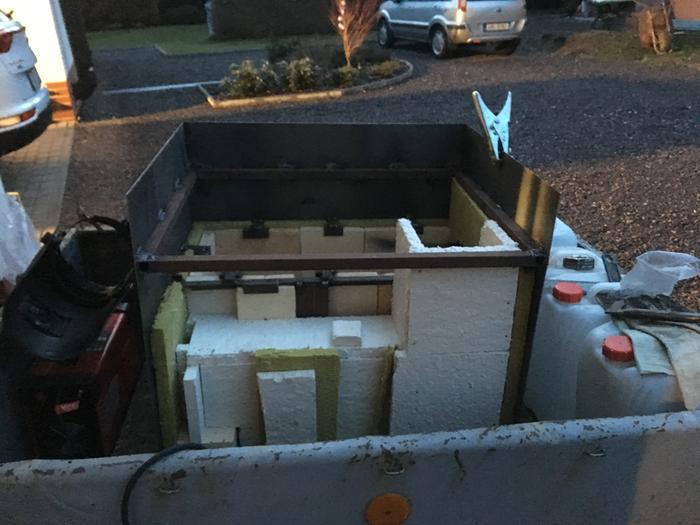

front of the ugly prototype
front of the ugly prototype

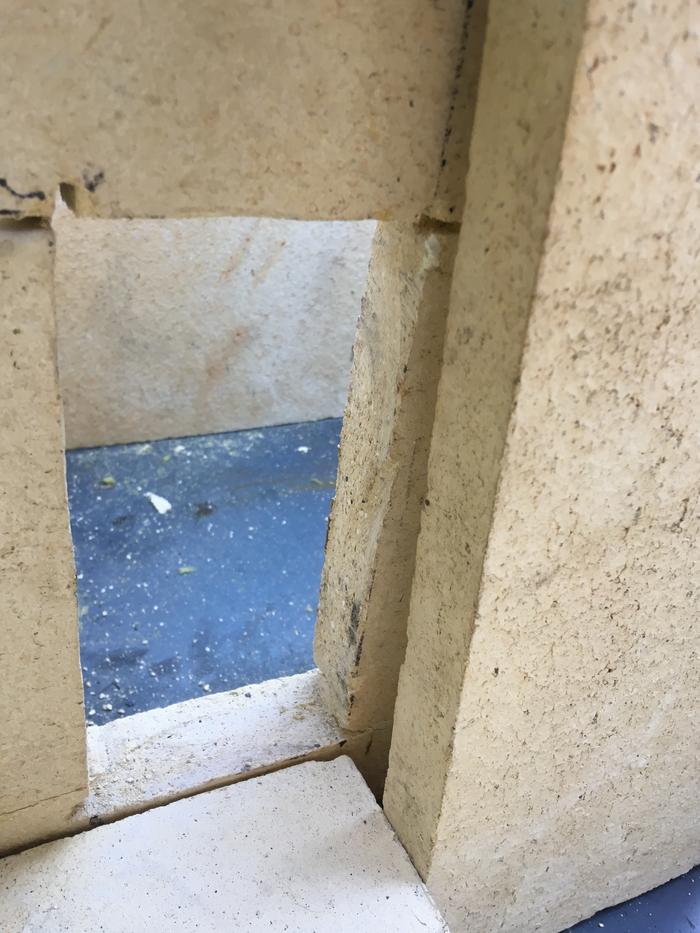

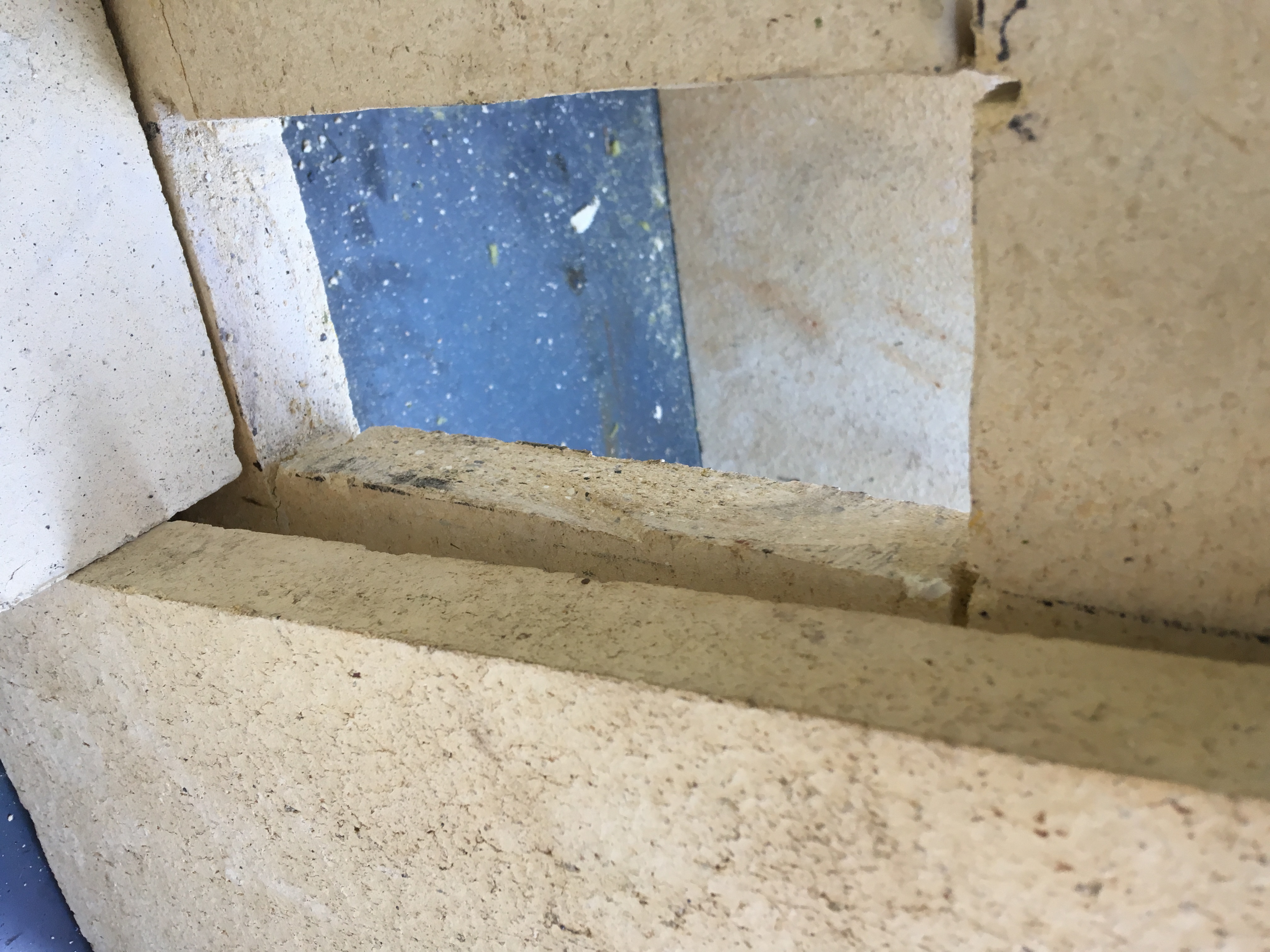

Beginning of the burn tunnel
Beginning of the burn tunnel
Secondary/tertiary air installed
Secondary/tertiary air installed

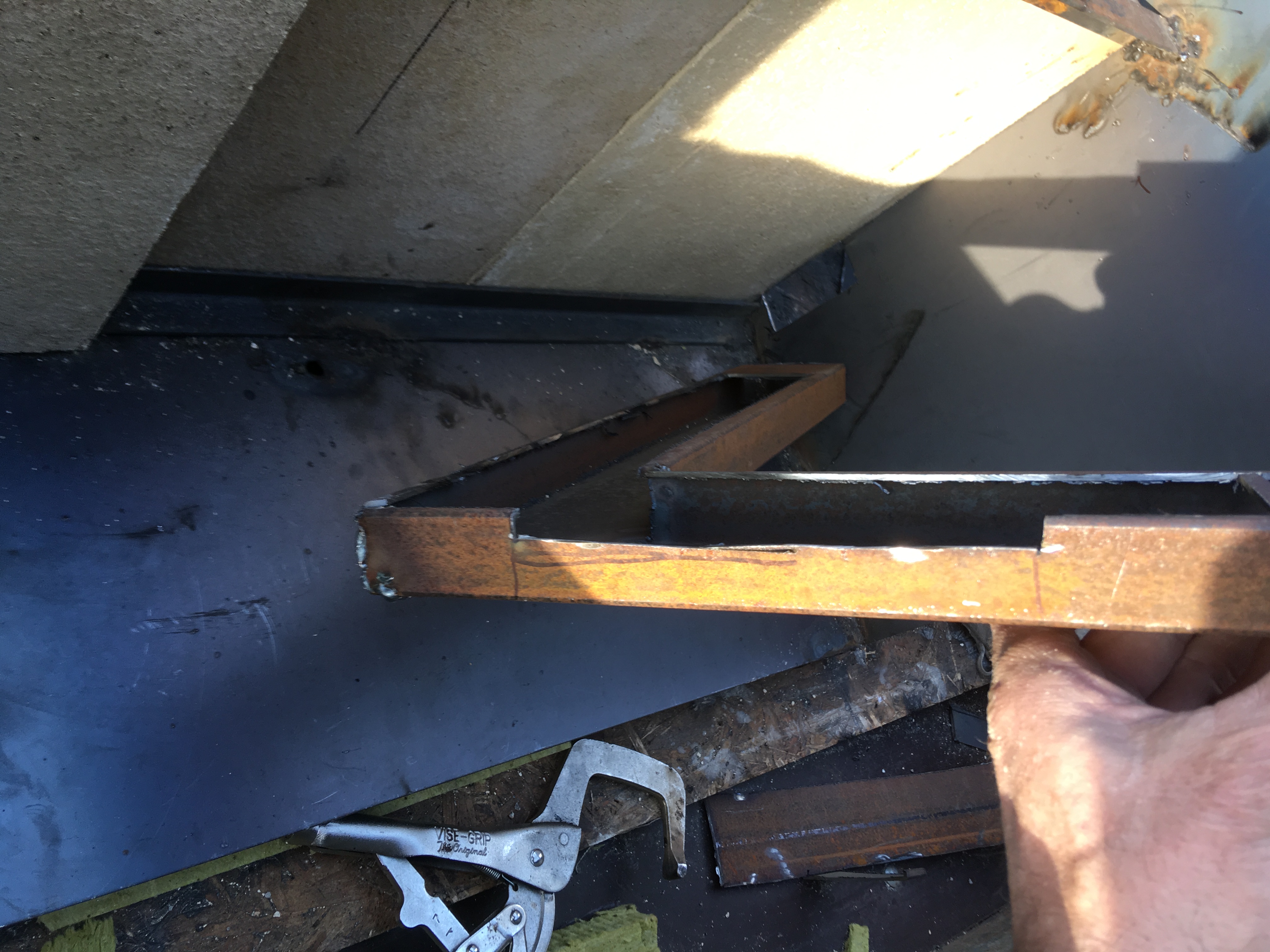

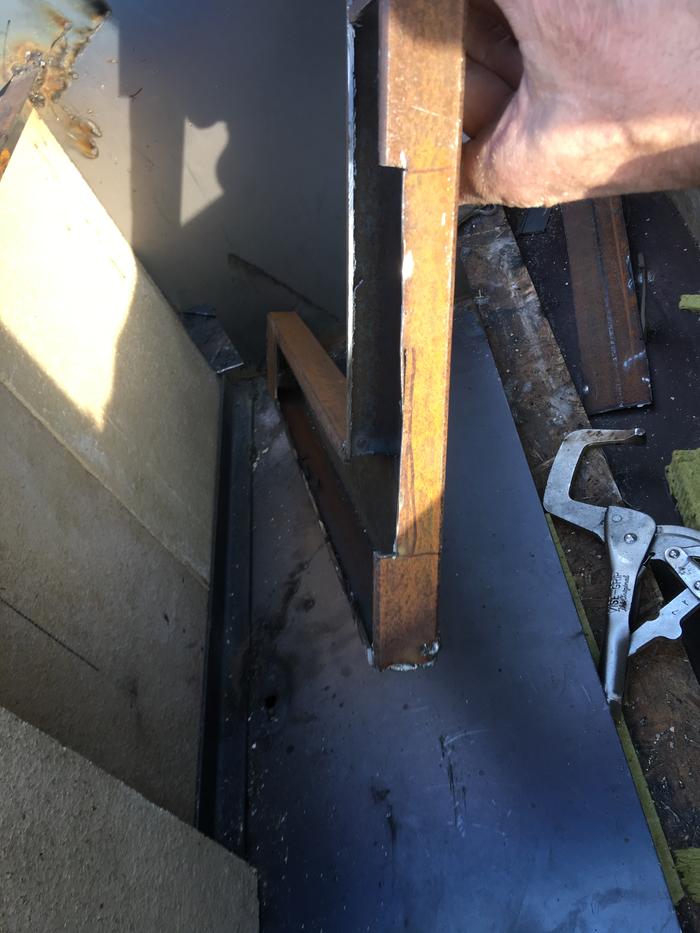

Air feed showing the cutout for the venturi and the back removed to gather heat from chamber
Air feed showing the cutout for the venturi and the back removed to gather heat from chamber

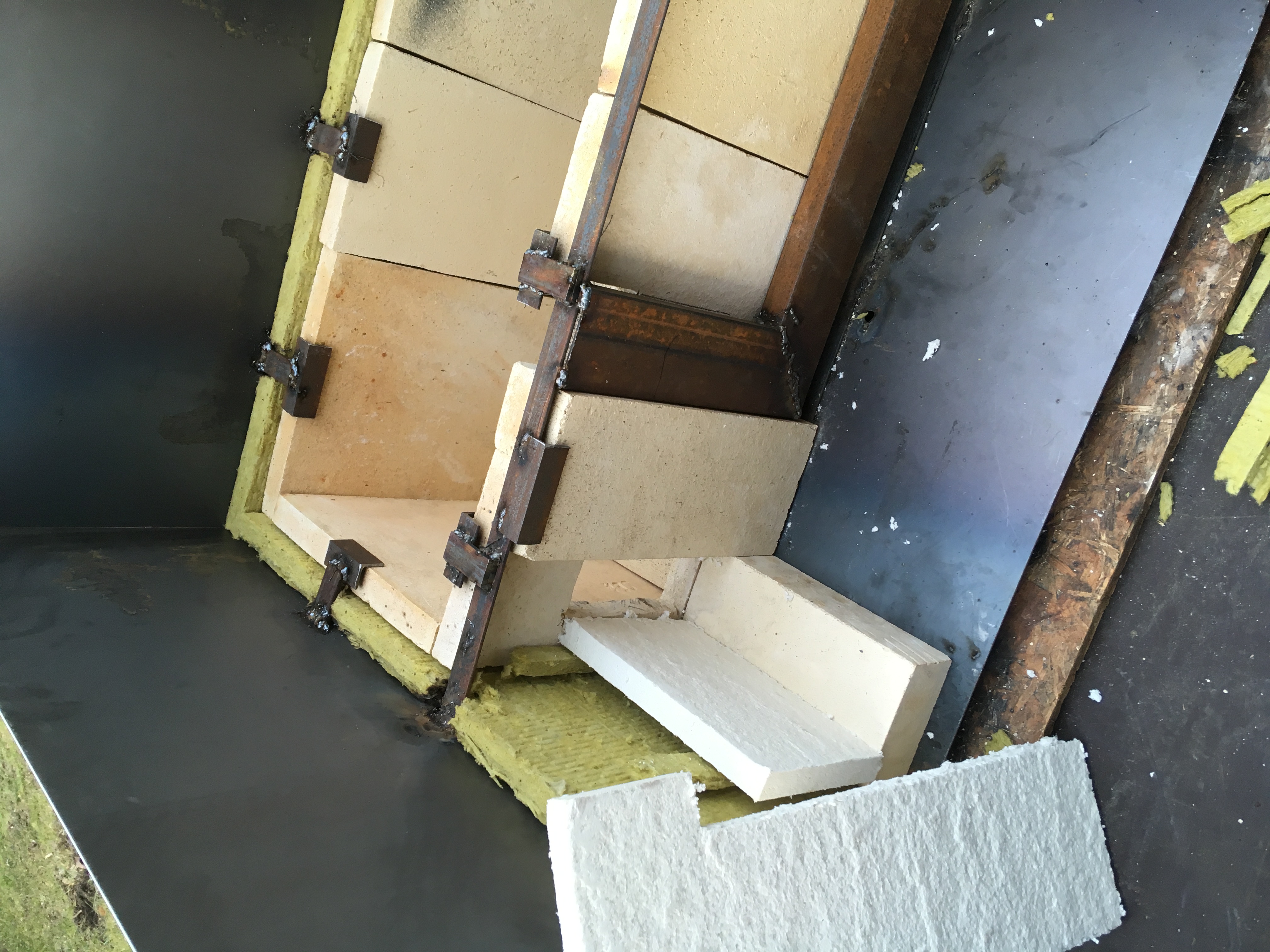

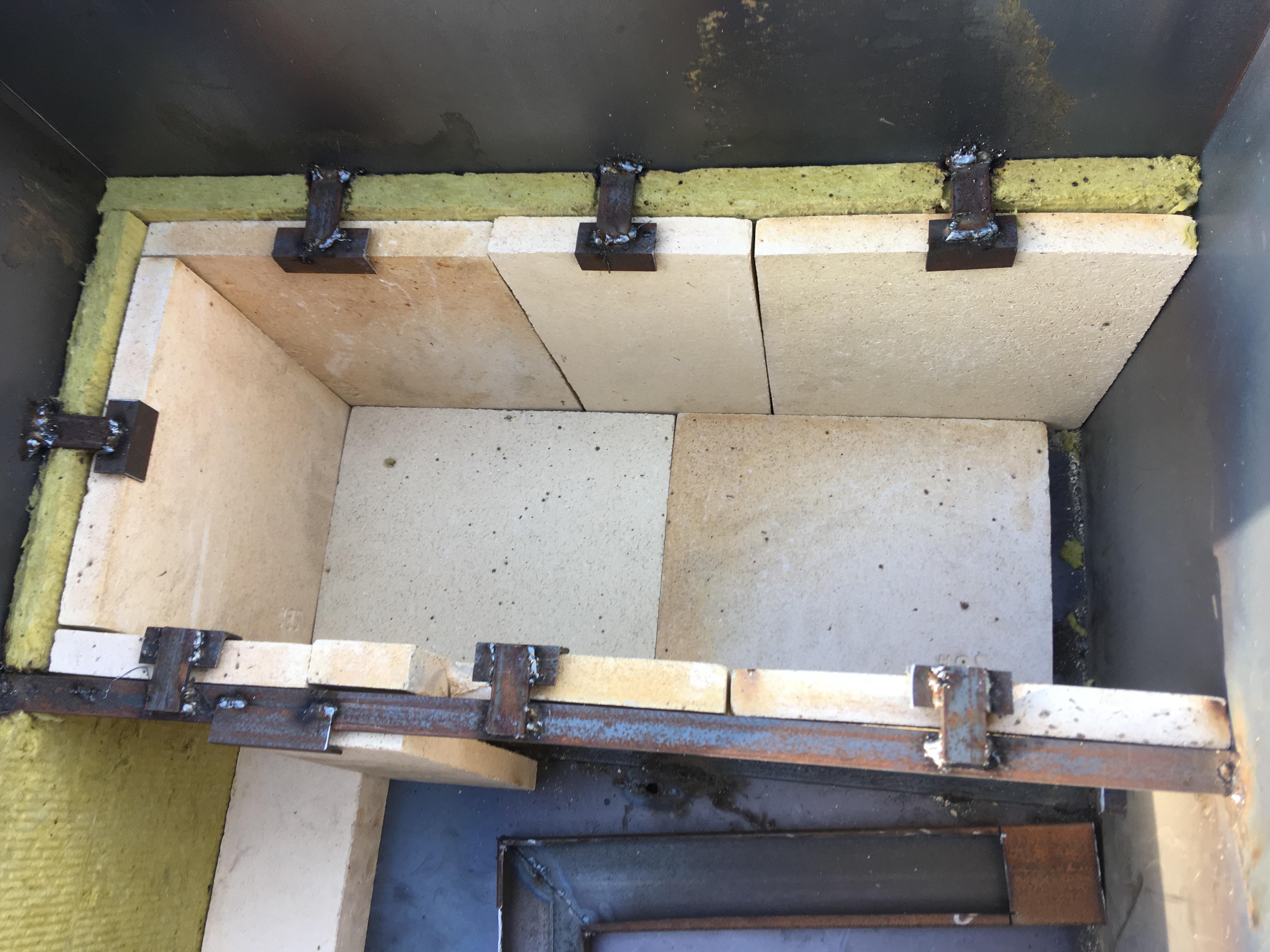

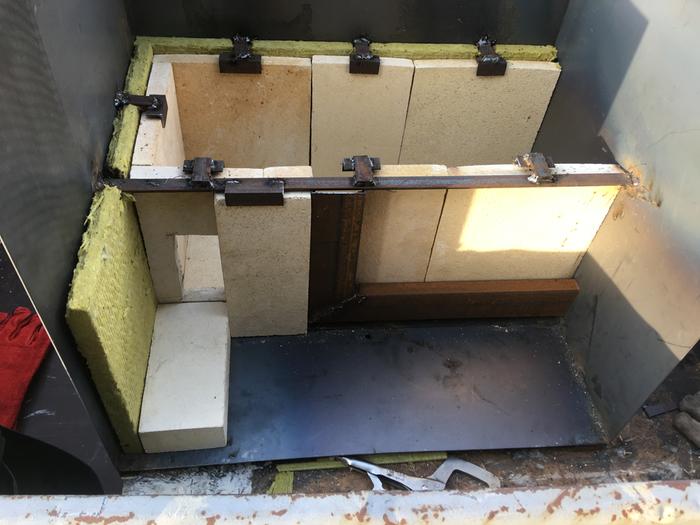

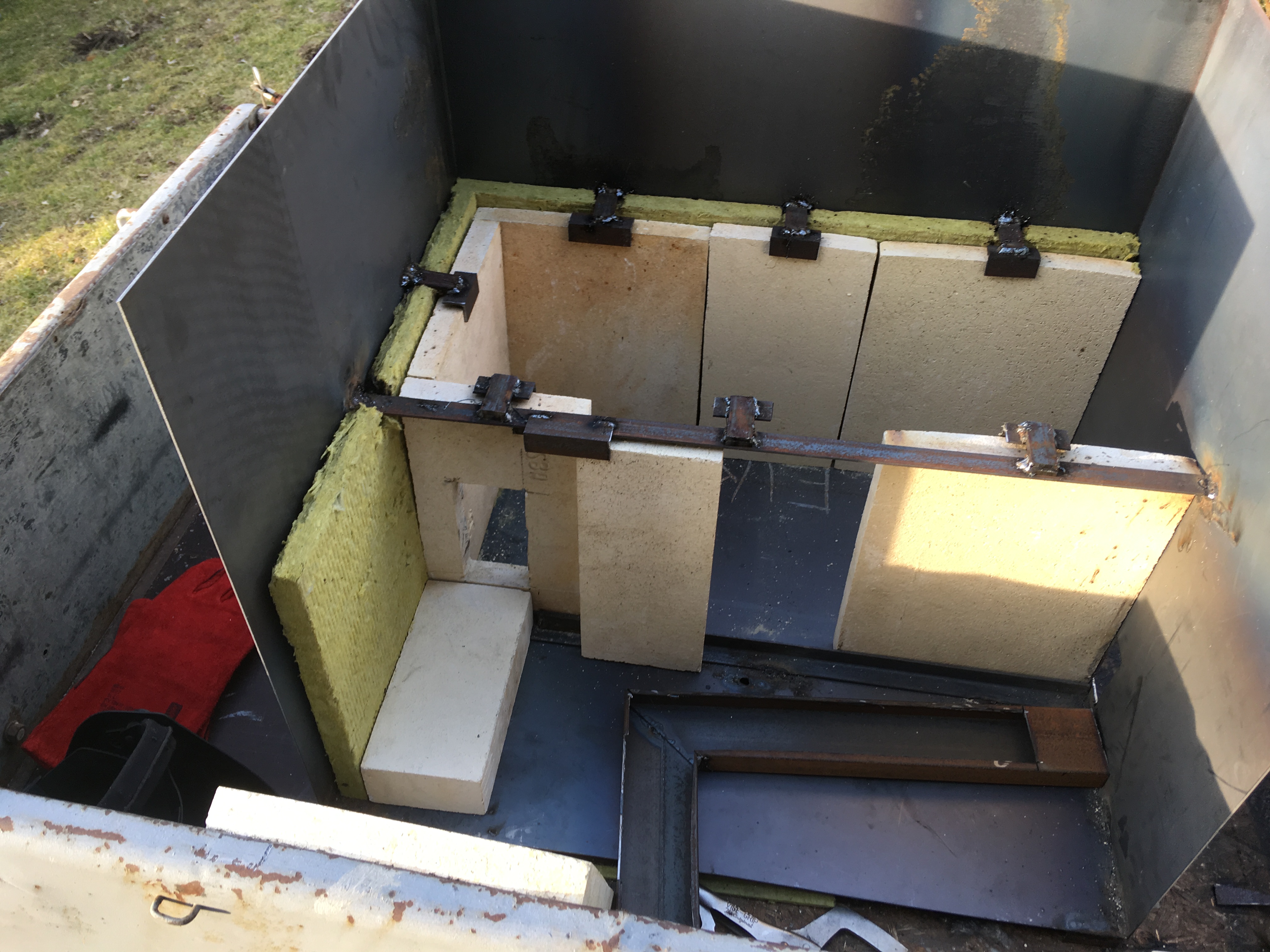

Bottom firebricks hold the side bricks in place, I should have insulated underneath, prototype :)
Bottom firebricks hold the side bricks in place, I should have insulated underneath, prototype :)

Jason Learned
pollinator
Posts: 158
Location: Czech Republic; East Bohemia; Latitude 50˚ 12' 34"
41
11
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

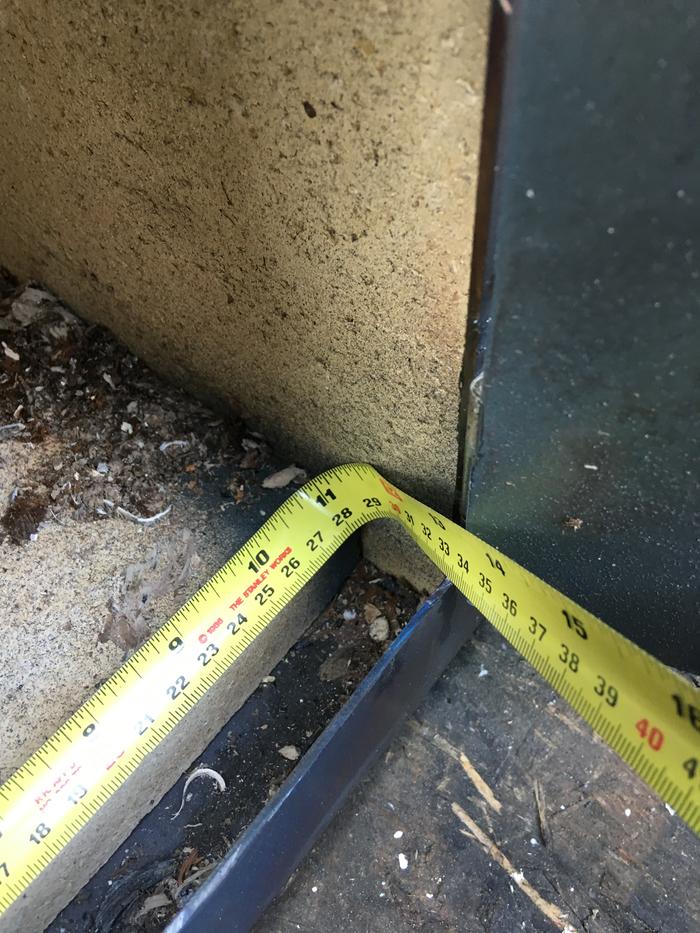

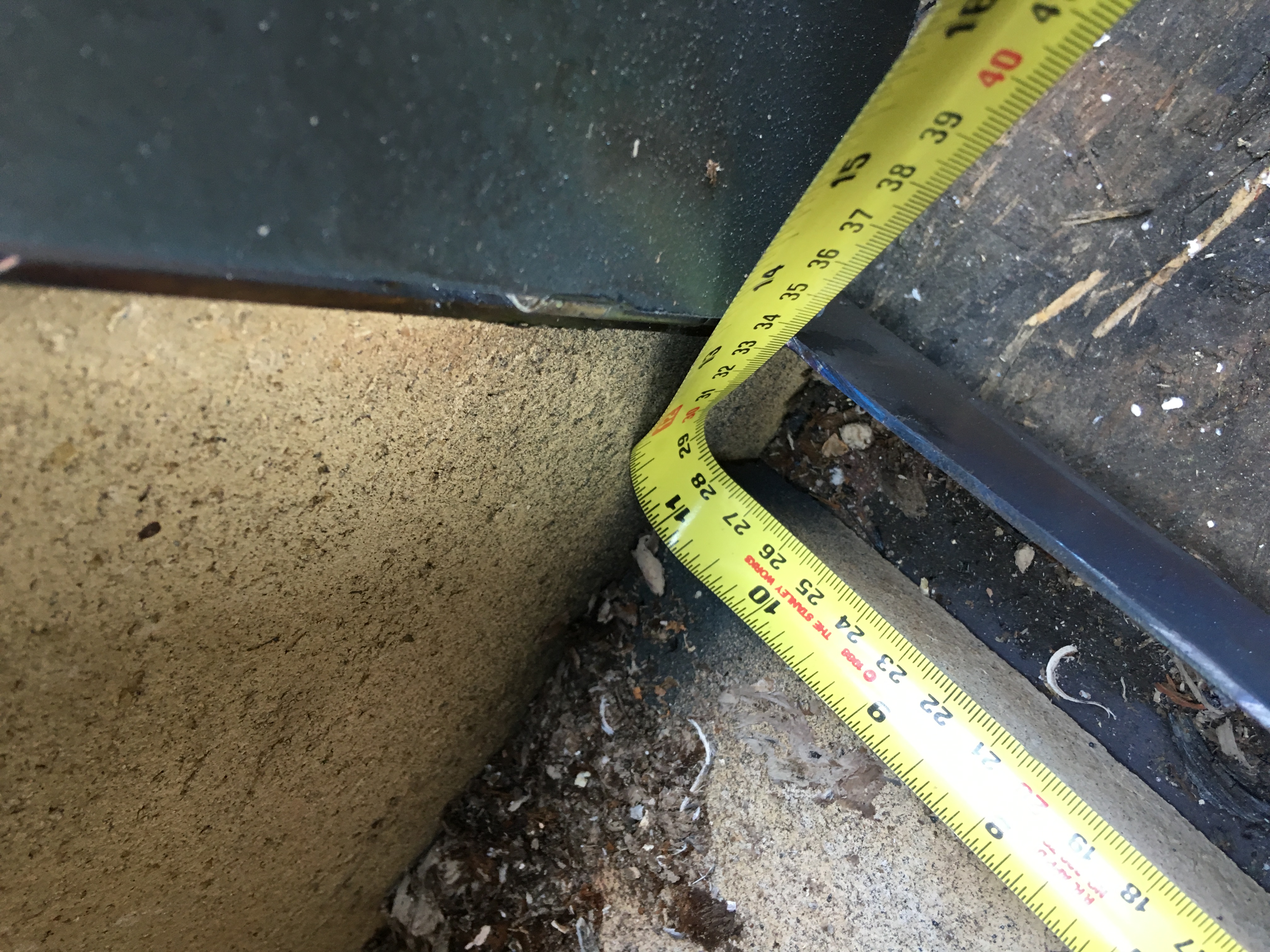

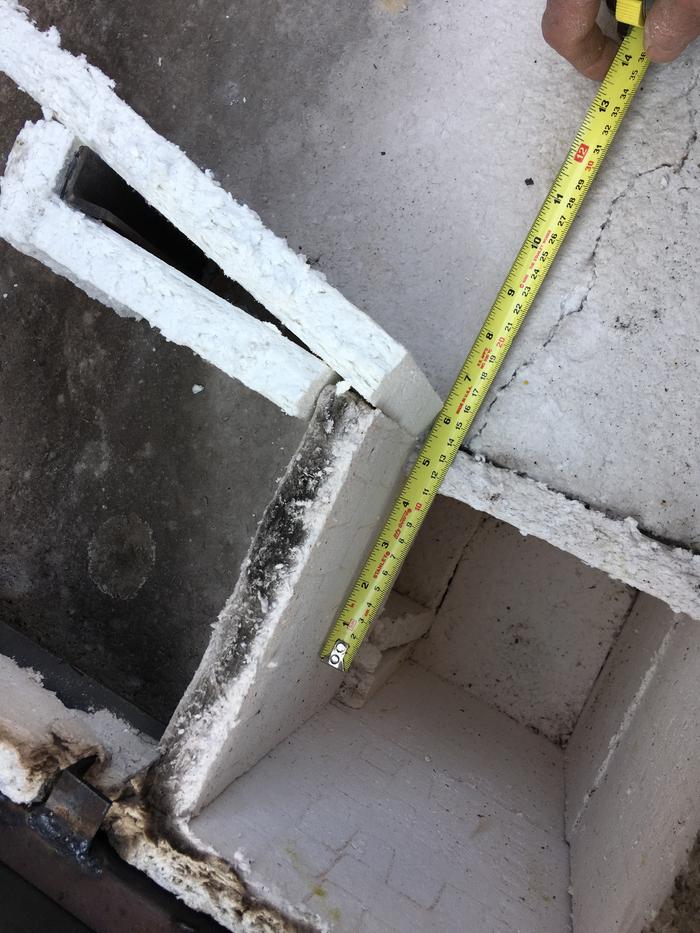

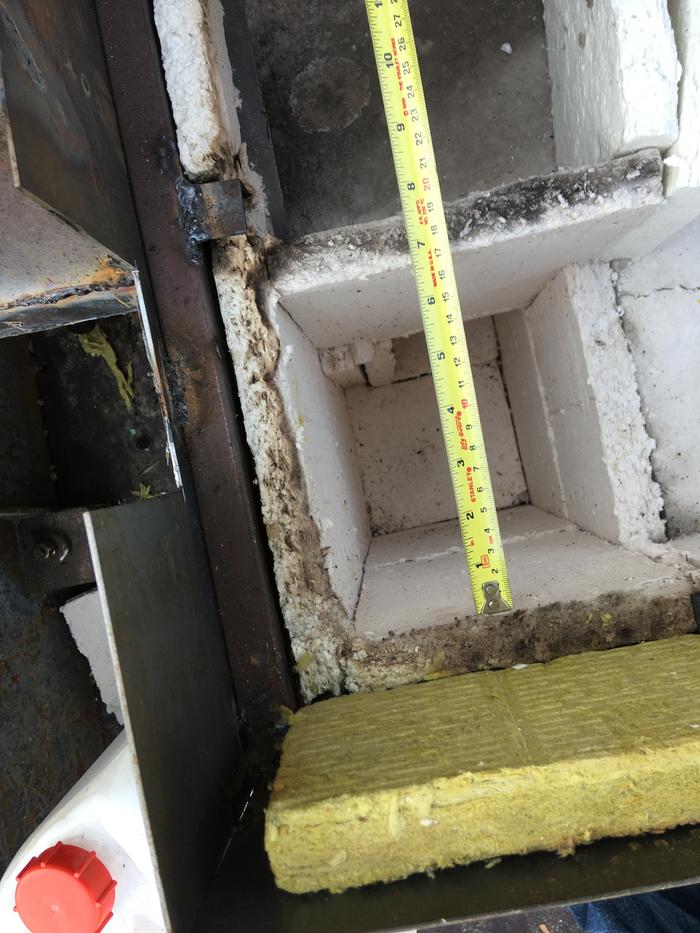

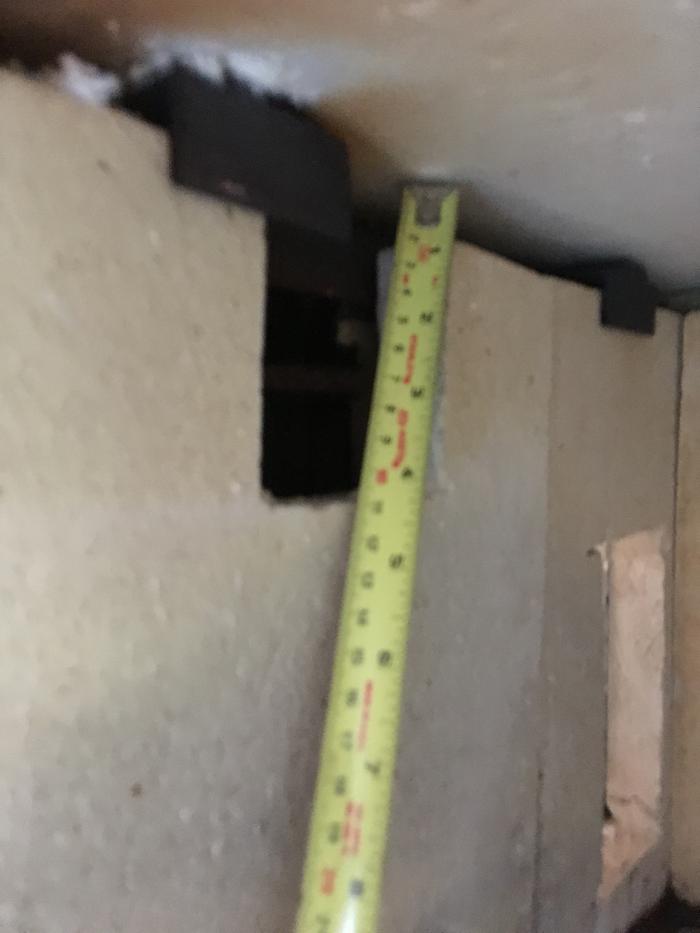

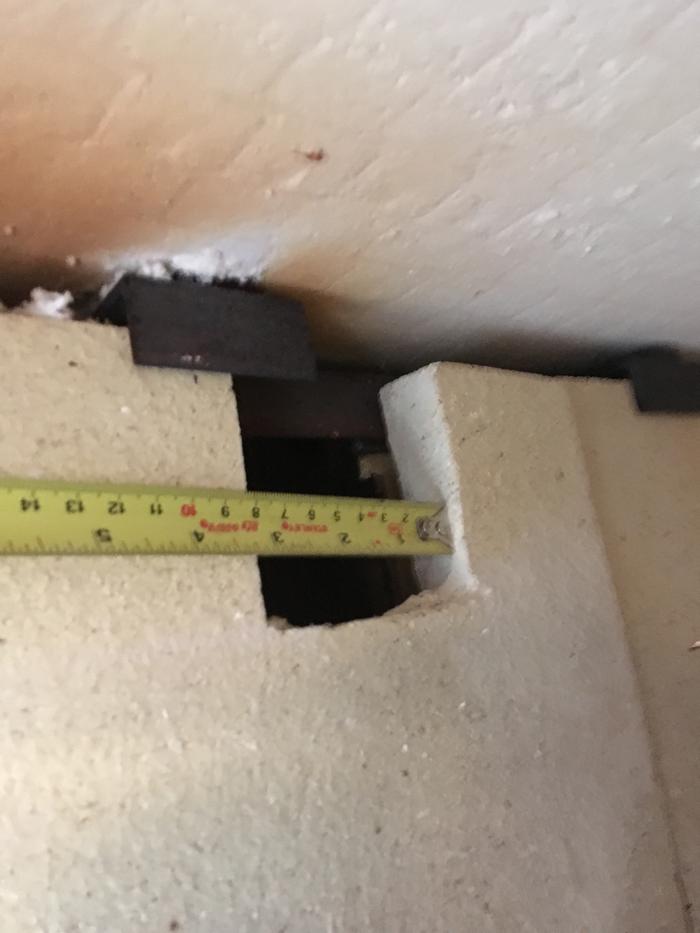

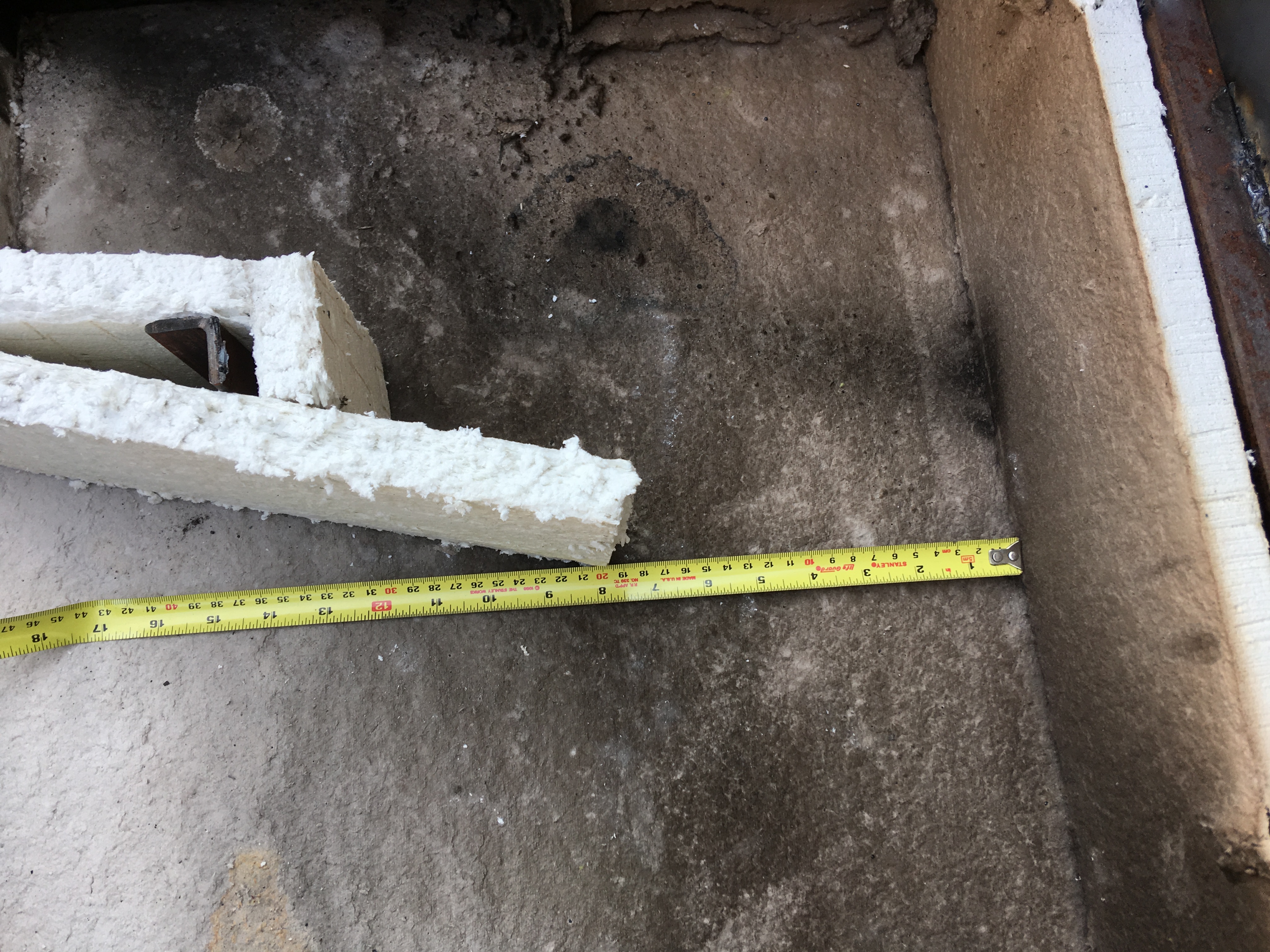

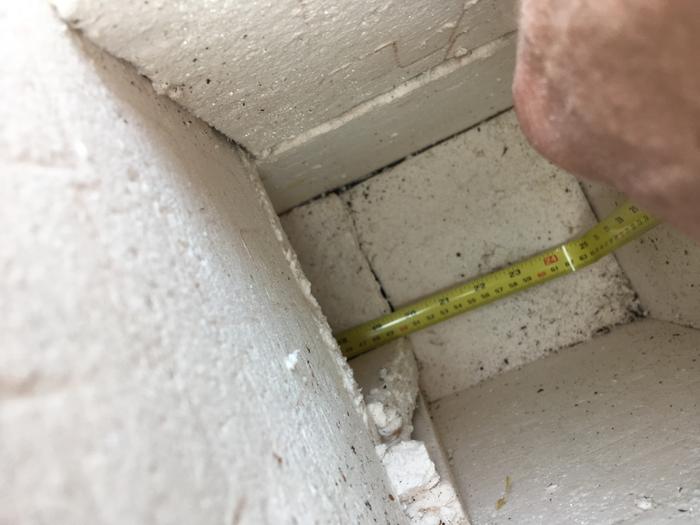

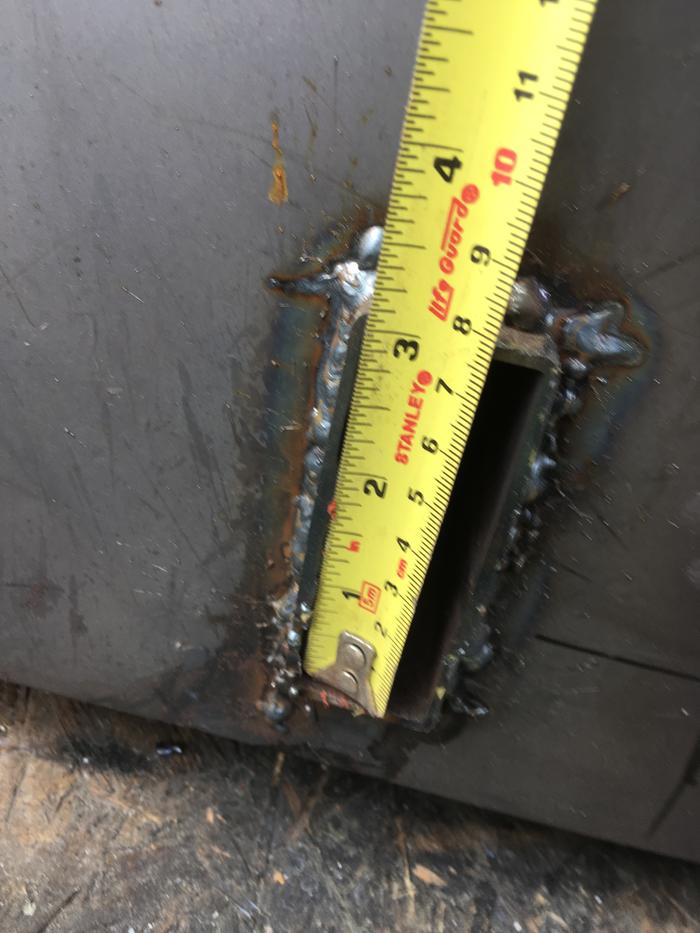

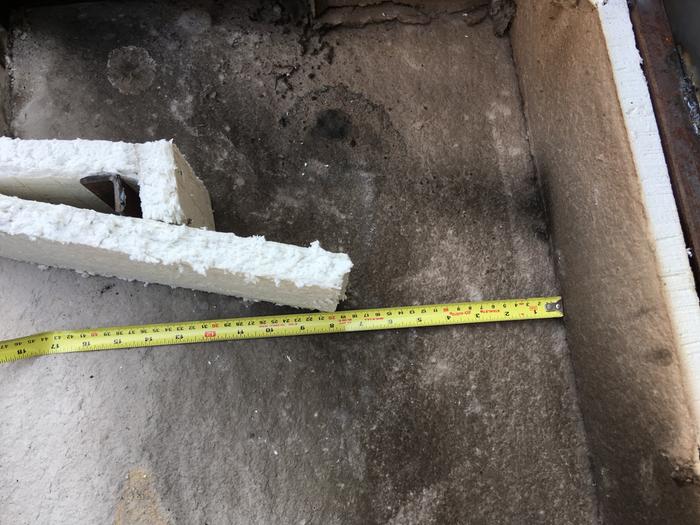

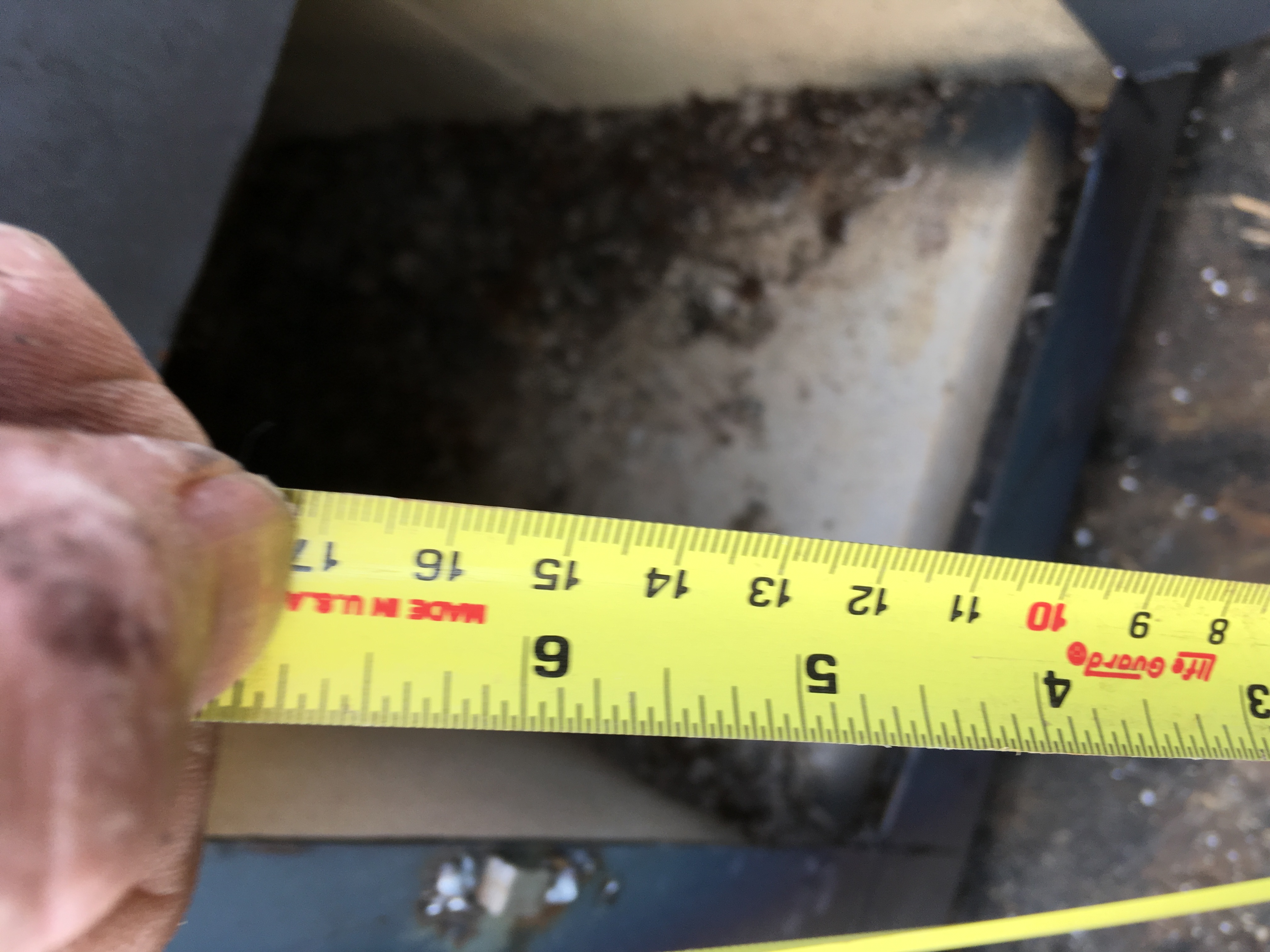

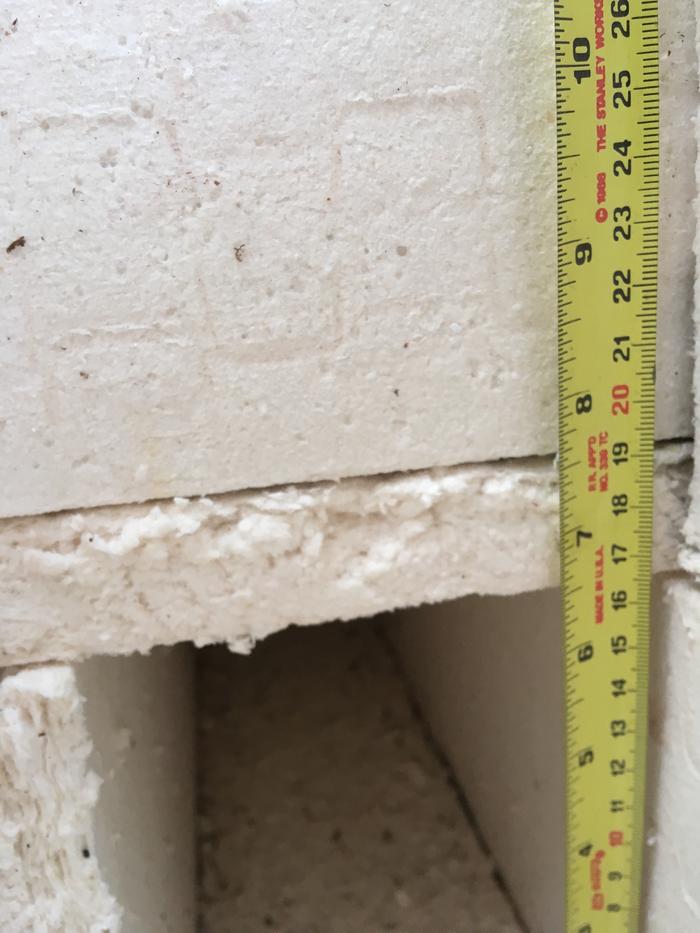

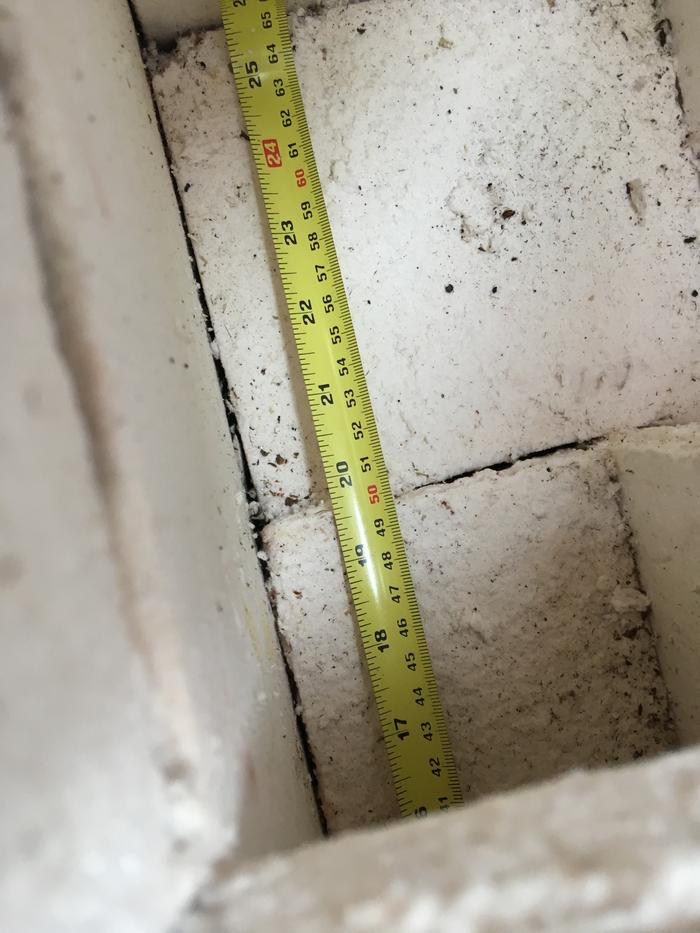

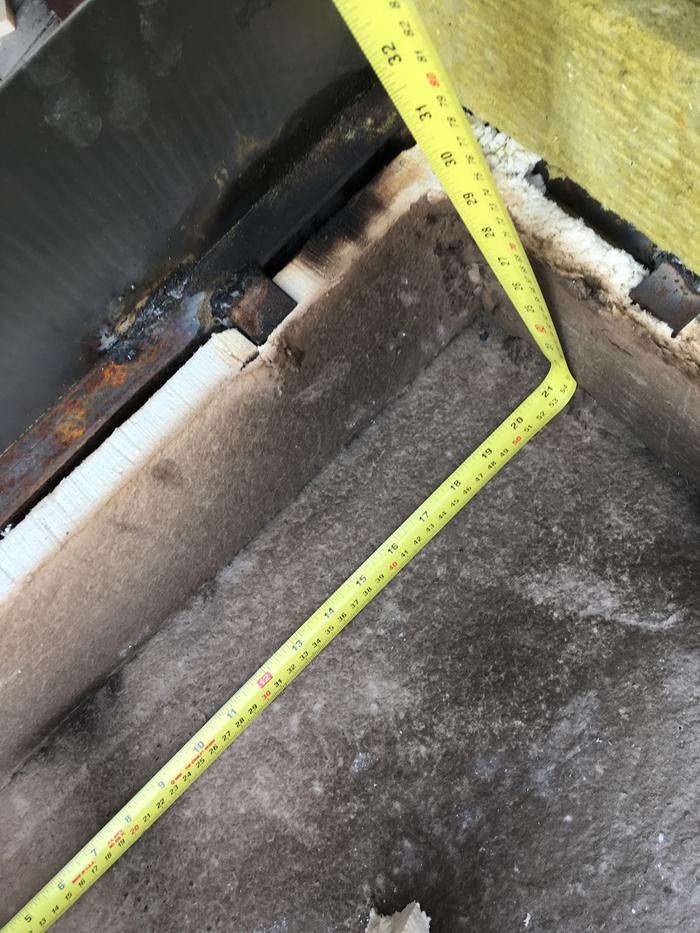

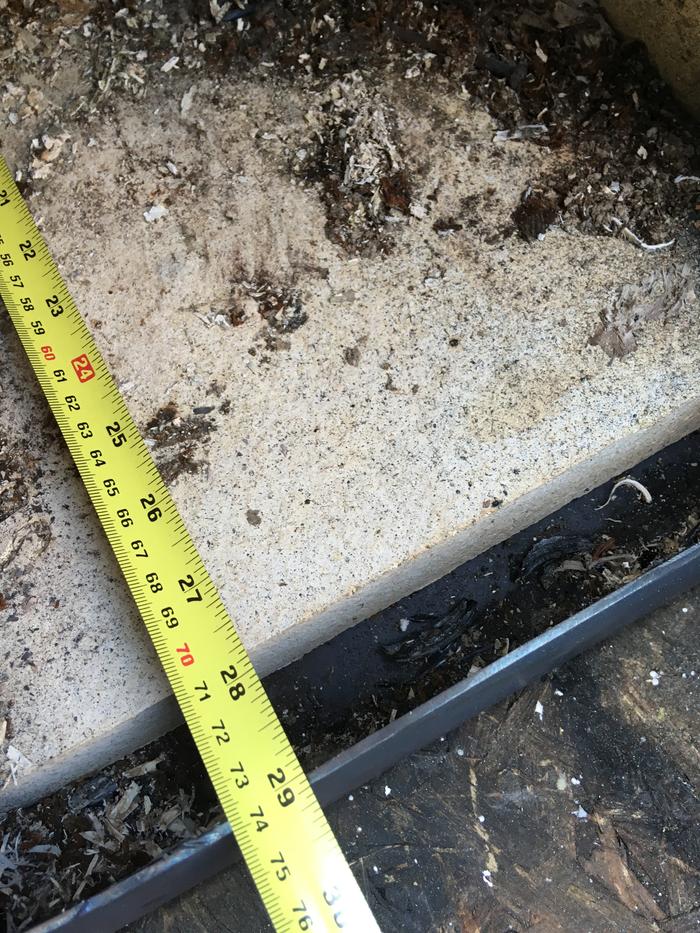

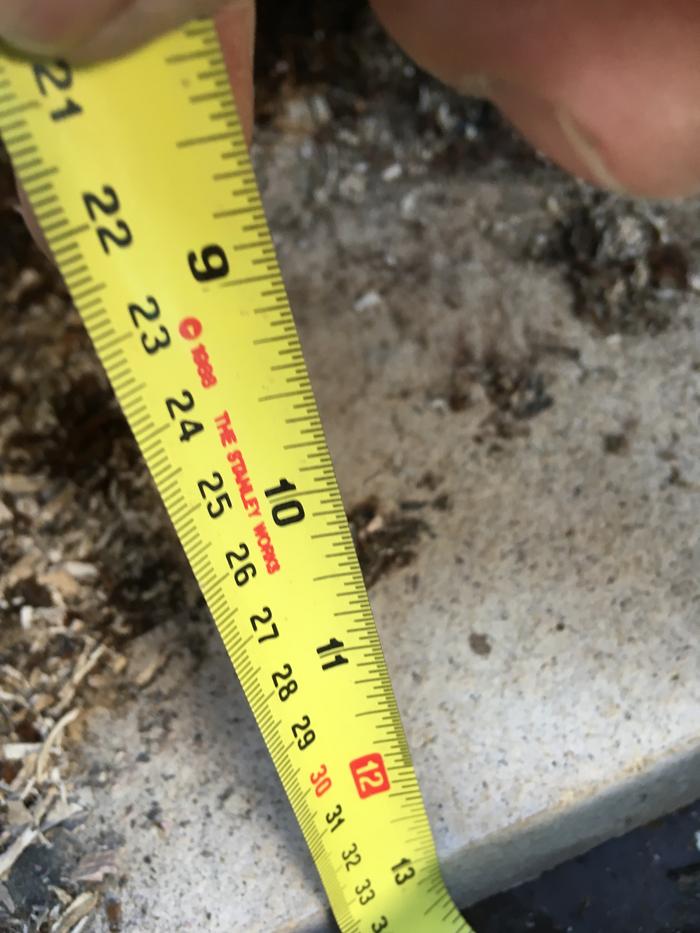

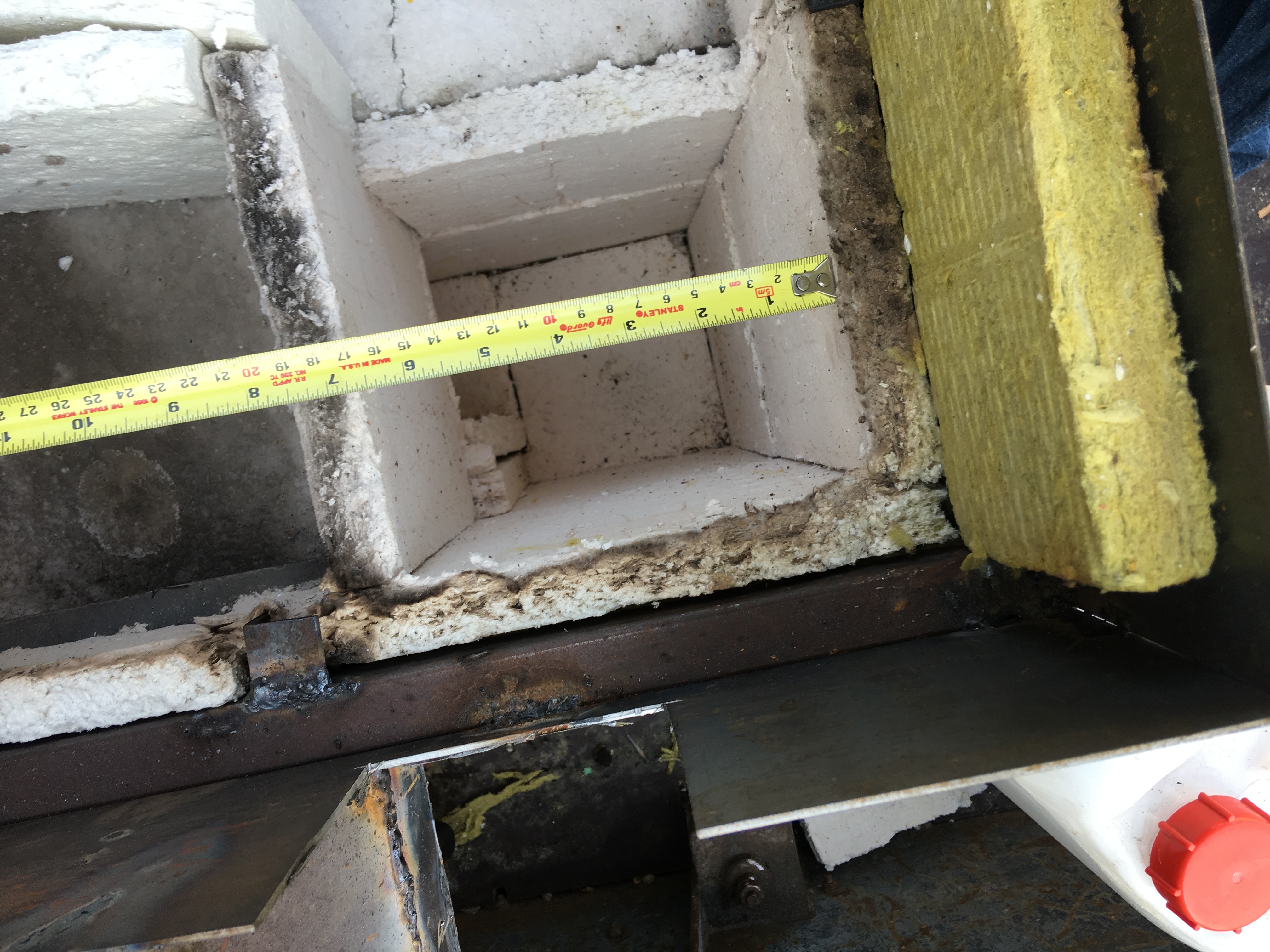

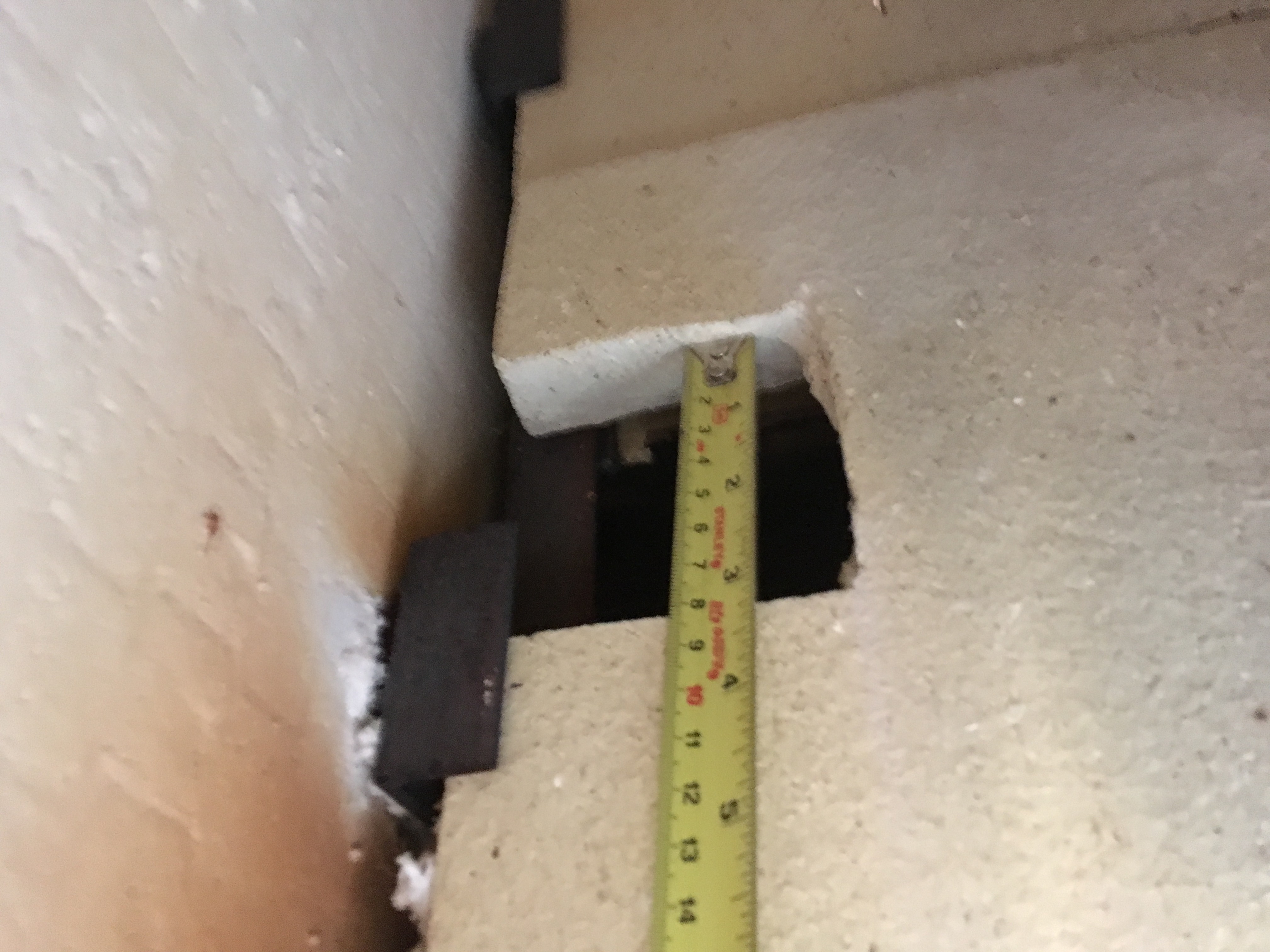

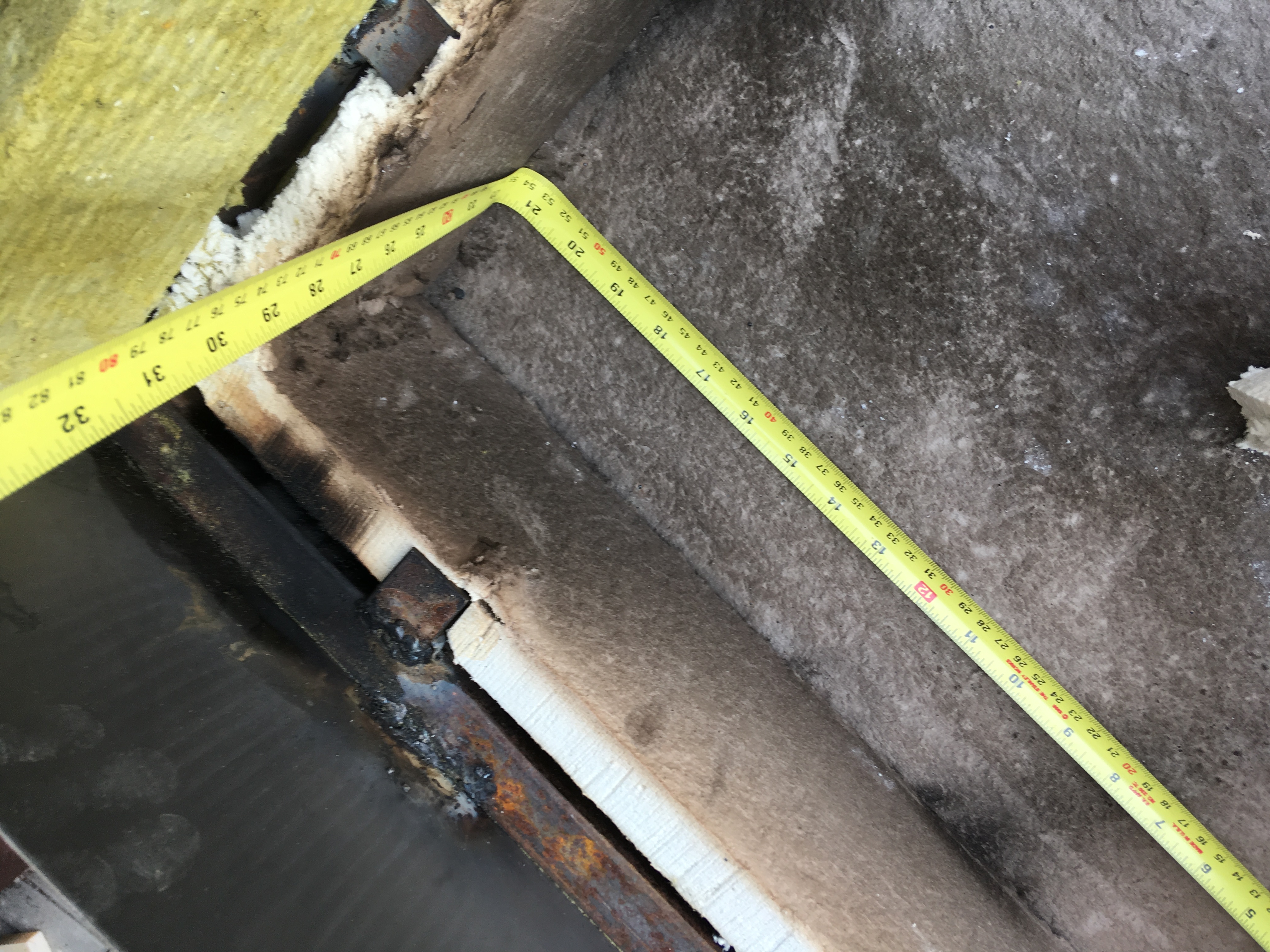

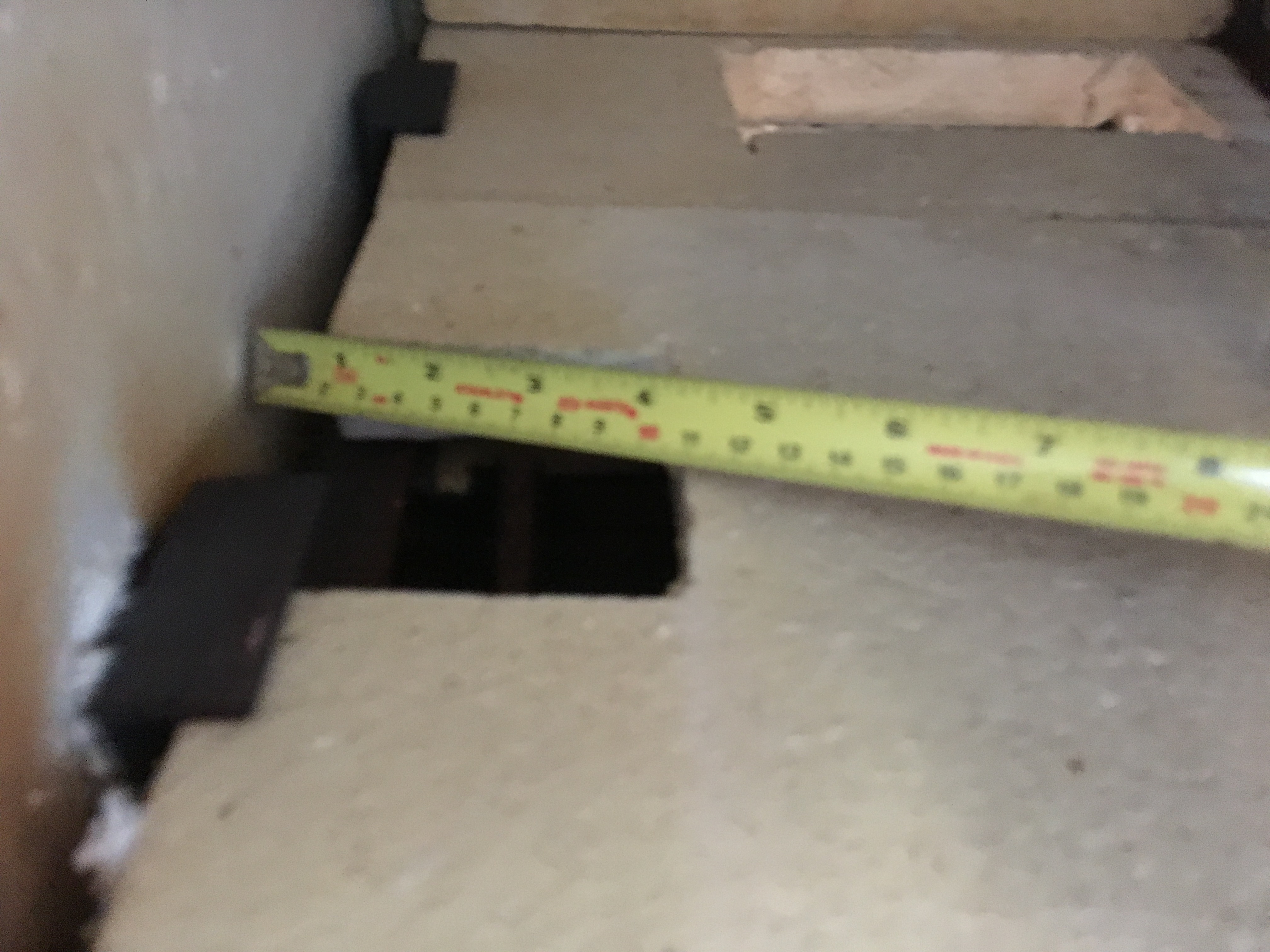

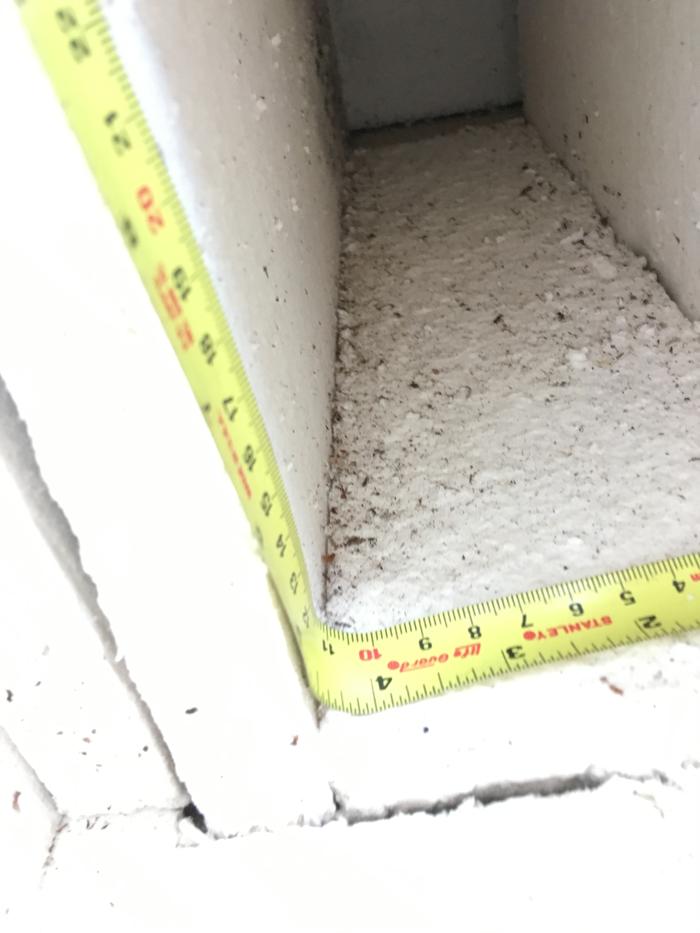

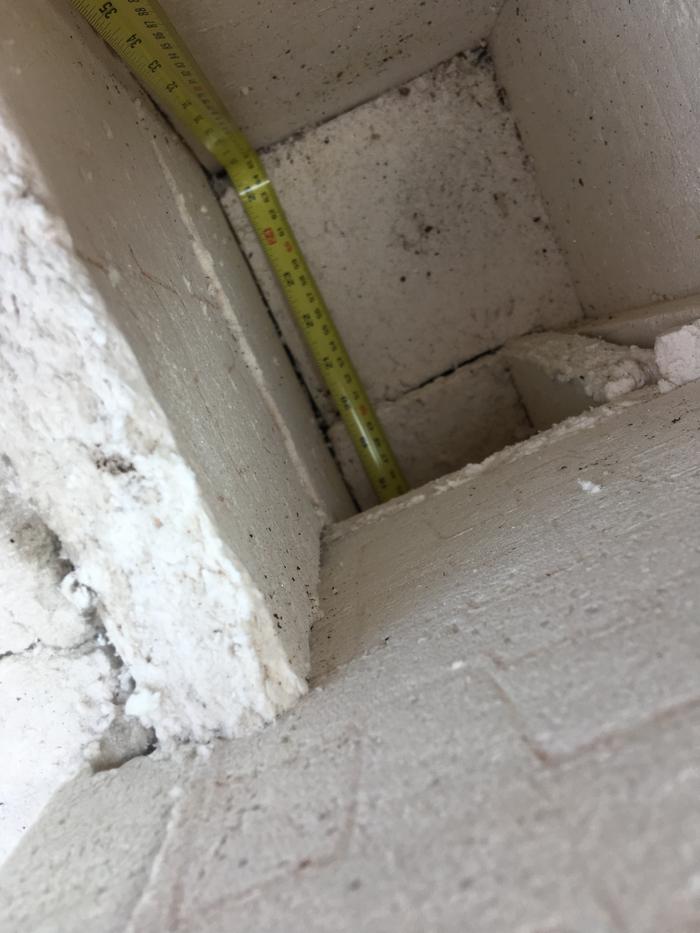

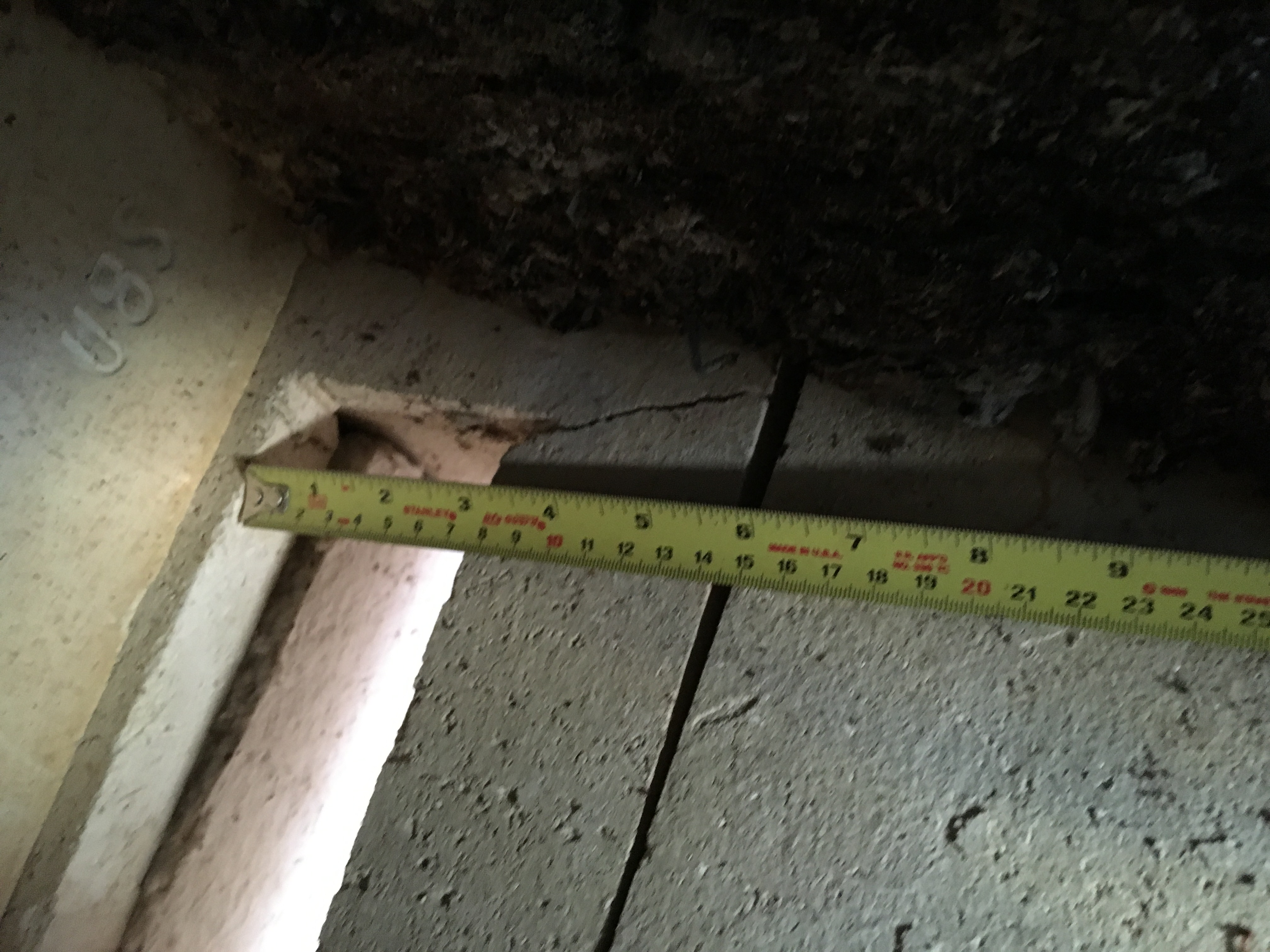

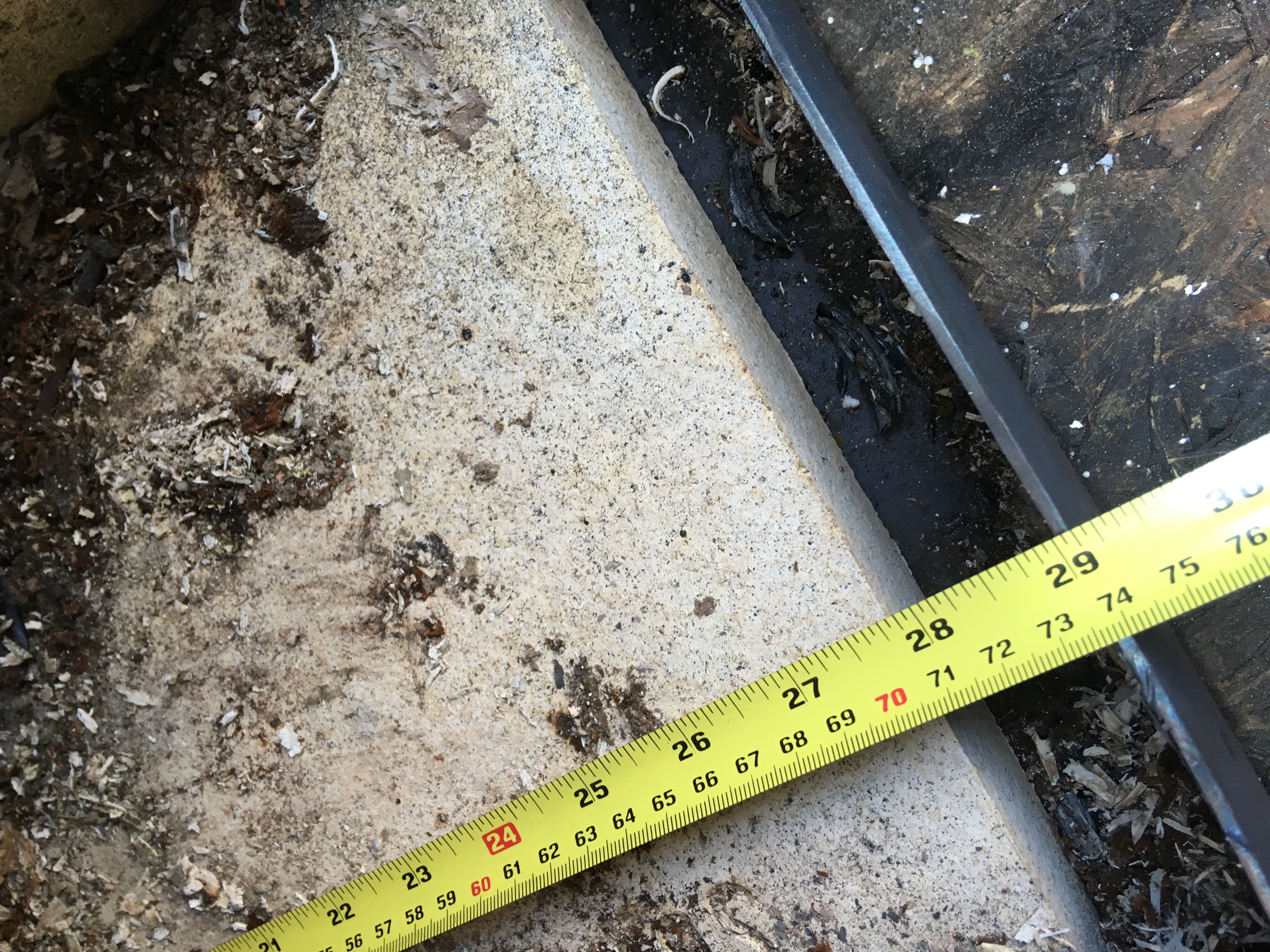

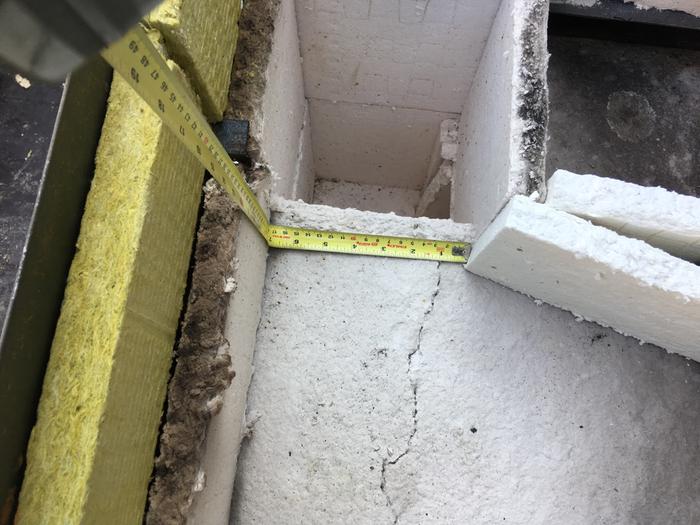

And here are some measurements for those interested. I made the burn chamber bigger.

Jason
[Thumbnail for IMG_7107.jpg]
[Thumbnail for IMG_7106.jpg]
[Thumbnail for IMG_7105.jpg]

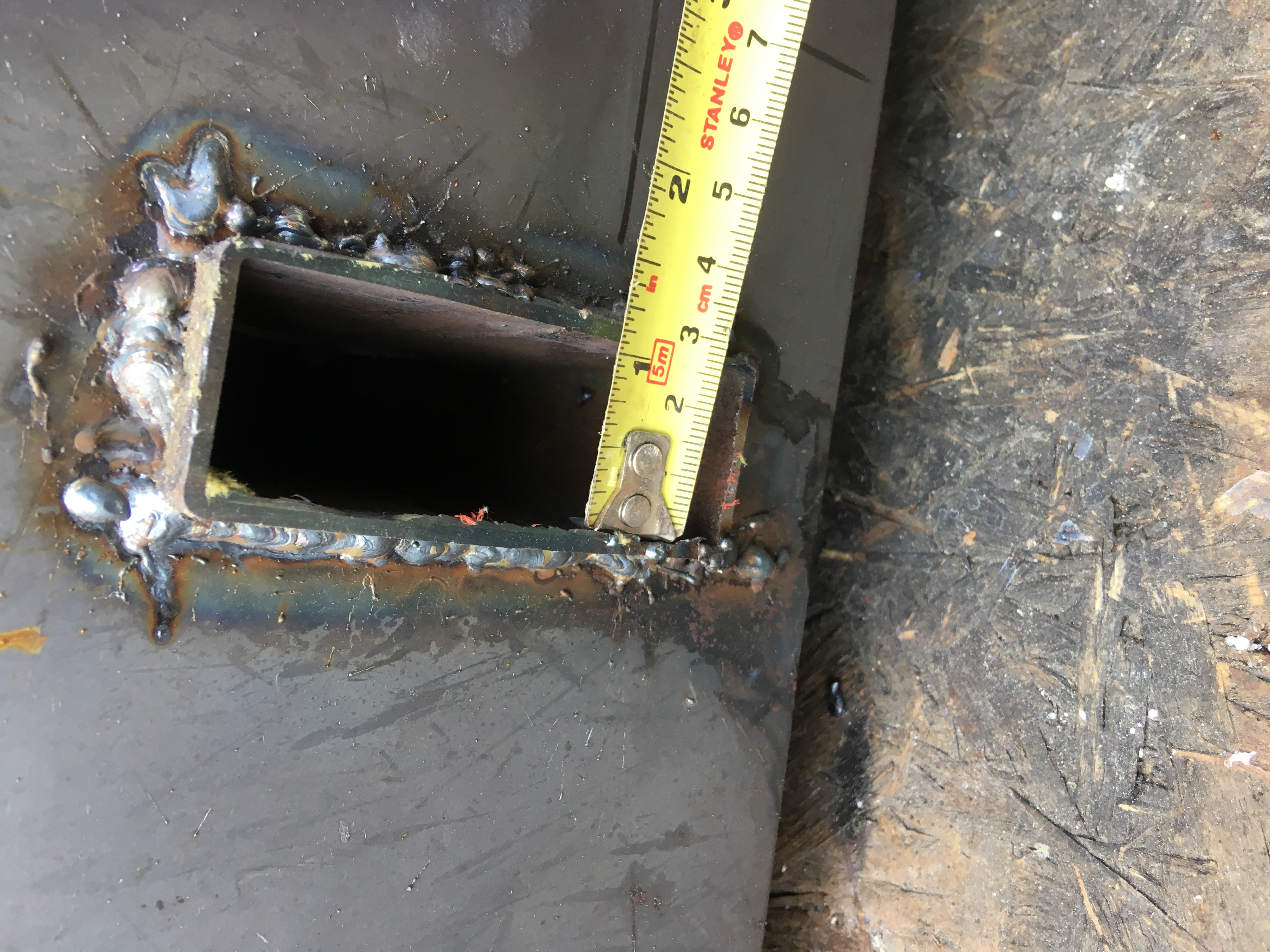

[Thumbnail for IMG_7104.jpg]
[Thumbnail for IMG_7103.jpg]
[Thumbnail for IMG_7102.jpg]
[Thumbnail for IMG_7101.jpg]
[Thumbnail for IMG_7100.jpg]
[Thumbnail for IMG_7099.jpg]

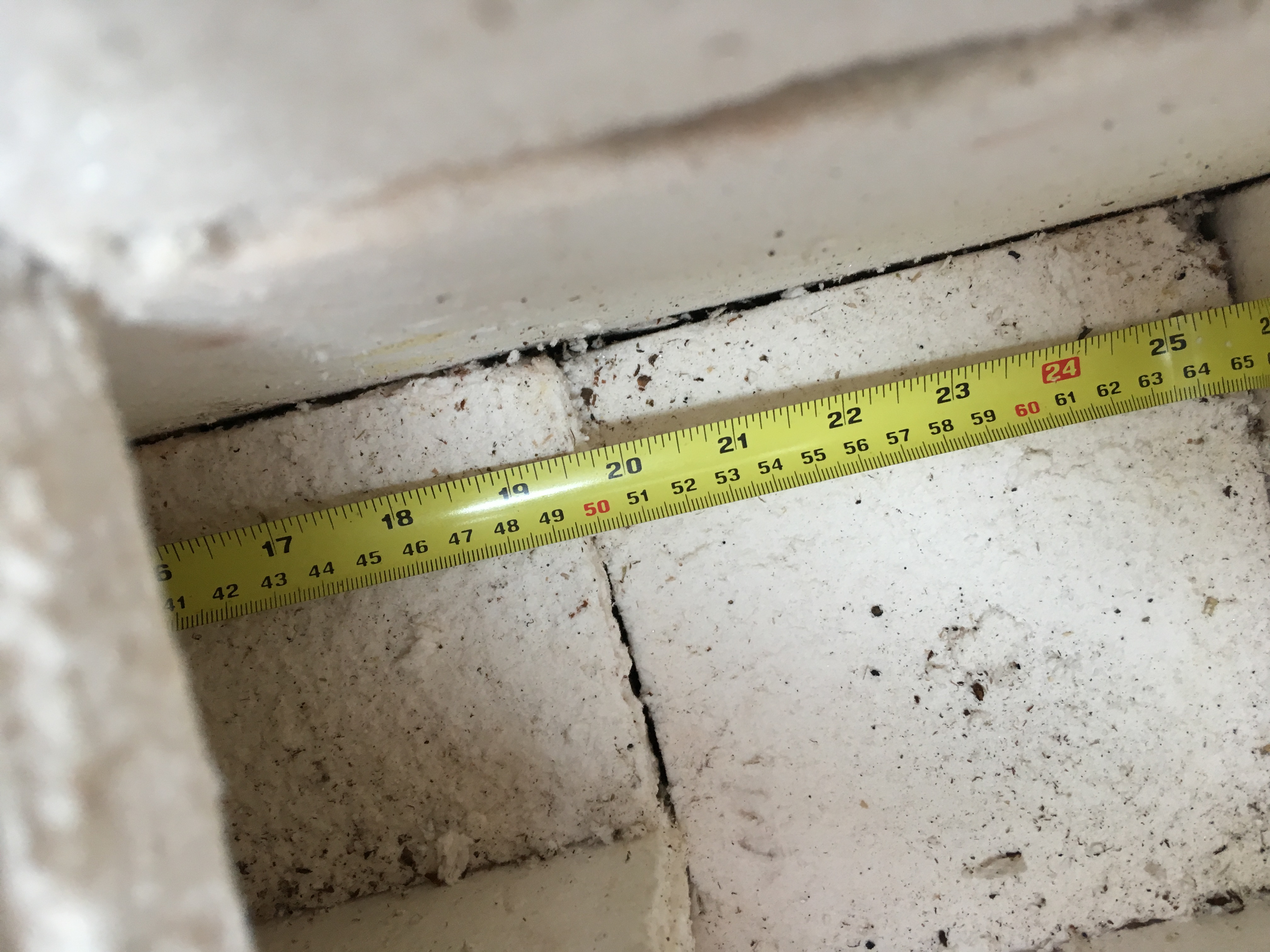

[Thumbnail for IMG_7098.jpg]

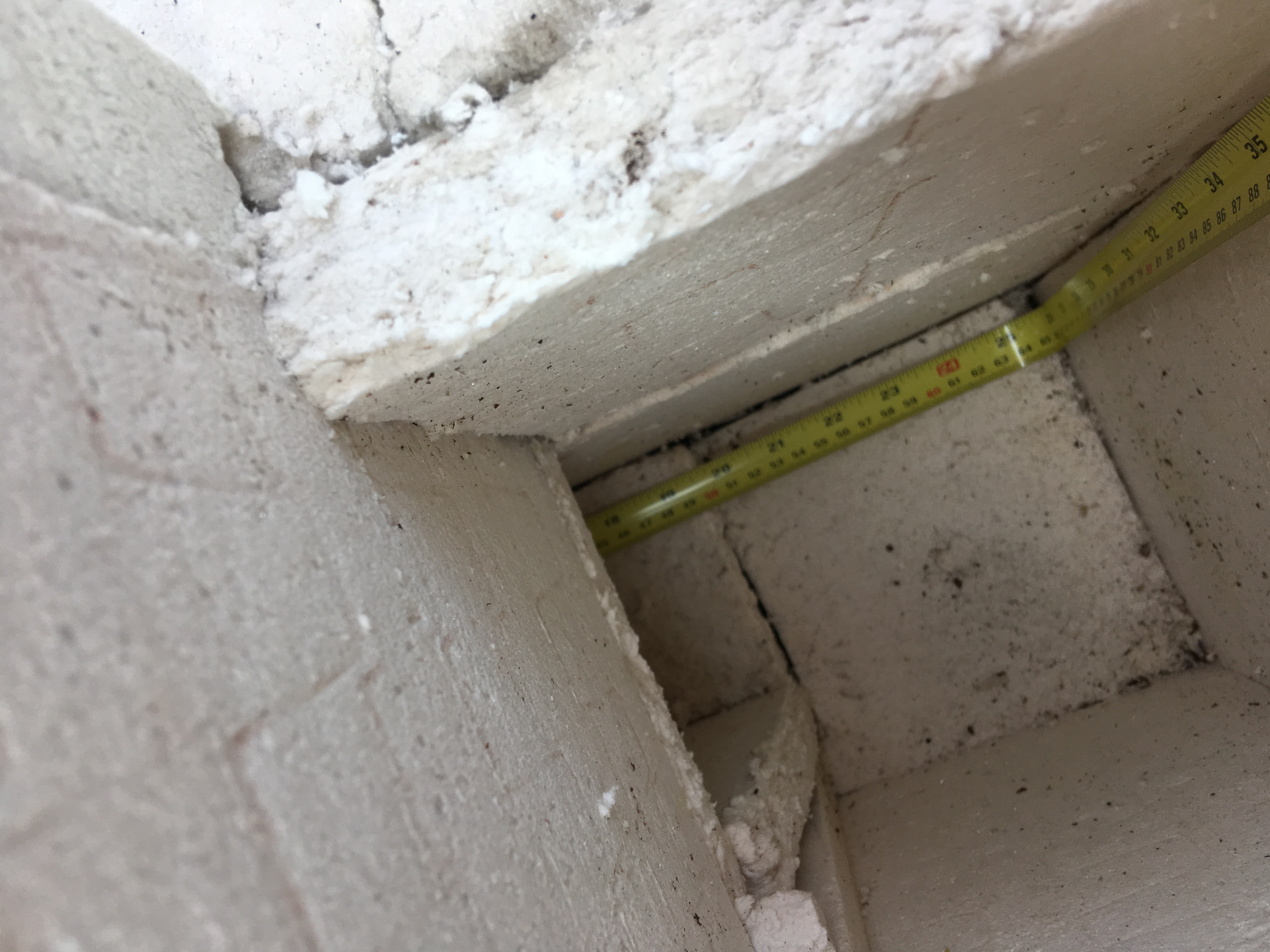

[Thumbnail for IMG_7097.jpg]
[Thumbnail for IMG_7096.jpg]

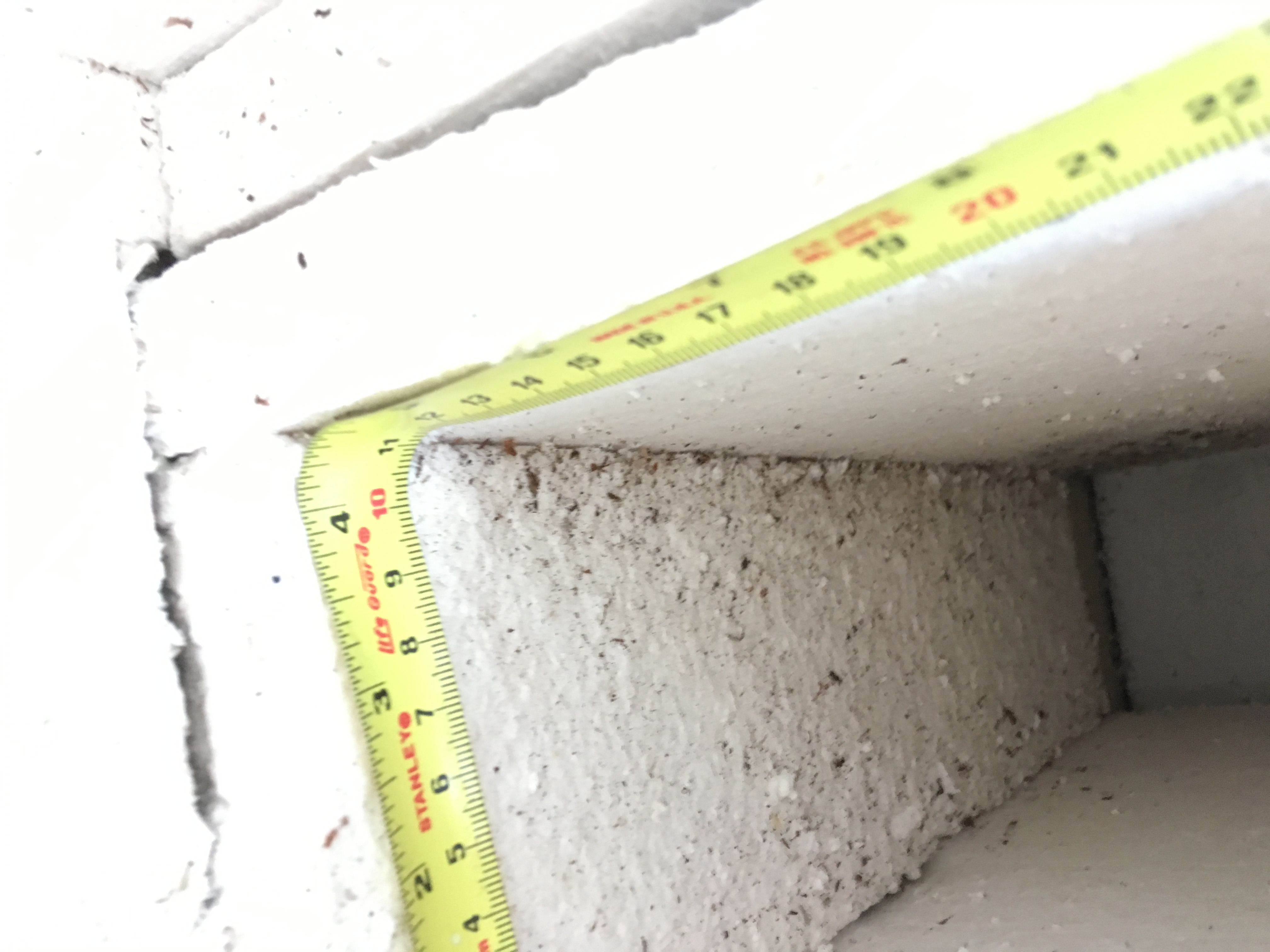

[Thumbnail for IMG_7095.jpg]

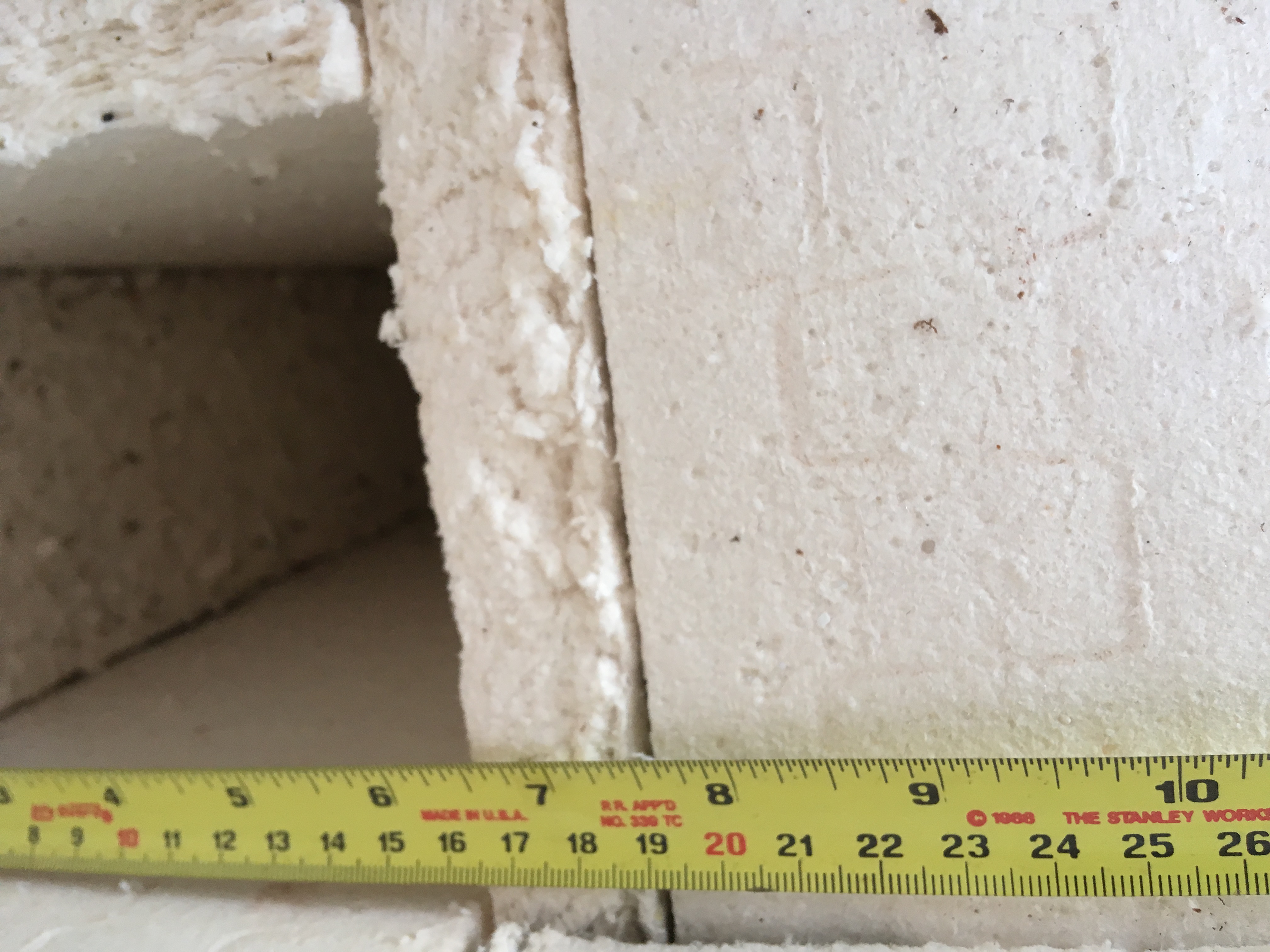

[Thumbnail for IMG_7094.jpg]

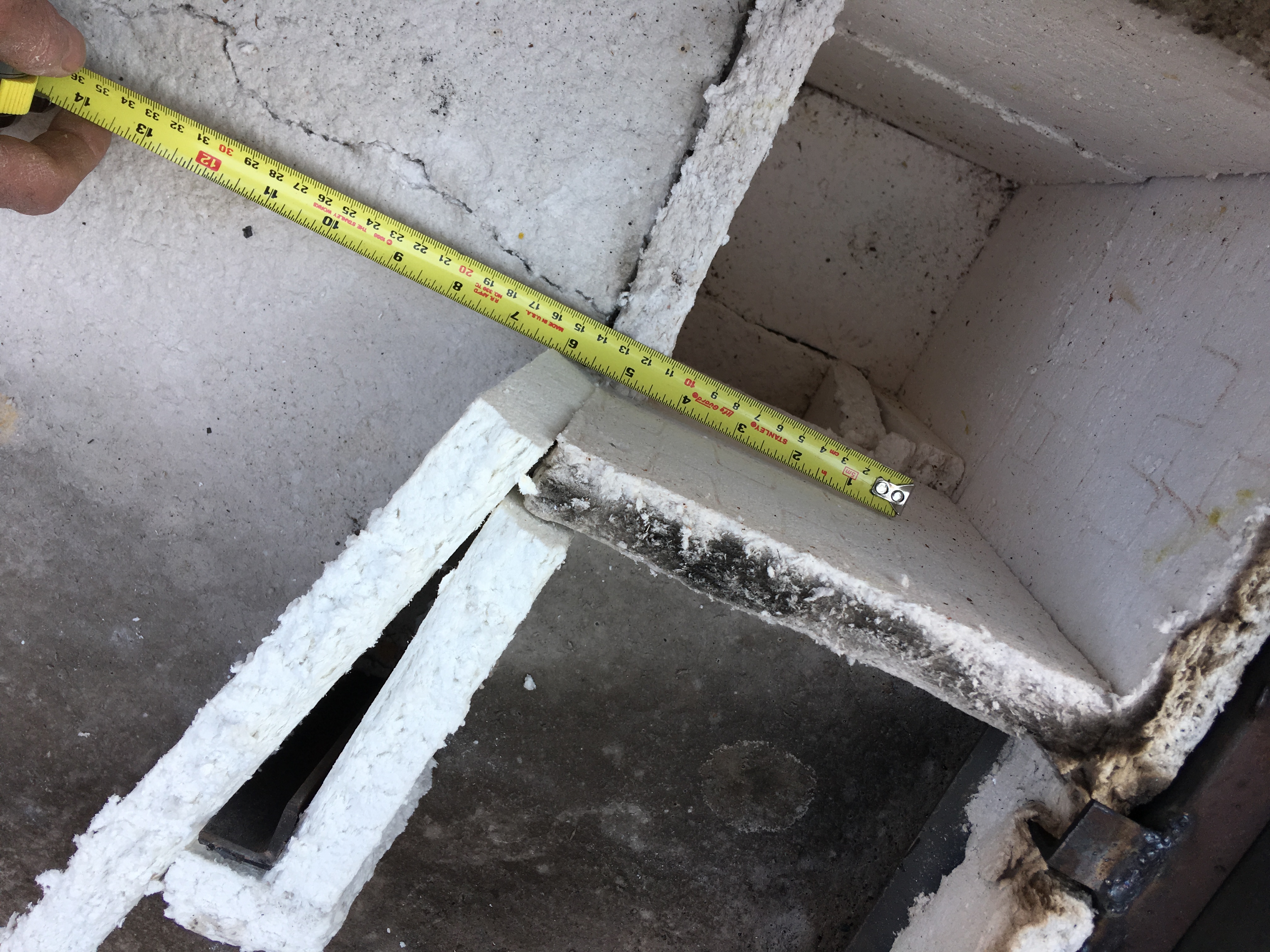

[Thumbnail for IMG_7093.jpg]

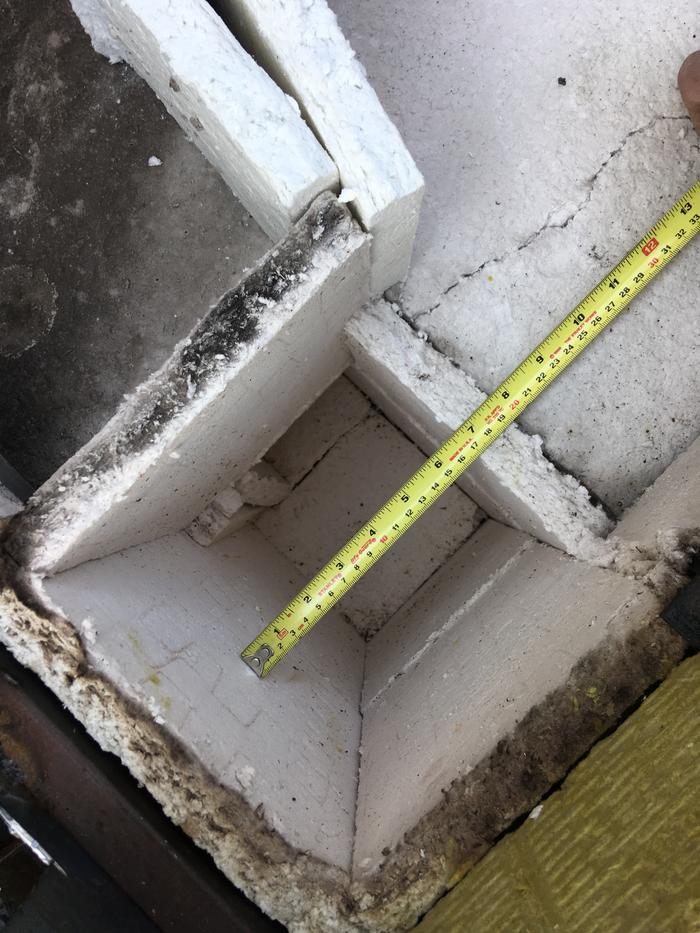

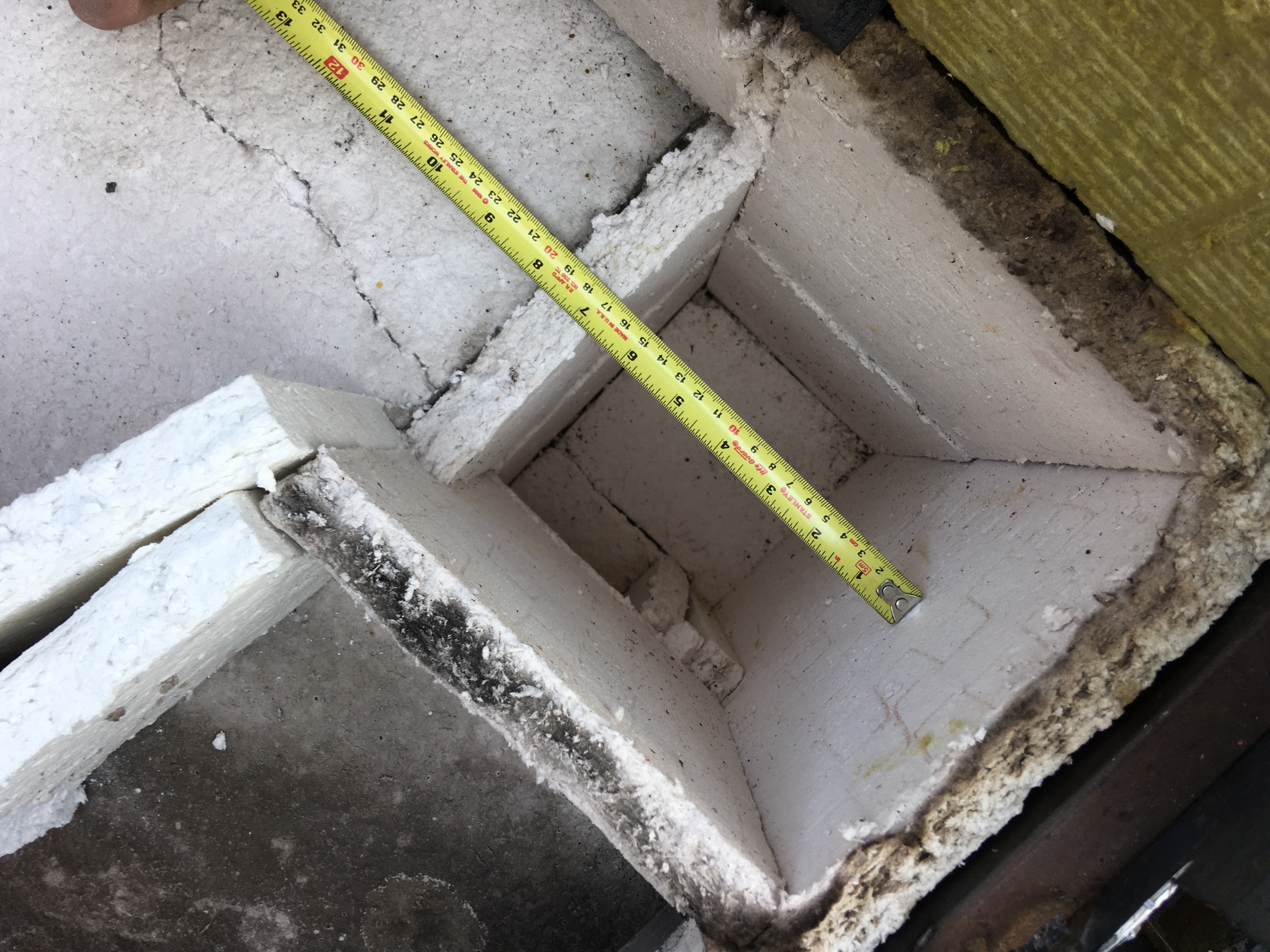

[Thumbnail for IMG_7092.jpg]
[Thumbnail for IMG_7091.jpg]

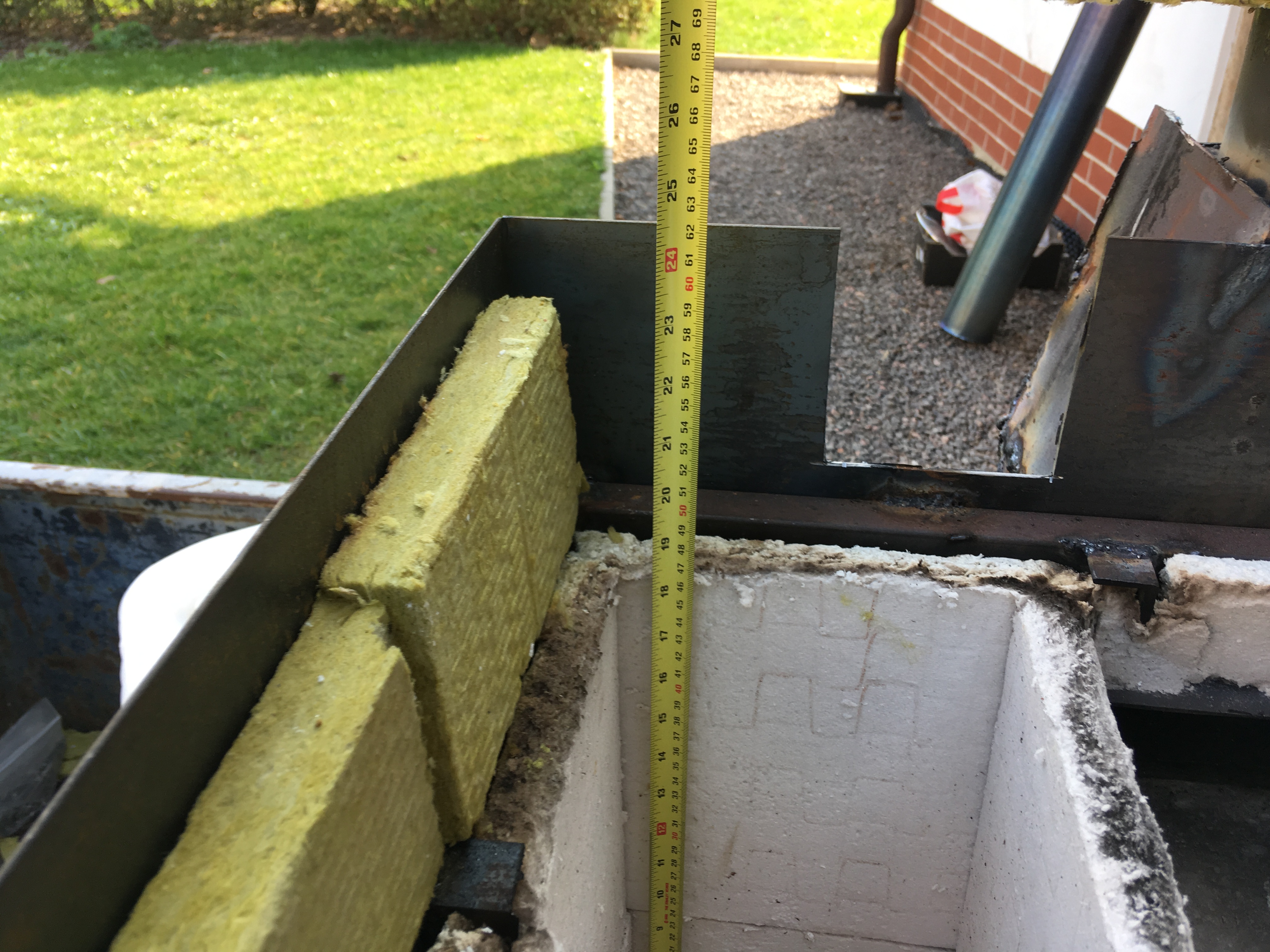

[Thumbnail for IMG_7090.jpg]

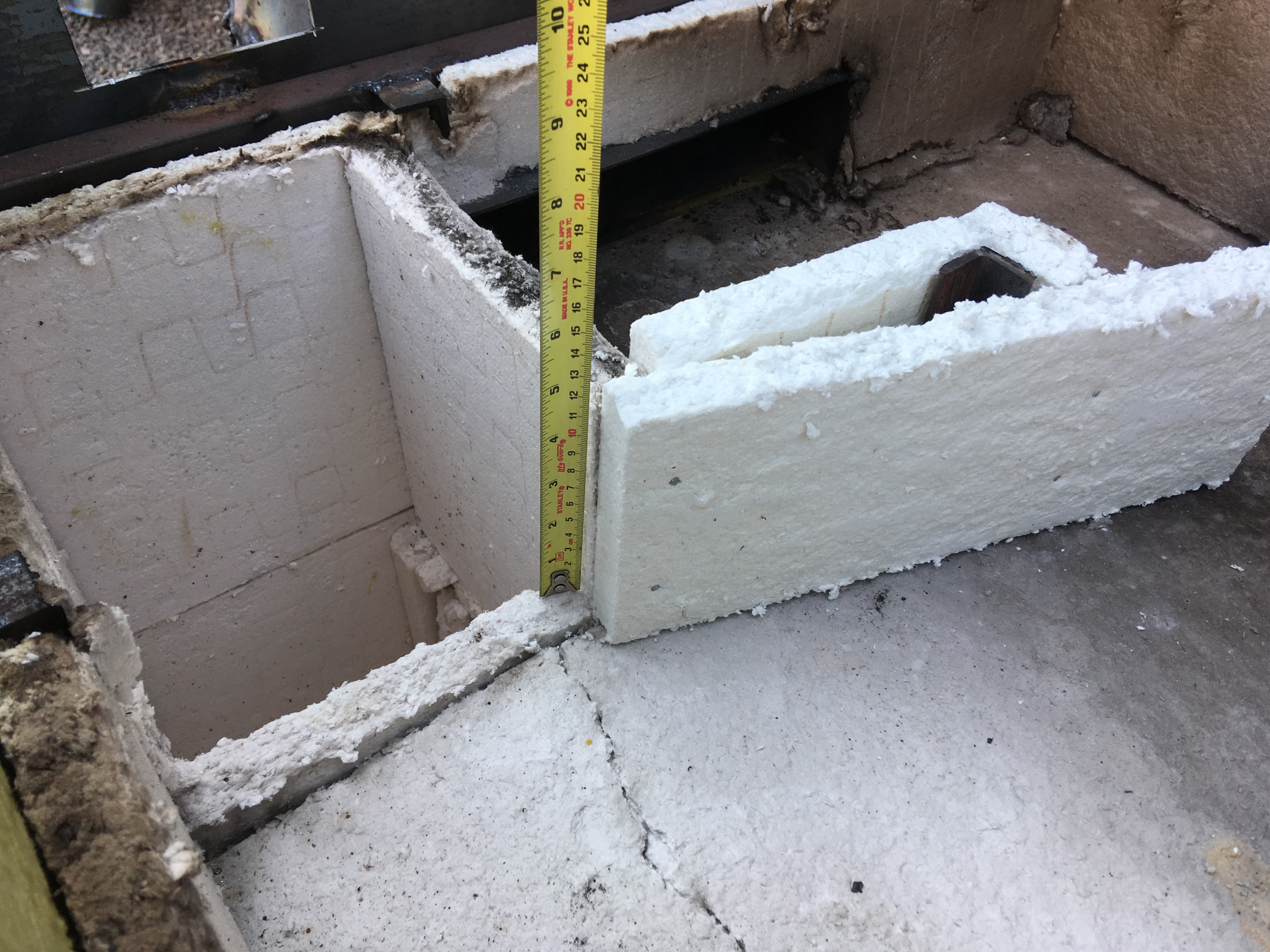

[Thumbnail for IMG_7089.jpg]

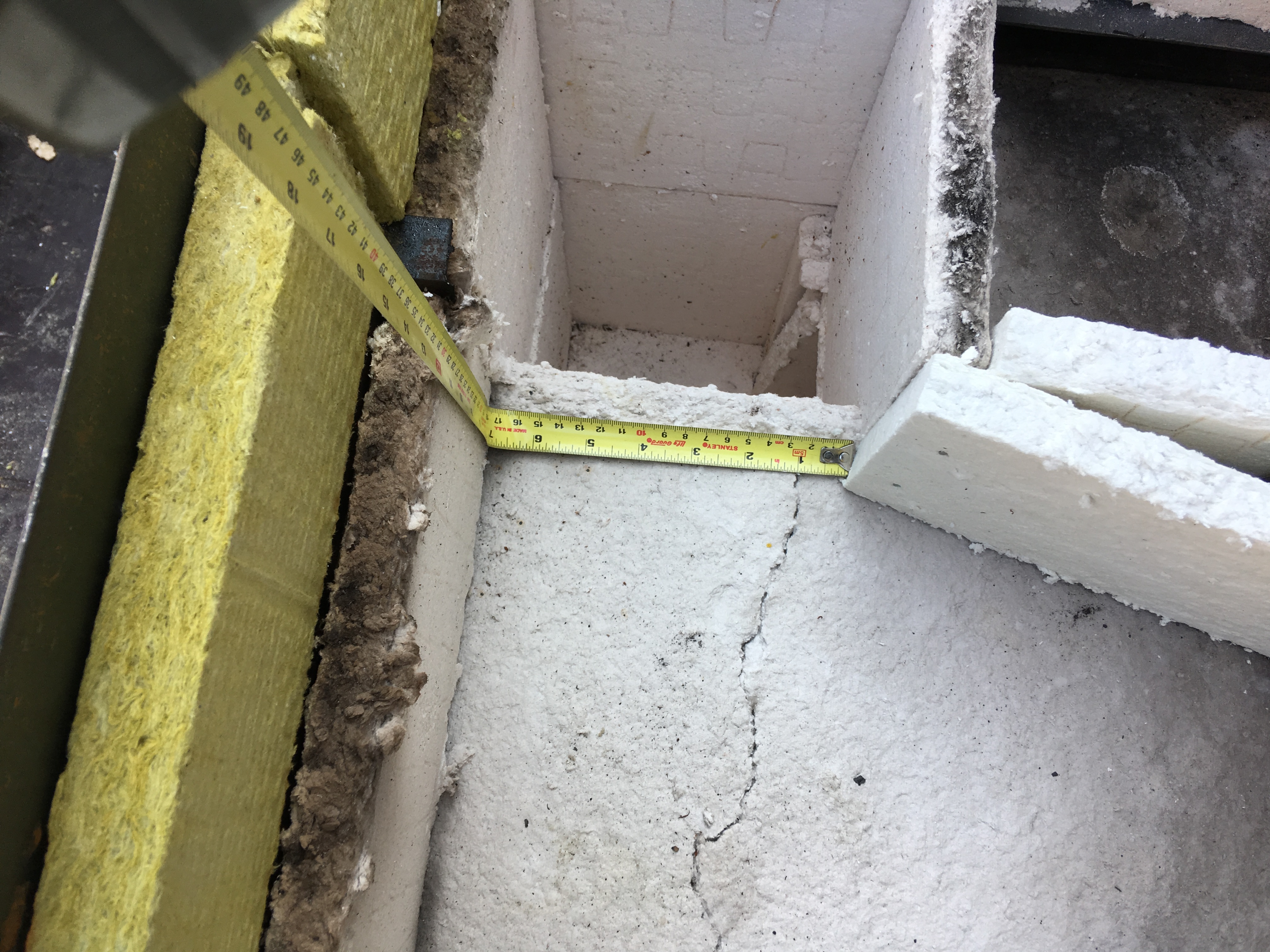

[Thumbnail for IMG_7088.jpg]

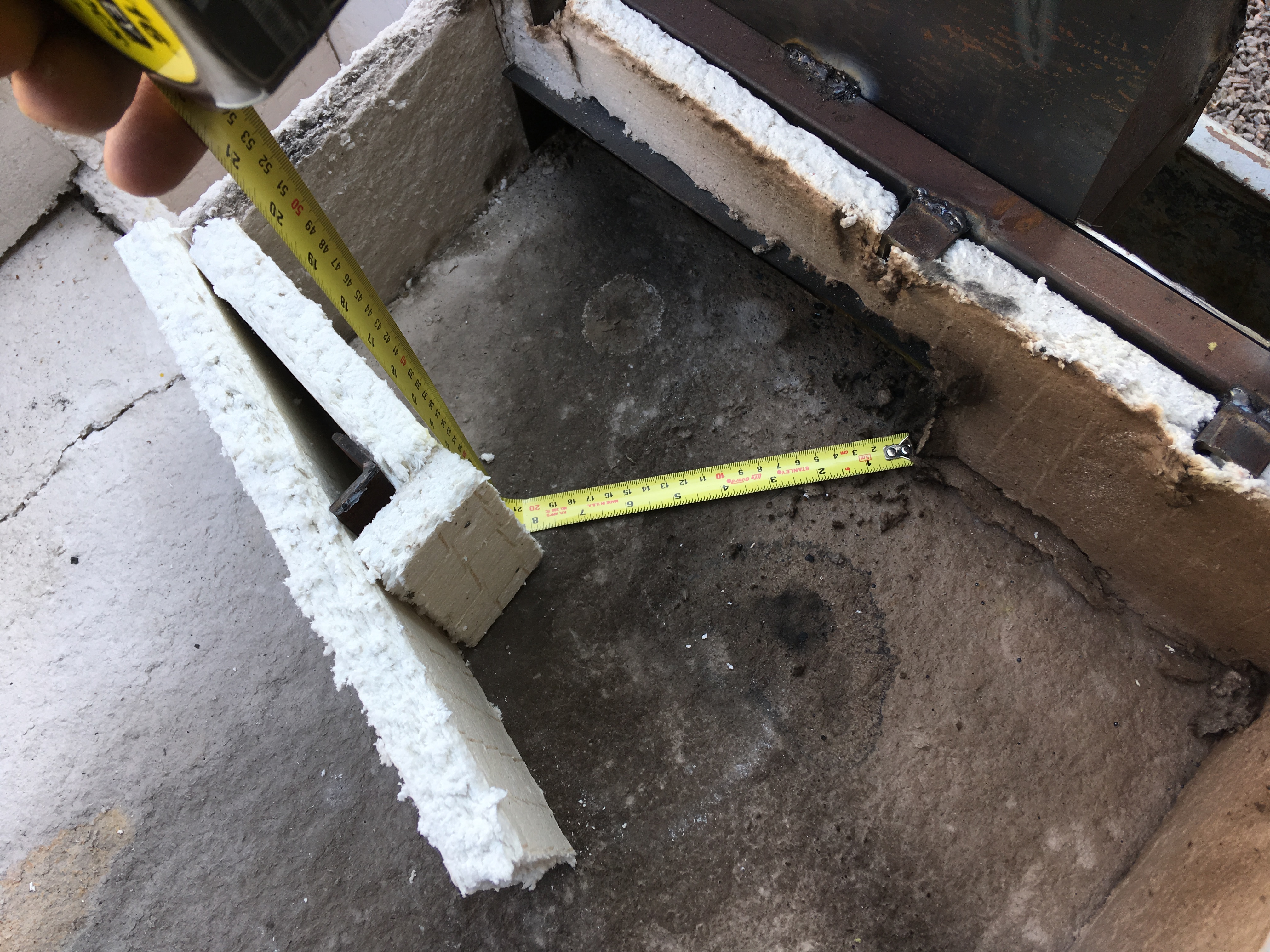

[Thumbnail for IMG_7087.jpg]
[Thumbnail for IMG_7086.jpg]
[Thumbnail for IMG_7085.jpg]

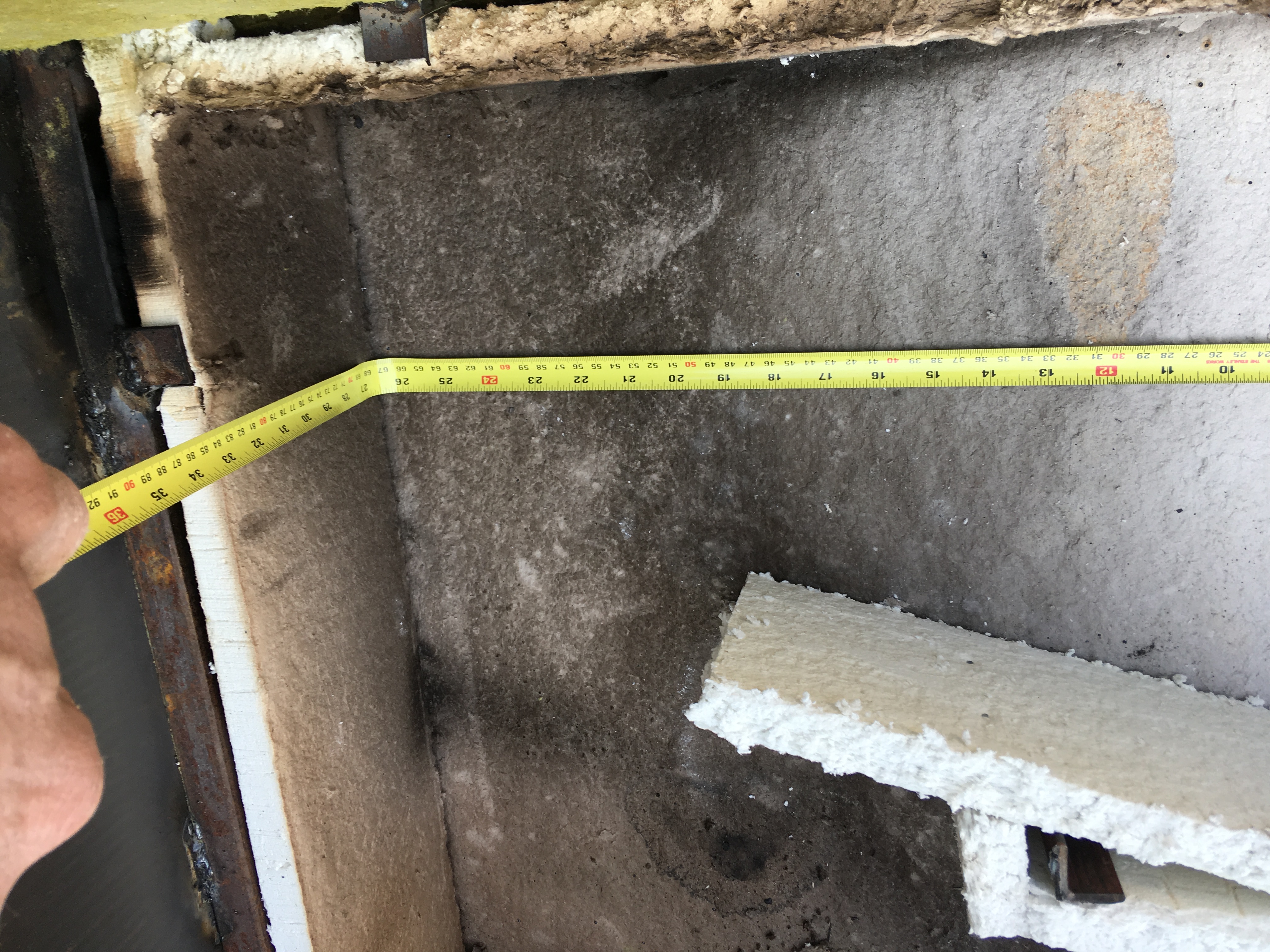

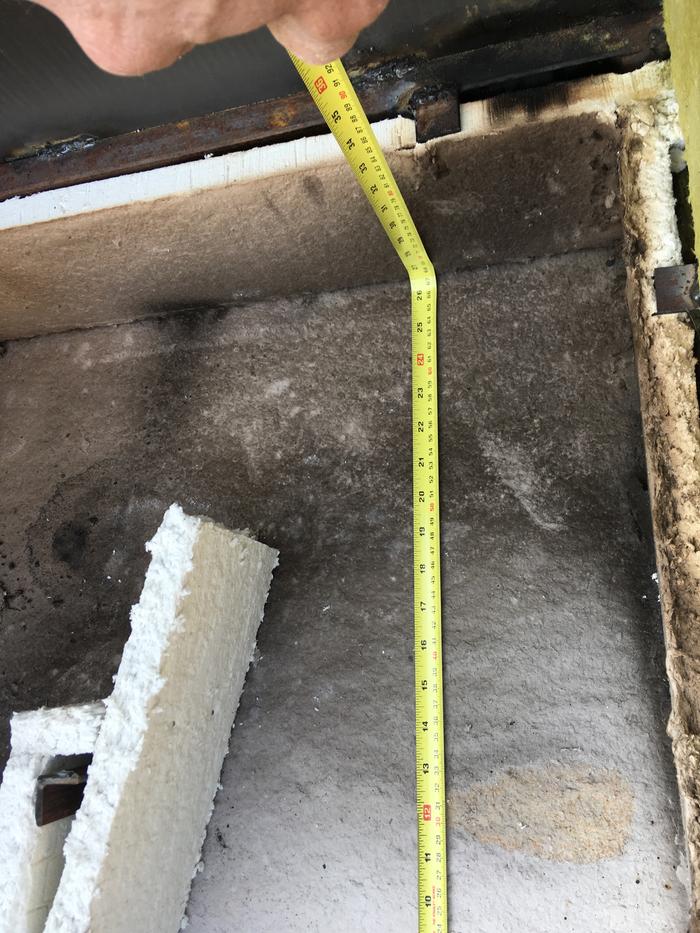

[Thumbnail for IMG_7084.jpg]

Rocket Scientist
Posts: 815
Location: Guernsey a small island near France.
311
  • Likes 1
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
It looks like you have put a lot of work into your version , I hope it performs as you would like.

Jason Learned
pollinator
Posts: 158
Location: Czech Republic; East Bohemia; Latitude 50˚ 12' 34"
41
11
  • Likes 2
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator

Fox James wrote:It looks like you have put a lot of work into your version , I hope it performs as you would like.



That tank on top was sealed on top to create a water tank. The purpose was to make a smokeless hot tub heater. The problem was it didn't have enough height difference to thermal syphon well enough and it just threw out so much heat in all directions. It would really need to be in a water jacket to perform that well and be lower than the hot tub by more than 2 inches.
That being said, we all were really pleased by the amount of heat it threw out in all directions. Every test fire was a sweat fest. It will make a great masonry stove for a house and I hope a syrup maker after I cut the top off again and perhaps make the pipes a bit smaller. I'll make the syrup maker slightly different-- mostly more insulation. We hope to have it into my friend's house this winter, but it will be in January. At least it will heat through the coldest months over here. It is there waiting to be installed and the steel will be replaced with bricks and ceramics. I'll keep the steel body for the syrup making.

Jason
