Adobe walls around existing wooden pillars


Posts: 3
  • Likes 3
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hey guys, right now on my property there's kind of an open shed, basically 4 wooden pillars that support a basic metal roof.  The pillars are attached to the ground with concrete.

My idea is to close up the structure using adobe bricks, above a rubble trench foundation that spans between the wooden pillars (or should it go around them?).

My question is, how do I go about attaching my adobe walls to the existing pillars and roof, so that they don't just fall over? (I'm new to construction).

Also, should I somehow treat the wood pillars, since they would be in contact with the mud mortar?

Thanks in advance!


pollinator
Posts: 5520
Location: Canadian Prairies - Zone 3b
1518
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Bumping this thread so the adobe experts can chime in.

What's your climate? In a desert, no problem. In the PNWet, rot never sleeps.

Posts: 691
Location: Sierra Nevada foothills, 350 m, USDA 8b, sunset zone 7
126
  • Likes 6
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Hi Axel,

How tall are the wooden posts?
How thick is the lumber?
What is the area of this shed, height?
What is the roof shape?
Are you in seismic zone?
Will you use stabillized or adobe?
If you build separate walls between the column you are losing a lot of potential stability of a square/rectangular building. Walls should have some bond beam on top - made from heavy timber, concrete, tied stone slabs, etc. In this case the bond beam will not create continuous element.
You could tie the walls to the columns using metal L-shaped anchors, but if the rubble foundation of the adobe walls will sink, it will create cracks.
If the eaves of the roof are long enough you could build continuous wall AROUND the columns.

Douglas Alpenstock
pollinator
Posts: 5520
Location: Canadian Prairies - Zone 3b
1518
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
How big is this shelter? Four pillars suggests a smaller square footage. Given that, maybe you can take on more risk in your experiment?

gardener
Posts: 322
Location: Austin, Texas
154
9
tiny house building homestead
  • Likes 8
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
I agree with Cristobal. With adobe bricks I would build the wall around the outside of the posts (pillars) and then cob the gap between the top of the wall and the roof.

You could also you movable forms or T-Bricks as they are called in this thread if you wanted to integrate the posts into the wall system. I would use screws for the corner forms since they would have to be partially disassembled to fit around the posts. See a sketch of a partially assembled walls below.  You'll need to partially drive a lot of screw/nails into the posts to provide a mechanical key for the cob.

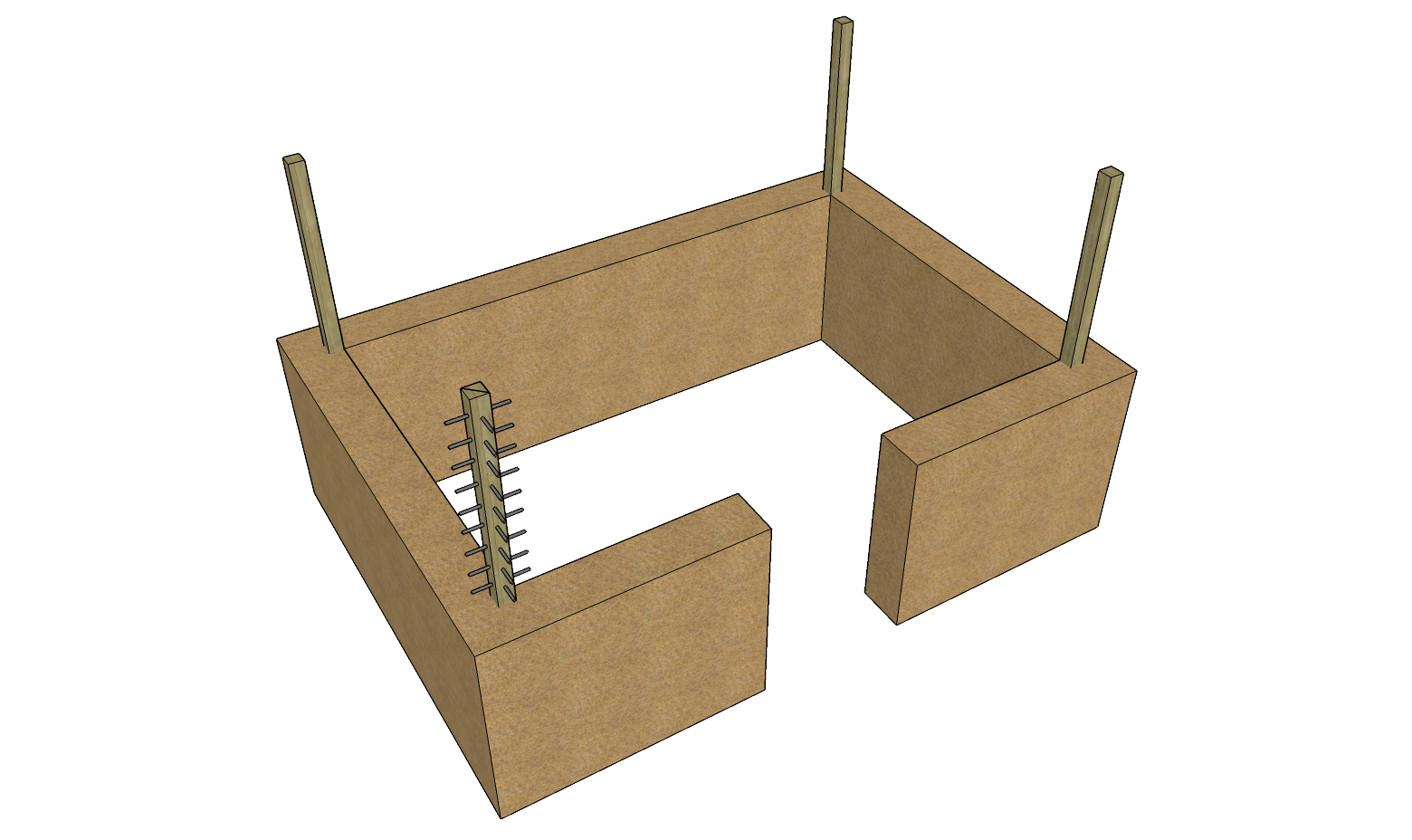

Sketch of T-Brick Shed mid-construction
Sketch of T-Brick Shed mid-construction

pollinator
Posts: 5669
Location: Bendigo , Australia
512
plumbing earthworks bee building homestead greening the desert
  • Likes 4
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
Assuming you have foundations of some sort for the adobe, make mortar from the same material the adobe is made from and lay about 3 rows of adobe.
Every 3rd level attach barbed wire between the posts and lay a bed or mortar and another row of bricks.
Don't use cement in the adobe, but try a bit of lime 5% for a start to see who it helps the brick
