First burn of the season


master rocket scientist
Posts: 7157
Location: latitude 47 N.W. montana zone 6A
4327
cat pig rocket stoves
  • Likes 7
  • Mark post as helpful
  • send pies
    Number of slices to send:
    Optional 'thank-you' note:
  • Quote
  • Report post to moderator
September 7, 2026    Rain, 48F with a high of 53F.
When I rebuilt the Shop Dragon last year, I only had one 12x12 slab.
I used it at the rear of the core, and I used insulated firebricks for the front.
In order to use the individual bricks, I needed angle iron T-bars to support them.
Initially, they were protected by Superwool; unfortunately, the wool was knocked off last winter, and by spring they were not sealing at all.
The rear T-bar was twisted badly from the heat, allowing the bricks to walk and knocking the mortar off.

Today, I removed the offending pieces, and replaced them with a 12 x12 slab.
After completion, I fired her off for the first time this season!
With the bypass open, I was able to get a nice fire burning with no difficulty.
By the time it burns down, my repair will be fully dry.

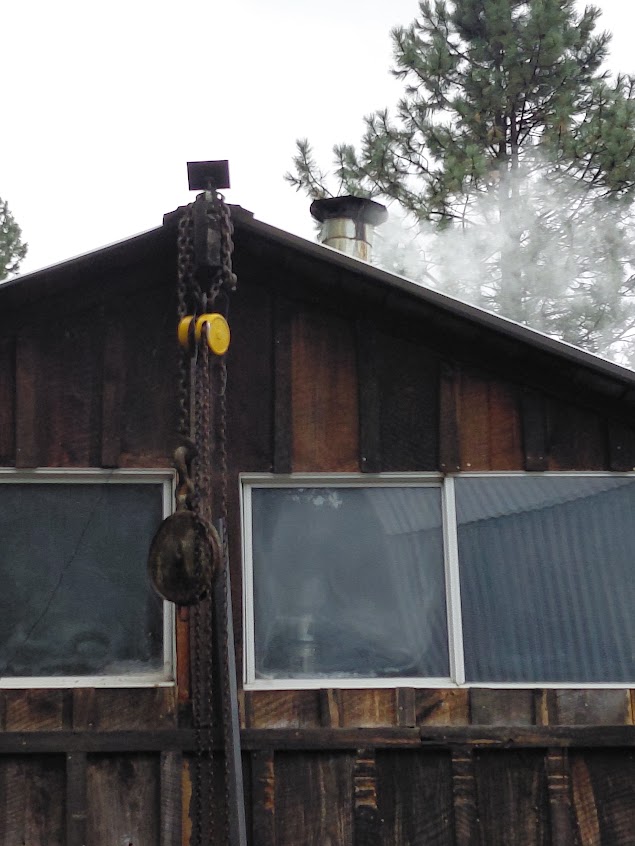

[Thumbnail for 20260907_160828.jpg]

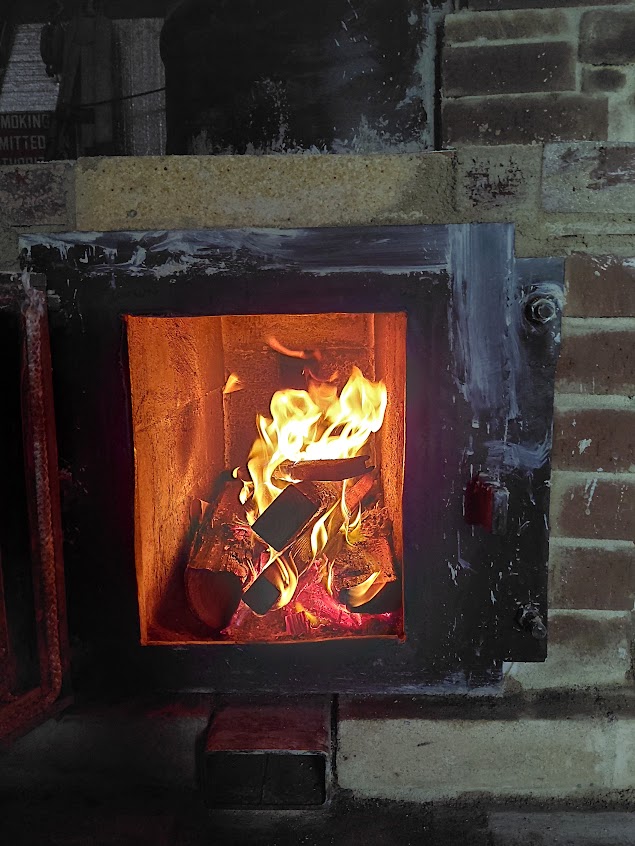

[Thumbnail for 20260907_161522.jpg]

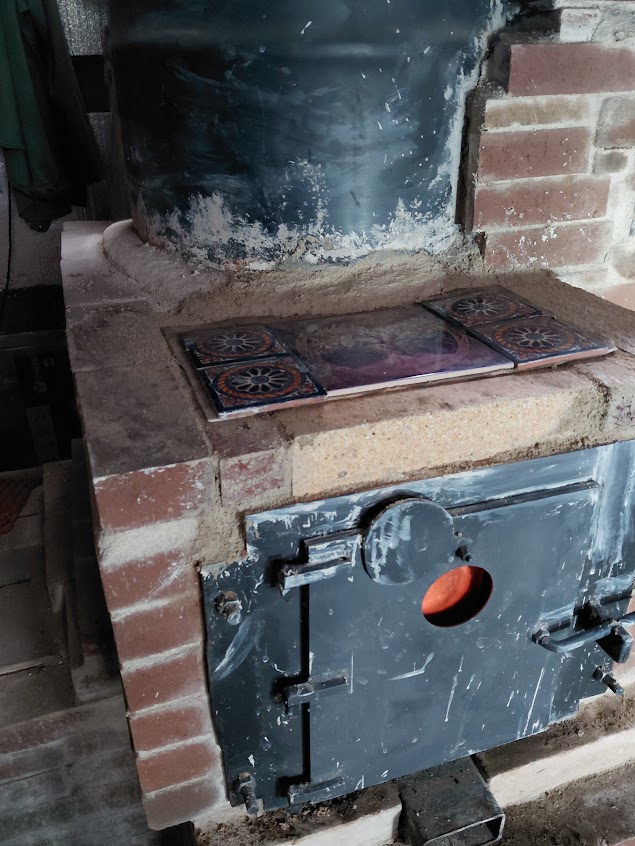

[Thumbnail for 20260907_160906.jpg]

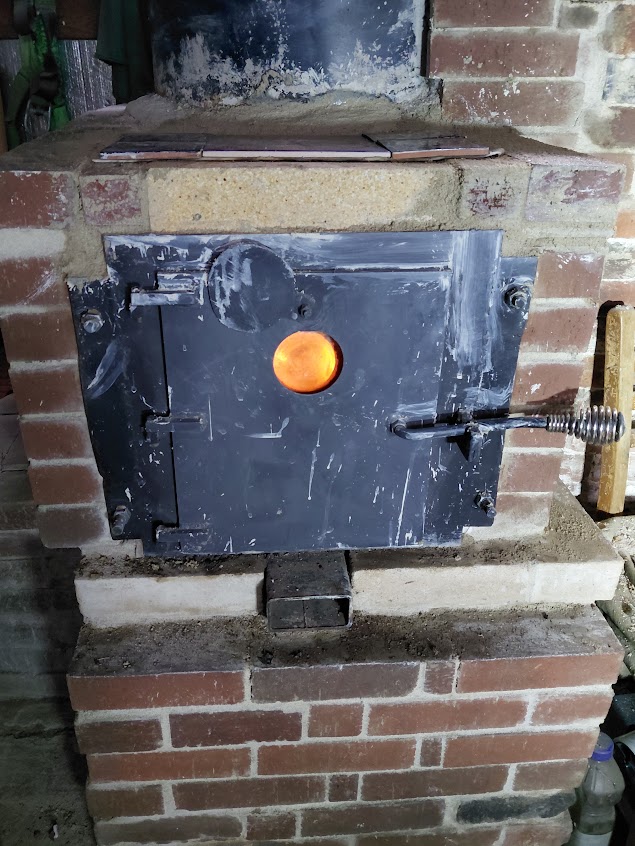

[Thumbnail for 20260907_160901.jpg]

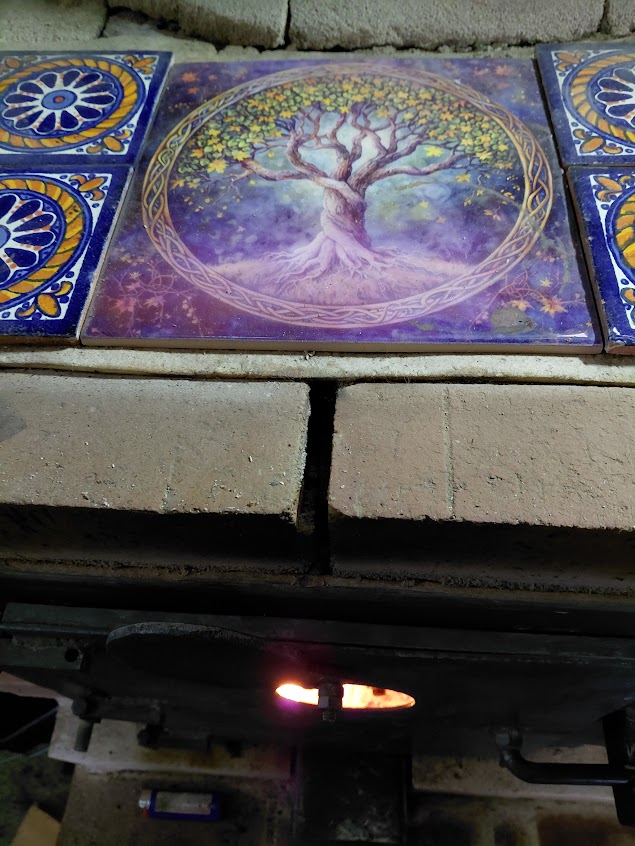

[Thumbnail for 20260304_113816.jpg]

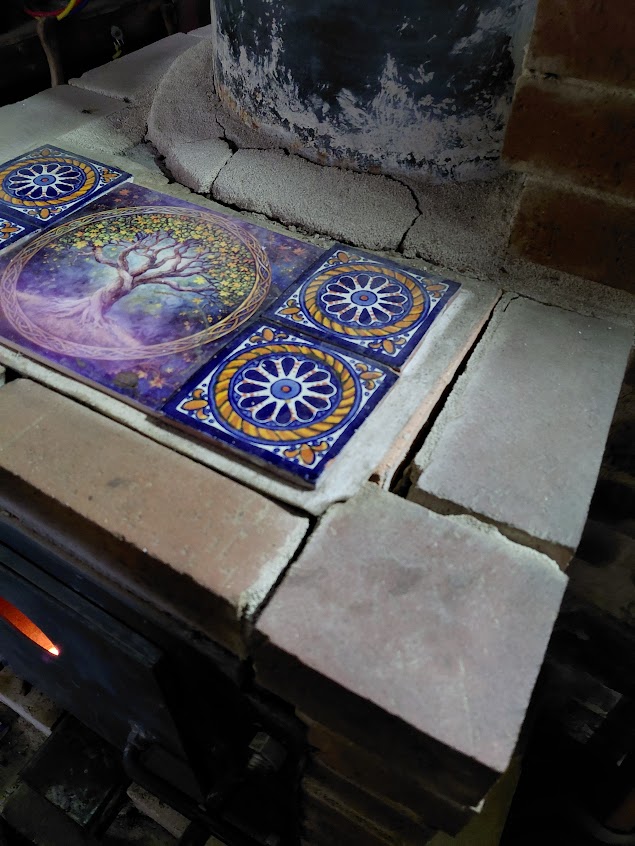

[Thumbnail for 20260304_113805.jpg]

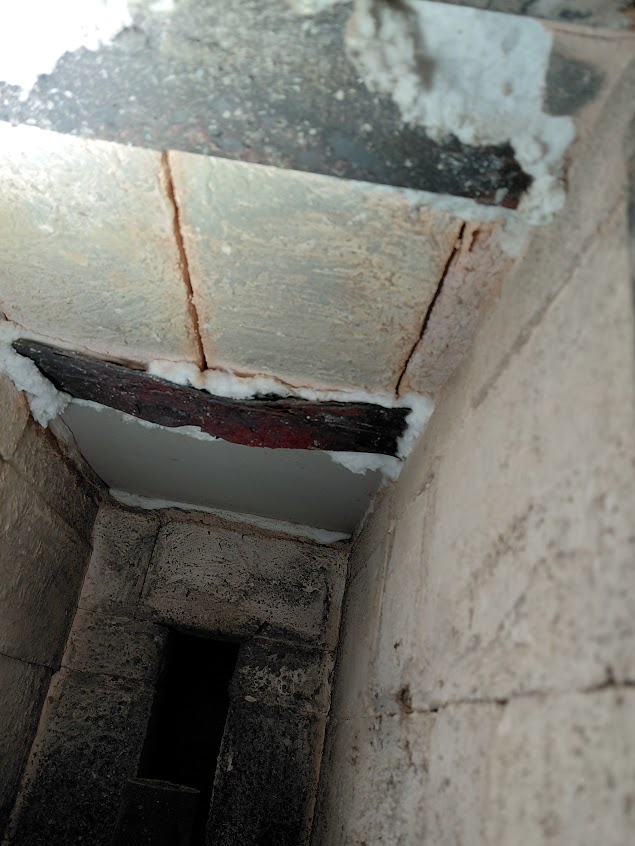

[Thumbnail for 20260304_113423.jpg]
